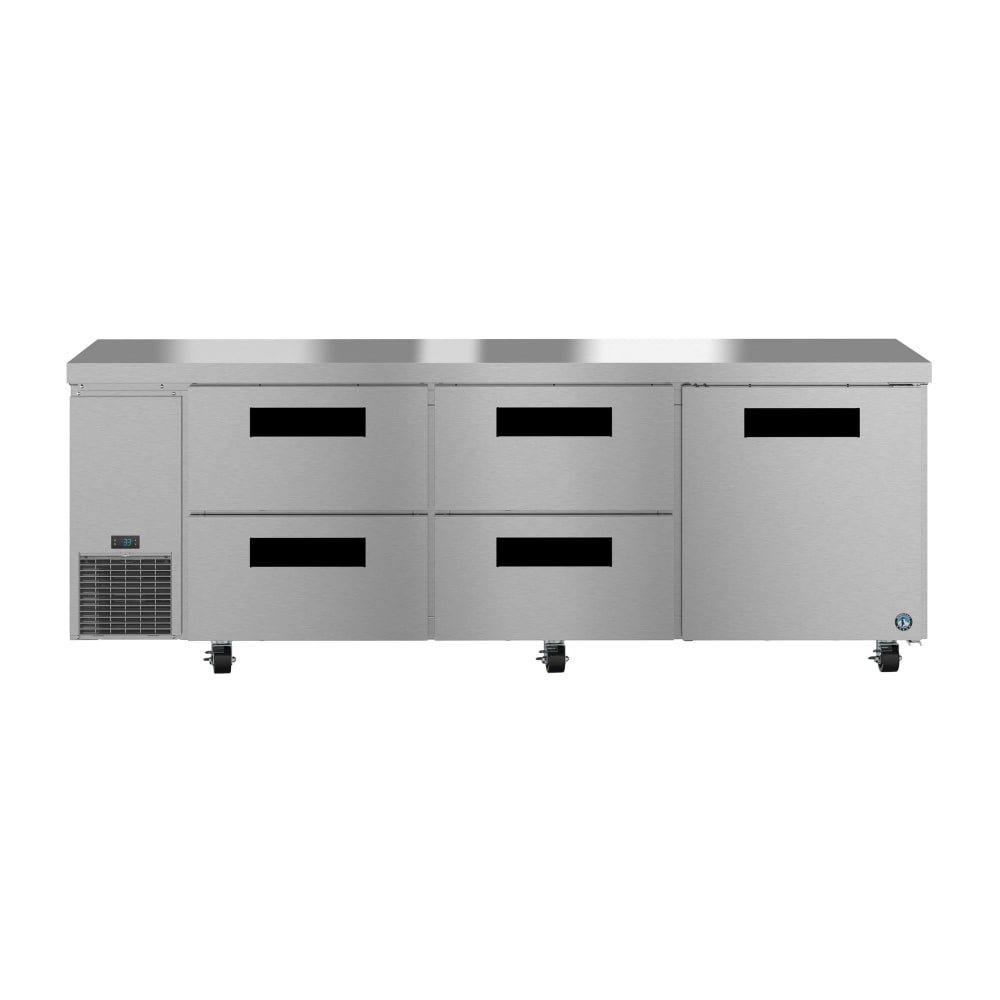

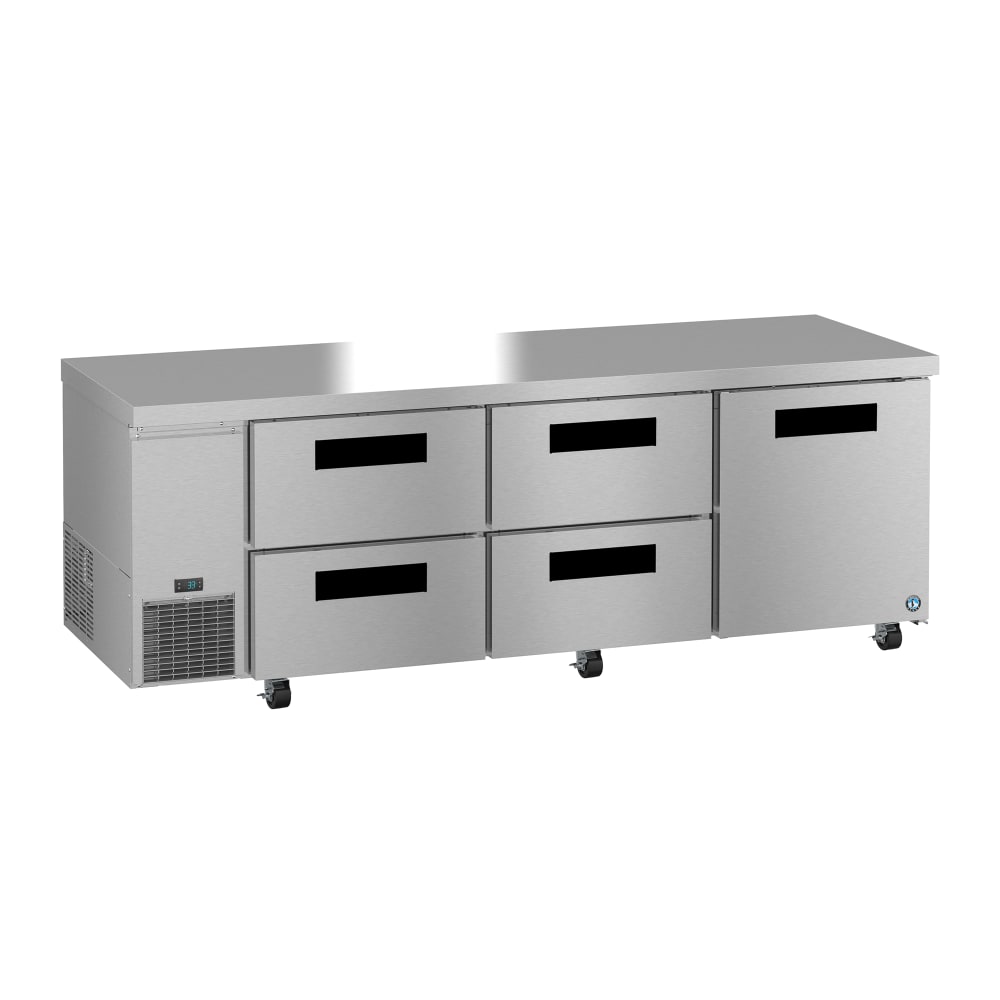

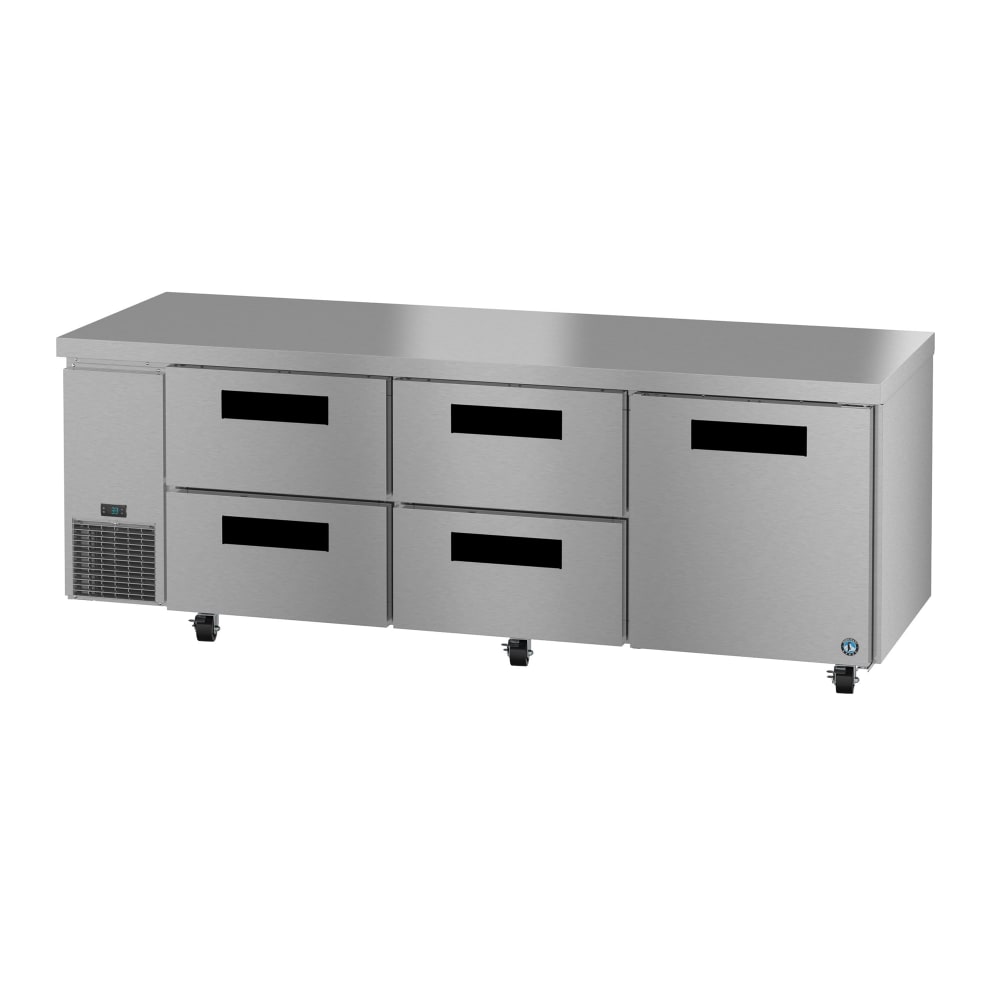

Hoshizaki ULR93B-D4 93" Steelheart Undercounter Refrigerator w/ (3) Sections, (1) Door & (4) Drawers, 115v

The Hoshizaki ULR93B-D4 Steelheart undercounter refrigerator’s interior has 30.17 cubic feet of storage capacity across its three sections, which are separated with four drawers and one door. Each drawer is equipped with a stainless steel frame, acetal roller, and stop for seamless operation. The solid door is designed with a self-closing feature using springs and can stay open past 90 degrees. For versatile placement options, the door is field reversible, and the front-breathing airflow design supports a 1-inch rear wall clearance. The unit’s durable stainless steel construction and the two interior shelves’ epoxy coating resist corrosion for a long lifespan.

With a temperature range between 28 and 45 degrees Fahrenheit, the Hoshizaki ULR93B-D4 undercounter refrigerator uses R290 hydrocarbon refrigerant for eco-friendly cooling. Staff can digitally set the holding temperature, and the current temperature readout is available for view on the external display. While the off-cycle defrost works to inhibit ice growth on important coils, the non-electric evaporation system gets rid of excess humidity and water. The self-contained refrigeration system is side mounted for convenient access, and this unit measures 93 inches wide by 33¹/₄ inches deep by 33⁷/₈ inches overall.

Product Details

• From the Steelheart series
• 3 sections
• 30.17-cu.-ft. capacity
• Constructed of durable stainless steel
• Foamed-in-place polyurethane insulation
• 1 spring-assisted, self-closing door
• Field-reversible design
• Stay-open feature past 90 degrees
• 4 drawers with stainless steel frames, acetal rollers, and stops
• Each drawer accommodates (2) 12-in. x 20-in. x 6-in. pans (not included)
• Aluminum door/drawer handles
• Magnetic snap-in door/drawer gaskets

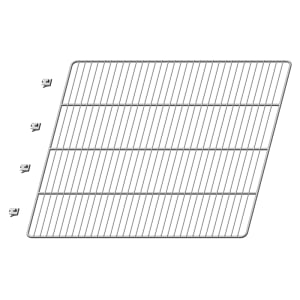

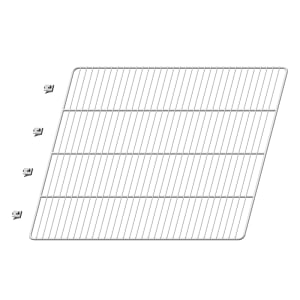

• 2 epoxy-coated shelves
• Aluminum pilasters support ¹/₂-in. shelf adjustments
• 4-in. stem casters (3 with brakes)
• Digital temperature display

Refrigeration System

• Self-contained
• Side mounted
• Front-breathing airflow design
• Removable air filter
• Includes mullion heaters
• Energy-efficient, non-electric evaporation system
• E-coated evaporator coil
• Off-cycle defrost prevents ice buildup
• Environmentally friendly R290 refrigerant
• Temperature holding range: 28-45 degrees F

Dimensions & Utilities

• 93 in. W x 33¹/₄ in. D x 33⁷/₈ in. H
• 5 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

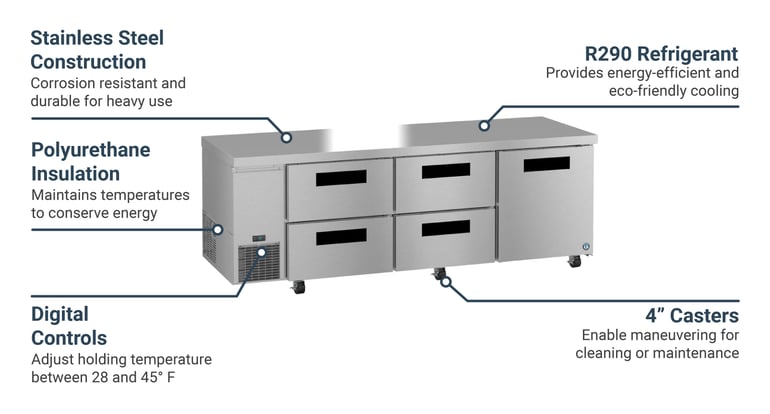

Product Features

*Free shipping on Hoshizaki ULR93B-D4 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, three-section, 93"W, 30.17 cu. ft., self-contained side mounted refrigeration system, (1) reversible solid hinged doors, (2) adjustable shelves, (4) drawers each accommodates (2) 12" x 20" x 6" deep (pans by others), stainless steel interior, stainless steel exterior front, sides & top, stainless steel interior sides, back, and floor, (6) 4" stem casters (3 with brakes), R290 hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Limited Parts; 5-year Labor; 7-year Compressor Parts
