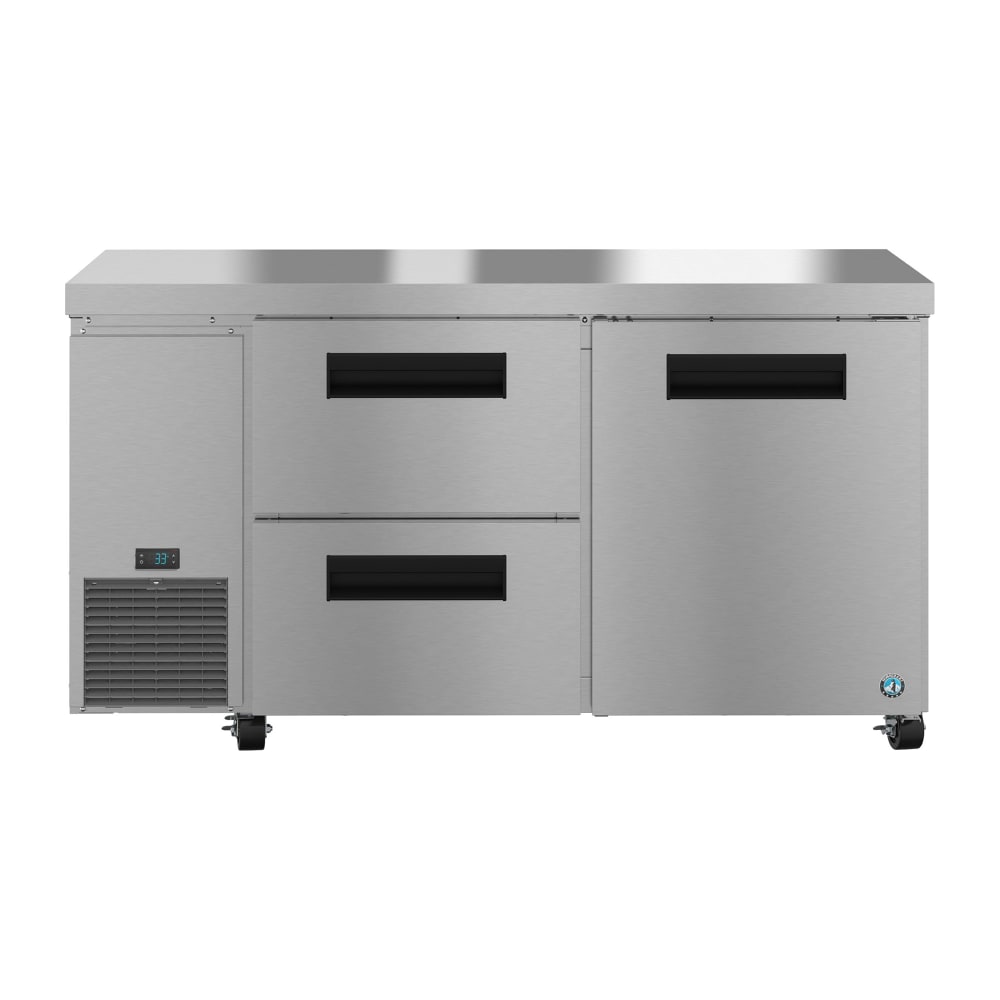

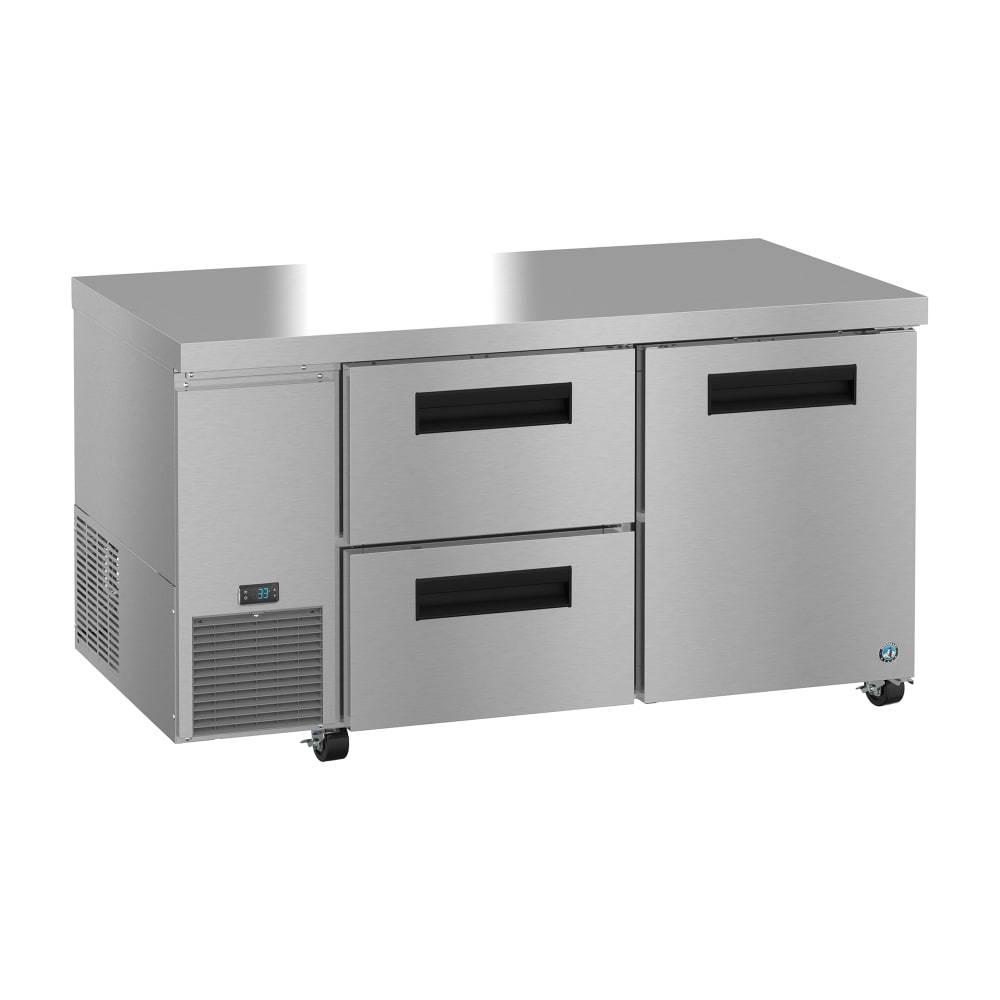

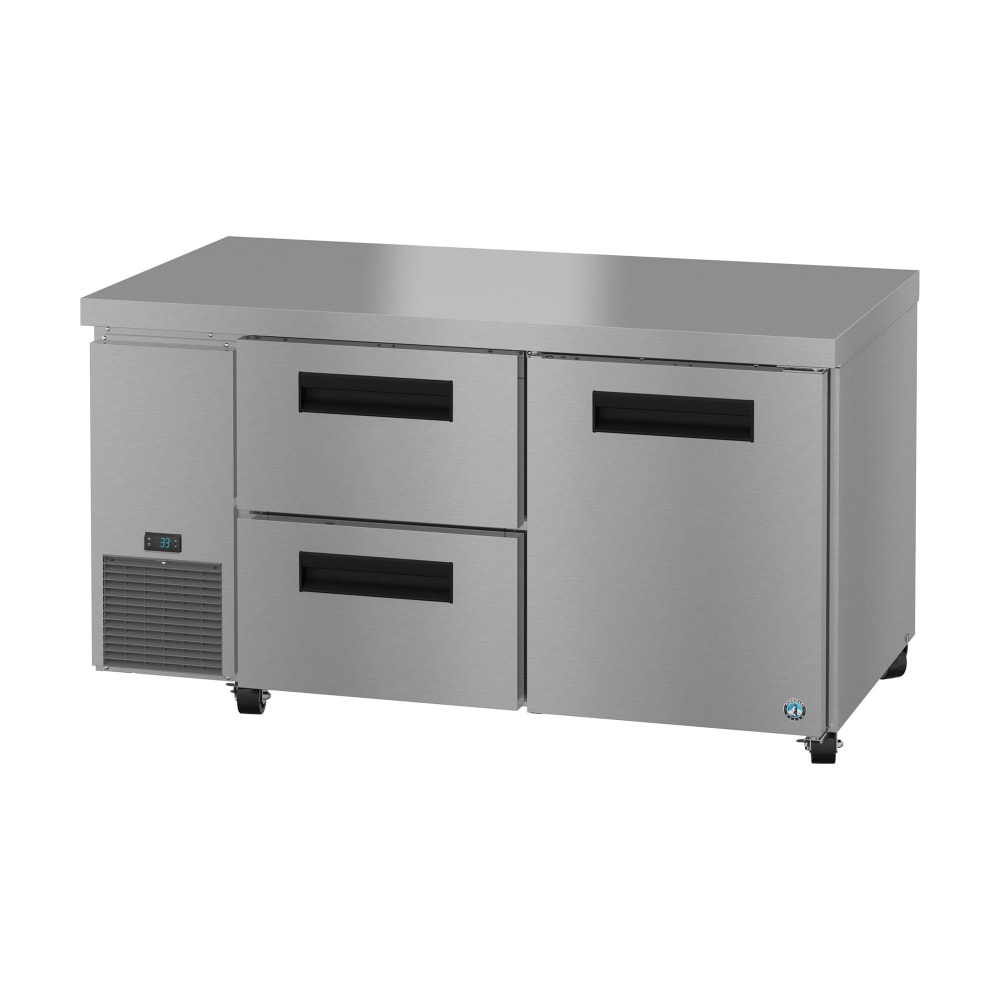

Hoshizaki ULR60B-D2 60" Steelheart Undercounter Refrigerator w/ (2) Sections, (1) Door & (2) Drawers, 115v

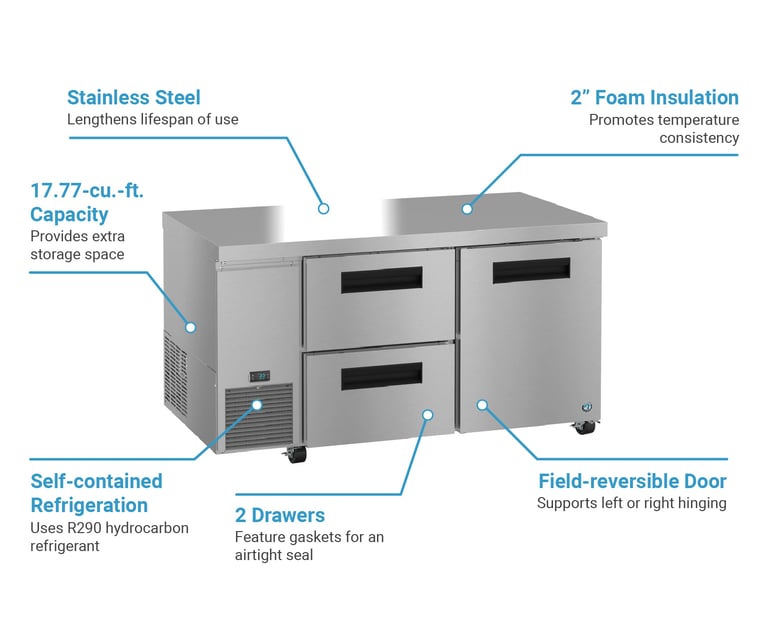

The Hoshizaki ULR60B-D2 undercounter refrigerator has a unique design that consists of one door and two drawers. The 17.22-cubic-foot space holds two adjustable shelves behind the door section, and the drawers are suited for one 12-inch by 10-inch by 6-inch and two fourth-size pans per drawer; the pans are supplied by others. For heavy weight bearing, the drawer features 14-gauge stainless steel slides and nylon rollers. The door is field reversible for left or right hinging, and for an airtight seal that helps stop cold air from escaping, the drawers and door feature snap-in magnetic door gaskets. For useful durability, the top, front, and sides are made of quality stainless steel, while the back and bottom feature a coated steel construction. To fit various floor plans, it sits on 4-inch casters with two brakes.

The Hoshizaki ULR60B-D2 refrigerator has a side-mounted and self-contained refrigeration system. Via its capillary tubes, this refrigeration system controls the flow of R290 refrigerant for environment-safe operation. Great for inhibiting frost accumulation, this unit features an off-cycle defrost system, and the evaporator coil is E-coated to resist environmental conditions. Moisture from the defrost system is handled with the non-electric evaporation system. For seamless operation, it features an electronic controller with an adjustable range from 28 to 45 degrees Fahrenheit.

Product Details

• Steelheart series
• 17.22-cu.-ft. space
• 2 adjustable shelves
• Adjustable ¹/₂-in. shelf supports
• Drawer configurations: (1) 12-in. x 10-in. x 6-in. and (2) fourth-size pans
• Pans supplied by others
• 1 reversible, solid-hinged doors
• 2 drawers
• Stainless steel construction
• Steel-coated back and bottom
• ABS interior topside
• All-welded construction
• 14-ga. stainless steel drawer slides and frames
• Extruded flush-mount drawer and door handles
• Magnetic door gaskets
• Foam insulation
• 4-in. casters with brakes

Refrigeration System

• Self-contained design
• Capillary tubes
• E-coated evaporator
• R290 hydrocarbon refrigerant
• Off-cycle defrost
• Non-electric evaporation system
• Temperature controller with display
• Temperature holding range: 28-45 degrees F

Dimensions & Utilities

• 60 in. W x 33¹/₄ in. D x 33⁷/₈ in. H
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 10 ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki ULR60B-D2 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, two-section, 60"W, 17.22 cu. ft., self-contained side mounted refrigeration system, (1) reversible solid hinged doors, (2) adjustable shelves, (2) drawers each accommodates (1) 12" x 10" x 6" deep & (2) 1/4 pans (pans by others), stainless steel interior, stainless steel exterior front, sides & top, stainless steel interior sides, back, and floor, (4) 4" stem casters (2 with brakes), R290 hydrocarbon refrigerant, 1/5 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Limited Parts; 5-year Labor; 7-year Compressor Parts
