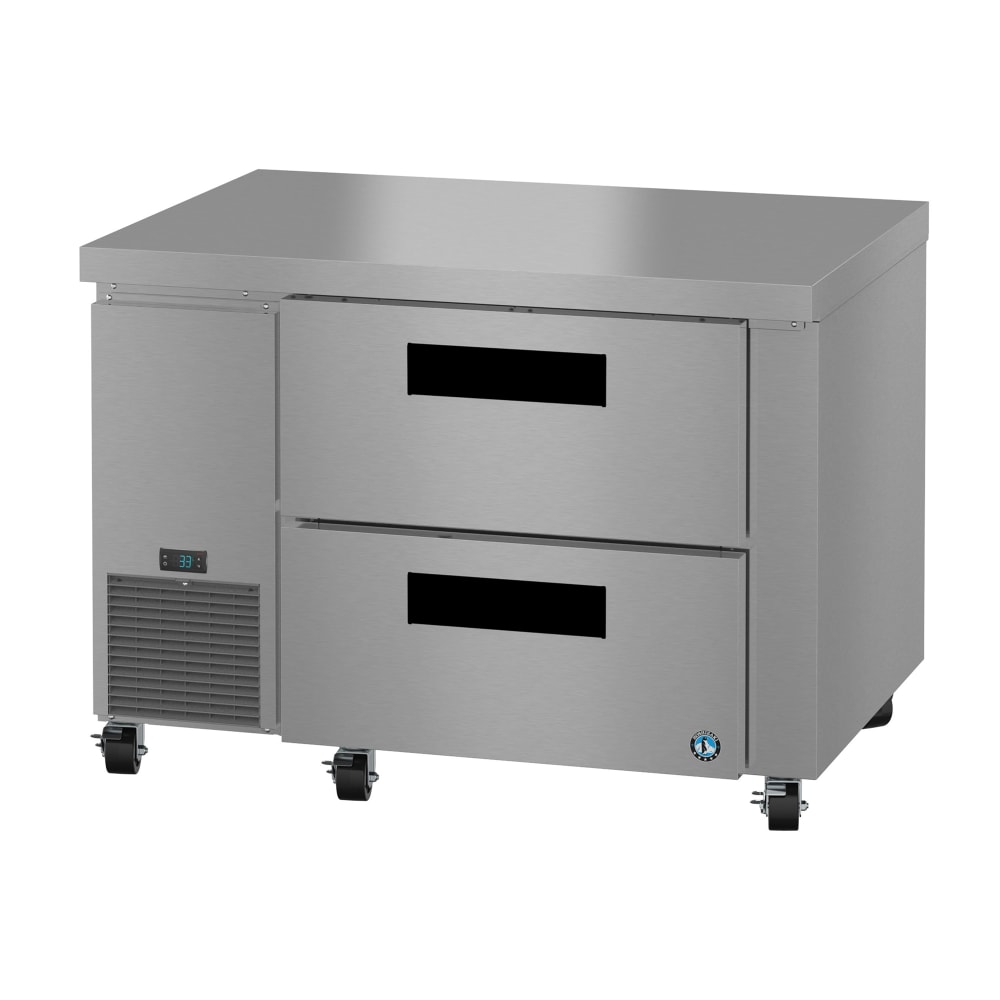

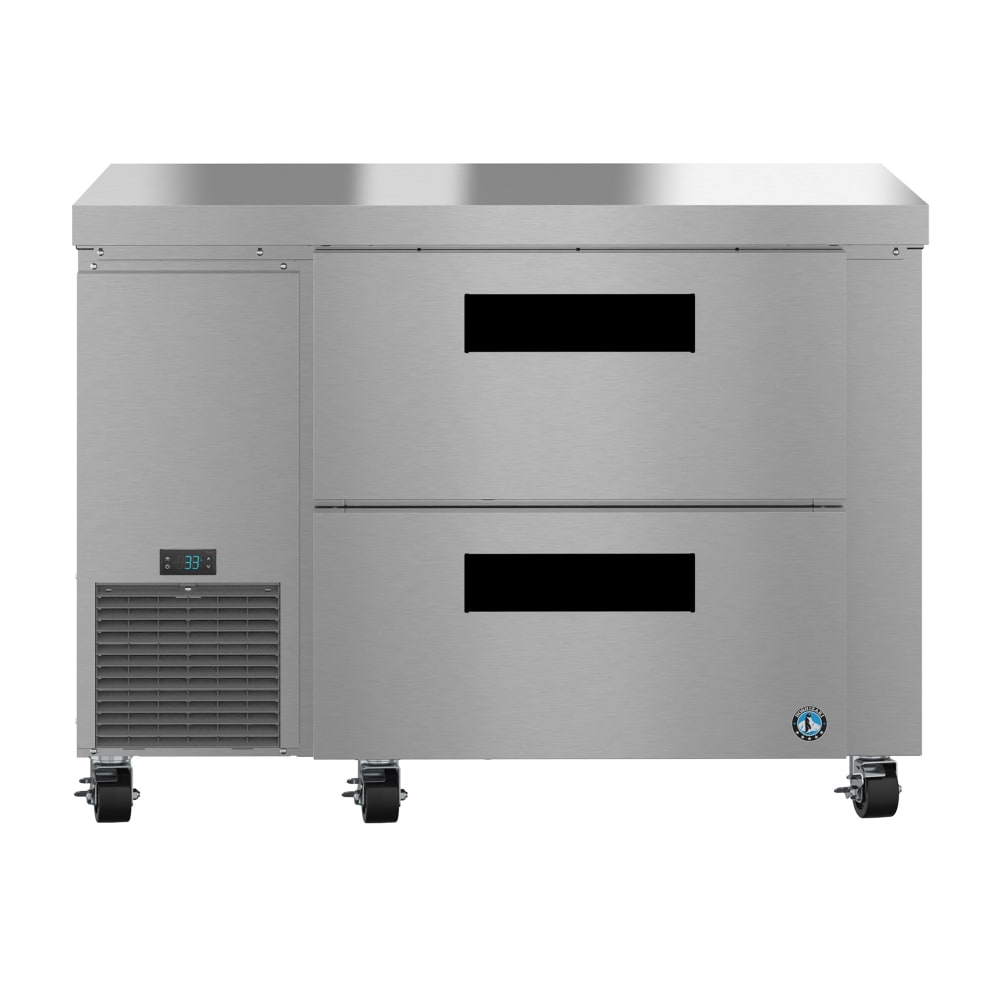

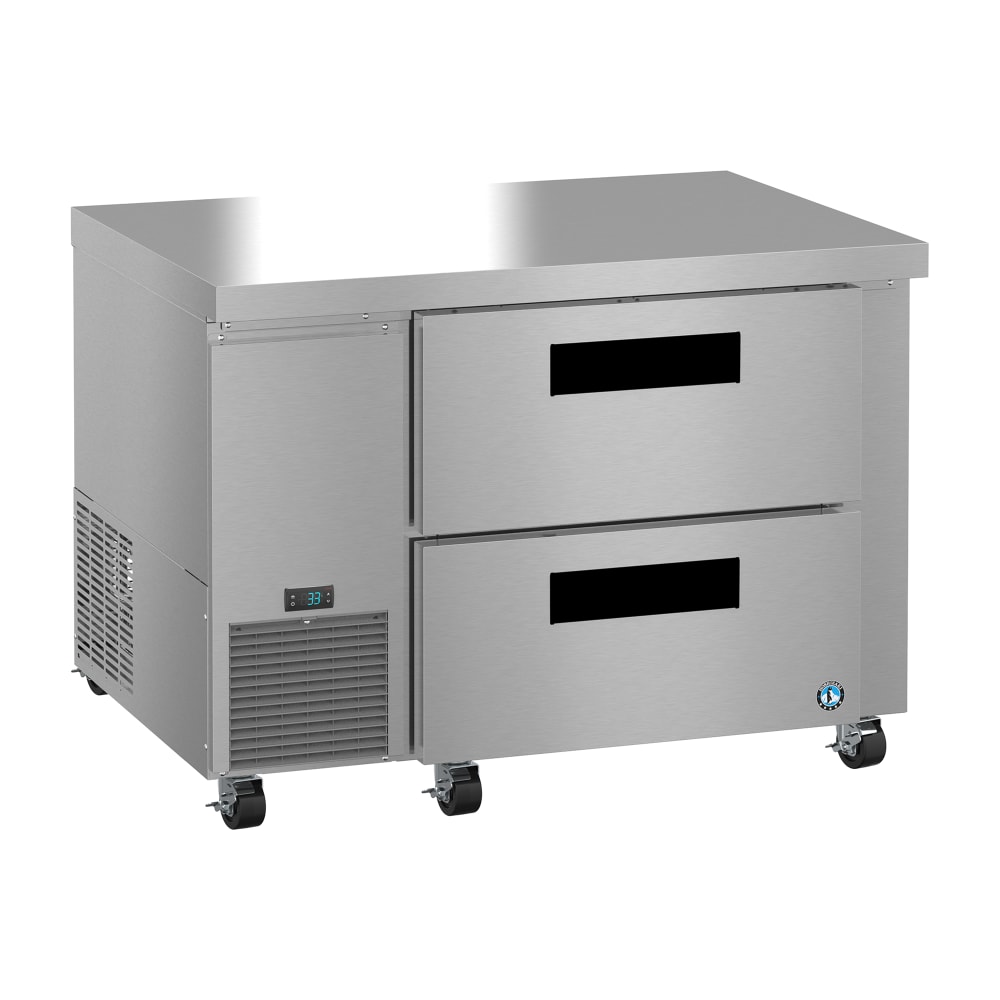

Hoshizaki ULR46B-D2 46" Steelheart Undercounter Refrigerator w/ (1) Section & (2) Drawers, 115v

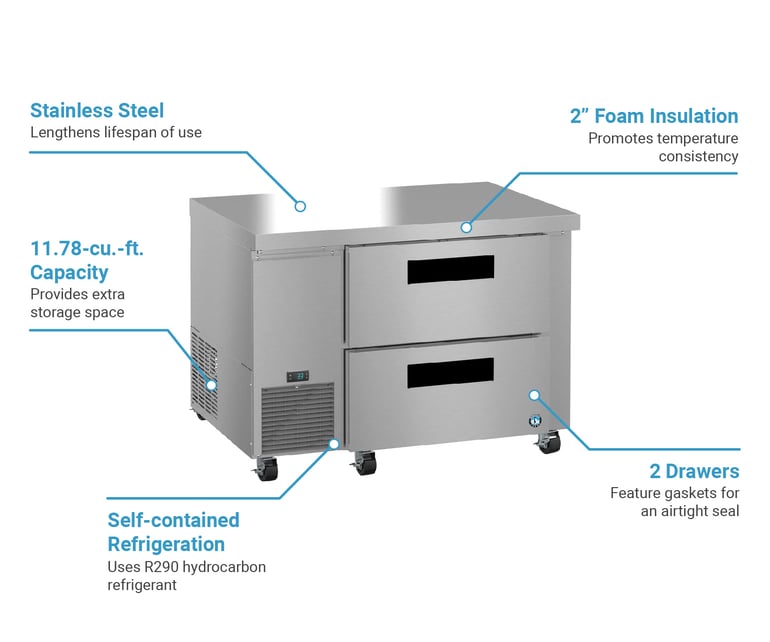

The Hoshizaki ULR46B-D2 undercounter refrigerator features two heavy-duty, robust drawers for optimal weight bearing. The drawers’ 41-gauge stainless steel acetal rollers and ball bearings bear 250 pounds of product. In total, the cabinet provides 11.78 cubic feet of space; the drawers can accommodate two 12-inch by 20-inch full-size pans per drawer. The unit features a stainless steel front and interior, and the interior is insulated with 2-inch polyurethane to maintain consistent cabinet temperatures. Flush-mount aluminum handles offer simple access while providing a classic, quality look.

To keep stocked items at product-safe temperatures, the Hoshizaki ULR46B-D2 undercounter refrigerator features a self-contained, side-mounted refrigeration system. Via its electronic controller, this unit can be adjusted from 28 to 45 degrees Fahrenheit. It uses R290 hydrocarbon refrigerant via capillary tubes to streamline eco-friendly operation. To help prevent heavy accumulation of frost, it has an integrated defrost system.

Product Details

• From the Steelheart series
• 11.78-cu.-ft. space
• 2 drawers
• 250-lb. load capacity
• Accommodates (2) 12-in. x 20-in. full-size pans per drawer
• Stainless steel drawer fronts and interior
• Stainless steel interior with ABS top
• 14-ga. all-welded construction
• 14-ga. stainless steel acetal rollers and ball bearings
• Magnetic drawer gaskets
• Flush-mount aluminum handles
• 2-in. foamed-in-place polyurethane

Side-mounted Refrigeration System

• Self-contained
• Non-electric evaporation system
• Capillary tubes
• R290 hydrocarbon refrigerant
• Off-cycle defrost
• Temperature controller with display
• Temperature holding range: 28-45 degrees F

Dimensions & Utilities

• 46 in. W x 33¹/₄ in. D x 33⁷/₈ in. H
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 10 ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki ULR46B-D2 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, one-section, 46"W, 11.78 cu. ft., self-contained side mounted refrigeration system, (2) drawers each accommodates (2) 12" x 20" x 6" deep (pans by others), stainless steel interior, stainless steel exterior front, sides & top, stainless steel interior sides, back, and floor, (6) 4" stem casters (3 with brakes), R290 hydrocarbon refrigerant, 1/5 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Limited Parts; 5-year Labor; 7-year Compressor Parts

Hoshizaki ULR46B-D2 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Catalog
