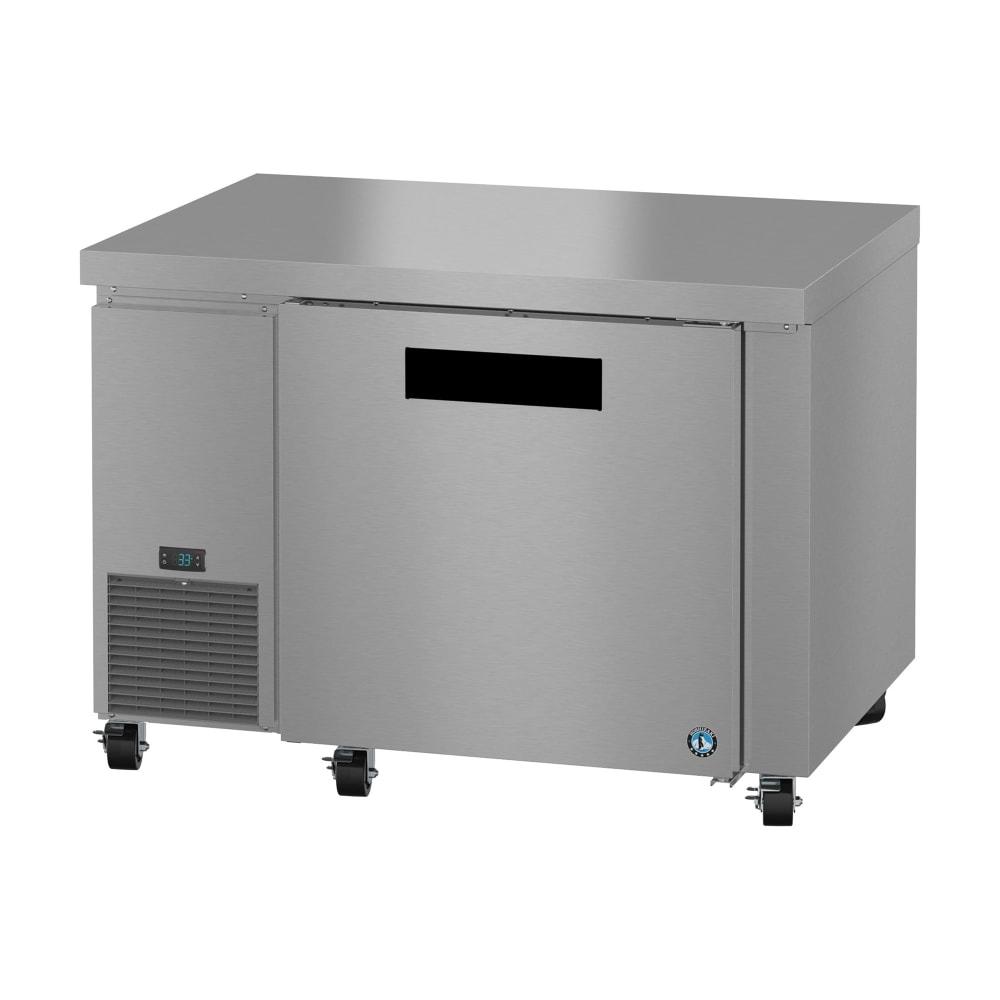

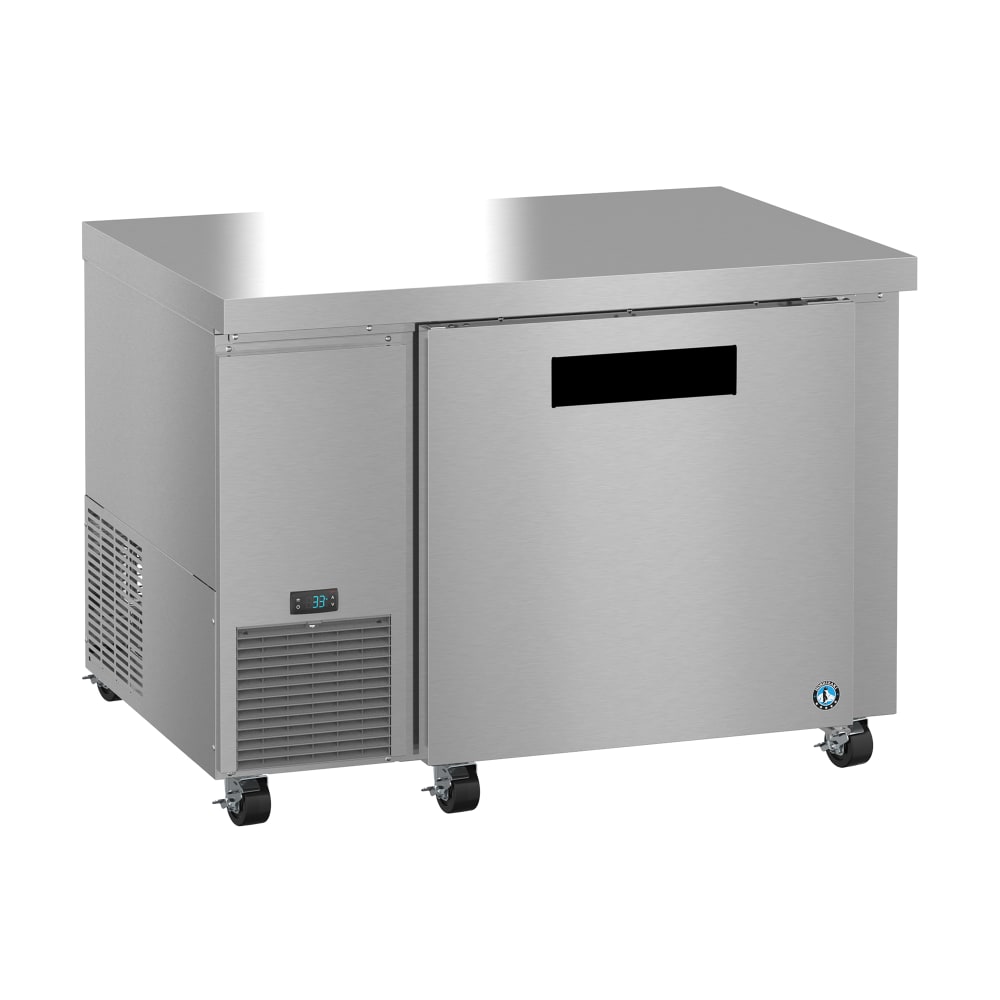

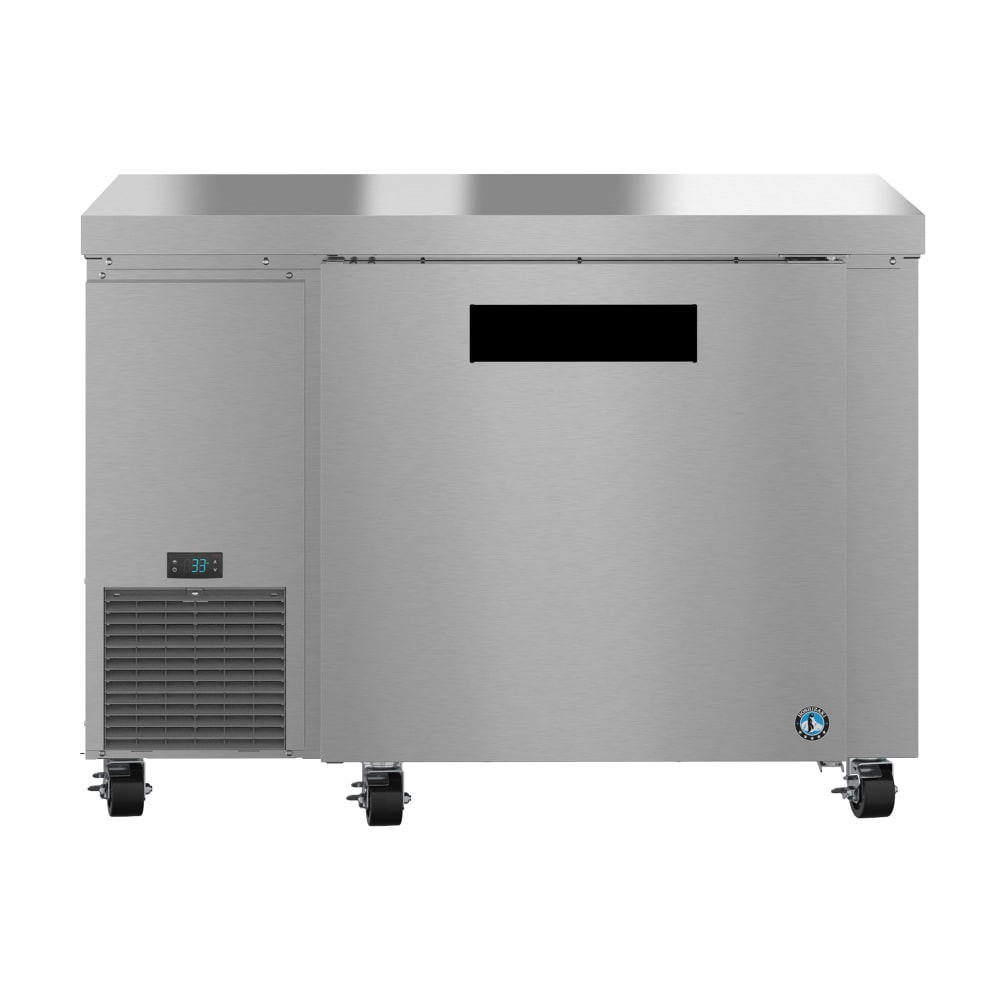

Hoshizaki ULR46B 46" Steelheart Undercounter Refrigerator w/ (1) Section & (1) Door, 115v

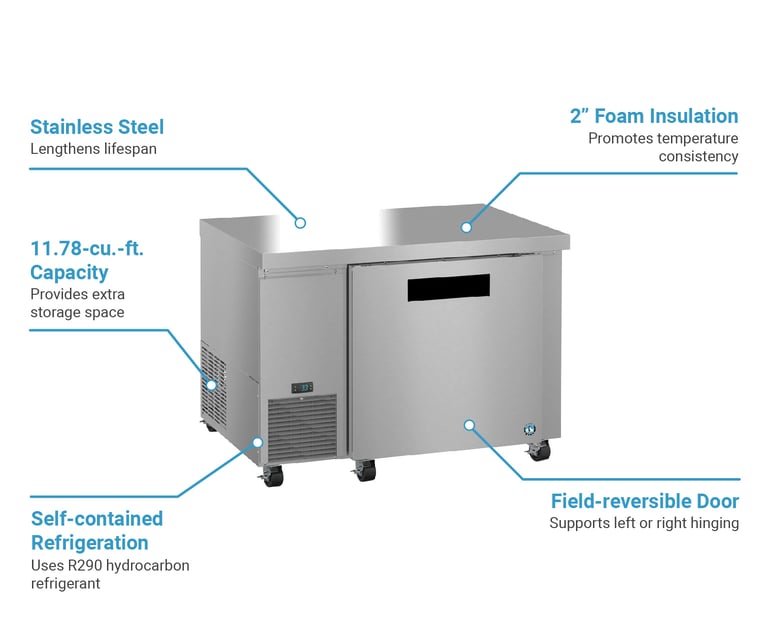

The Hoshizaki ULR46B Steelheart refrigerator offers a compact and mobile design that’s great for packed spaces because it fits under the counter. Offering medium-volume storage, this unit holds two adjustable shelves in its 11.78-cubic-foot compartment. The shelves are intended to be mounted on aluminum pilasters, which are spaced in ¹/₂-inch increments. The top, bottom, and sides are made of stainless steel for durability and corrosion resistance, and the back and bottom are made of coated steel. The cabinet is insulated with 2-inch-thick foamed insulation to keep hot air out, maintaining consistent internal temperatures. To fit various floor plans, it sits on six 4-inch stem casters. The single, solid door constructed to the cabinet has a steeped design to help preserve the quality of its snap-in door gasket; the door also utilizes a self-closing design to reduce cold air loss.

The Hoshizaki ULR46B undercounter refrigerator’s refrigeration system is side mounted. For eco-friendly operation, this unit is equipped with capillary tubes to use R290 hydrocarbon refrigerant. The off-cycle defrost system works to inhibit ice accumulation, and the non-electric evaporation system handles excess condensate. Via the temperature controller with display, employees can adjust and track temperatures from 28 and 45 degrees Fahrenheit.

Product Details

• Steelheart series
• Reach-in, 1-section refrigerator
• 11.78-cu.-ft. space
• 2 adjustable shelves
• Adjustable in ¹/₂-in. increments
• 1 field-reversible, solid door
• Stainless steel top, bottom, and sides
• Coated steel back and bottom
• Stainless steel cabinet interior with ABS top
• 2-in. foamed-in.-place polyurethane
• (6) 4-in. stem casters

Solid Door

• Steeped design
• 1-piece, extruded aluminum handle
• Spring assisted self-closing
• 90-degree stay-open feature
• Snap-in magnetic doors gaskets
• ABS liner
• Field-reversible hinging

Refrigeration System

• Self-contained
• Side mounted
• Non-electric evaporation system
• Capillary tubes
• R290 hydrocarbon refrigerant
• Off-cycle defrost
• Digital display
• Temperature holding range: 28-45 degrees F

Dimensions & Utilities

• 46 in. W x 33¹/₄ in. D x 33⁷/₈ in. H
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 10 ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki ULR46B within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, one-section, 46"W, 11.78 cu. ft., self-contained side mounted refrigeration system, (1) reversible solid hinged doors, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, stainless steel interior sides, back, and floor, (6) 4" stem casters (3 with brakes), R290 hydrocarbon refrigerant, 1/5 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

6-year Limited Parts; 5-year Labor; 7-year Compressor Parts

Hoshizaki ULR46B Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual
