Hoshizaki SRK-20J3 Remote Condenser for KMS-2000MLH, 208-230v/3ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Free Shipping Item
$7,180.00 /Each
Contact us for details!
Selected Voltage: 208-230V, 3 Phase
| 208-230V, 3 Phase |
| 208-230V, 1 Phase |
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-01-2025 to save before the price increases!

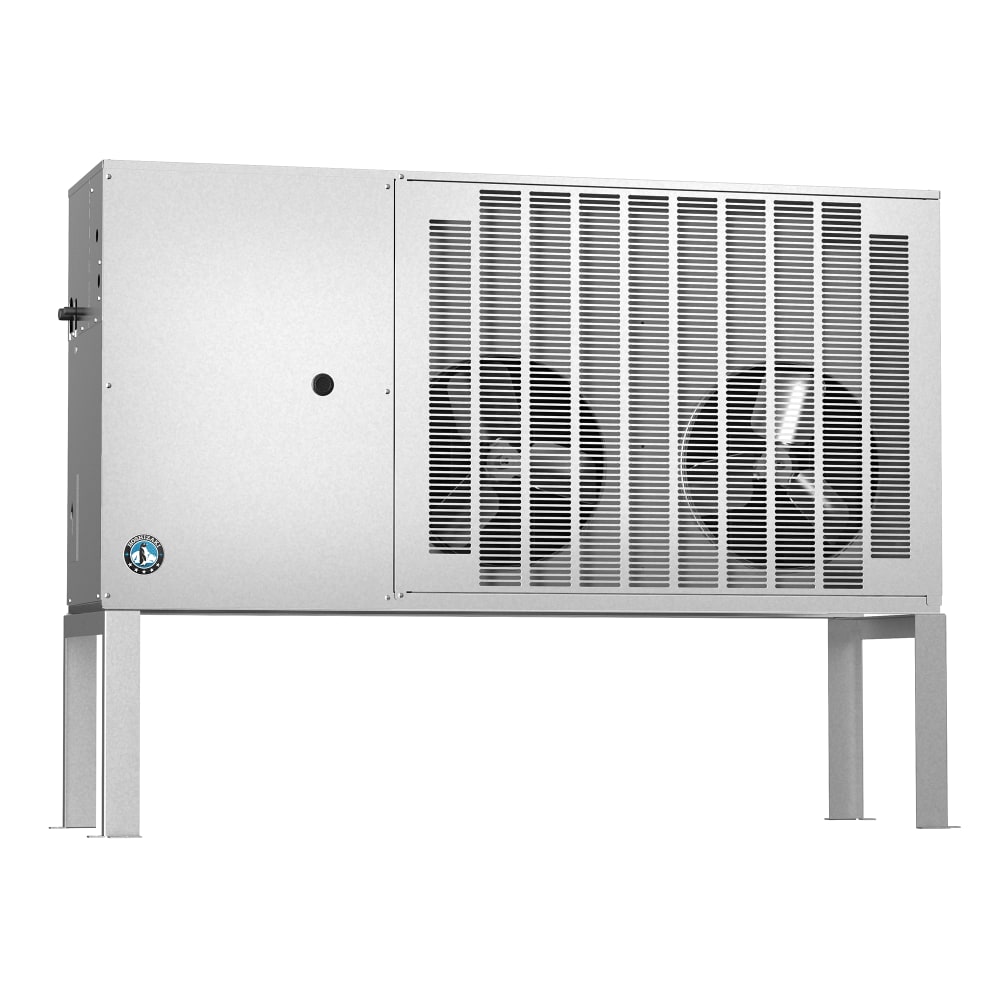

Hoshizaki SRK-20J3 Description
Engineered to be used with a KMS-2000MLH ice maker, the Hoshizaki SRK-20J remote condenser operates in a separate location and is connected to the machine head with refrigerant lines. Installing an ice machine with this condenser will enable operators to choose where heat and noise are dissipated. The unit is quiet and can be installed outdoors because it has a weatherproof cabinet body.
Product Details
- Made for the KMS-2000MLH ice machine head
- Durable cabinet is resistant to damage from weather
- Quiet operation
- Uses R404A refrigerant
Ideal Installation Conditions
- Surrounding ambient temperature: -20 to 122 degrees F
- Maximum drop for install: 10 ft. below ice machine
- Maximum rise for install: 33 ft. above ice machine
- Airflow clearance: 24 in.
Dimensions & Utilities
- 62 in. W x 21 in. D x 45 in. H
- 11 A
- 208-230 V/60 Hz/3 ph
Product Features
*Free shipping on Hoshizaki SRK-20J3 within the 48 contiguous states.
From The Manufacturer
Remote Condenser, for KMS-2000MLH, R-404A refrigerant, 208-230v/60/3, 11.0 amps, cULus
*Image may not depict product color, inclusions or accessories.
5-year Condenser Parts
Hoshizaki SRK-20J3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| Depth (in) | 21 |
| For Use With | KMS-2000MLH |
| Height (in) | 30 |
| Hertz | 60 |
| Part Type | Compressor |
| Phase | 3 |
| Product | Parts & Accessories |
| Product Type | Ice Makers & Bins |
| Refrigerant | R404A |
| Special Features | Remote |
| Voltage | 208/230 |
| Warranty | 5-year Condenser Parts |
| Width (in) | 62 |
| Weight | 325.00 |
Documents
Important Prop 65 information for California residents.
Replacement for the Following Item
- Hoshizaki SRK20H3
