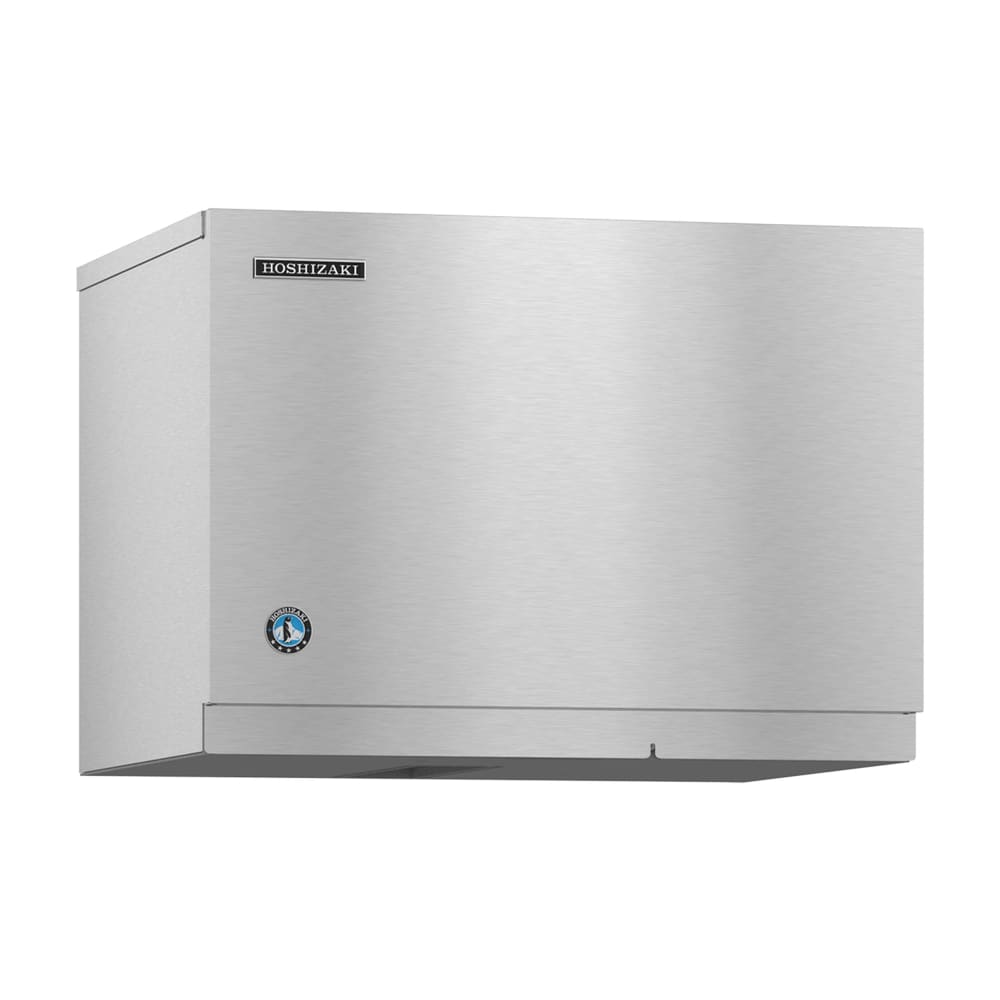

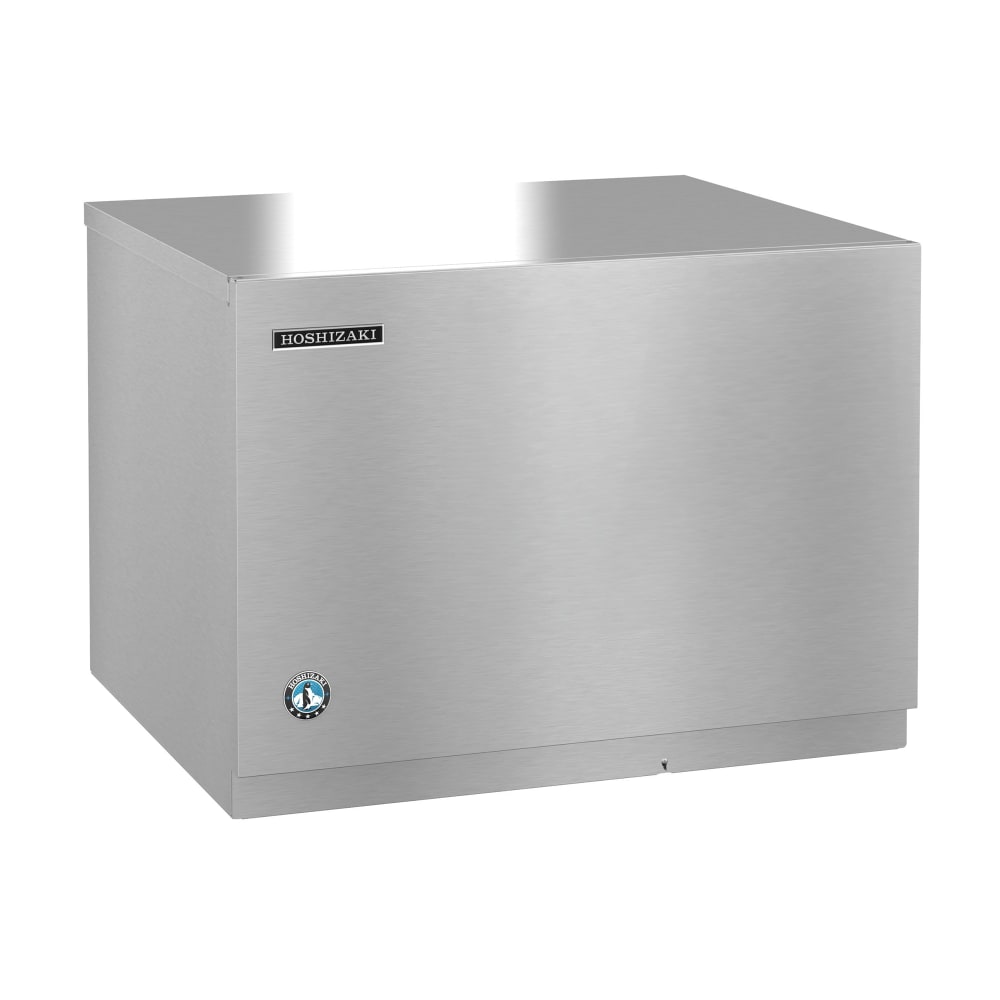

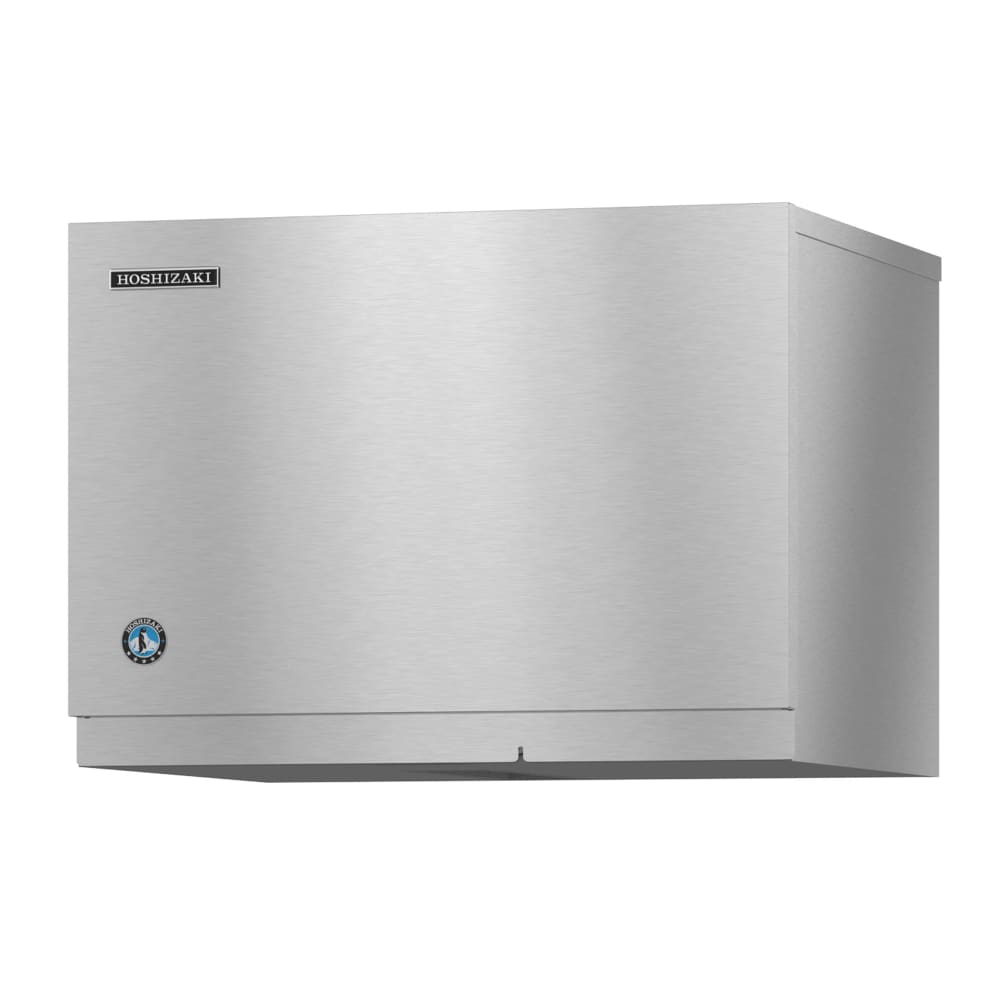

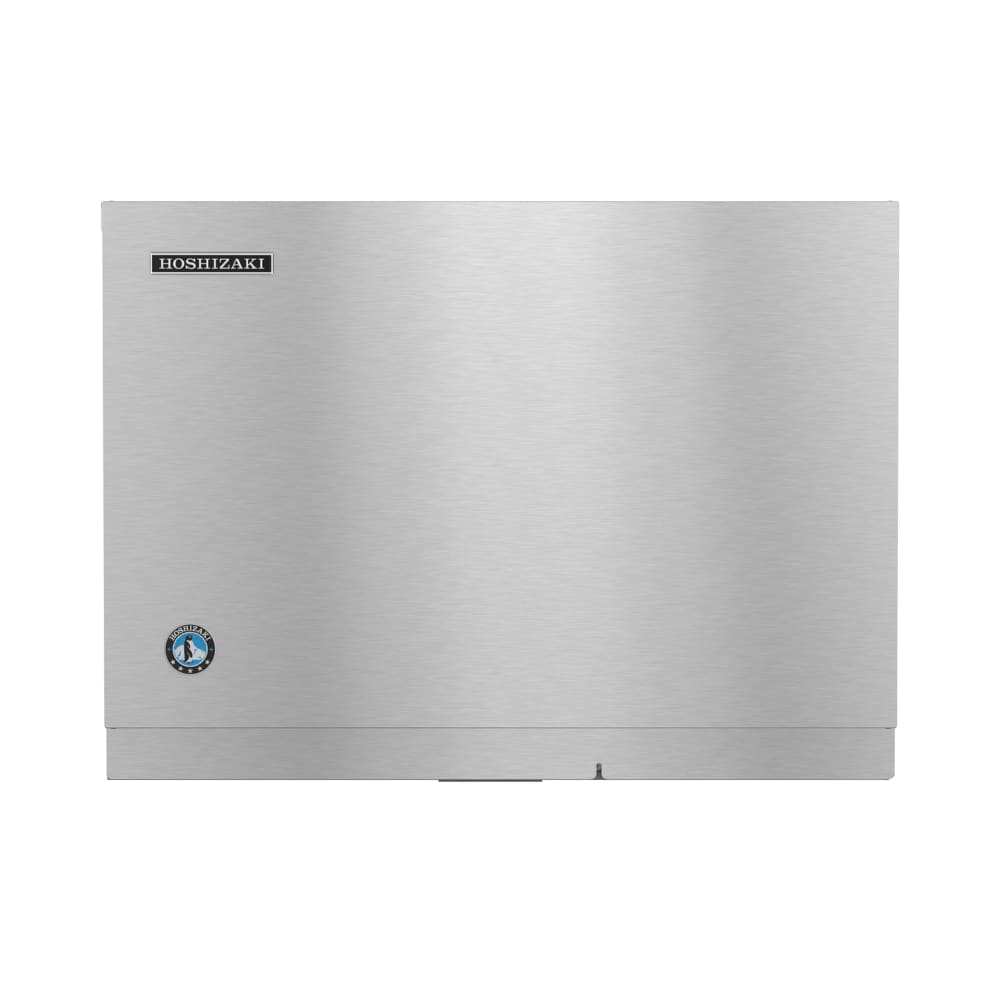

Hoshizaki KMD-505MRJZ 30" Crescent Cube Ice Machine Head - 560 lb/24 hr, Remote Cooled, 115v/1ph

Ideal for medium-volume locations, the Hoshizaki KMD-505MRJZ ice maker can produce 560 pounds of ice in a day in locations with an ambient temperature of 70 degrees Fahrenheit and 50-degree incoming water. The unit produces half-cube ice with a crescent form and is ideal for use in soft drinks or in blended smoothies or cocktails.

The Hoshizaki KMD-505MRJZ maker unit uses R404a refrigerant and is circulated throughout the maker via the remote air-cooling system, which emits less heat than units with mounted cooling systems. The unit has a self-diagnostic program that monitors and notifies users of any discrepancies via the EverCheck alert system. For proper operation, the unit requires the purchase of a collection bin and must be hardwired into the locations electrical system.

Product Details

• KMEdge X series
• 560-lb. daily production in ideal conditions
• Ideal conditions: 70-deg. F air, 50-deg. F incoming water
• Cresent half-cube ice
• Ice dimensions: 1¹/₈ in. x 1¹/₂ in. x ¹/₂ in.
• Stainless steel exterior finish
• Self-contained condenser
• Self-diagnostic programming
• EverCheck alert system
• CycleSaver™ design
• Removable air filter
• Snap-fit parts
• Remote air-cooled design
• R404a refrigerant
• Bin required for operation

Dimensions & Utilities

• 30 in. W x 24 in. D x 22 in. H
• 12.4 A
• 115 V/60 Hz/1 ph (hardwired)

*Free shipping on Hoshizaki KMD-505MRJZ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 560 lb/24 hours at 70°/50° (440 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 115v/60/1-ph, 12.4 amps, NSF, UL (Replaces KMD-530MRJZ)

*Image may not depict product color, inclusions or accessories.

Hoshizaki KMD-505MRJZ Specifications

Spec Attribute	Spec Value
Manufacturer	Hoshizaki
24 Hr. Production (lb)	560
Compressor Type	Remote Cooled
Depth (in)	24
Height (in)	22
Ice Type	Crescent Cube
Phase	1
Product	Ice Machine Heads
Product Type	Ice Makers & Bins
Rating	Best
Series	KM EDGE X
Voltage	115
Warranty	3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
Width (in)	30
Weight	176.00
