Hoshizaki KMD-410MWJ 22" Crescent Cube Ice Machine Head - 449 lb/24 hr, Water Cooled, 115v/1ph

Name: Hoshizaki KMD-410MWJ 22" Crescent Cube Ice Machine Head - 449 lb/24 hr, Water Cooled, 115v/1ph
Brand: Hoshizaki
SKU: 440-KMD410MWJ
Price: 4085.00 USD
Availability: InStock

Write a Review!KaTom #: 440-KMD410MWJ • MPN: KMD-410MWJ

440-KMD410MWJ 22" Crescent Cube Ice Machine Head - 449 lb/24 hr, Water Cooled, 115v/1ph

Typically ships in 2 - 3 weeks

Free Shipping Item

$4,085.00 /Each

Add-ons & Options

Protect Your Product
Coverage starting at $155.25
Edit Remove

Selected Compressor Type: Water Cooled

Air Cooled

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

White Glove Delivery

Contact your sales rep for availability

Attention: Order by 05-01-2025 to save before the price increases!

Hoshizaki KMD-410MWJ Description

To streamline installation, the Hoshizaki KMD-410MWJ ice machine head has a self-contained condenser. It cools with R404A refrigerant, which is a safe choice for environmental purposes. If ambient conditions are optimal, this unit creates 449 pounds of ice daily, but it makes closer to 436 pounds per day when conditions are less than ideal. This ice maker is designed for use with an ice and beverage dispenser, which is sold separately.

The Hoshizaki KMD-410MWJ crescent-cube ice maker has a stainless steel evaporator that provides protection against rust and corrosion. Its exterior is also made of stainless steel, making it durable for commercial use. To address maintenance needs, this unit has an EverCheck™ alert system that informs employees of the current issues. Creating ice in half the time as comparable ice machines, it operates with a CycleSaver™ design.

Product Details

449-lb. maximum daily ice production
436-lb. AHRI-certified daily ice production

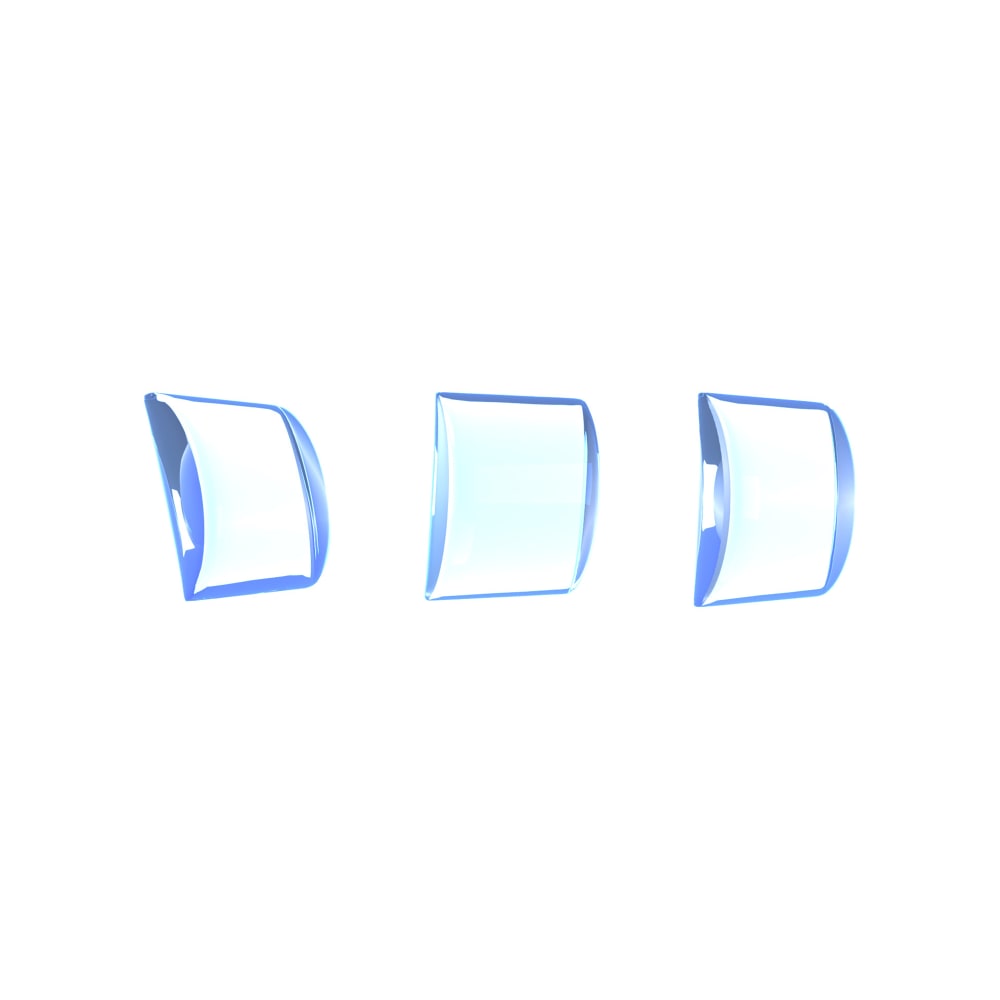

Makes crescent-cube ice
Ice dimensions: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
Water-cooled, self-contained condenser
Utilizes R404A refrigerant
Resilient stainless steel finish
For use with ice and beverage dispenser
Maintenance needs addressed with EverCheck alert system
Stainless steel evaporator
CycleSaver design for quick operation
Ideal incoming air temperature: 45-100 degrees F
Ideal incoming water temperature: 45-90 degrees F
Ideal incoming water pressure: 10-113 PSIG
6,300-BTU heat transfer capacity

Dimensions & Utilities

22.25 in. W x 24.13 in. D x 24 in. H
6.6 A, 4.1 kW
115 V/60 Hz/1 ph

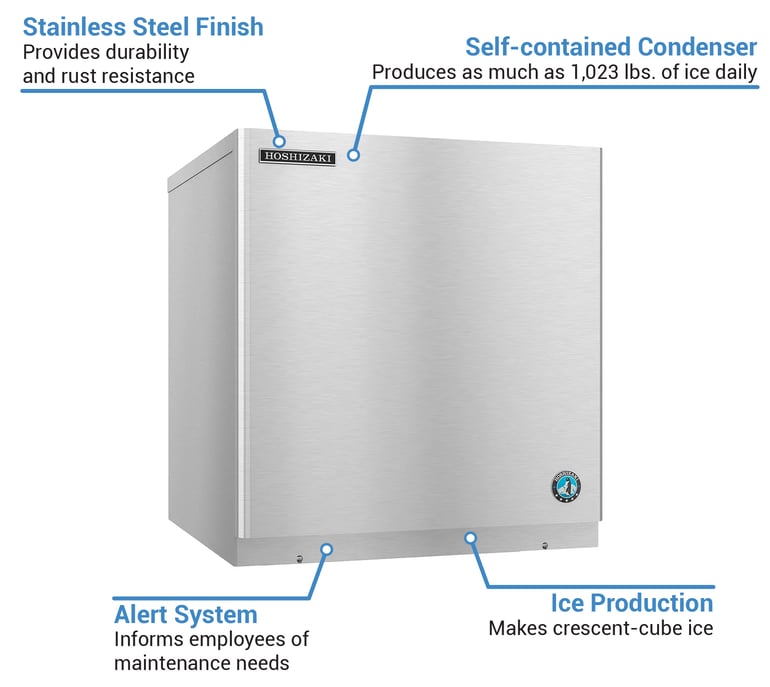

Product Features

Hoshizaki KMD410MWJ Features

*Free shipping on Hoshizaki KMD-410MWJ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 449 lb/24 hours at 70°50° (436 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 6.6 amps, NSF, cETLus, UL

*Image may not depict product color, inclusions or accessories.

Resources

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Watch a video about this product

Hoshizaki KMD-410MWJ Specifications

Manufacturer

Hoshizaki

24 Hr. Production (lb)

449

Compressor Type

Water Cooled

Depth (in)

24.13

Height (in)

Ice Type

Crescent Cube

Phase

Product

Ice Machine Heads

Product Type

Ice Makers & Bins

Rating

Best

Refrigerant

R404A

Series

KM EDGE

Voltage

115

Warranty

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Width (in)

Weight

128.00

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
