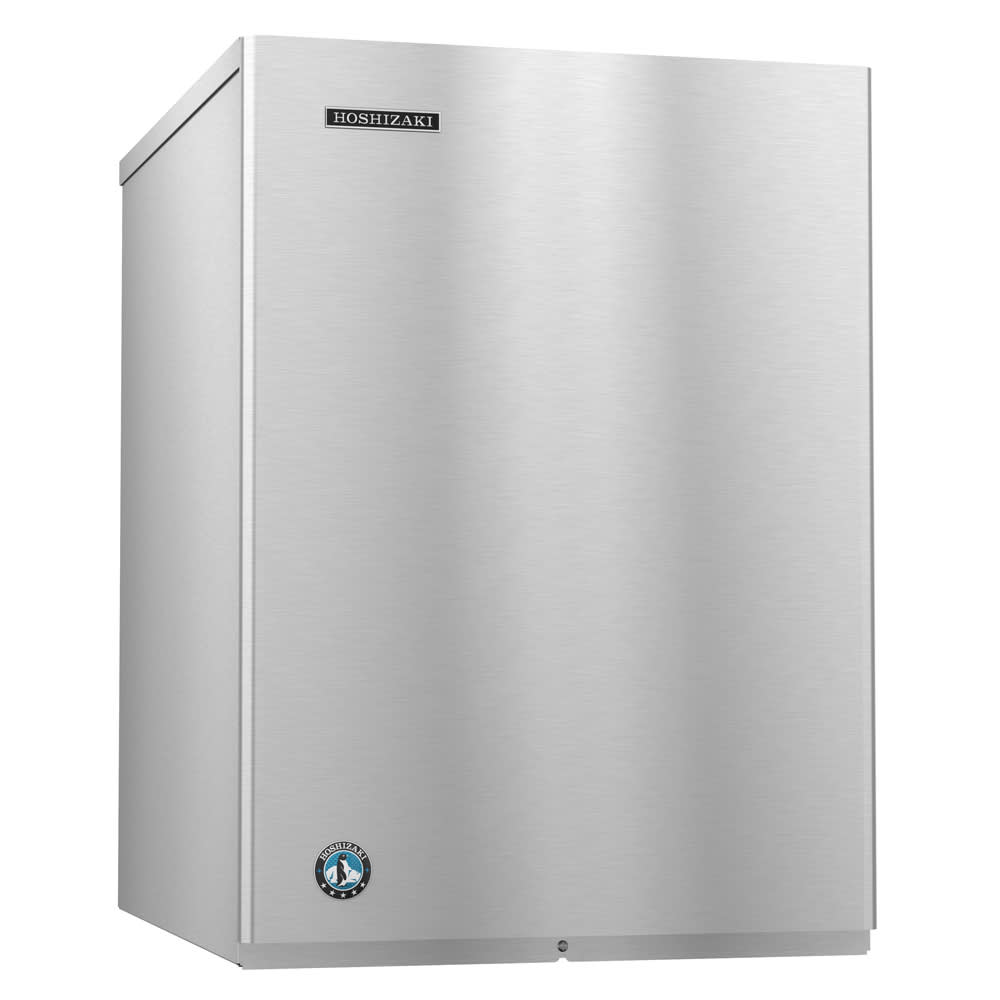

Hoshizaki KM-515MWH 22" Cube Ice Machine Head - 500-lb/24-hr, Water Cooled, 115v

KaTom #: 440-KM515MWH • MPN: KM-515MWH

Typically ships within 4 - 8 business days

(1 review)Write a Review
Retail Price: $2,655.00

Hoshizaki KM-515MWH Description

The Hoshizaki KM-515MWH ice machine head is a great complement to hotel ice dispensers and hot kitchens thanks to the fact it is water cooled. That means some of the noise and ambient heat created by typical air-cooled units is eliminated thanks to the fact water is used to remove heat from the unit, allowing the water to freeze. However, it's important to note that this type of ice maker will require a constant supply of water, which is why we recommend it only be used in facilities with a recirculating cold water system like a cooling tower. Otherwise, the machine will have to pull that water from the plumbing at a rate of 106 gallons per 100 pounds of ice produced, which can make utility bills astronomical.

This unit's slim-line design helps reinforce its perfection for applications like hotels and high-volume facilities, since it fits nicely on ice dispensing systems and can even be doubled up on a large bin for twice the production. Your ice is protected by the H-GUARD Plus antimicrobial agent integral to the materials used in the food zone, while your machine is protected by Hoshizaki's proprietary EverCheck® system. That control unit alerts operators to needed maintenance, which can help prevent breakdowns and the need for serious repairs. Additionally, the KM-515MWH is equipped with CycleSaver®, which can cut the number of cycles needed to produce ice in half, significantly decreasing utility demands. This unit can produce a maximum of 462 pounds of crescent-style ice per day and isn't as affected by higher ambient temperatures as air-cooled systems, which means production capacity stays fairly consistent if the room heats up.

Product Details:

  • Stainless steel exterior
  • Produces as much as 462 lbs. of ice per day

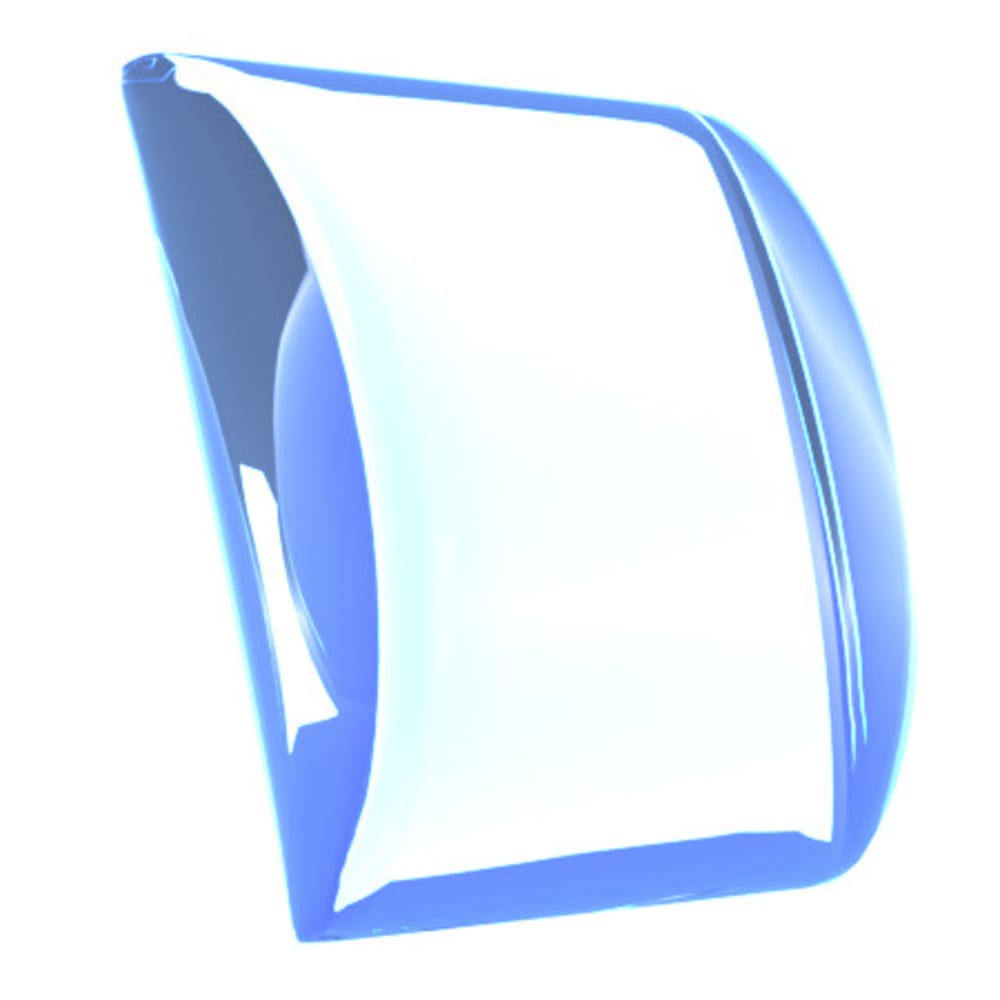

  • Crescent ice cubes measure 112 in. W x 12 in. D x 112 in. H
  • Two can be mounted on one bin for double capacity in just 44 in. of floor space
  • CycleSaver design reduces water and energy waste
  • EverCheck alert system alerts users to maintenance issues
  • Water-cooled model requires constant flow of water for compressor
  • Surgical-grade stainless steel evaporator
  • Uses R-404A refrigerant
  • 115 V/60 hz/1 ph, 9.6 A
  • Overall Dimensions: 22 in. W x 27 38 in. D x 30516 in. H
  • cULus listed; NSF, AHRI and ENERGY STAR certified

Ice Maker, Cube-Style, water-cooled, self-contained condenser, production capacity up to 462 lb/24 hours at 70°/50° (446 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 9.6 amps, NSF, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hoshizaki KM-515MWH Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 500 lbs
Compressor Type Water Cooled
Depth (in) 27
Height (in) 30
Ice Type Crescent Cube
Specialty Options Alert System
Specialty Options Antimicrobial System
Voltage 115/60/1
Width (in) 22
Warranty 3-yr. Parts & Labor; Add'l 2 yrs. Parts Compressor, Condenser, & Evaporator
Weight 175.00
