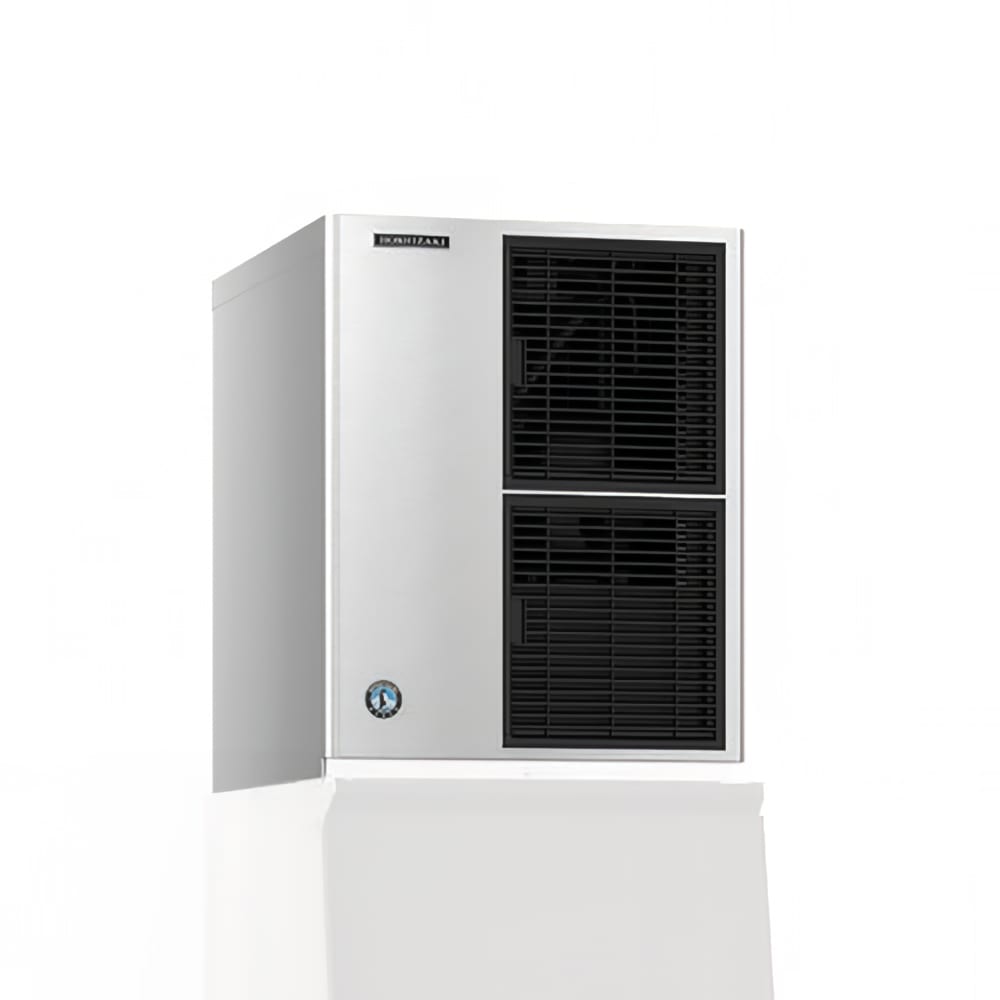

Hoshizaki KM-515MRJ 22" Crescent Cube Ice Machine Head - 504-lb/24-hr, Remote Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 440-KM515MRJ • MPN: KM-515MRJ

Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,740.00

Image may not depict product color, inclusions or accessories.

Hoshizaki KM-515MRJ Description


The Hoshizaki KM-515MRJ crescent cube ice machine head's interior components are made with H-Guard Plus™, a built-in antimicrobial agent that reduces the growth of bacteria between each cleaning. When operational issues arise, the EverCheck™ alert system lets operators know maintenance is required. A CycleSaver™ design lengthens the life of the unit by producing just as much ice as competitors in half the cycles; depending on the ambient air and water temperatures, the unit can produce between 454 and 504 pounds of ice in 24 hours.

With a stainless steel exterior, the Hoshizaki KM-515MRJ crescent cube ice machine head resists corrosion, scratches, dents, and more. The panels are easily removed so components can be accessed for maintenance. Its slim design allows the unit to fit in small spaces or sit flush with another ice machine head. Since it uses a condenser with remote refrigeration, heat and noise are reduced where the unit is located. A URC-5F remote condenser is required with a purchase of this unit, but it is sold separately.

Product Details

  • Unique shape of the crescent cube allows it to fit in cups easily and take up a lot of space
  • Produces 454-504 lbs. of ice within a 24-hr. period
  • Easily fits into compacts spaces with its slim design
  • Evaporator is strong thanks to its stainless steel construction
  • Heavy-duty, corrosion-resistant exterior is made of stainless steel
  • Internal components are easy to access since the panels are removable
  • Unit is cooled with a remote condenser, reducing heat and noise where the ice head is set up
  • Temperatures stay cool with the R-404A refrigerant
  • Requires URC-5F remote condenser to operate (Sold separately)
  • Ice storage bin is sold separately
  • 7,600 BTU
  • 115 V/60 Hz/1 ph, 12.8 A
  • Ice Dimensions: 118 in. W x 12 in. D x 112 in. H
  • Overall Dimensions: 22 in. W x 28916 in. D x 30516 in. H
  • UL listed; AHRI and NSF certified

Innovative Technology

  • CycleSaver extends the life of the unit by requiring fewer cycles than the competition to produce the same amount of ice
  • H-Guard Plus antimicrobial agent slows bacteria growth between cleanings
  • System issues trigger the EverCheck feature's audible alarm

Product Features

Hoshizaki km515mrj Features

Operation Requirements

  • Operates in 45-100 degrees F ambient air
  • Operates with 45-90 degrees F water
  • Operates with 10-113 PSIG water pressure
  • Requires a 6-in. clearance at the rear, sides, and top for air circulation

Ice Maker, Cube-Style, 22"W, remote air-cooled, remote condenser (priced separately), production capacity up to 504 lb/24 hours at 70°/50° (454 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube Style, 22"W, R-404A refrigerant, 115v/60/1-ph, 12.8 amps, NSF, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hoshizaki KM-515MRJ Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 504 lbs
Compressor Type Remote Cooled
Depth (in) 27.38
Height (in) 30.31
Ice Type Crescent Cube
Width (in) 22
Warranty 3-year Parts & Labor; 5-year Compressor
Production Range 300-899 lb
Phase 1
Hertz 60
Voltage 115
Weight 166.00
Hoshizaki KM-515MRJ Certifications
  • UL
  • NSF
