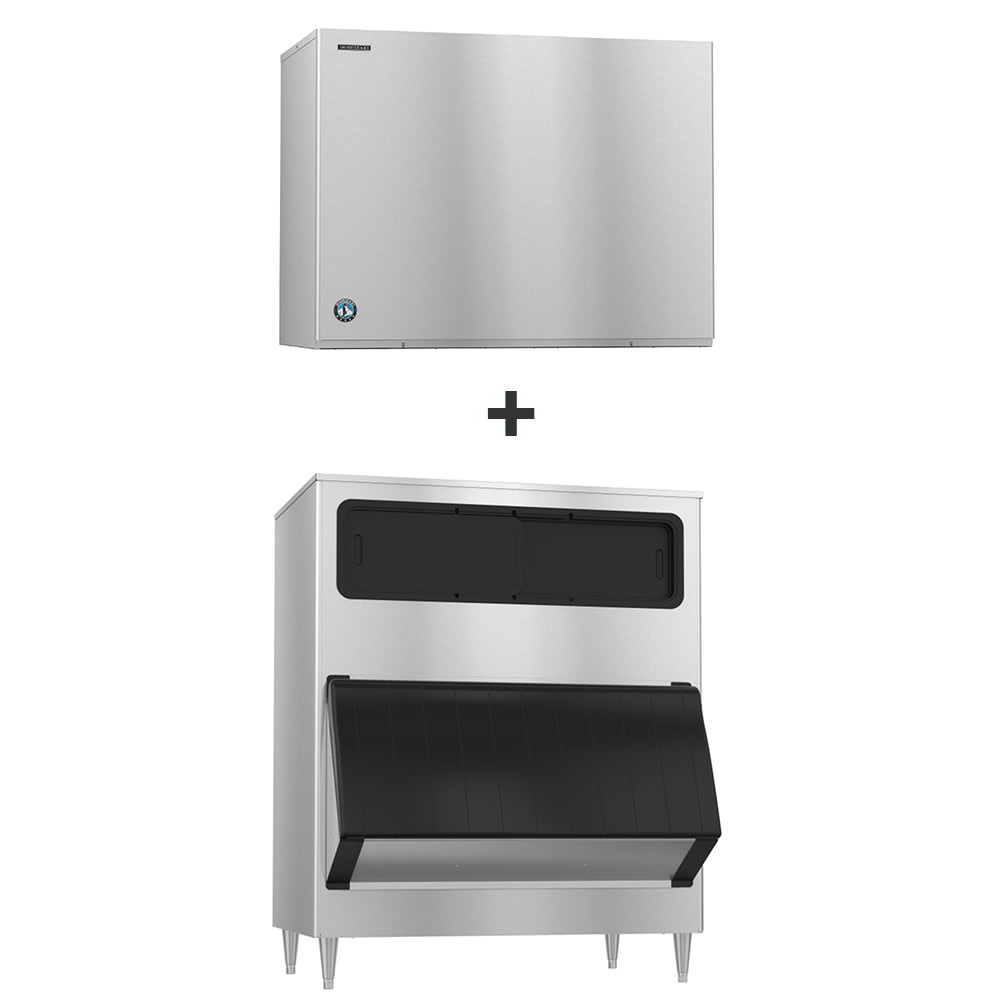

Hoshizaki KM-2600SWJ3/B-1300SS 2482 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-2600SWJ3/B-1300SS crescent cube ice maker is designed with a user-friendly EverCheck™ system that alerts operators when service is needed, facilitating routine maintenance to extend the life of the unit. To speed up necessary service and repairs, this unit features removable panels that provide unobstructed access to all key components. Because of its compact, stackable design, this ice machine produces a large volume of ice without taking up too much space. It’s a good choice for locations that have limited available space, such as cruise ships and concession stands.

The Hoshizaki KM-2600SWJ3/B-1300SS crescent cube ice maker comes with a bin that can hold 1,304 pounds of ice. Sliding top doors on the bin provide a clear view into its inner workings, and a full-width hinged bottom door gives users access to the stored ice. Because it's made of stainless steel, this unit resists rust and corrosion—a good feature for a machine that will be regularly exposed to cold and damp conditions.

Ice Maker

• 2,482-lb. maximum daily ice production
• 2,480-lb. AHRI-certified daily ice production
• Water-cooled system
• Stackable
• Produces crescent cube ice
• Self-contained condenser
• Built-in EverCheck alert system indicates when service is needed
• H-Guard Plus® antimicrobial agent resists the growth of bacteria, mold, and mildew
• Made of durable stainless steel
• Removable panels facilitate access to all components
• Crescent cube size: 1¹⁄₈ in. W x ¹⁄₂ in. D x 1¹⁄₂ in. H
• Recommended ambient air temperature: 45-100 degrees F
• Recommended incoming water temperature: 45-90 degrees F
• Recommended incoming water pressure: 10-113 PSI
• R404A refrigerant
• 31,600-BTU heat transfer capacity
• Recommended clearance: 6 in. at rear, sides, and top

Ice Bin

• 41.2-cu.-ft. capacity
• 1,304-lb. ice storage capacity
• Top view windows slide open to reveal ice
• Polyethylene bin liner is seamless
• Door gasket seals tightly
• Bin walls and bottom are insulated with foamed-in-place polyurethane
• Pouch-style door is insulated to keep ice cold
• Included 82-oz. scoop is enhanced with H-Guard Plus
• 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Ice Maker: 48 in. W x 27³⁄₈ in. D x 36⁷⁄₁₆ in. H
• Ice Bin Exterior: 48 in. W x 41 in. D x 66³⁄₁₆ in. H
• Plumbing inlet minimum requirements: ³⁄₈-in. nominal ID copper water tubing
• Drain line minimum requirements: ³⁄₄-in. nominal ID hard pipe
• 12.8 A, 3.6 kW
• 208-230 V/60 Hz/3 ph

Product Features

*Free shipping on Hoshizaki KM-2600SWJ3/B-1300SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 2482 lb/24 hours at 70°/50° (2480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
