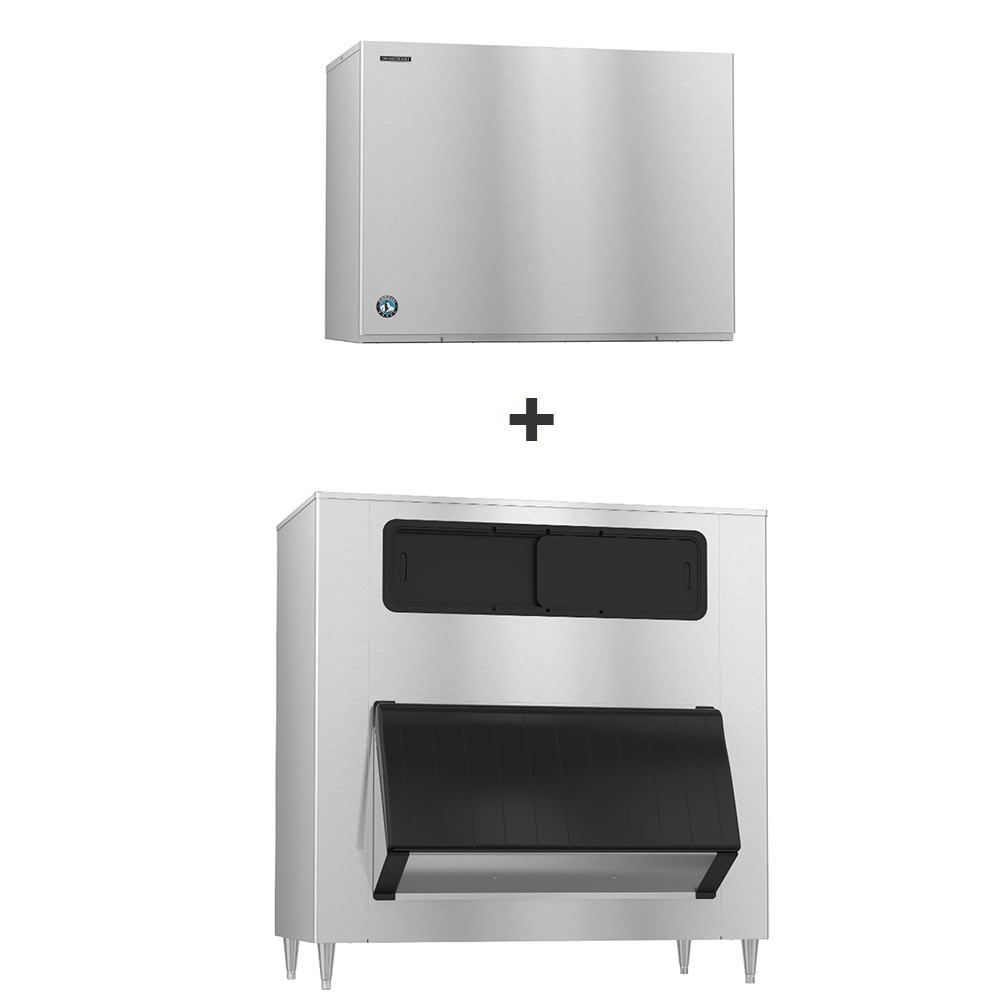

Hoshizaki KM-2200SWJ3/B-1500SS 2221 lb KM Series Crescent Cube Ice Machine w/ Bin - 1500 lb Storage, Water Cooled, 208-230v

Featuring a CycleSaver™ design, the Hoshizaki KM-2200SWJ3/B-1500SS ice maker and bin creates as much as 2,221 pounds of ice daily; however, if ambient and water temperatures increase, it can only craft 2,200 pounds. Efficient operation is ensured by its EverCheck™ alert system, which informs operators of any issues so they can perform maintenance. This unit's exterior and evaporator are made of corrosion-resistant stainless steel and the key components are protected with H-GUARD Plus® antimicrobial to reduce bacteria.

The Hoshizaki KM-2200SWJ3/B-1500SS crescent cube ice maker and bin have a storage capacity of 1,500 pounds. A seamless, polyethylene liner ensures sanitary storage because debris can't be trapped in any crevices, and polyurethane insulation prevents ice from melting. Because the door has a pouch style, condensation doesn't form and fall on the floor when it's opened. An 82-ounce ice scoop facilitates scooping, prompting employees not to grab product by hand.

Ice Machine Details

• 2,221-lb. maximum daily ice production
• 2,200-lb. AHRI-certified daily ice production
• Provides crescent cube ice
• Crescent cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• Heavy-duty, stainless steel construction
• Water-cooled condenser uses R-404A refrigerant
• Condenser is self-contained to streamline installation
• Evaporator is made of stainless steel to resist corrosion
• H-GUARD Plus offers protection against bacteria
• EverCheck alert system ensures users know of problems
• CycleSaver offers dependable, quick ice creation
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 27,200-BTU heat transfer capacity

Product Features

Ice Bin Details

• 1,500-lb. ice storage capacity
• Includes an 82-oz. ice scoop
• Dependable, foamed-in-place, polyurethane insulation
• Pouch-style door prevents condensation
• Gasket seals the door to prohibit contamination
• Break-resistant viewing windows offer an interior view
• H-GUARD Plus antimicrobial keeps ice clean
• Sanitary, seamless, polyethylene bin liner
• Rust-resistant, stainless steel construction
• 6-in. legs can be adjusted if needed

Dimensions & Utilities

• Ice head: 48 in. W x 27.38 in. D x 36.44 in. H
• Ice bin: 60 in. W x 41 in. D x 62.13 in. H
• 12.8 A, 3.11 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-2200SWJ3/B-1500SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled self-contained condenser, production capacity up to 2221 lb/24 hours at 70°/50° (2200 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, NSF, UL

Ice Bin, 60"W, hinged bottom door & top view windows, 1500-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-2200SWJ3/B-1500SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
