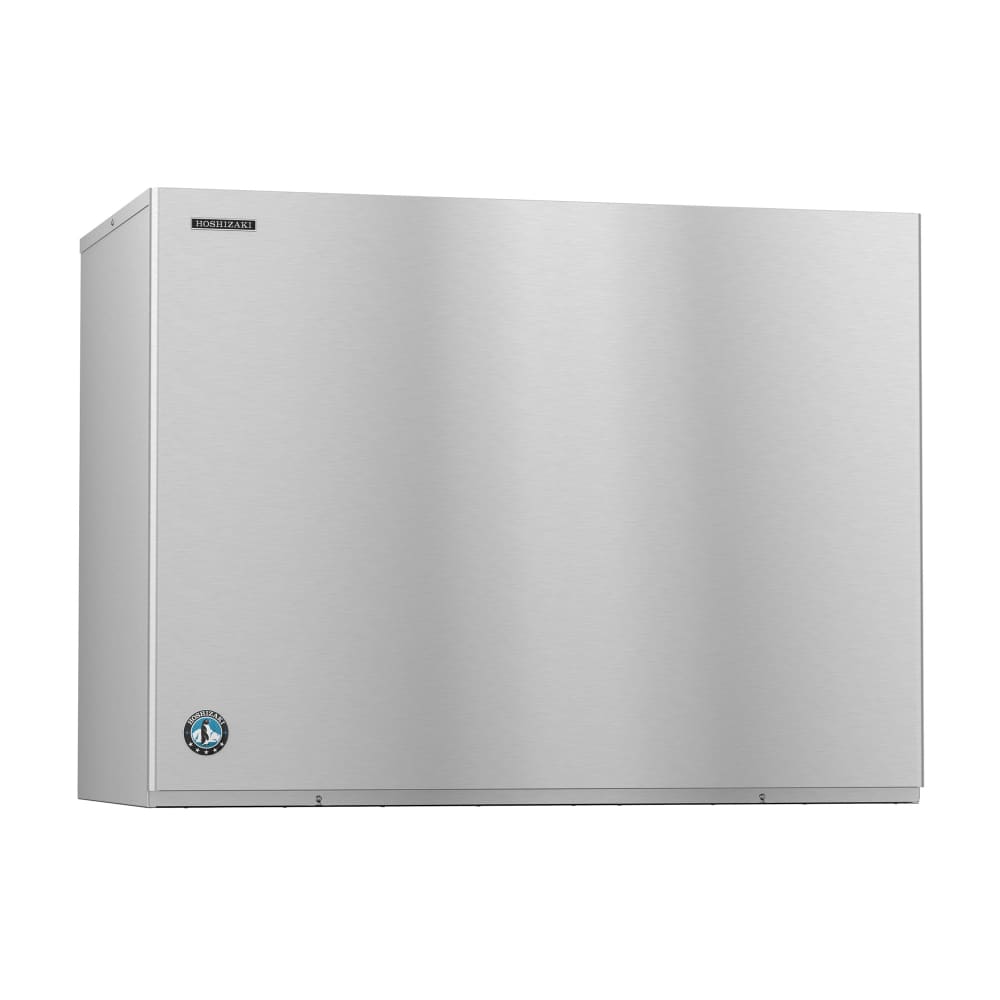

Hoshizaki KM-1900SRJZ3 48" Crescent Cube Ice Machine Head - 1933 lb/24 hr, Remote Cooled, 208-230v/3ph

The Hoshizaki KM1900SRJZ3 ice machine head can produce 1,933 pounds of crescent cube style ice in 24 hours if the ambient temperature is 70 degrees and the incoming water temperature is 50 degrees Fahrenheit. The exterior and evaporator are made of stainless steel, a durable metal that resists rust and corrosion.

To permit proper air circulation, the Hoshizaki KM1900SRJZ3 ice maker head requires 6 inches of clearance on the top, rear, and on both sides of the unit. It is designed for use with a remote condenser, which is sold separately, and it requires an ice bin — also sold separately — to catch and hold produced ice. This unit uses H-GUARD Plus antimicrobial agent to reduce the growth of mildew and mold in the internal mechanisms.

Product Details

• KM Series
• Remote, air-cooled
• 1,933-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 1,700-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Produces individual crescent ice
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Stainless steel exterior
• H-GUARD Plus antimicrobial agent

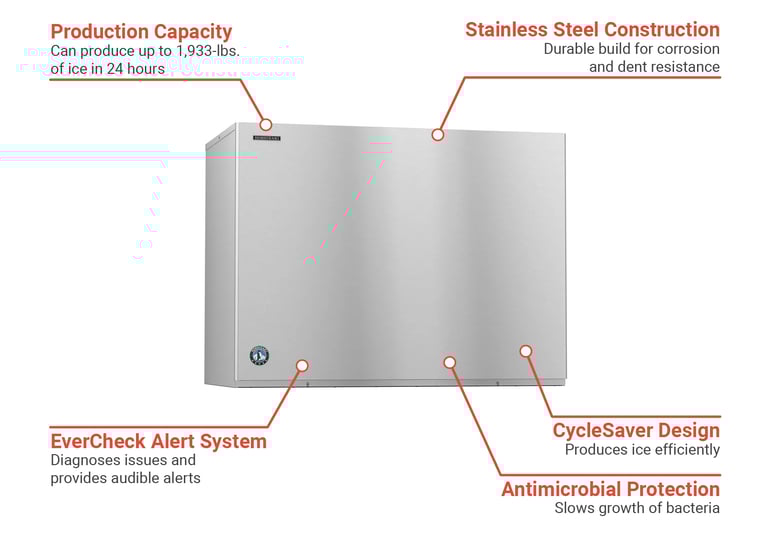

• EverCheck™ alert system
• CycleSaver™ design
• Relies on R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin sold separately
• 20,700 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Unit requires hard drain pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 48 in. W x 27³/₈ in. D x 36⁷/₁₆ in. H
• 13.5 A, 3.90 kW
• 208-230 V/60 Hz/3 ph

Product Features

*Free shipping on Hoshizaki KM-1900SRJZ3 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, remote condenser (priced separately), production capacity up to 1933 lb/24 hours at 70°/50° (1700 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/3-ph, 13.5 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
