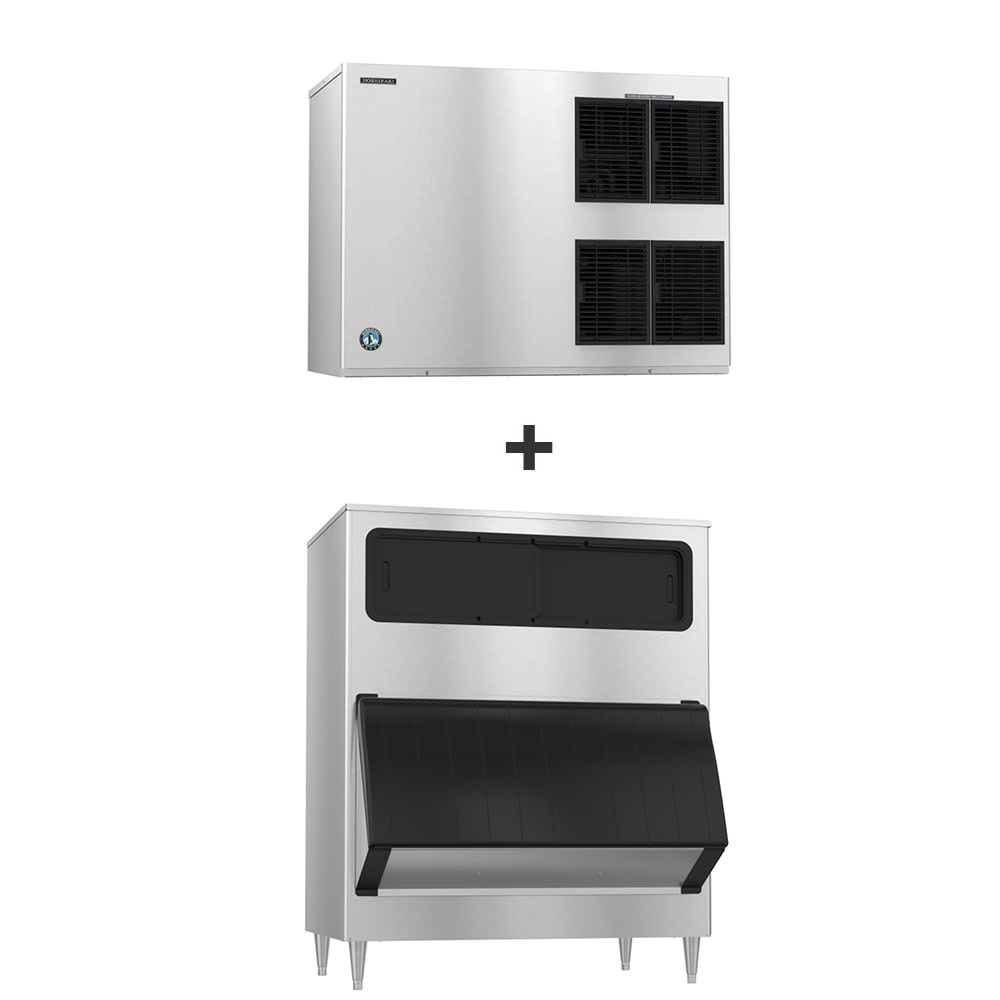

Hoshizaki KM-1900SAJ/B-1150SS 1875 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 208-230v

The Hoshizaki KM-1900SAJ/B-1150SS is a stackable ice maker and bin combination with an EverCheck™ alert system that informs users when maintenance is needed so operation remains efficient. In ideal conditions, the ice maker can produce as much as 1,875 pounds of ice, and the bin can hold 1,148 pounds of ice for later use. Its self-contained condenser is air cooled and uses R404A refrigerant.

Both elements of the Hoshizaki KM-1900SAJ/B-1150SS ice maker and bin are equipped with properties that help restaurants maintain sanitary food conditions. The included scoop is protected with H-Guard Plus antimicrobial, which slows the growth of bacteria for clean ice. Lined with seamless polyethylene, the bin can be wiped clean, while its walls are fully insulated for dependable storage.

Ice Maker Details

• 1,875-lb. maximum daily ice production
• 1,675-lb. AHRI-certified daily ice production
• Makes individual crescent cubes
• Crescent cube ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Stackable to maximize space
• H-Guard Plus antimicrobial agent protects against bacterial growth
• Stainless steel evaporator
• EverCheck alert system
• Air-cooled condenser is self-contained and uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG

Product Features

Ice Bin Details

• 1,148-lb. storage capacity
• 82-oz. scoop is equipped with antimicrobial agent
• Seamless polyethylene bin liner makes storage sanitary
• Airborne bacteria are prevented from entering the bin by a sealed door gasket
• Polyurethane insulation is foamed into all bin walls and bottom for energy efficiency and ice preservation
• Baffle design makes ice accessible
• Users can inspect interior through the view windows
• Mounted on 6-in. adjustable legs
• Insulated pouch-style door prevents condensation and spillage

Dimensions & Utilities

• Ice Maker
• 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 36⁷⁄₁₆ in. H
• 14.5 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 41 in. D x 60³⁄₁₆ in. H

*Free shipping on Hoshizaki KM-1900SAJ/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1875 lb/24 hours at 70°/50° (1675 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 14.5 amps, NSF, UL, ENERGY STAR®

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1900SAJ/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
