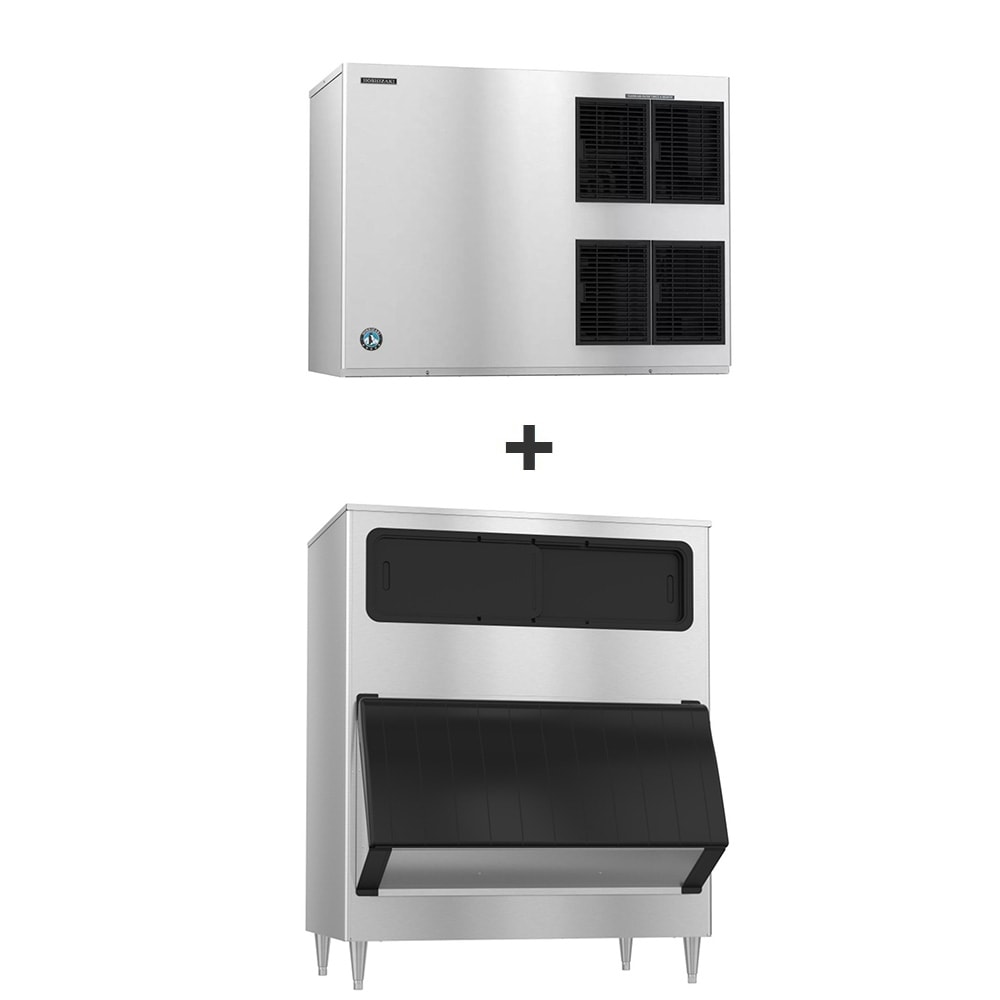

Hoshizaki KM-1900SAJ3/B-1150SS 1865 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 208-230v

To inhibit bacteria and microbe growth, the Hoshizaki KM-1900SAJ3/B-1150SS ice machine/bin combo is protected with H-Guard Plus®. Its exterior is made of stainless steel, a sturdy material that can stand up to intensive use without rusting or denting. To keep ice at the ideal temperature, the bin is insulated with foamed-in-place polyurethane.

The bin included with the Hoshizaki KM-1900SAJ3/B-1150SS ice maker features a sanitary, seamless polyethylene liner. Offering clear visibility, it is equipped with top view windows, and its legs are adjustable so they can be set to their preferred individual heights.

Ice Machine Details

• 1,865-lb. daily ice production
• 1,675-lb. daily AHRI-certified ice production
• Crescent cube ice size: 1¹⁄₂ in. x 1¹⁄₈ in. x ¹⁄₂ in.
• Sturdy stainless steel exterior
• Antimicrobial H-Guard Plus inhibits mildew and bacterial growth
• Self-contained, air-cooled refrigeration system
• Stainless steel evaporator
• EverCheck™ system alerts users to operational problems
• CycleSaver™ conserves energy and lengthens unit lifespan
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• Uses R-404A refrigerant
• 20,900-BTU heat transfer capacity

Product Features

Ice Bin Details

• 36.9-cu.-ft. capacity
• 1,148-lb. ice storage capacity
• 82-oz. ice scoop included
• Stainless steel exterior resists dents and stains
• Seamless polyethylene interior liner won't harbor bacteria
• Polyurethane insulation is foamed in place
• Top view windows enable employees to monitor fill level
• 6-in. adjustable stainless steel legs
• Hinged bottom door
• Sealed door gasket reduces risk of contamination from airborne bacteria
• Scoop and bin protected with H-Guard Plus antimicrobial agent

Dimensions & Utilities

• Ice machine: 48 in. W x 27³⁄₈ in. D x 36⁷⁄₁₆ in. H
• Ice bin: 48 in. W x 41 in. D x 60³⁄₁₆ in. H
• 8.9 A, 3.9 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1900SAJ3/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1865 lb/24 hours at 70°/50° (1675 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.9 amps, NSF, UL, ENERGY STAR®

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1900SAJ3/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
