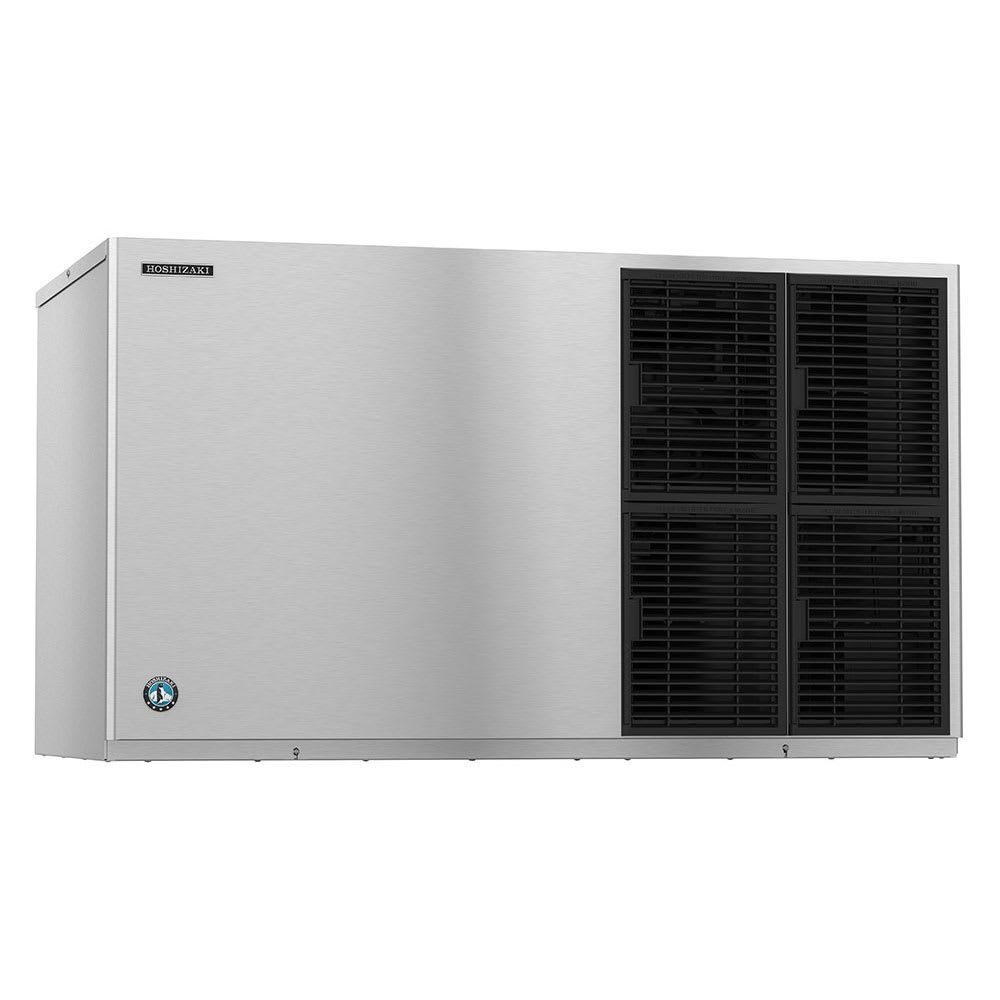

Hoshizaki KM-1601SAH3 48" Cube Ice Machine Head - 1456-lb/24-hr, Air Cooled, 208-230v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 440-KM1601SAH3 • MPN: KM-1601SAH3

Ships Free

This item is no longer available

(0 reviews)Write a Review

This product is discontinued.

To see similar options, click here

Product Discontinued

Image may not depict product color, inclusions or accessories.

Hoshizaki KM-1601SAH3 Description


The Hoshizaki KM-1601SAH3 crescent cube ice machine head can produce as much as 1,456 pounds of ice in a 24-hour period. The exterior of this unit is constructed of stainless steel, making the unit easy to clean and resistant to damage that may be caused by hectic commercial environments. The H-Guard Plus antimicrobial agent is built into the machine to help prevent harmful bacteria from growing, while the EverCheck™ system alerts operators to when the Hoshizaki KM-1601SAH3 crescent cube ice machine head needs to be serviced. A Hoshizaki ice bin must be purchased separately, but the ice machine head is compatible with a variety of bins with various capacities.

Product Details

  • Produces 1,456 lbs. of crescent cube ice every 24 hours
  • Ice measures 118 in. W x 12 in. D x 112 in. H
  • Stainless steel exterior is durable and resists damage and corrosion
  • Ice storage bin not included. Pairs with these Hoshizaki ice bin: B-800PF, B-800SF, B-900PF, B-900SF, B-1150SS, B-1300SS, B-1500SS, and B-1650SS.
  • Bacterial growth is slowed by H-Guard Plus antimicrobial agent
  • Water and energy waste is limited by the CycleSaver™ design
  • EverCheck™ system alert operators when the machine needs servicing
  • Air filters are removable
  • Uses R-404A refrigerant
  • 208-230 V/60 Hz/3 ph, 12 A, 4.65 kW
  • Overall Dimensions: 48 in. W x 2738 in. D x 2738 in. H
  • UL listed; NSF, AHRI and ENERGY STAR certified

Ice Maker, Cube-Style, air-cooled, self-contained condenser, production capacity up to 1456 lb/24 hours at 70°/50° (1345 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 12.0 amps, NSF, UL, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hoshizaki KM-1601SAH3 Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 1456 lbs
Compressor Type Air Cooled
Depth (in) 27
Height (in) 27
Ice Type Crescent Cube
Specialty Options Alert System
Specialty Options Antimicrobial System
Width (in) 48
Warranty 3-yr. Parts & Labor; Add'l 2 yrs. Parts Compressor, Condenser, & Evaporator
Production Range 900-1499 lb
Phase 3
Hertz 60
Voltage 208/230
Weight 315.00
Hoshizaki KM-1601SAH3 Certifications
  • UL
  • NSF
