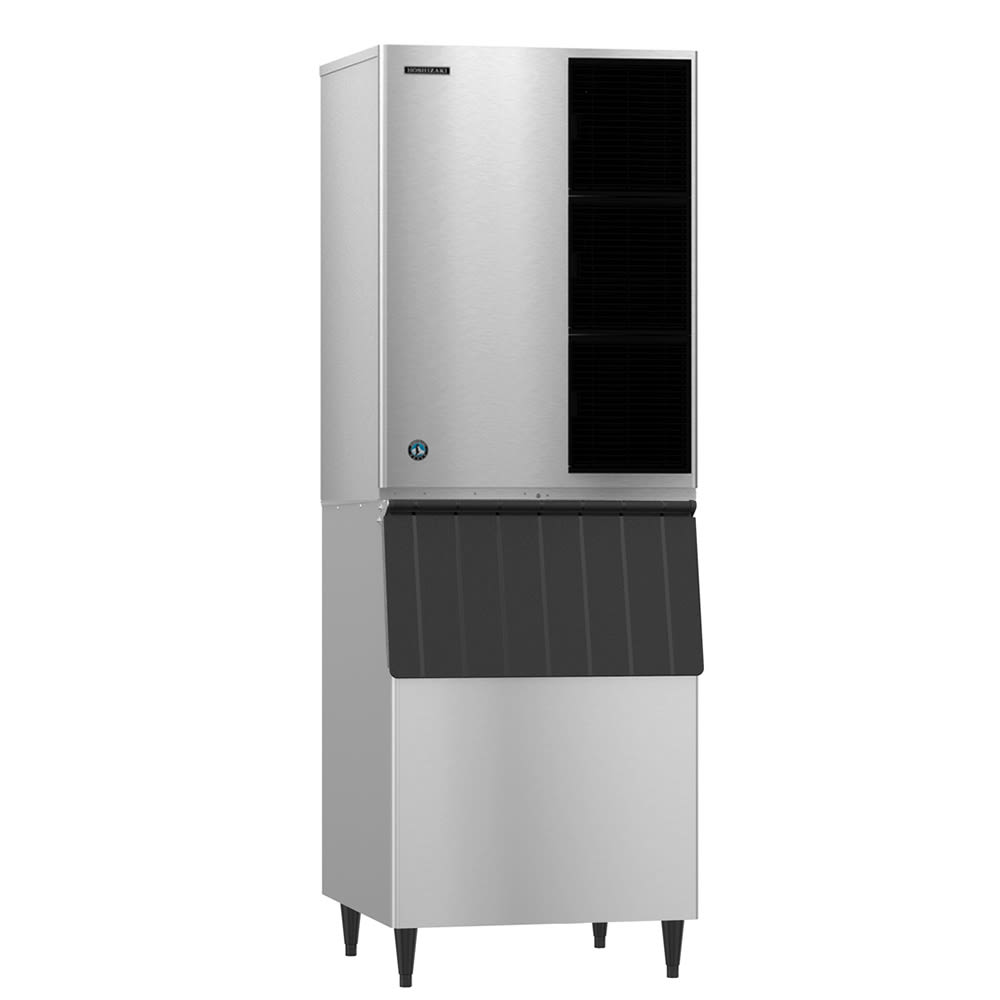

Hoshizaki KM-1340MAJ/B-500SF 1275 lb KM Series Crescent Cube Ice Machine w/ Bin - 500 lb Storage, Air Cooled, 208-230v

The Hoshizaki KM-1340MAJ/B-500SF ice maker with bin is simple to install because its ice machine head has a self-contained condenser. This condenser is cooled by air and its air filters are removable for maintenance. It produces as much as 1,275 pounds of crescent cube ice in a day—this style of ice is ideal for bars, restaurants, and smoothie bars that need lots of ice to blend or serve in cold drinks.

This Hoshizaki KM-1340MAJ/B-500SF ice maker with bin holds 500 pounds of ice in its storage compartment. Its door is hinged at the top and opens from the front. The bin is treated with H-Guard Plus® antimicrobial agent to inhibit the growth of unsanitary bacteria and mildew, keeping ice fresh tasting. To prevent ice from melting, the bin is insulated with polyurethane.

Ice Maker

• Maximum production capacity: 1,275 lbs./24 hrs.
• AHRI-certified production capacity: 1,089 lbs./24 hrs.
• Produces versatile individual crescent cube ice
• Ice cube size: 0.5 in. W x 1.13 in. D x 1.5 in. H
• Durable, stainless steel exterior withstands frequent use
• Self-contained condenser is air cooled
• Removable air filters
• Uses R-404A refrigerant
• Inhibits bacterial growth with H-Guard Plus antimicrobial protection
• 21,000-BTU heat transfer capacity

Product Features

Ice Bin

• 500-lb. ice storage capacity
• Top-hinged, front-opening door
• Accommodates the ice maker mounted on top
• Includes painted legs
• H-Guard Plus antimicrobial agent slows bacterial growth
• Foamed-in-place, polyurethane insulation prevents ice melting
• Includes an ice scoop
• Galvanized steel exterior is PVC coated for corrosion resistance

Ideal Operating Conditions

• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 10-113 PSIG
• 6-in. side, top, and rear clearances

Dimensions & Utilities

• Ice maker: 48 in. W x 27.38 in. D x 27.38 in. H
• Ice bin interior: 27 in. W x 27.7 in. D x 37.6 in. H
• Ice bin overall: 30 in. W x 32.3 in. D x 46 in. H
• 13.2 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KM-1340MAJ/B-500SF within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 1275 lb/24 hours at 70°/50° (1089 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 13.2 amps, NSF, UL

Ice Bin, 30"W, top-hinged front-opening door, 500-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1340MAJ/B-500SF Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
