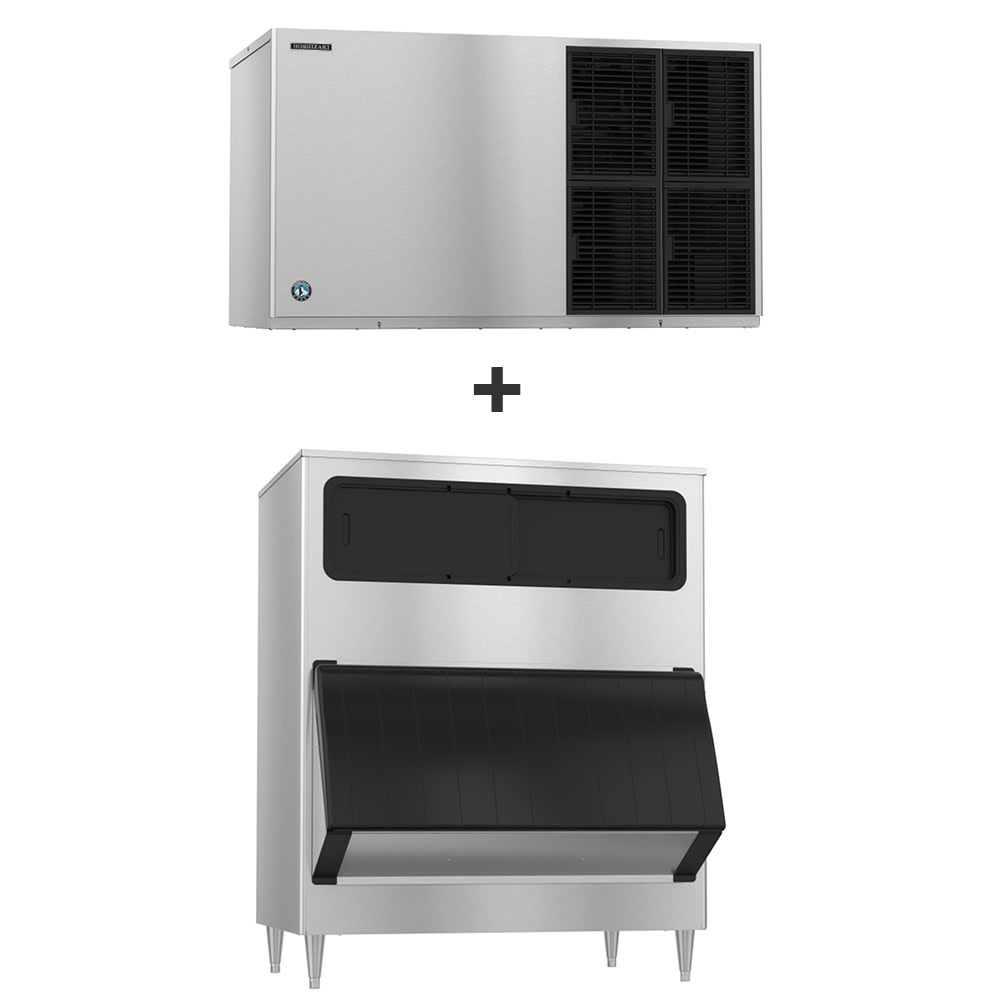

Hoshizaki KM-1301SWJ/B-1150SS 1247 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-1301SWJ/B-1150SS ice maker with bin can produce 1,247 pounds of crescent cube ice in ideal conditions. Crescent cube ice is a versatile ice type that can be blended into smoothies and served in soft drinks. The ice machine head has a self-contained condenser that's cooled by water—this arrangement is best suited for establishments that already have a water-circulating chiller system.

This Hoshizaki KM-1301SWJ/B-1150SS ice maker with bin includes a bin that holds 1,148 pounds of ice. This bin's interior is lined seamlessly with polyethylene for simple cleaning and unlikely bacteria collection. A scoop is included with this unit that accommodates 82 ounces of ice. To prevent unsanitary growth, the scoop is treated with H-Guard Plus® antimicrobial agent.

Ice Maker

• Maximum production capacity: 1,247 lbs./24 hrs. at 70 degrees F
• AHRI-certified production capacity: 1,230 lbs./24 hrs. at 90 degrees F
• Produces crescent cube-style ice
• Ice cube size: 0.5 in. W x 1.13 in. D x 1.5 in. H
• Condenser is self-contained and water cooled
• Uses R-404A refrigerant
• Exterior is made of rust-resistant stainless steel
• H-Guard Plus antimicrobial protection
• 20,900-BTU transfer capacity

Product Features

Ice Bin

• 1,148-lb. storage capacity
• Accommodates a top-mounted ice maker with universal top
• Top view window
• Bottom door is hinged
• Seamless bin liner is made of polyethylene
• H-Guard Plus antimicrobial protection
• Includes an 82-oz. scoop
• Foamed-in-place polyurethane insulation in all walls and bottom to prevent ice loss
• Sides, front, back, and bottom are made of stainless steel
• Mounted on sturdy, stainless steel legs

Ideal Operating Conditions

• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 10-113 PSIG
• 6-in. side, top, and rear clearances

Dimensions & Utilities

• Ice maker: 48 in. W x 27.38 in. D x 27.38 in. H
• Ice bin: 48 in. W x 41 in. D x 60³⁄₁₆ in. H
• 8.2 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KM-1301SWJ/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1247 lb/24 hours at 70°/50° (1230 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 8.2 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1301SWJ/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
