Hoshizaki KM-1301SRJ 48" Crescent Cube Ice Machine Head - 1400 lb/24 hr, Remote Cooled, 208-230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 440-KM1301SRJ • MPN: KM-1301SRJ
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $5,520.00

Image may not depict product color, inclusions or accessories.

Hoshizaki KM-1301SRJ Description


The Hoshizaki KM-1301SRJ cube ice machine head can produce 1,400 pounds of crescent-shaped ice, functionally comparable to half-cube ice, in 24 hours. It makes the same amount of ice in half the time of most other units with the CycleSaver™ design. If there is an issue within the system, the EverCheck™ alert system delivers a series of beeps that identify the malfunction to the operator. To keep heat and noise outside and away from customer-facing areas, the Hoshizaki KM-1301SRJ crescent cube ice machine head is remote air-cooled. The unit will not function without a URC-14F condenser, which must be purchased separately.

Product Details

  • 1,400-lb. ice production in 24 hrs. when air temperature is 70 degrees F and water temperature is 50 degrees F
  • 1,260-lb. ice production in 24 hrs. when air temperature is 90 degrees F and water temperature is 70 degrees F
  • CycleSaver design makes the same amount of ice in half the cycles as most other units
  • Makes crescent cubes that measure 118 in. x 112 in. x 12 in.
  • Remote air-cooled system ensures heat and noise are located outside and away from customer areas
  • R-404A refrigerant produces cold temperatures
  • EverCheck™ alert system uses various beep signals to signify system issues
  • H-Guard Plus® antimicrobial agent protects the food zone from bacteria and fungi growth
  • Stainless steel exterior is corrosion and minor damage resistant and easy to clean
  • Can be stacked with other units to maximize ice production in a small footprint
  • URC-14F remote condenser is sold separately
  • 208-230 V/60 Hz/1 ph, 13.5 A, 4.28 kW
  • Overall Dimensions: 48 in. W x 2738 in. D x 2738 in. H
  • UL listed; NSF certified

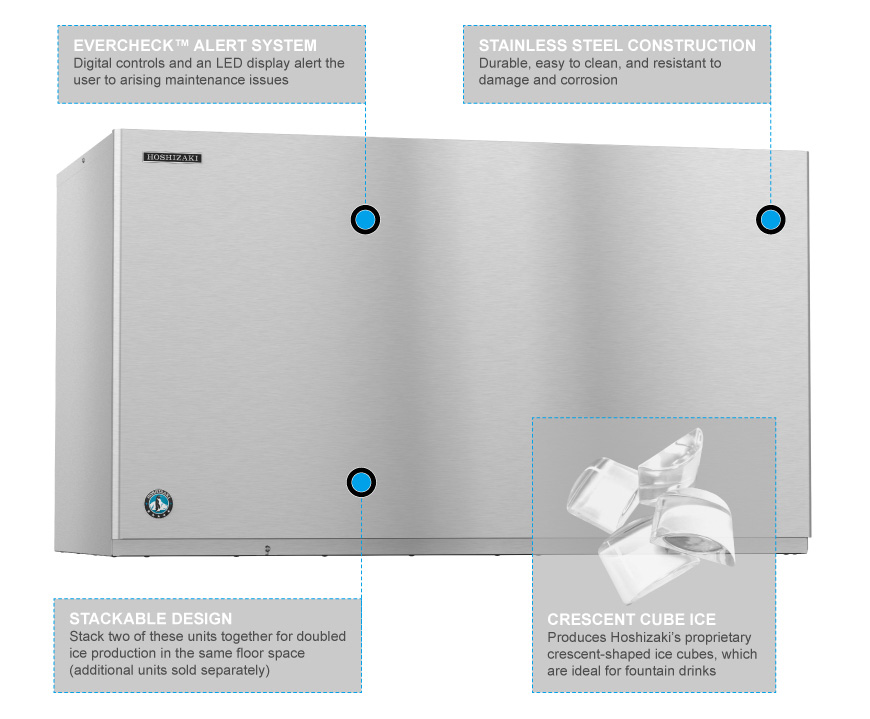

Product Features

Hoshizaki km1301srj Features

Operating Requirements

  • Ideal ambient air temperature ranges 45-100 degrees F
  • Ideal water temperature ranges 45-90 degrees F
  • Water pressure should be 10-113 PSIG
  • 6-in. top, side, and rear clearance is required for air circulation and maintenance access

Ice Maker, Cube-Style, 48"W, air-cooled, remote condenser (priced separately), production capacity up to 1400 lb/24 hours at 70°/50° (1260 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.5 amps, NSF, UL

Warning Small Important Prop 65 information for California residents.

Hoshizaki KM-1301SRJ Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 1400 lbs
Compressor Type Remote Cooled
Depth (in) 27.38
Height (in) 27.38
Ice Type Crescent Cube
Width (in) 48
Warranty 3-year Parts & Labor; 5-year Compressor
Production Range (per day) 900-1499 lb
Phase 1
Hertz 60
Voltage 208/230
Compatible Compressors 440-URC14F
Product Type Ice Machines
Product Ice Machine Head
Weight 339.00
Hoshizaki KM-1301SRJ Certifications
  • UL
  • NSF
