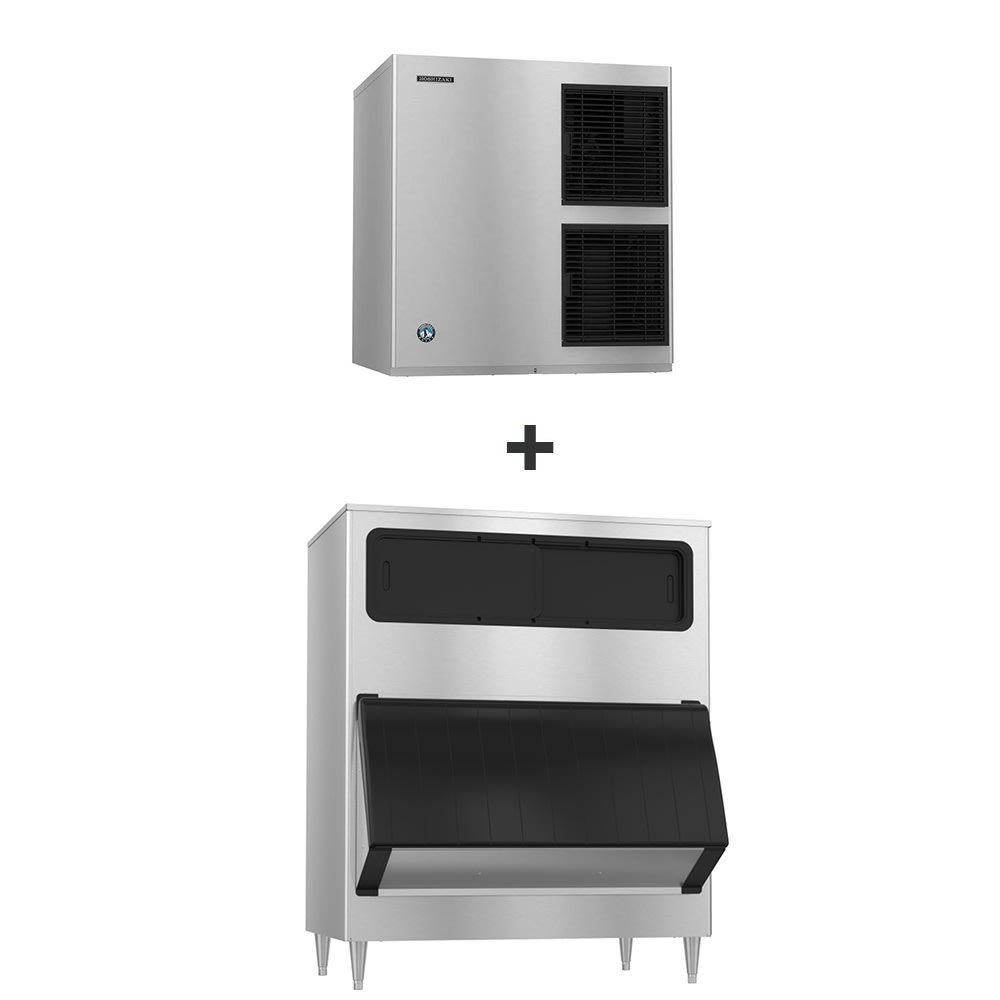

Hoshizaki KM-1100MWJ/B-1300SS 1073 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Water Cooled, 208-230v

Because the condenser of the Hoshizaki KM-1100MWJ/B-1300SS ice maker with bin is self-contained, it's easier to install and maintain than a remote model. It's also water cooled, making it energy efficient and suitable for establishments that already have a water-circulating chiller system. This ice machine head creates as much as 1,073 pounds of crescent-cube ice in a day, and to keep the ice tasting fresh, its components are treated with H-Guard Plus® antimicrobial agent to prevent mildew growth.

The Hoshizaki KM-1100MWJ/B-1300SS ice machine bin combo holds 1,304 pounds of ice in its container. To ensure ice doesn't melt during storage, its walls, door, and bottom are insulated. A pouch-style door prevents the formation of condensation to ensure the area around the door doesn't become wet and slippery. An 82-ounce scoop is included and has been treated with H-Guard Plus.

Ice Maker

• Production capacity: 1,073 lbs. per 24 hrs. at 70 degrees F
• AHRI certified production capacity: 1,006 lbs. per 24 hrs. at 90 degrees F
• Produces individual crescent cube-style ice for serving with soft drinks or blending into smoothies
• Ice cube size: ¹⁄₂ in. W x 1¹⁄₈ in. D x 1¹⁄₂ in. H
• H-Guard Plus antimicrobial agent inhibits mildew growth
• Self-contained condenser
• Water-cooled condenser operates energy efficiently
• R404A refrigerant
• Stainless steel finish prevents damage from dents and scratches
• 17,100 BTU heat transfer capacity
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 12-in. top, side, and rear clearances

Product Features

Ice Bin

• Storage capacity: 1,304 lbs.
• Bottom door and top view windows are hinged
• Includes a universal top kit for mounting ice machine on top
• Seamless polyethylene bin liner enhances sanitation during storage
• Includes an 82-oz. scoop with H-Guard Plus antimicrobial treatment
• Walls and bottom are insulated with foamed-in-place polyurethane to prevent ice from melting
• Insulated pouch-style door minimizes condensation while maximizing access
• Mounted on 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Ice maker: 30 in. W x 27³⁄₈ in. D x 32¹⁄₂ in. H
• Ice bin: 48 in. W x 41 in. D x 66³⁄₁₆ in. H
• 9.6 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KM-1100MWJ/B-1300SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 1073 lb/24 hours at 70°/50° (1006 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 9.6 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1100MWJ/B-1300SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
