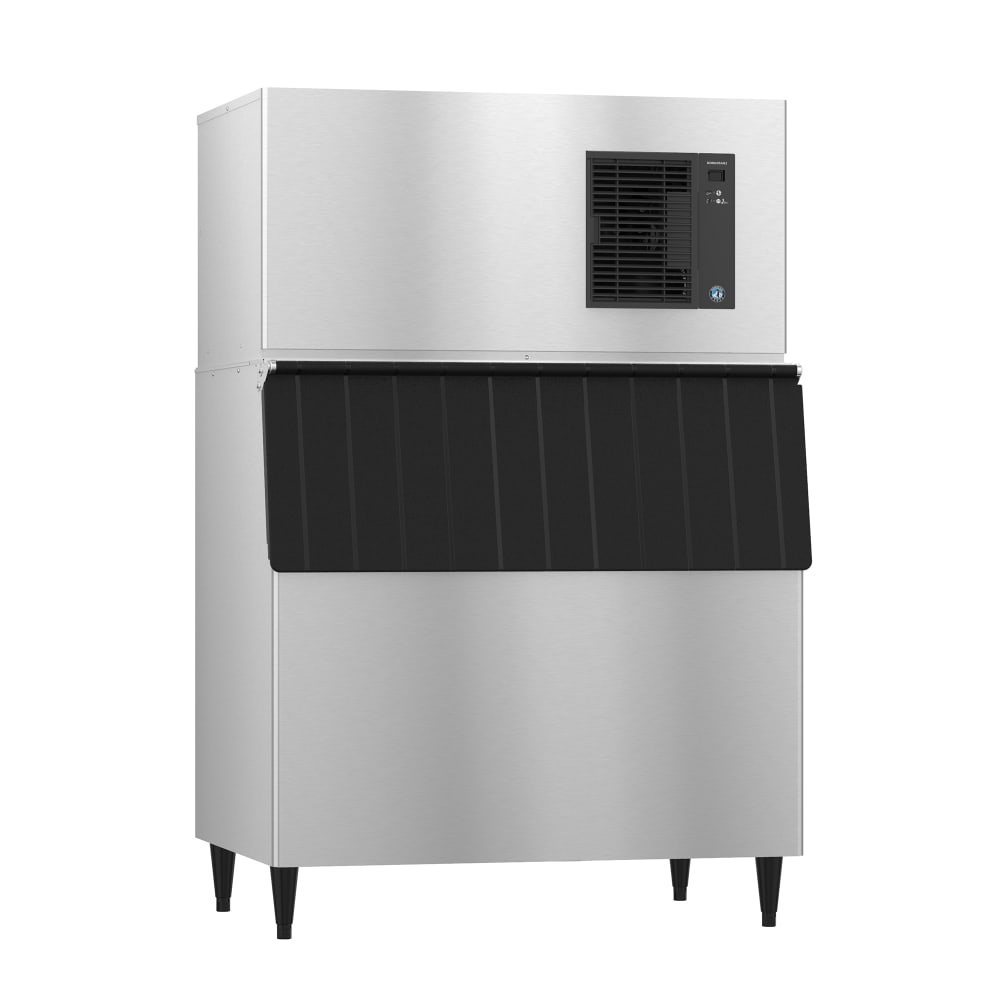

Hoshizaki IM-500SAB/B-1150SS/HS-5397 489 lb IM Series Full Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 115v

When running at optimal conditions, the Hoshizaki IM-500SAB/B-1150SS/H full-cube ice machine makes 489 pounds over a 24-hour period, with each ice cube measuring 1 inch by 1¹/₄ inches. The machine’s compressor uses R-404A refrigerant, and the removable air filters are located on the front and right side of the unit. If the machine encounters operational problems, the EverCheck™ system alerts users, and the system performs an automatic shutdown if the problem persists.

Designed with stainless steel front, sides, back, and bottom panels, the Hoshizaki IM-500SAB/B-1150SS/H ice machine features a bin with a 1,148 storage capacity. This unit includes an 87-ounce ice scoop and is mounted on adjustable 6-inch legs. The pouch-style door provides interior access, and the 36.9-cubic-foot interior space is lined with polyethylene and insulated with foamed-in-place polyurethane.

Ice Maker

• Durable stainless steel construction
• Stackable
• Produces 489 lbs. of ice over 24 hrs.
• Cube-style ice
• R-404A refrigerant
• Air cooled
• Removable air filters
• EverCheck alert system
• Front-mounted control panel
• Ambient temperature range: 45-100 degrees F
• Water temperature range: 45-90 degrees F
• 4,500-BTU heat transfer capacity

Ice Bin

• 36.9-cu.-ft. interior space
• 1,148-lb. storage capacity
• Stainless steel front, sides, back, and bottom panels
• Pouch-style door
• Viewing windows
• 82-oz. scoop
• Polyethylene bin liner
• Foamed-in-place polyurethane insulation
• Universal Top Kit included
• 6-in. adjustable legs

Dimensions & Utilities

• Ice maker: 44 in. W x 27⁵/₈ in. D x 21³/₄ in. H
• Bin: 48 in. W x 41 in. D x 60³/₁₆ in. H
• 11.5 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki IM-500SAB/B-1150SS/HS-5397 within the 48 contiguous states.

From The Manufacturer

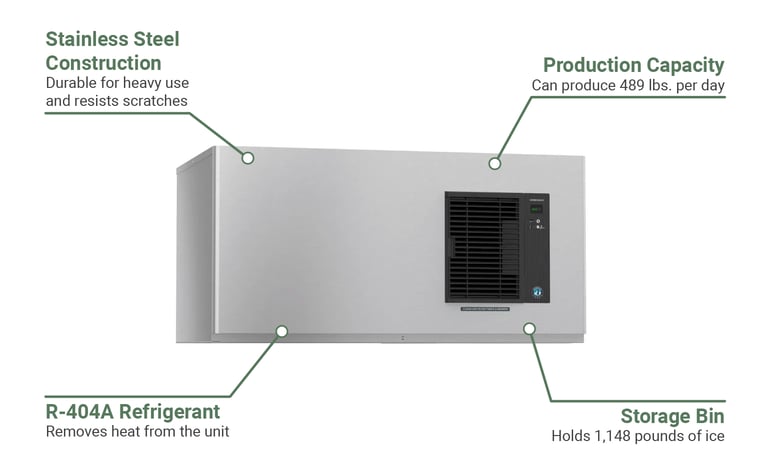

Ice Maker, Cube-Style, 44"W, air-cooled, self-contained condenser, production capacity up to 489 lb/24 hours at 70°/50° (414 lb AHRI certified at 90°/70°), stackable unit (up to 3 machines, up to 1467 lb. production), stainless steel finish, individual square cube style, EverCheck™ digital control with LED display, R-404A refrigerant, 115v/60/1-ph, 11.5 amps, NSF, cETLus, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation; (HS-5397) Top kit, for use with IM-500 mounted to B-1150, B-1300, B-1500, or B-1650 bin

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki IM-500SAB/B-1150SS/HS-5397 Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
