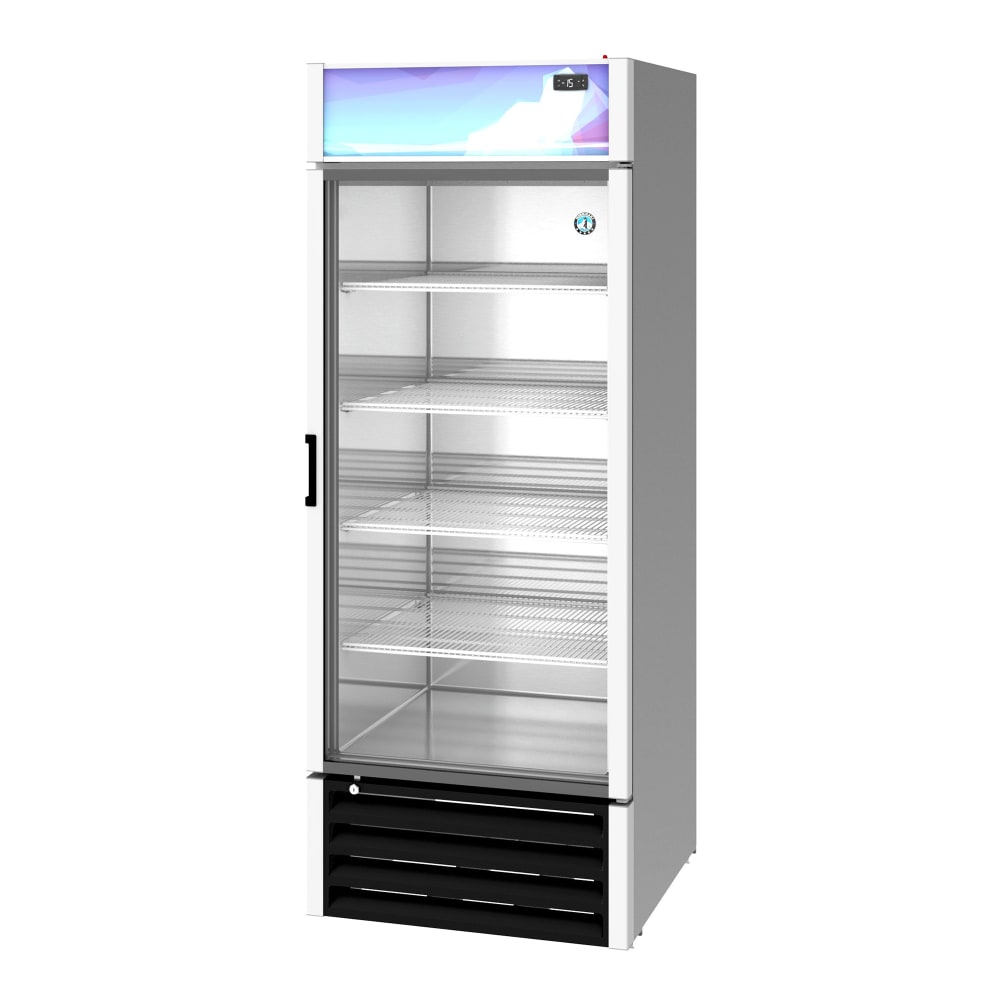

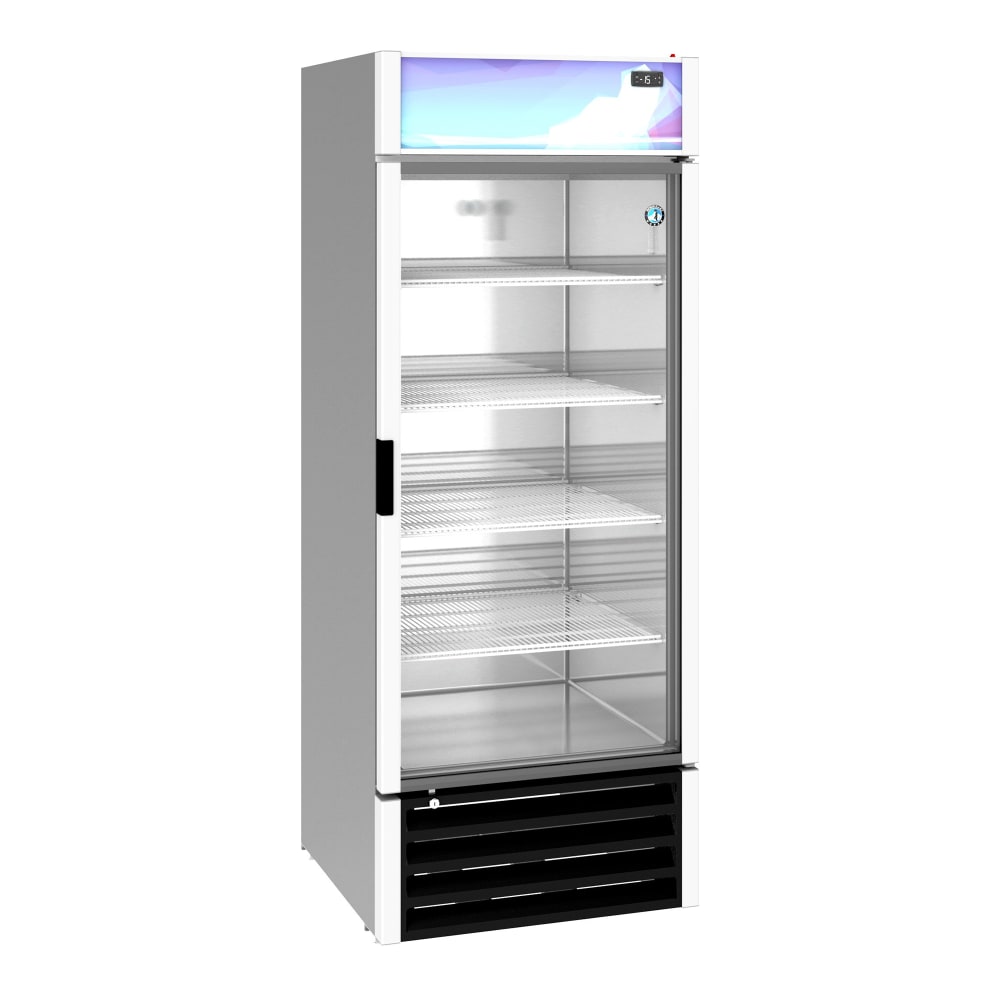

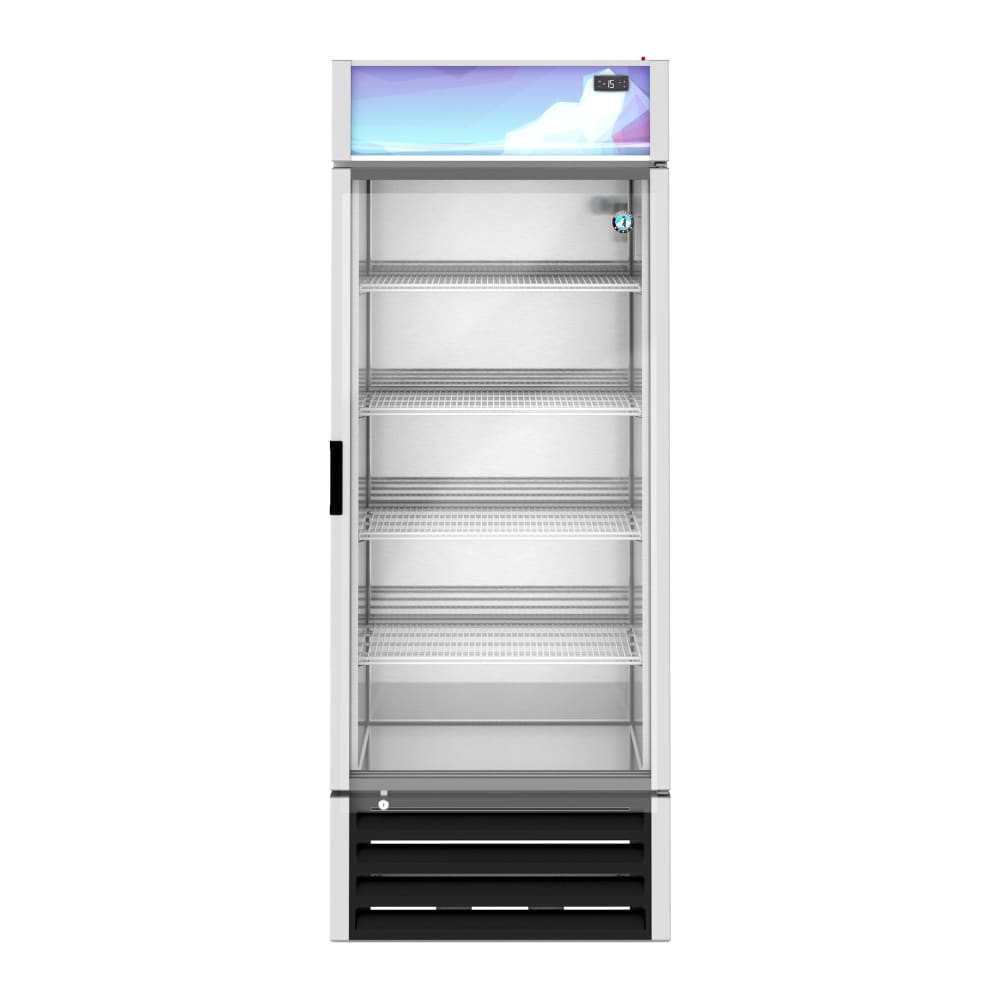

Hoshizaki FM-23-HC 30" One Section Display Freezer w/ Swing Door - Bottom Mount Compressor, White, 115v

The Hoshizaki FM-23-HC display freezer, part of the FM Series, features a bottom-mounted, self-contained refrigeration system that maintains consistent temperatures between -10 and 0 degrees Fahrenheit. Its self-closing, multi-pane hinged glass door is designed to improve energy efficiency by reducing heat transfer while enhancing product visibility. LED interior lighting illuminates the cabinet, while an LED-illuminated signage area helps draw customer attention to displayed products. The silver-painted galvanized steel exterior provides durability, and the white steel interior with a stainless steel floor ensures lasting performance in commercial environments. Five adjustable epoxy-coated shelves with product stops allow flexible storage configurations.

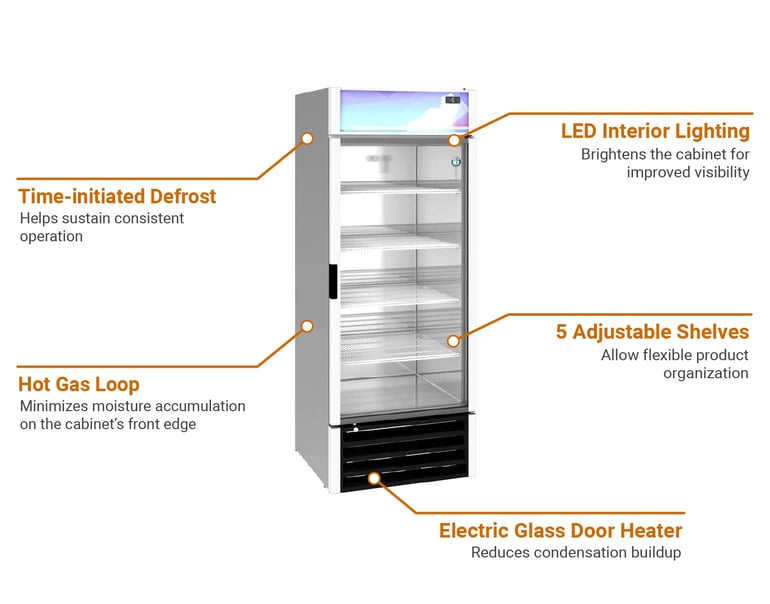

Designed with an advanced forced-air evaporator system, the Hoshizaki FM-23-HC freezer ensures rapid temperature recovery to maintain optimal frozen storage conditions. An electric glass door heater prevents condensation buildup for a clear view of stored products, while the energy-saving hot gas loop minimizes moisture accumulation along the cabinet’s front edge. A time-initiated automatic defrost system prevents frost buildup, reducing maintenance needs and ensuring efficient operation. The unit is equipped with two-inch leveling legs for stability.

Product Details

• FM Series
• 20.71-cu.-ft. overall capacity
• 5 adjustable white epoxy-coated shelves
• 1 section
• Silver-painted galvanized steel exterior
• Reach-in design
• Self-closing multi-pane hinged glass door
• White steel interior with stainless steel floor
• LED interior lighting
• LED-illuminated exterior signage
• Heavy-duty door hinges
• 2-in. leveling legs
• Standard door lock

Refrigeration System

• Bottom-mounted, self-contained refrigeration system
• Forced-air evaporator
• R290 hydrocarbon refrigerant
• Capillary tube system
• Electric glass door heater
• Energy-saving hot gas loop
• Time-initiated automatic defrost
• Environmentally friendly CFC-free polyurethane insulation
• Temperature holding range: -10 to 0 degrees F

Dimensions & Utilities

• Shelf: 24⁹/₁₆ in. W x 23¹/₄ in. D
• Interior: 25¹/₄ in. W x 25¹/₄ in. D x 60¹/₂ in. H
• Overall: 30 in. W x 29³/₄ in. D x 78 in. H
• 4.8 A
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki FM-23-HC within the 48 contiguous states.

From The Manufacturer

Freezer Merchandiser, 1-section, 20.71 cu. ft., 30"W x 29-3/4"D x 78"H, (1) self-closing multi pane hinged glass doors, (5) adjustable shelves, LED interior lighting, temperature range: -10° to -0°F, bottom mount self-contained refrigeration system, 2" leveling legs, silver painted galvanized steel exterior, white steel interior and stainless steel floor, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 15 amp, NEMA 5-15P, cULus, UL EPH

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor Parts

Hoshizaki FM-23-HC Specifications

Documents

Spec Sheet

Warranty
