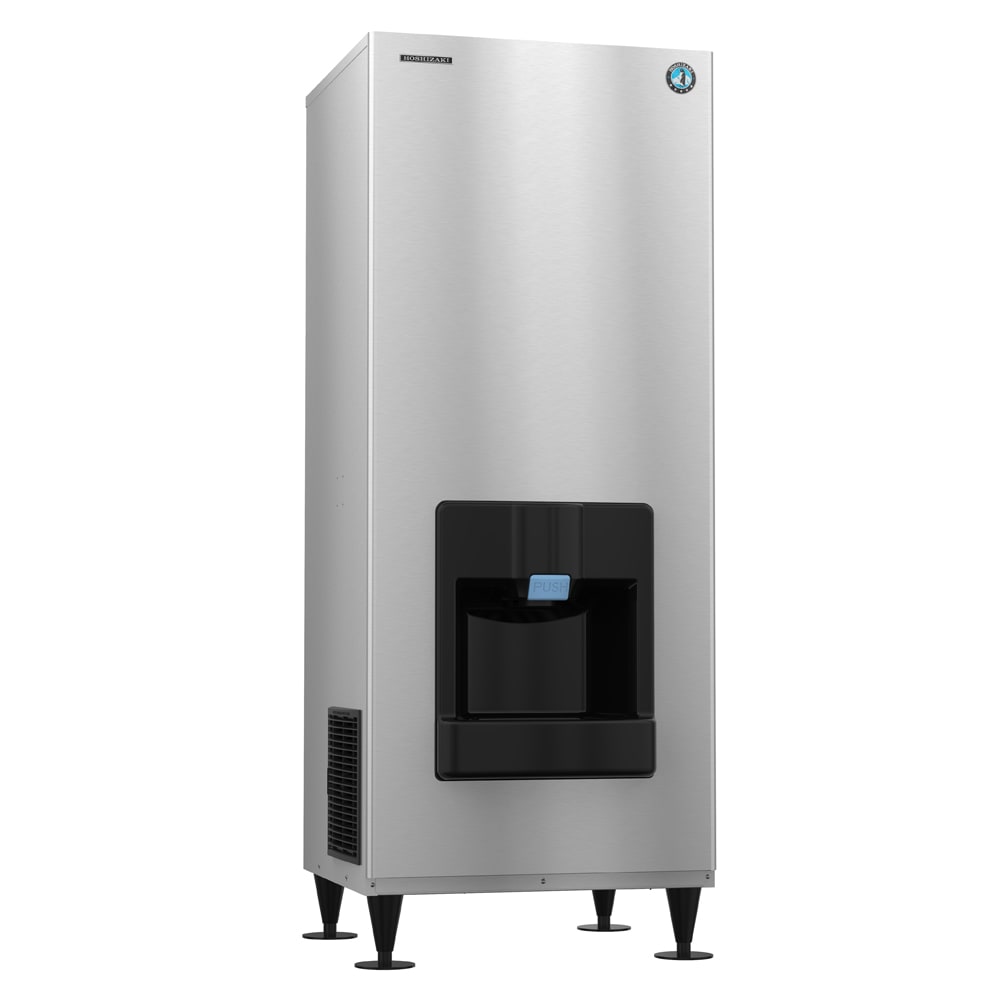

Hoshizaki DKM-500BAJ 545 lb Floor Model Crescent Ice Dispenser - 200 lb Storage, Bucket Fill, 115v

With the push of a button, the Hoshizaki DKM-500BAJ crescent ice dispenser releases as much as 13 pounds of ice per minute from its 200-pound storage bin. The polyethylene bin is insulated to prevent ice from melting while it's stored. In ideal conditions, this machine can produce 545 pounds a day, but if it's operated in a warmer room, it will produce 534 pounds. Ice is kept cold with R404A refrigerant, and the self-contained system prevents cross contamination and streamlines installation.

The Hoshizaki DKM-500BAJ countertop ice dispenser is positioned on six-inch flanged legs, so employees can clean underneath it without repositioning it. H-GUARD Plus® antimicrobial protects the bin from contamination by slowing down the growth of bacteria, ensuring ice tastes fresh for extended periods. The exterior of the unit is made of durable stainless steel, and the evaporator is made of stainless steel as well to resist corrosion when it gets wet.

Product Details

• Part of the Serenity series
• 545-lb. maximum daily ice production
• 534-lb. AHRI-certified daily ice production
• Makes crescent cube-style ice
• Ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• 200-lb. built-in storage capacity
• Dispenses with the push of a button
• Releases 13 lbs. of ice per min.
• Positioned on 6-in. flanged legs
• Protected with H-GUARD Plus antimicrobial agent
• Air-cooled, self-contained condenser uses R404A refrigerant
• Stainless steel evaporator
• CycleSaver™ design made of 1 piece for cleaning and installing
• Exterior made of durable and corrosion-resistant stainless steel
• Polyethylene bin is insulated to retain cold air
• CEC and ADA compliant
• Requires a 12-in. clearance on the left and a 6-in. clearance on the right, rear, and top
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 9,100-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 30 in. W x 28 in. D x 77 in. H
• 13.5 A, 5.56 kW
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-20P plug

*Free shipping on Hoshizaki DKM-500BAJ within the 48 contiguous states.

From The Manufacturer

Serenity Ice Maker/Dispenser, Crescent Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 545 lb/24 hours at 70°/50° (534 lb AHRI certified at 90°/70°), 200 lb built-in storage capacity, push button operation, polyethylene bin & stainless steel exterior, 6" flanged legs, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 13.5 amps, 115v/60/1-ph, CEC compliant, ice dispensing height is ADA compliant, NSF, UL, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts

Hoshizaki DKM-500BAJ Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
