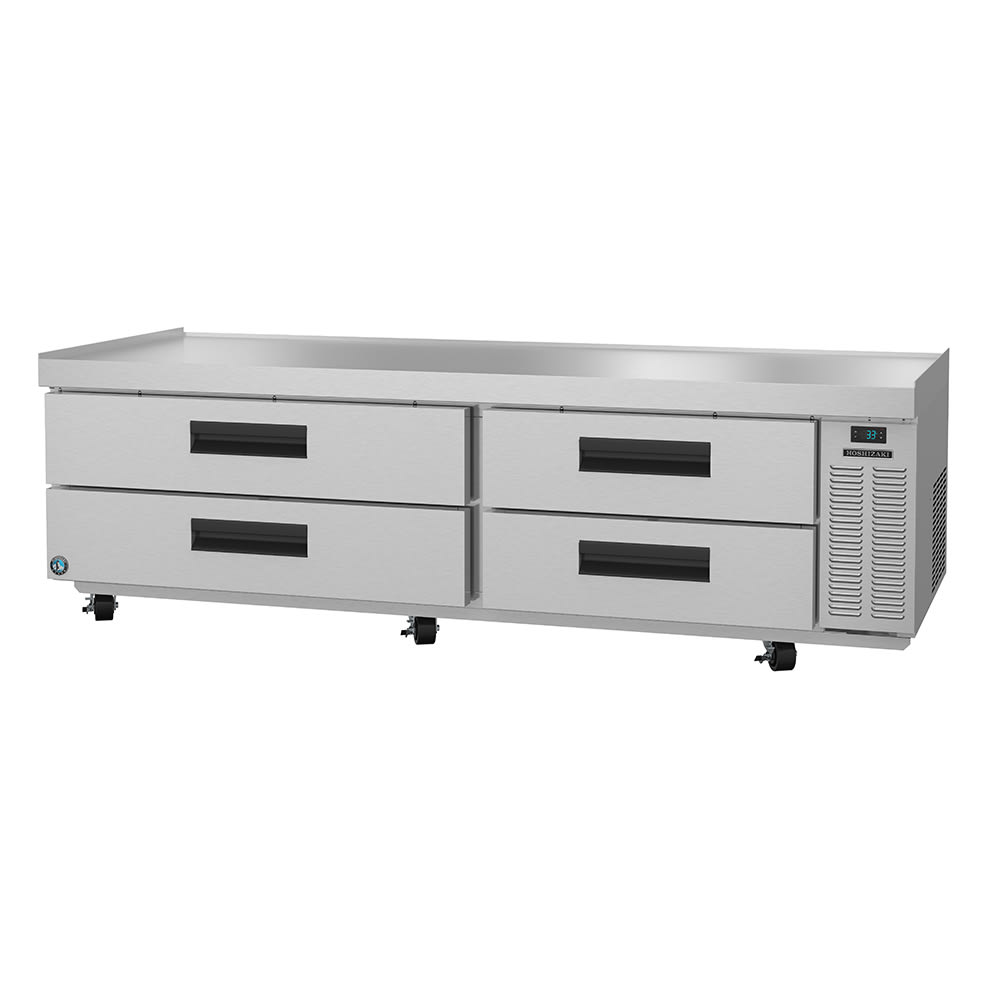

Hoshizaki CR85A 85" Steelheart Series Chef Base w/ (4) Drawers - 115v

The Hoshizaki CR85A chef base accommodates 1,500 pounds of equipment and has plenty of space for employees to prepare food. The top has a marine edge and a drip edge to contain messes and prevent things from falling off, and its ceramic heat shield prevents it from burning when used with hot equipment. The base is refrigerated to hold food product, and using the solid-state controls, operators can adjust the temperature from 32 to 52 degrees Fahrenheit depending on need. An alarm will sound if the temperature drops to an unsafe range, which can be seen on the LED display.

To ensure durability, the Hoshizaki CR85A chef base is made of stainless steel. It has four drawers sealed tight with magnetic gaskets, and each of them holds full-size food pans—three in the left drawers and two in the right. The drawers have aluminum handles to provide access to the interior, and finger cut-outs facilitate grabbing a food pan without accidentally touching its contents. Its refrigeration system is located at the side with a removable panel to streamline maintenance. This system is self-contained and operates with environmentally friendly R290 hydrocarbon refrigerant.

Product Details

• Part of the Steelheart Series
• 21.1-cu.-ft. interior capacity
• Temperature range: 32-52 degrees F

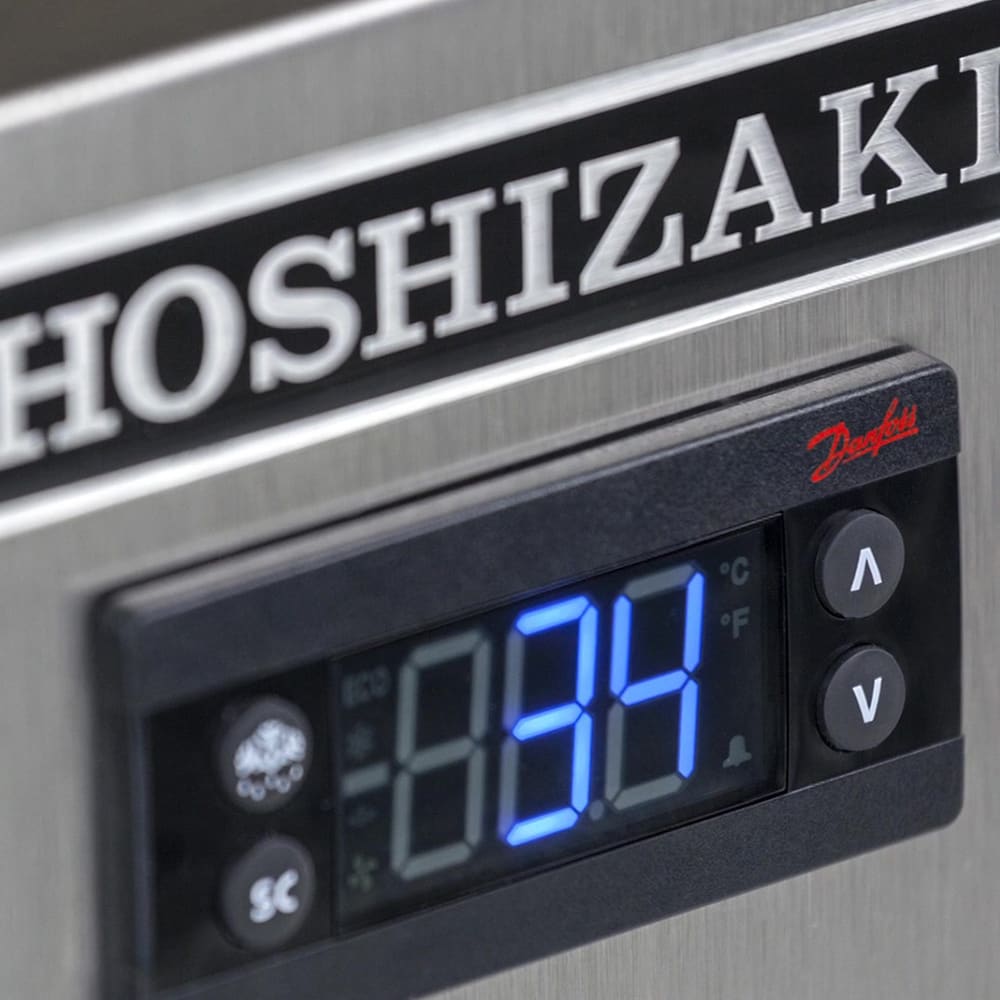

• Solid-state digital controller with temperature alarms
• LED display provides accurate readouts

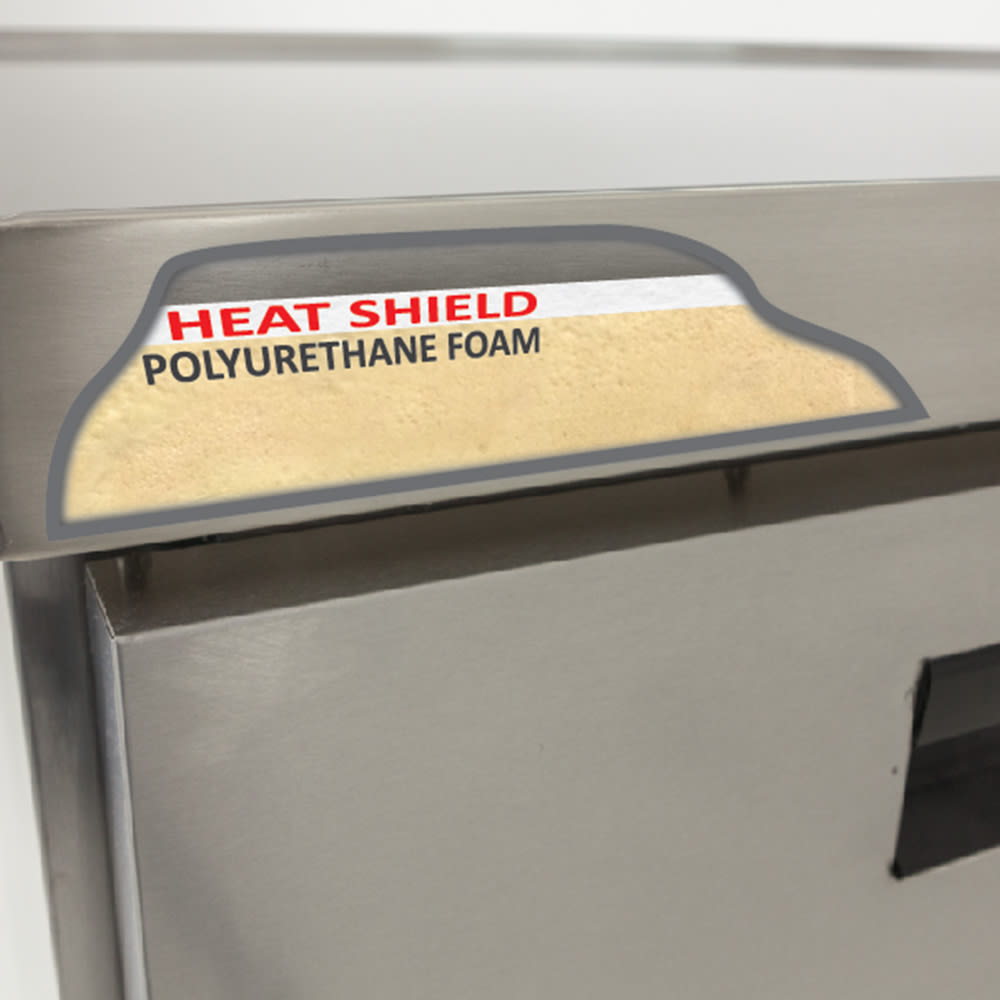

• Top has a ceramic heat shield for protection
• 1,500-lb. capacity

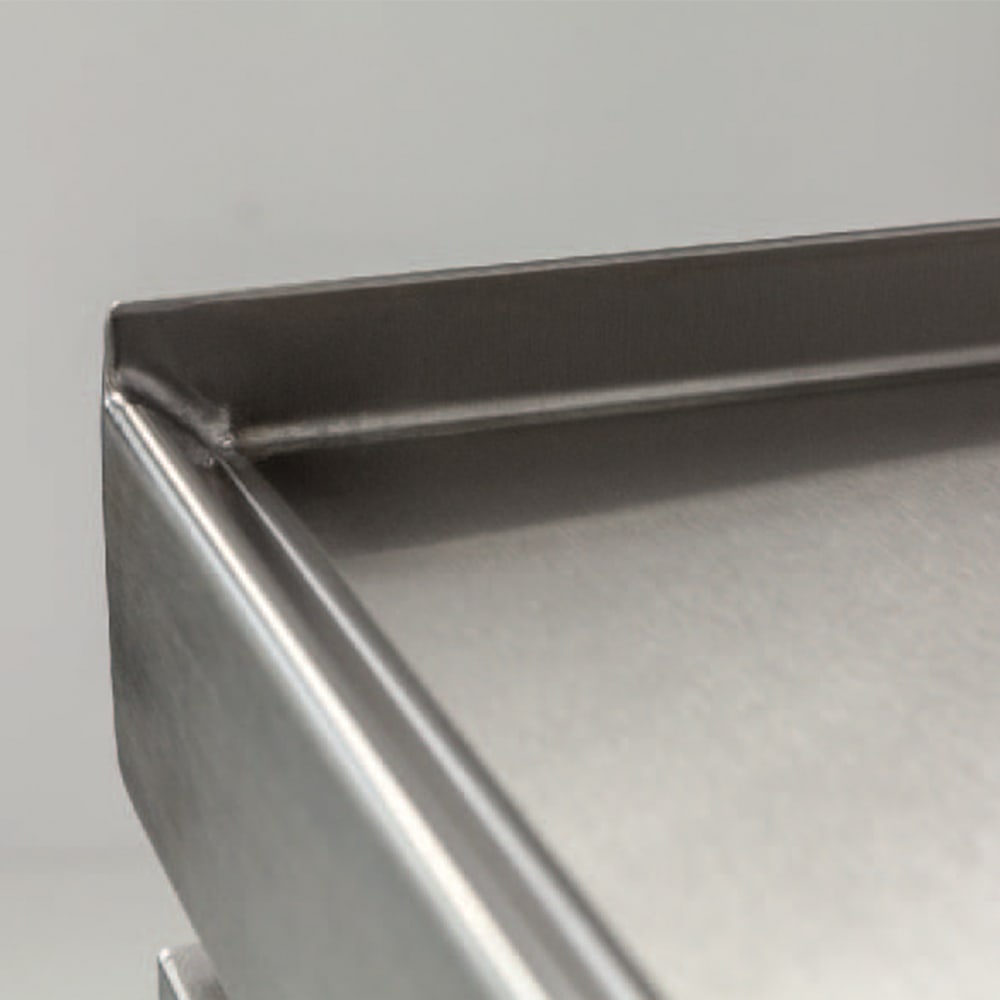

• Marine edge and drip edge prevent spillage
• 4 drawers with extruded aluminum handles
• Left drawers accommodate 3 full-size food pans; right drawers hold 2

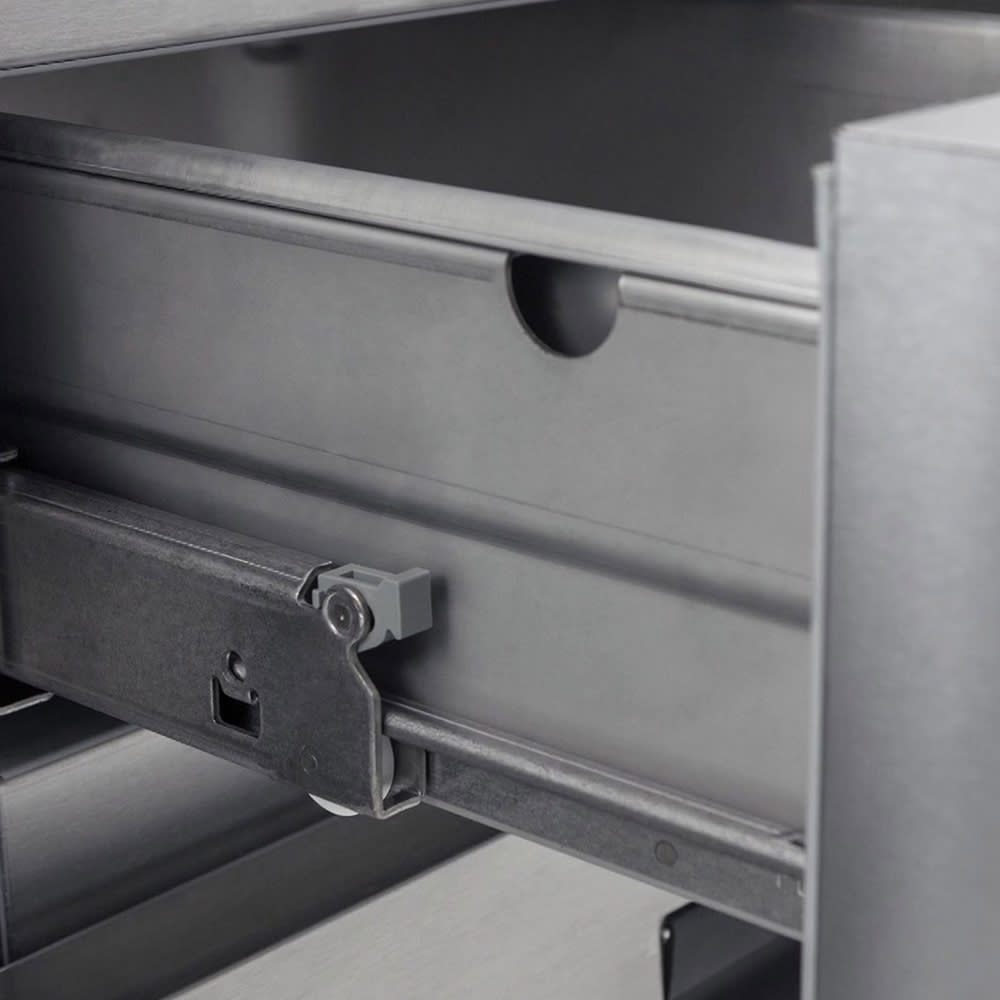

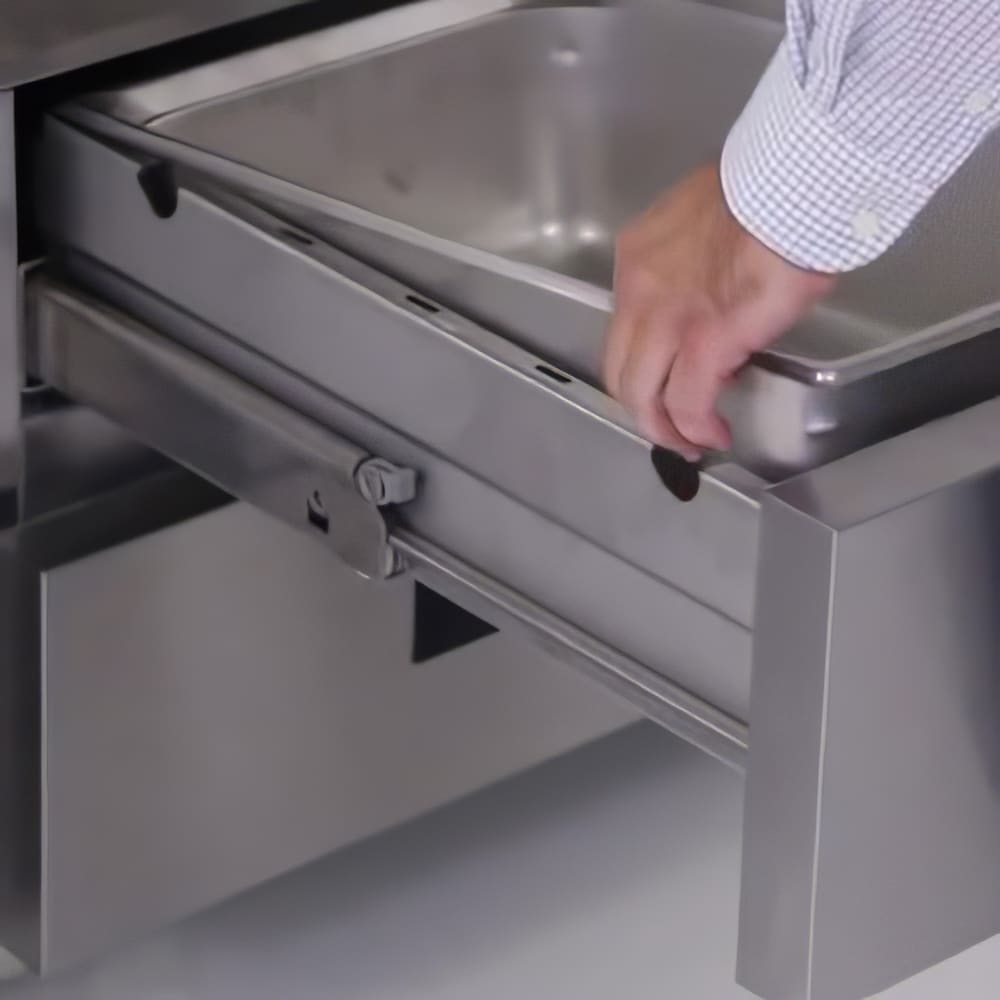

• Finger cut-outs enable users to grip pans in drawers
• Drawers are sealed tight with magnetic gaskets
• Insulated with 2-in. polyurethane to retain cool temperatures
• Constructed of durable stainless steel
• Positioned on (6) 4-in. casters with brakes
• Self-contained, side-mounted refrigeration unit
• R290 hydrocarbon refrigerant cools the cabinet
• End panel is removable for maintenance
• Epoxy-coated evaporator coil resists corrosion
• Hot gas evaporator removes condensation
• Ideal ambient air temperature: 45-100 degrees F
• 415-BTU heat transfer capacity
• 1,354-BTU nominal compressor capacity

Product Features

Dimensions & Utilities

• 85 in. W x 33.25 in. D x 27 in. H
• 3 A, 2.9 kW, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

*Free shipping on Hoshizaki CR85A within the 48 contiguous states.

From The Manufacturer

Steelheart Series Refrigerated Equipment Stand, two-section, 85"W x 32-1/4"D x 27"H, (4) drawers: left two drawers will accommodate (3) 12" x 20" x 6" deep pans each, right two drawers will accommodate (2) 12" x 20" x 6" deep pans each (pans not included), solid state digital controller with temperature alarms, LED display, stainless steel front, sides, & top, stainless steel interior, side-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, (6) 4" casters (all with brakes), cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Parts; 5-year Labor; 7-year Compressor Parts
