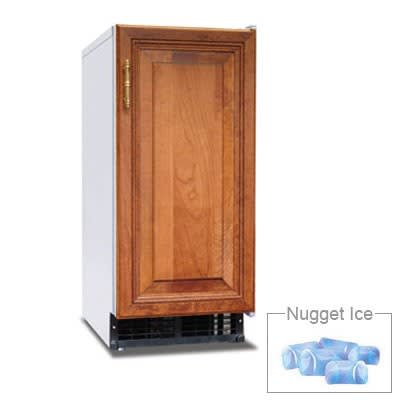

Hoshizaki C-101BAH-ADDS Undercounter Nugget Ice Maker - 92-lbs/day, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 440-C101BAHADDS • MPN: C-101BAH-ADDS

Ships Free

This item is no longer available

(0 reviews)Write a Review

This product is discontinued.

To see similar options, click here

Product Discontinued

Image may not depict product color, inclusions or accessories.

Hoshizaki C-101BAH-ADDS Description


This undercounter ice maker from Hoshizaki replaces the C-100BAE-ADDS. This ice maker is easy to clean with an accessible front drain valve that does not require the removal of any panels. A low water safety switch keeps the machine from damage due to water failure, and the electronic water valve and timed bin control shutdown improve water control and efficiency. This ice maker produces 92 pounds of ice daily and has a 22 pound bin capacity. It has a durable stainless steel exterior and is UL-approved for outdoor use.

Product Details

  • Air-cooled
  • Self-contained condenser
  • Chewable, pellet-shaped cubelet-style ice, overall dimensions: 3/8-in. W x 5/8-in. D x 1/2-in. H
  • Daily ice production of up to 92-lbs.
  • 22-lbs. storage capacity
  • Compact, under counter design
  • Redesigned ice-dispensing flapper and seamless bin
  • Dual float switch with low water safety shut down
  • Electronic water valve
  • Front drain valve for easy draining
  • R-134A refrigerant
  • 115 V/60 Hz/1-ph, 4.0 A, 12.1kW
  • Overall Dimensions: 14-7/8 in. W x 22-5/8 in. D x 31-1/2 in. H
  • cULus, ETL, and UL-outdoor Listed; ENERGY STAR Certified

Compact, Customizable and Easy to Clean

  • Undercounter design with 31-1/2 in. H is ADA compliant
  • Stainless steel door as standard - custom cabinet door and side and top trim kit available but not included
  • Swing-style reversible door hinges
  • Access to front-mounted parts does not require the removal of panels to make cleaning easier

Improved Safety and Performance

  • A redesigned ice dispensing switch and timed bin shutdown control improves ice maker efficiency by cutting off production when the bin is full
  • The dual float switch controls water supply and protects the machine from damage due caused by water failure
  • An inlet water valve prevents large particles from entering the machine and controls the flow of water
  • UL-approved for outdoor use
  • If there is no direct drain connection, a drain pump (HS-5061) is required

Ice Maker With Bin, air-cooled, self-contained condenser, production capacity up to 92 lb/24 hours at 70°/500 (62 lb AHRI certified at 90°/70°), 22 lb built-in storage capacity, cubelet style, stainless steel exterior, accommodates custom cabinet door (NOT INCLUDED), ADA compliant, 115v/60/1-ph, 4.0 amps, UL (approved for outdoor use), cETLus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hoshizaki C-101BAH-ADDS Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 92 lbs
Height (in) 31.5
Ice Type Nugget
Voltage 115/60/1
Width (in) 15
Bin Capacity 22 lbs
Warranty 2-yr. Parts & Labor; 1-yr. Parts & Labor Drain Pump
Compressor Type Air Cooled
Width (in) Range 15 - 19 in
Weight 120.00
Hoshizaki C-101BAH-ADDS Certifications
  • UL
  • NSF
  • ETL
