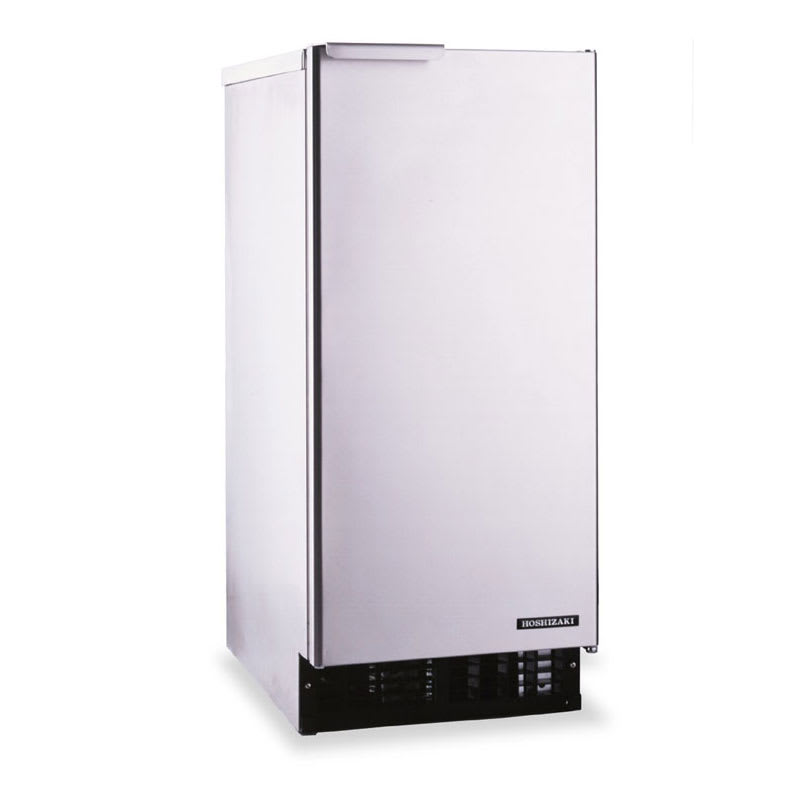

Hoshizaki AM-50BAE-AD Undercounter Top Hat Ice Maker - 55-lbs/day, Air Cooled, 115v

KaTom #: 440-AM50BAEAD • MPN: AM-50BAE-AD

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $1,825.00

Hoshizaki AM-50BAE-AD Description

At just 3112 inches tall, the Hoshizaki AM-50-BAE-AD undercounter ice machine is designed to comply with the Americans with Disabilities Act by fitting under lower counters required for accessibility. Its compact design, at just 1478-inches wide, and production capacity of 55 pounds of gourmet ice per day make it perfect for office break rooms, stadium and arena luxury boxes, and home use. With an outdoor listing from UL, it's also a great addition to a patio bar area or a poolside cabana. Its integral bin can hold 22 pounds of top-hat-style ice, so you can always have ice at the ready.

The engineers at Hoshizaki designed this unit to be easy to clean and maintain. The water-handling system disassembles and the surgical-grade stainless steel evaporator requires less cleaning than the nickel-plated steel used in other machines. All those parts are easily accessible from the front of the unit, which makes maintenance easier. Meanwhile, the condenser is constructed with fewer parts, which means there's less to break down or wear out. This unit relies on gravity to drain excess water. Installations without easy access to a floor drain will require a drain pump. This ice maker produces 55 pounds of ice daily and has a storage capacity of 22 pounds to meet your low demand needs. The condenser’s unique design has fewer moving parts so there is a smaller chance of malfunction or parts wearing out.

Product Details

  • Air cooled
  • Undercounter design
  • ADA-compliant
  • 55 lbs./24-hrs. production capacity
  • Top-hat-style ice is 78 in. dia. x 1 in. H
  • 22-lb. bin capacity
  • Reversible doors allow for more flexibility in installation
  • Self-contained condenser
  • Power switch is located on the front on the bottom right
  • Uses R134A refrigerant
  • Stainless steel construction
  • 115 V/60 Hz/1 ph, 3.4 A, NEMA 5-15 plug
  • 12-in. FPT water inlet and drain
  • Overall Dimensions: 1478 in. W x 2258 in. D x 3112 in. H
  • cULus and UL-outdoor Listed; NSF Certified
  • Note: If you do not have direct floor drainage, a drain pump is required

Indoor or Outdoor Usage

  • UL listed for outdoor use, so the unit can withstand exposure to the elements
  • Compact design fits under any counter that is at least 34 in. H
  • Front breathing design allows the unit to be surrounded by cabinets or to be used freestanding
  • Stainless steel exterior will resist dents and corrosion

Simple Design for Longer Life

  • Condenser has few moving parts, so it is less likely to break or wear out
  • Surgical-grade stainless steel evaporator stands up to most cleaners and requires less cleaning versus nickel-plated
  • Front-accessible parts make cleaning and maintenance easy
  • Power switch is accessible without removing any panels
  • Water circuit is easily disassembled to make draining for maintenance and cleaning easy

Ice Maker With Bin, Cube-Style, air-cooled, self-contained condenser, approximately 55-lb production/24 hours, Top Hat style full cube, 22 lb. storage bin capacity, ADA compliant, 115v/60/1-ph, 3.4 amps, NSF, UL (outdoor use)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hoshizaki AM-50BAE-AD Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 55 lbs
Height (in) 31.5
Ice Type Top Hat
Voltage 115/60/1
Width (in) 15
Bin Capacity 22 lbs
Warranty 2-yr. Parts & Labor
Compressor Type Air Cooled
Drain Type Gravity
Weight 115.00
Hoshizaki AM-50BAE-AD Certifications
  • UL
  • NSF
