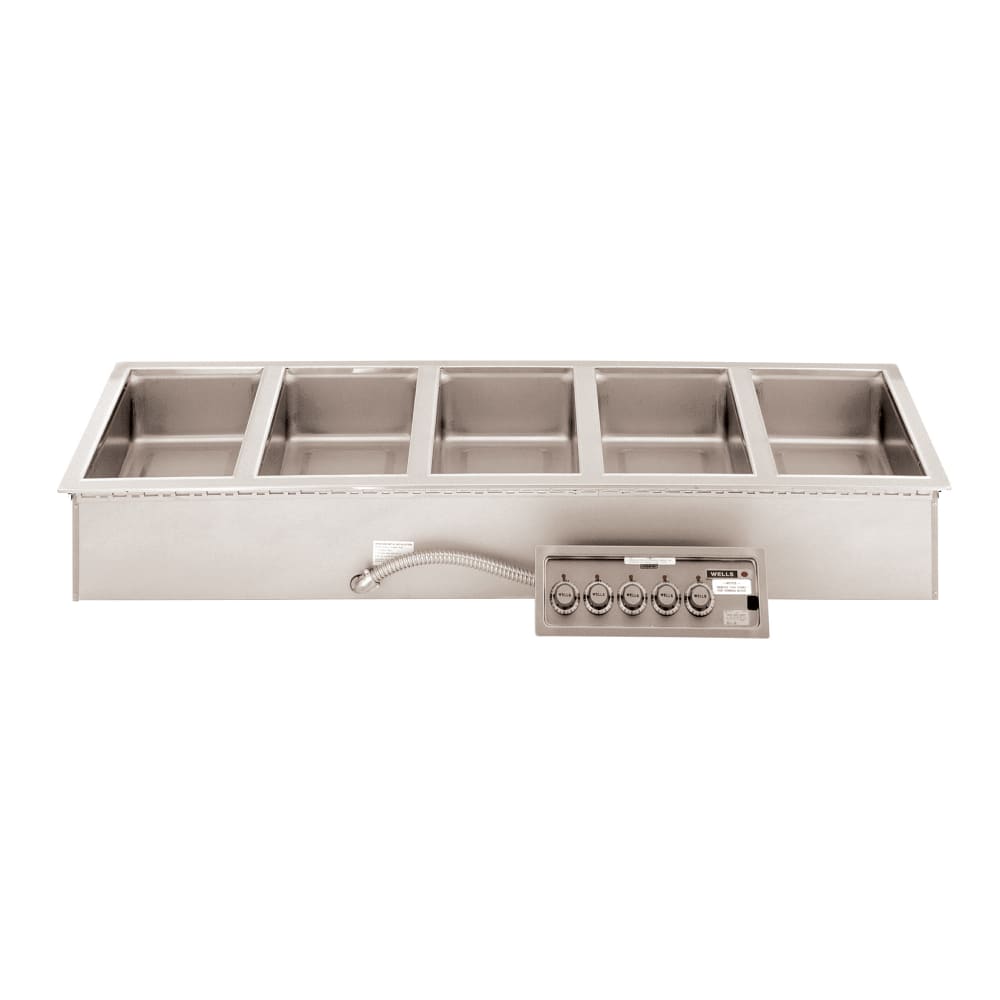

Wells MOD-500TDM/AF Drop-In Hot Food Well w/ (5) Full Size Pan Capacity, 208 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 439-MOD500TDMAF • MPN: MOD-500TDM/AF
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $3,624.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Wells MOD-500TDM/AF Description

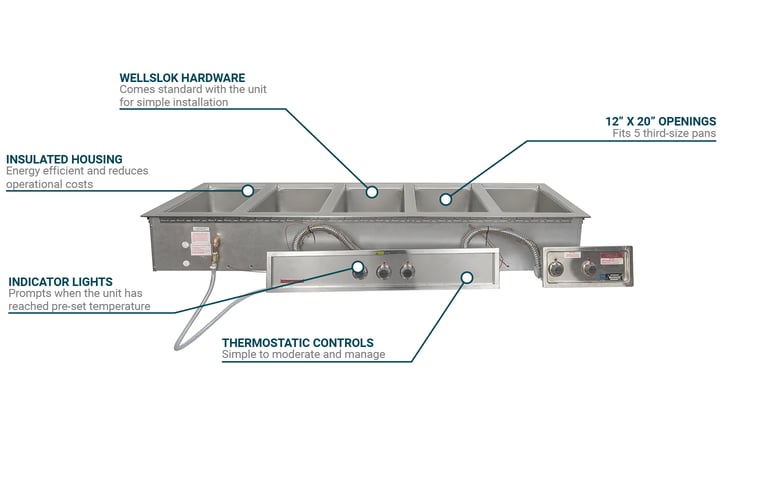

The Wells MOD-500TDM/AF drop-in food warmer holds heated food at safe and hot temperatures, which making it a good choice for outfitting buffet lines. Each well has its own thermostatic controls so you can have five different dishes heating at once. These controls are recessed to protect them from becoming damaged. Tubular heating elements sit under the warming pans to evenly distribute heat and prevent hot and cold spots. High-temperature limit switches keep the warmer from overheating. Heat recovery and preheating is faster because the front, back, sides, and bottom of the warmer are insulated. Wellslok hardware makes this drop-in well easier to install than traditional warmers. The Wells MOD-500TDM/AF drop-in food warmer accepts five standard 12-inch-by-20-inch pans or the equivalent fraction pans.

Product Details

  • Holds 5 standard 12-in. x 20-in. pans or the fractional equivalent
  • Ideal for buffet lines and non-metal counters
  • Designed for wet or dry operation, but wet application works best
  • Auto-fill feature maintains the correct water level
  • Top-mount, drop-in food warmer holds food at safe, hot temperatures
  • Heavy-gauge, deep-drawn stainless steel warming pans
  • Tubular heating elements under the warming pans evenly distribute heat to eliminate hot and cold spots
  • Front, back, sides, and bottom are fully insulated for faster preheating and heat recovery
  • Wells have individual thermostatic controls so different foods can be held in the same warmer
  • High temperature limits prevent the risk of overheating
  • Indicator lights let you know when the temperature is at the desired setting
  • Thermostatic controls are recessed to prevent damage
  • Installation is faster and easier with Wellslok hardware
  • One-piece stainless steel top flange

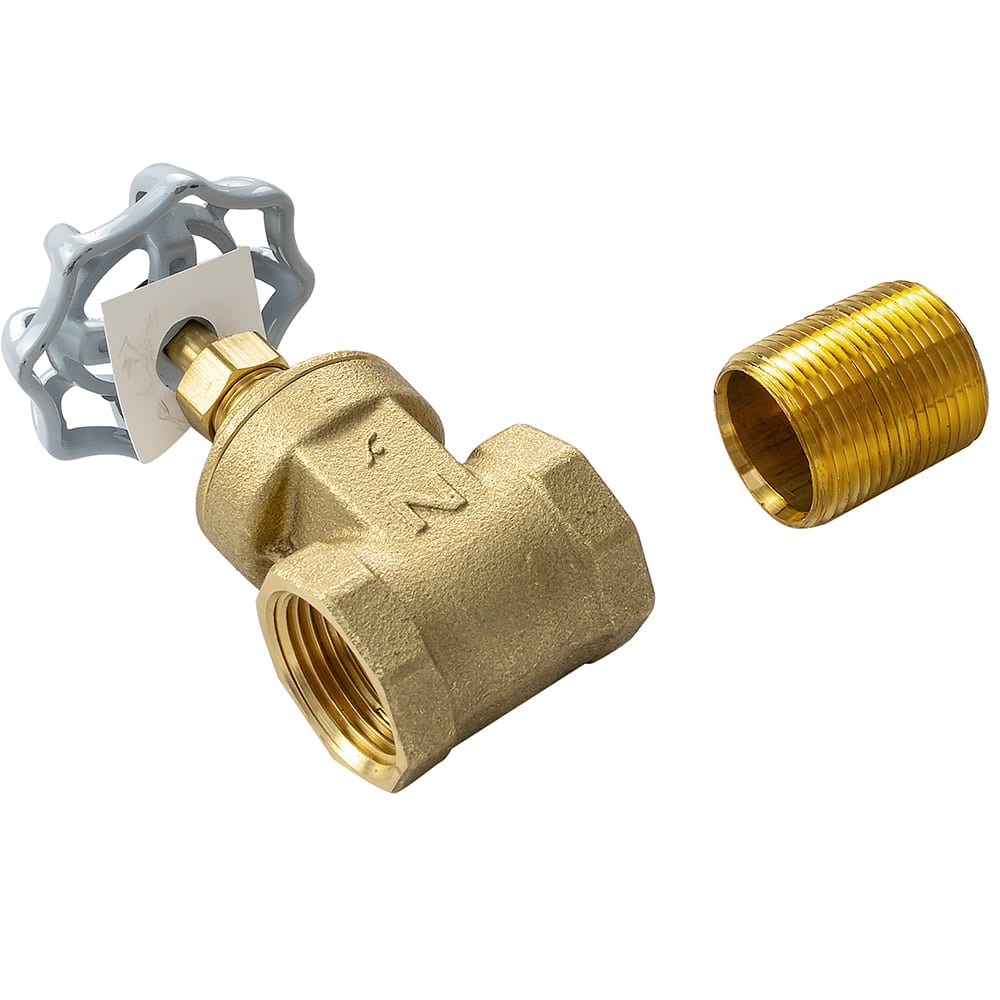

  • 12 in. drain and manifold
  • 208-240 V/60 Hz/3 ph, 1240-1650 W
  • Overall Dimensions: 2358 in. L x 7112 in. W x 934 in. H
  • UL listed; NSF certified

Food Warmer, top-mount, built-in, electric, auto-fill, (5) 12" x 20" openings with manifold drains with one valve, wet/dry operation, double control panel, thermostatic control, stainless steel interior, insulated aluminum steel housing, cULus, 208-240v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Wells MOD-500TDM/AF Specifications

PDF Spec Sheet
Manufacturer Wells
Capacity (Pans) 5
Voltage 208/240
Controls Thermostatic
Type Hot
Hertz 60
Phase 3
Pan Size Full
Specialty Options With Drain
Specialty Options Wet or Dry
Weight 126.00
Wells MOD-500TDM/AF Certifications
  • UL
