John Boos E3S8-24-14 77" 3 Compartment Sink w/ 24"L x 24"W Bowl, 14" Deep
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $2,600.00
$1,333.80 /Each
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
John Boos E3S8-24-14 Description
To facilitate cleaning, the John Boos E3S8-24-14 triple-compartment sink is built with coved interior corners that have a 3⁄4-inch radius. It's made of 18-gauge stainless steel, a type of metal that's ideal for high-moisture applications due to its rust resistance. Supporting the sink, tubular legs made of galvanized steel are placed directly beneath the sink basins to bear the load more evenly. To stabilize the unit, operators can adjust its 1-inch plastic bullet feet.
Product Details
- Part of the E-series
- 3 compartment
- 93⁄4-in. boxed backsplash with 2-in. return
- 2 sets of splash-mount faucet holes on 8-in. centers
- (3) die-stamped 31⁄2-in. drain openings built in
- 18-ga. bowls made of 300 series stainless steel to resist rust
- Satin finish provides a smooth surface
- Water is directed to drains with formed basins
- Interior corners with 3⁄4-in. radii resist the growth of microbes
- 15⁄8-in. tubular legs made of galvanized steel
- Bull-nosed outer corners won't scratch hands
- Polished TIG-welded seams are smooth
- Galvanized steel gussets reinforce the sink's shape
- Adjustable 1-in. plastic bullet feet
Dimensions & Utilities
- Sink bowls: 24 in. L x 24 in. W x 14 in. D
- Overall: 77 in. W x 291⁄2 in. D x 433⁄4 in. H

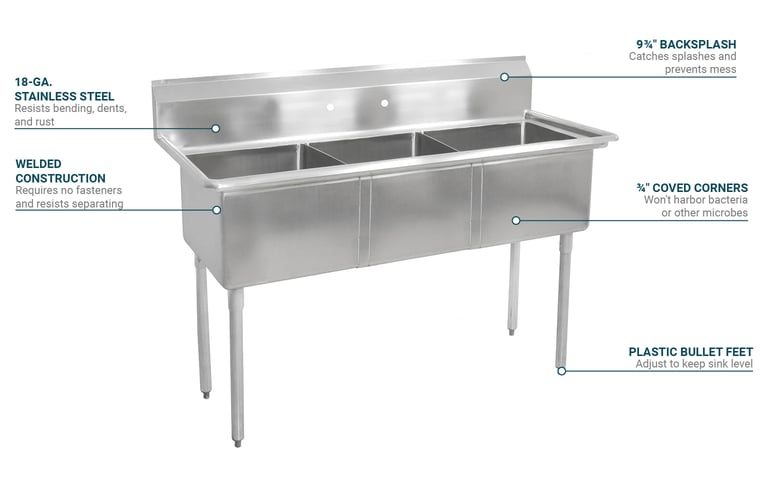

Product Features
From The Manufacturer
E-Series Sink, 3-compartment, 77"W x 29-1/2"D x 43-3/4"H overall size, (3) 24"W x 24" front-to-back x 14" deep compartments, 9-3/4"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
*Image may not depict product color, inclusions or accessories.
John Boos E3S8-24-14 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | John Boos |
| Backsplash Height (in) | 10 |
| Construction | Stainless Steel |
| Depth (in) | 29.5 |
| Drainboard Location | None |
| Faucet Centers (in) | 8 |
| Faucet Mount | Splash |
| Length (in) | 77 |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Series | E-Series |
| Sink Depth (in) | 14 |
| Sink Length (in) | 24 |
| Sink Width (in) | 24 |
| Special Features | Skirted |
| Stainless Steel Gauge | 18 gauge |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Weight | 112.00 |
