John Boos E3S8-18-14T24 Description

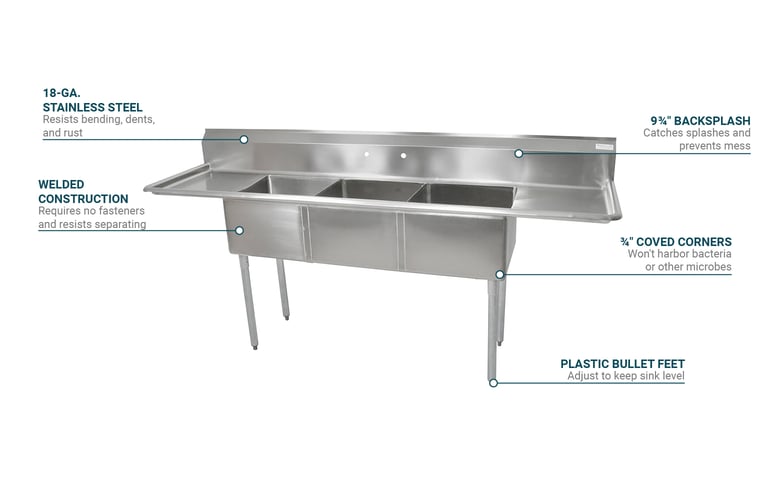

E-Series Compartment Sink, (3) 18"W x 18" front-to-back x 14" deep compartments, (2) 24" drainboards, 10"H boxed backsplash with 2" return to wall at 45° & 1" tile edge, corners coved at 3/4" radius, bottom of bowl drain to 3-1/2" dia. die stamped opening, (1) set of faucet holes, 18/300 stainless steel, 1-5/8" OD galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
John Boos E3S8-18-14T24 Specifications
PDF Spec Sheet| Manufacturer | John Boos |
| Faucet Mount | Splash |
| Faucet Centers | 8" |
| Drainboard Location | Both Sides |
| Backsplash Height | 10" |
| Stainless Steel Gauge | 18 gauge |
| Stainless Steel Grade | 300 Series |
| Specialty Options | Skirted |
| Overall Length (in) | 102 |
| Sink Length (Side to Side) | 18 |
| Sink Width (Front to Back) | 18 |
| Sink Depth | 14 |
| Weight | 107.00 |
