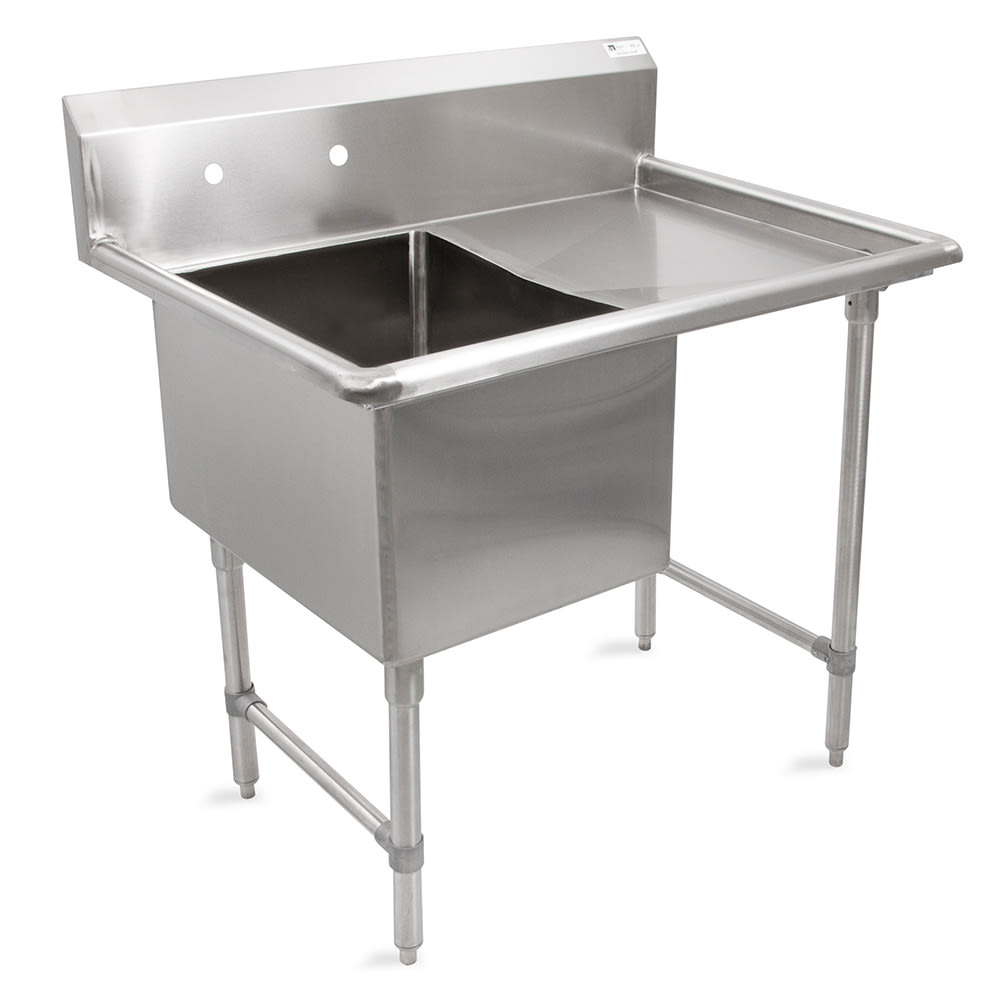

John Boos 1B16204-1D18R 38" 1 Compartment Sink w/ 16"L x 20"W Bowl, 14" Deep

Image may not depict product color, inclusions or accessories.

KaTom #: 416-1B162041D18R • MPN: 1B16204-1D18R

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $702.00
$366.80 / Each

Image may not depict product color, inclusions or accessories.

John Boos 1B16204-1D18R Description

John Boos

The John Boos 1B16204-1D18R one-compartment sink is ideal for hand washing stations or pre-rinsing dishes. An 18-inch right-side drainboard holds clean or dirty dishes, while a 10-inch backsplash prevents water from getting on the walls. Since the corners and exterior edges have a bullnose design, staff are protected from injuries. Coved corners in the bowl eliminate cracks where food particles could get stuck, keeping the unit clean. This John Boos 1B16204-1D18R one-compartment sink has been TIG and MIG welded and smoothed to match the other surfaces. Constructed of stainless steel, the unit is heavy duty and can withstand commercial use.

Product Details

  • Strengthened by a stainless steel construction
  • 18-in. drainboard on the right of the unit can hold dirty or clean dishes
  • TIG and MIG welding techniques provide strength and smooth edges
  • 34-in. coved corners eliminate crevices in the bowl that are difficult to clean
  • Bottom of the bowl drains to a 312-in.-dia. die-stamped opening
  • 10-in. backsplash confines messes to the sink top
  • 2-in. return to wall at 45 degrees
  • 1-in. turned-down rear lip
  • 118-in. faucet holes create a place for a deck mount faucet (Sold separately)
  • Exterior bullnose corners and edges reduce the risk of injury
  • 158-in.-dia. legs add structure
  • Bowl dimensions: 16 in. L x 20 in. W x 14 in. D
  • Overall dimensions: 38 in. L x 2512 in. W x 43 in. H
  • CSA listed; NSF certified

Not sure what kind of sink you need? We have a whole list in our sinks buyer's guide, along with accessories.

"B" Series Sink, 1-compartment, 38"W x 25-1/2"D x 43"H overall size, (1) 16"W x 20" front-to-back x 14" deep compartment, (1) 18" right drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, gussets, crossbracing, & adjustable bullet feet, NSF, CSA-Sanitation

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

John Boos 1B16204-1D18R Specifications

PDF Spec Sheet
Manufacturer John Boos
Faucet Mount Splash
Faucet Centers 8"
Drainboard Location Right
Backsplash Height (in) 10"
Stainless Steel Gauge 16 gauge
Stainless Steel Grade 300 Series
Specialty Options All Stainless Construction
Overall Length (in) 38
Sink Length (in) 16
Sink Width (in) 20
Sink Depth (in) 14
Weight 58.00
John Boos 1B16204-1D18R Certifications
  • NSF
