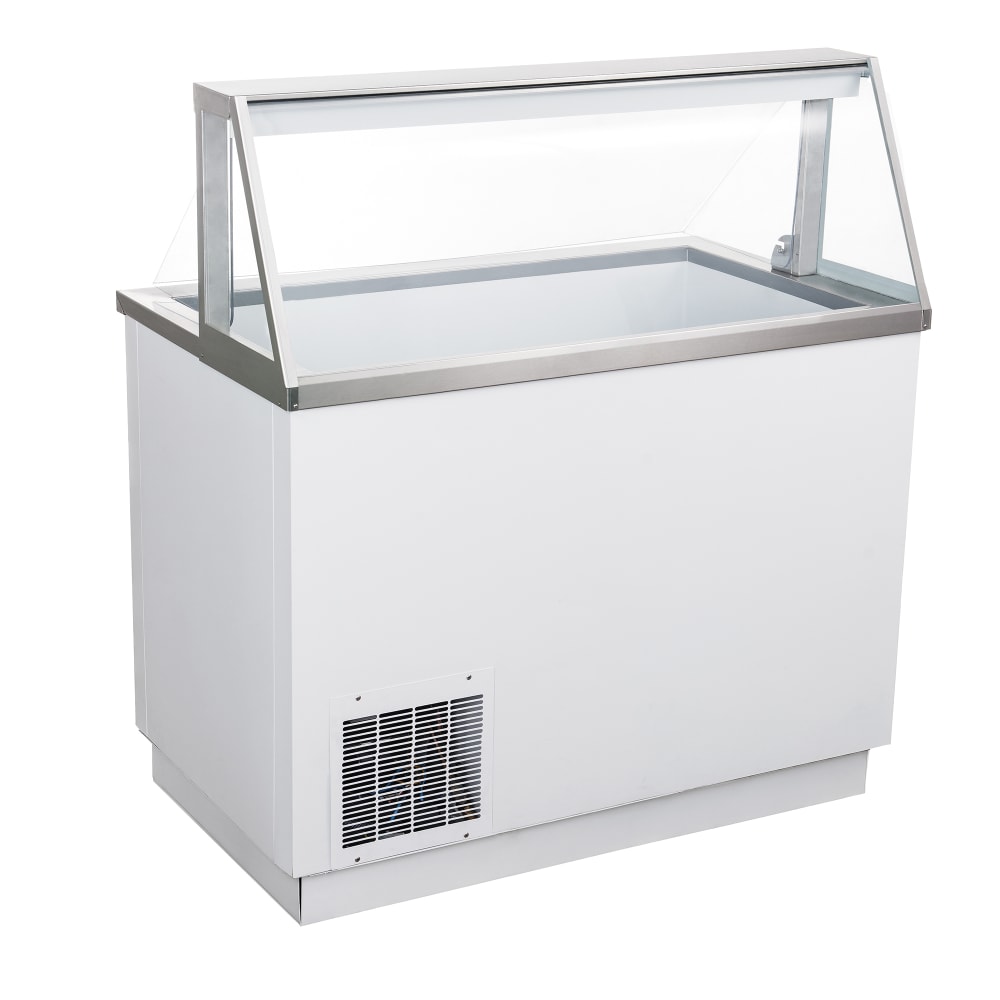

U-Star USDP-47 47" Ice Cream Dipping Cabinet w/ 12 Tub Capacity - White, 115v

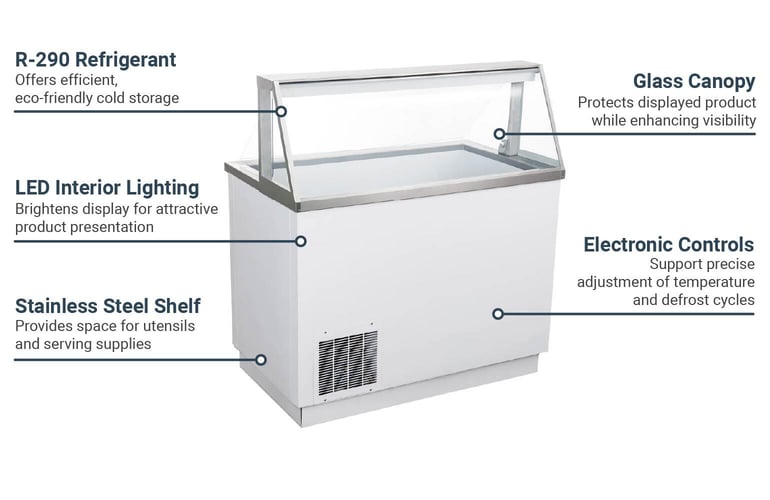

Designed for frozen dessert service, the U-Star USDP-47 ice cream dipping cabinet features a glass canopy that offers clear visibility of displayed flavors while protecting product from contaminants. The unit holds up to (8) 3-gallon cans on the top display and stores four backup tubs underneath in the cold storage zone. Its stainless steel top shelf provides a convenient location for spoons, napkins, and serving accessories, while the LED interior lighting enhances product presentation. A full-length handle spans the transparent lid, giving staff quick and secure access to the cabinet’s interior.

The U-Star USDP-47 dipping cabinet from U-Star maintains a temperature range between -10 and 5 degrees Fahrenheit using R-290 hydrocarbon refrigerant. A set of electronic controls allows operators to easily manage temperature set points and defrost frequency. Foamed-in-place insulation and a self-contained refrigeration system improve temperature stability and simplify installation. The cabinet’s white painted exterior offers a clean look for front-of-house service, and the aluminum interior resists corrosion and supports durability during repeated use.

Product Details

• 12-can capacity for 3-gal. containers
• Holds 8 display cans and 4 backup storage cans
• White painted exterior finish
• Aluminum interior liner
• Glass canopy
• 1 transparent lid with full-length handle
• LED interior lighting
• Plastic can holders included for each rack
• Electronic control system

Refrigeration System

• Self-contained, rear-mounted system
• R-290 hydrocarbon refrigerant
• Temperature holding range: -10 to 5 degrees F

Dimensions & Utilities

• 47 in. W x 27³/₄ in. D x 51¹/₈ in. H
• 5.16 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

Product Features

*Free shipping on U-Star USDP-47 within the 48 contiguous states.

From The Manufacturer

U-STAR Ice Cream Dipping Cabinet, 47"W x 28"D x 51"H, self-contained refrigeration, (8) 3 gal can top capacity & (4) 3 gal can under storage, (1) glass lid with handle, glass canopy, stainless steel top shelf, electronic controls, LED interior lighting, white exterior finish, aluminum interior, -10°F to -5° temperature range, R290 refrigerant, 1/2 HP, 115v/60/1-ph, 4.8 amps, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor

U-Star USDP-47 Specifications

Documents

Spec Sheet
