Imperial PCVE-2 Double Full Size Electric Convection Oven - 22kW, 208v/3ph
$12,183.00 /Each
Contact us for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Looking for ENERGY STAR® Commercial Convection Ovens?
See our selection of Imperial ENERGY STAR® Commercial Convection Ovens below

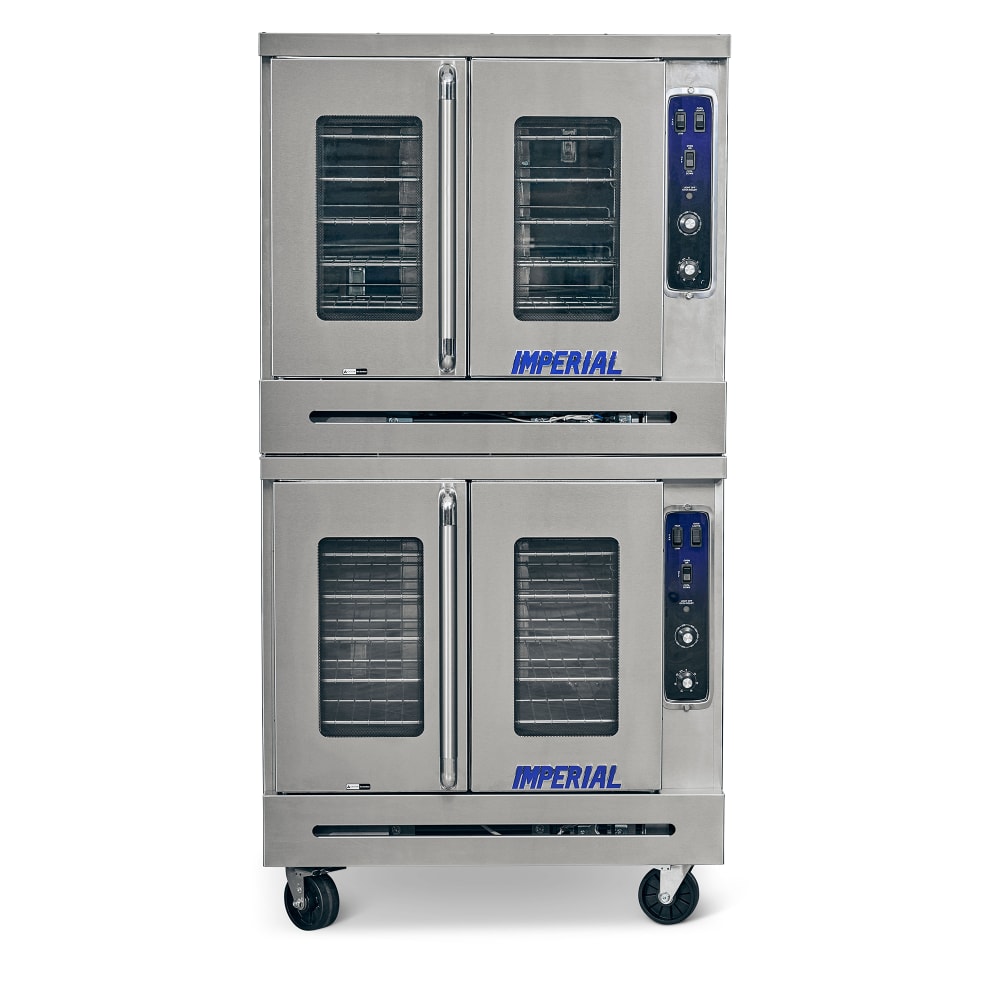

Imperial PCVE-2 Description

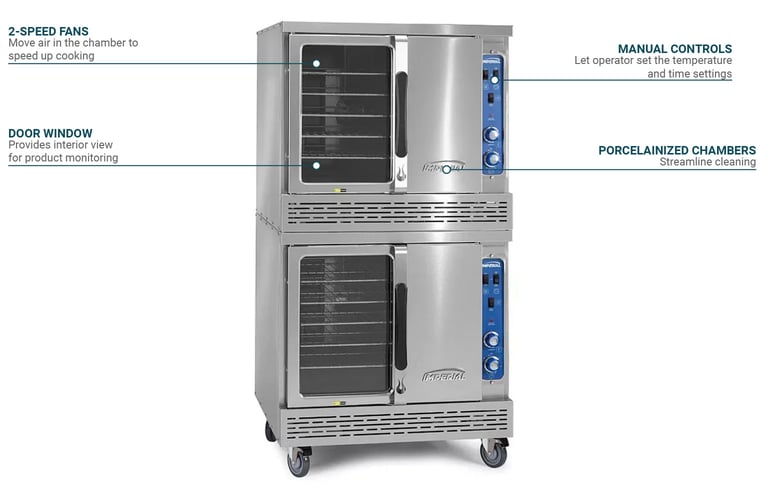

The Imperial PCVE-2 full-size convection oven has two decks, and each one comes with five pan racks. These racks can be moved into different positions depending on the application, and they support full-size pans in side-to-side positions. Nonstick and resistant to corrosion, the interior is porcelainized, and this also promotes product browning. Because the chambers have dependent doors that open simultaneously, each section can be accessed with one hand.
Two-speed fans uniformly move heat in this Imperial PCVE-2 double-deck convection oven, speeding up cooking to increase production capacity. To accommodate different types of food, the operator can adjust the time and temperature settings on the manual controller. While food is cooking, users can monitor food through the large door windows since interior lights provide visibility.
Product Details
- 2 oven decks
- Standard chamber depth
- Each section has 5 oven racks with 10-position options
- Nonstick, corrosion-resistant porcelainized chambers
- Bright interior lights
- Manual temperature and time controls
- 1⁄2-HP, 2-speed fan motor
- Airflow pattern simultaneously heats chamber inner and outer surfaces
- Recirculates heat for efficient operation and reduced energy use
- Stainless steel exterior top, sides, front, and doors
Heavy-duty Door System
- 60/40 dependent doors with each section
- 1 handle per chamber
- Handles are mounted to internal chassis instead of exterior finish
- 130-degree door swing
- Large windows
- Double bearings on door top and bottom
- Effective pressure locking
- Eliminates side-to-side shaft movement
- Fortified chassis protects against damage from constant opening and closing
Dimensions & Utilities
- 38 in. W x 411⁄2 in. D x 74 in. H
- 31 A, 22 kW
- (2) 208 V/50-60 Hz/3 ph
Product Features
*Free shipping on Imperial PCVE-2 within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, (2) deck, manual controls, (2) speed fan motor, dual open 60/40 doors, window, (5) racks per deck, interior lights, stainless steel front, sides, doors, top & legs, cETLus, ETL-Sanitation, CE
*Image may not depict product color, inclusions or accessories.
Imperial PCVE-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Imperial |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 41.5 |
| Door Construction | Solid/Glass |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 74 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| kW | 11 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1005.00 |
