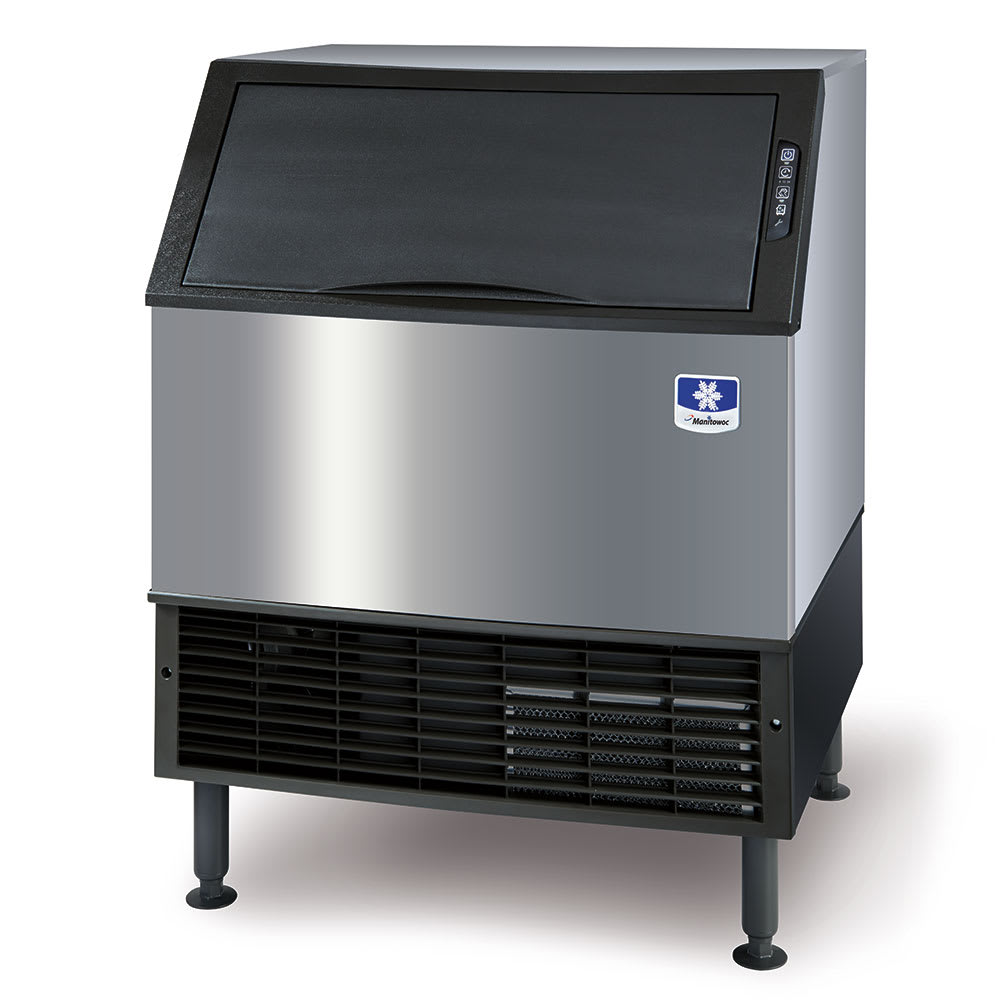

Manitowoc Ice UR-0310A Undercounter Full Cube Ice Maker - 292-lbs/day, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-UR0310A • MPN: UR-0310A 161 (115/60/1)

Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

Manitowoc Ice UR-0310A Description

Manitowoc Ice

The Manitowoc UR-0310A 161 undercounter full-cube ice machine comes with a programmable delay function that slows down the production of ice during slow periods or days you are closed. Service indicator lights provide you with important feedback about maintenance needs and the operating status of the equipment. Since airflow takes place through the front of the unit, you can place it in compact spaces without having to worry about clearances.

The storage bin slides forward so accessing refrigeration components is simple without having to move the unit. Cleaning is quick since the water trough, distribution tube, and damper door remove; the food zone is smooth and sealed. Internal components have an AlphaSan® antimicrobial coating that slows bacteria growth between cleanings. The Manitowoc UR-0310A 161 undercounter full-cube ice machine can make up to 292 pounds of ice throughout the day, while the storage bin holds up to 100 pounds of ice.

Product Details

  • Produces up to 292 lbs. of ice daily
  • Holds up to 100 lbs. of ice in the built-in storage bin
  • Communicates operating status and maintenance needs with service indicators
  • Programmable delay function can slow down production during slow periods and when your business is closed
  • Storage bin is forward-sliding so you can easily access refrigeration components without having to move the unit
  • Food zone is smooth and sealed
  • Water trough, distribution tube, and damper door are removable for quick cleaning
  • AlphaSan® is included on some internal components to slow the growth of bacteria between cleanings
  • Air-cooled condensing unit makes equipment easy to install and maintain
  • Airflow through the front lets the unit easily fit into compact spaces with no side clearance requirements
  • 6-in. adjustable legs
  • Up to 5,450 BTUs
  • 115 V/60 Hz/1 ph, 10 A, 8.3 kW, 34 HP, 6-ft. cord with a NEMA 5-15 plug
  • Ice Cube Dimensions: 118 in. x 118 in. x 78 in.
  • Overall Dimensions: 30 in. W x 28 in. D x 3812 in. H
  • CE and cULus listed; California Low Lead, AHRI, NSF, and Energy Star certified

NEO™ Undercounter Ice Maker, cube-style, air-cooled, self contained, 30"W x 28"D x 38-1/2"H, production capacity up to 292 lb/24 hours at 70°/50° (226 lb AHRI certified at 90°70°), 100 lb ice storage capacity, electronic controls, regular size cubes, NSF, cETLus, ENERGY STAR®, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice UR-0310A Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 292 lbs
Also Known As UD-0240A, QD-0212A, QR-0270A
Height (in) 38.5
Ice Type Full Cube
Specialty Options Digital Controls
Width (in) 30
Bin Capacity 100 lbs
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Compressor Type Air Cooled
Capacity Range 70-119 lb
Production Range 260-329 lb
Width (in) Range 26 -35 in
Hertz 60
Voltage 115
Phase 1
Weight 208.00
Manitowoc Ice UR-0310A Certifications
  • NSF
  • Energy Star
  • ETL
