Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.

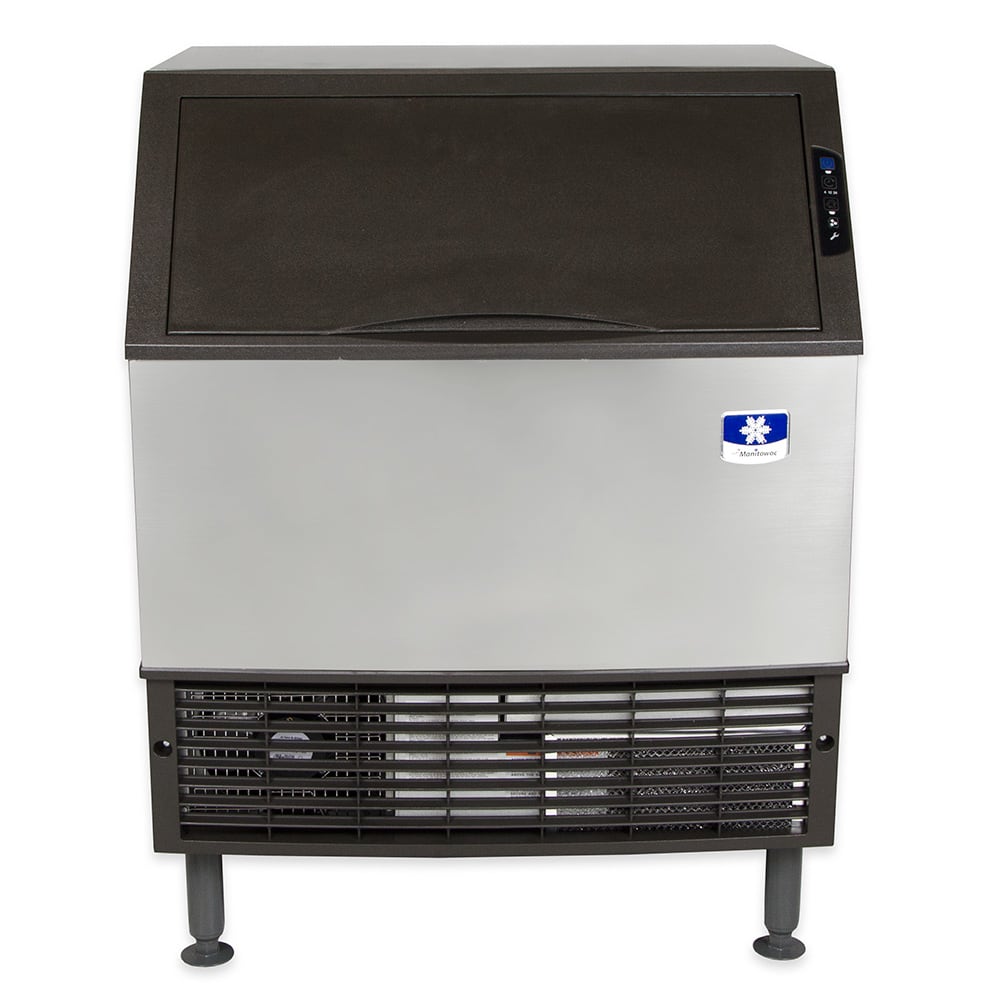

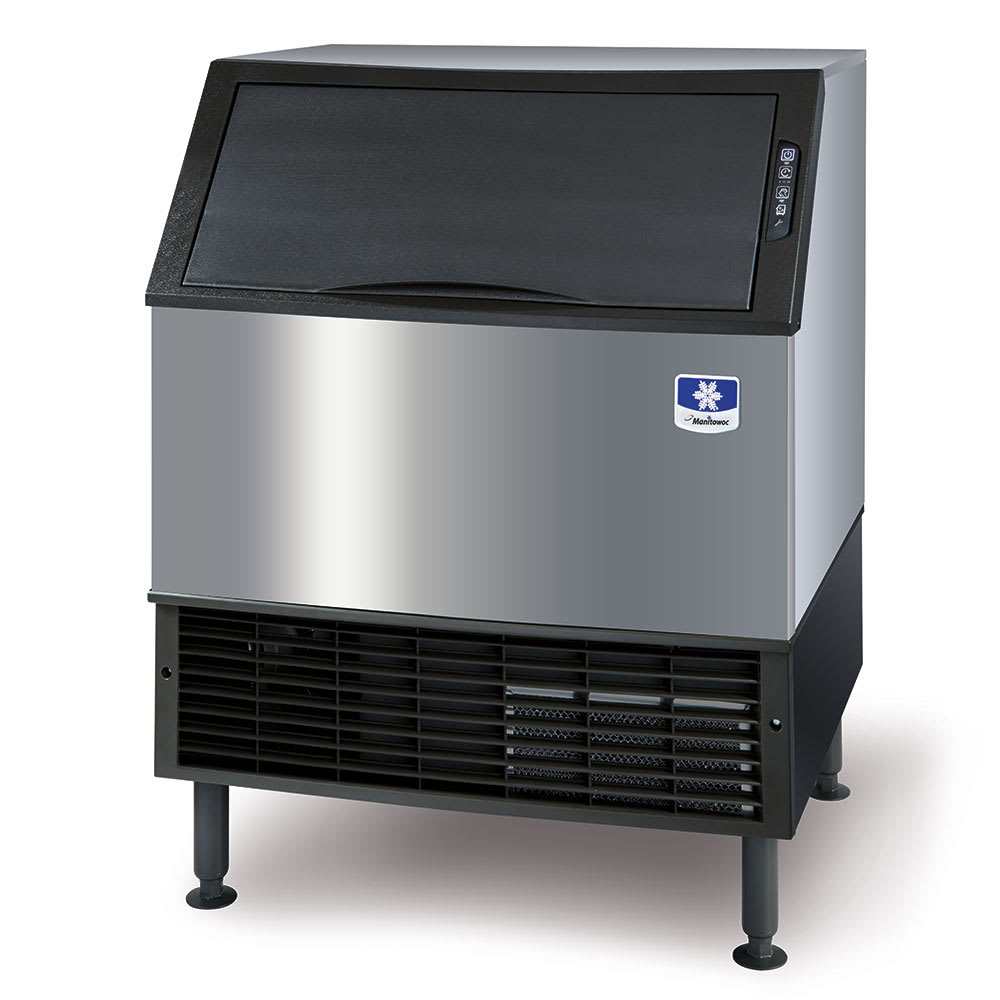

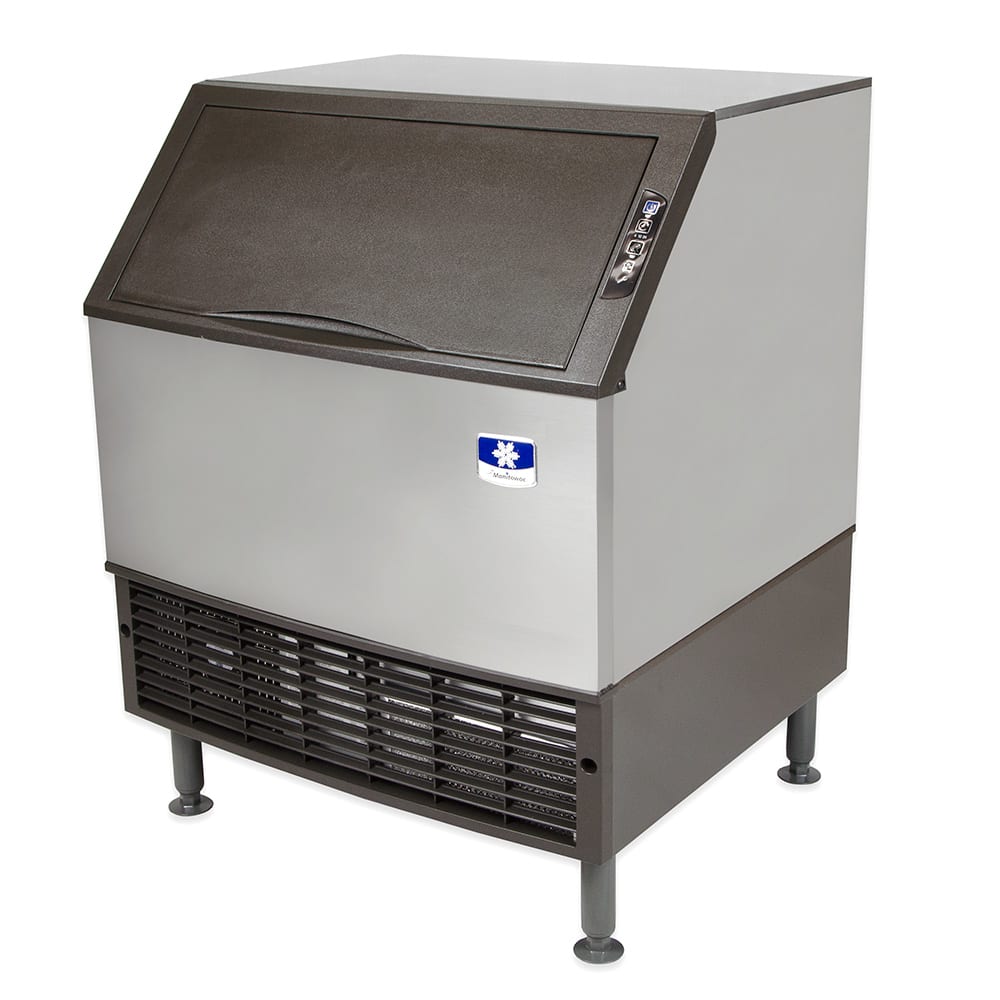

Manitowoc Ice UDF0310W 30"W Full Cube NEO Undercounter Ice Machine - 295 lbs/day, Water Cooled
Typically ships in 1 - 3 Business Days
Free Shipping Item
$3,945.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Half Cube
Selected Compressor Type: Water Cooled
Air Cooled
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
ITV Ice Makers NG360A1F
30" Spika Full Cube Undercounter Ice Machine - 340 lbs/day, Air Cooled, 115v
Previous
Next
Manitowoc Ice UDF0310W Description
The Manitowoc UDF-0310W NEO™ undercounter ice machine has a water-cooled condenser that cools the condensing coils by directing water over them; this unit requires a constant source of cool water for use. When this component is cooled, the refrigerant removes heat from the evaporator plate so water will freeze and form ice. This machine includes a control panel that includes electronic controls with service indicators to simplify operation and alert the user of important factors and status.
The Manitowoc UDF-0310W NEO undercounter ice machine can make 295 pounds of dice ice cubes daily. Its food zone is accessible through its sliding door, and for efficient cleaning, its part are removable. Access to refrigeration components is available when the storage bin is removed. Because the condenser is made of cupro-nickel, it protects components from harmful particles in water.
Product Details
- Part of the Neo® series
- 295-lb. maximum daily ice production
- 252-lb. AHRI-certified daily ice production

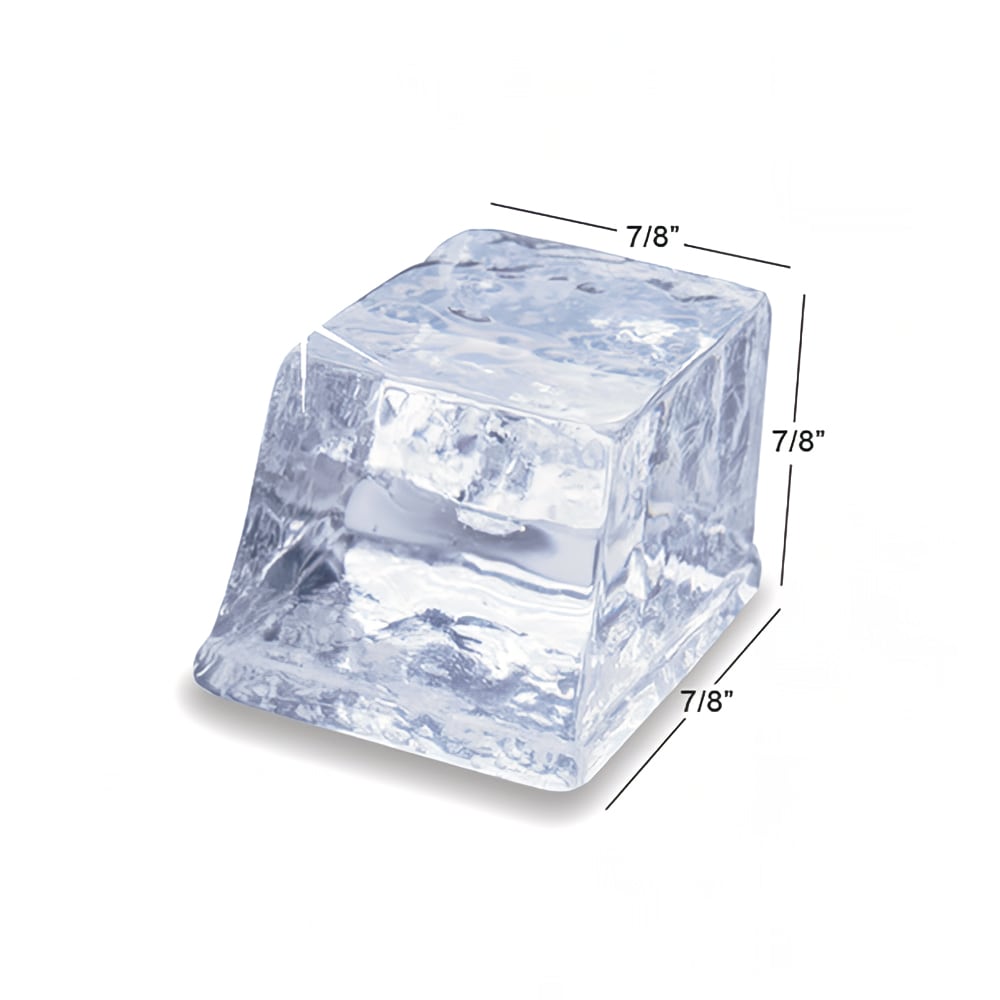

- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- 119-lb. storage capacity

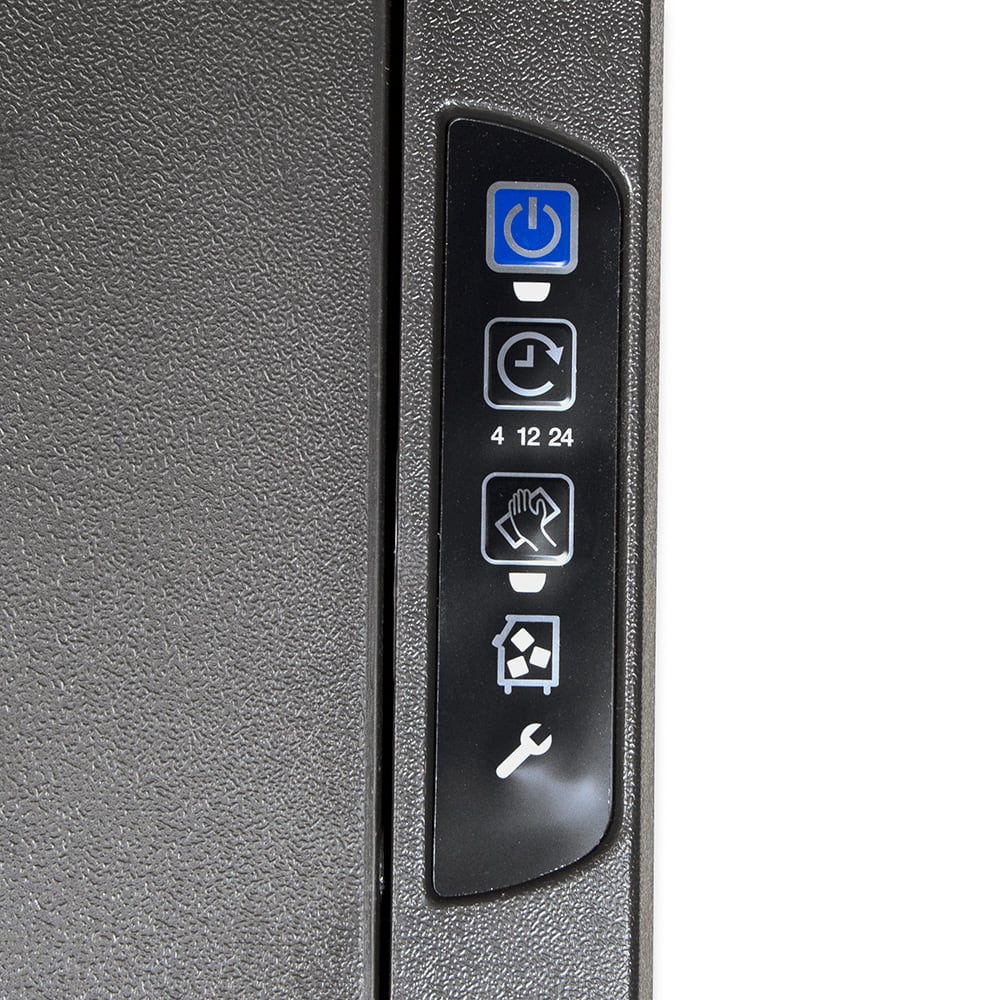

- Electronic control panel
- Ice production can be delayed during slow hours

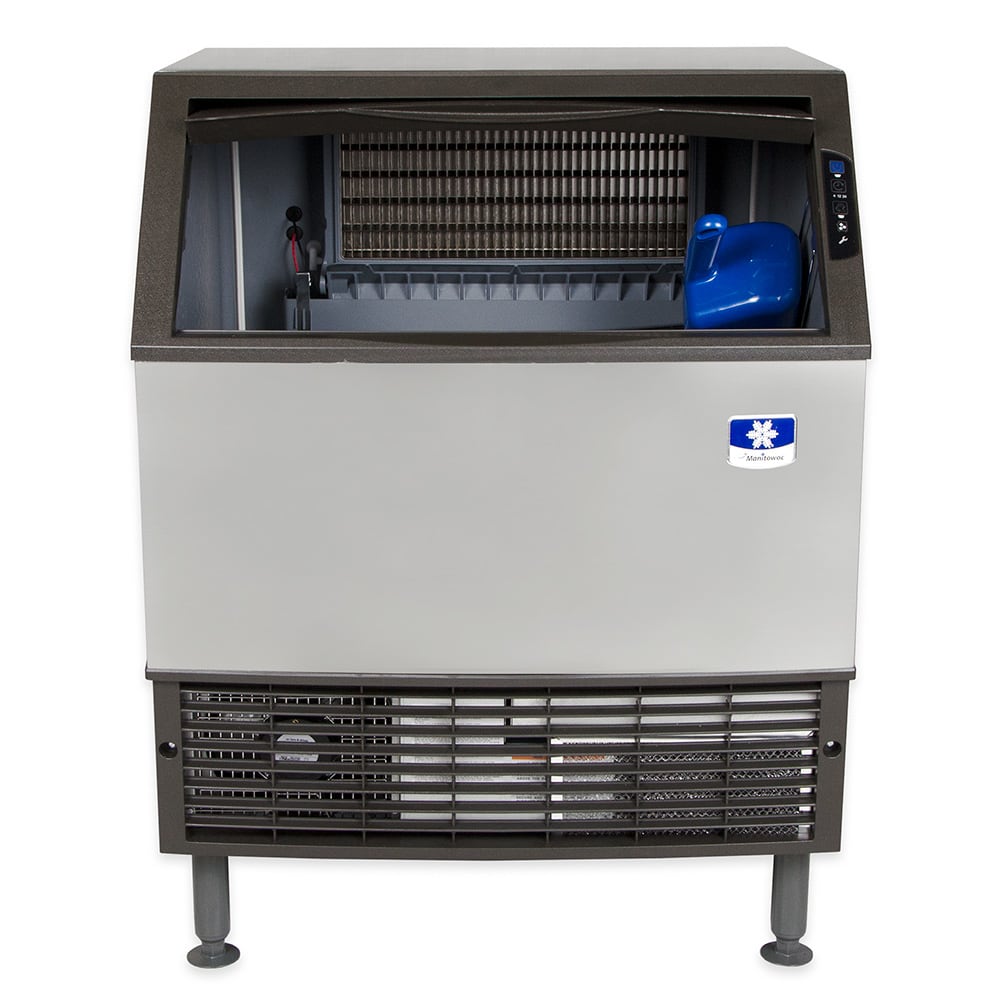

- Ice is accessible through slide-up door
- Storage bin slides off for access to the refrigeration components
- Water trough, distribution tube, and damper door are removable for cleaning
- Cupro-nickel condenser protects against corrosive water elements
- AlphaSan® antimicrobial agent slows bacterial growth
- Self-contained, water-cooled condenser
- Ideal ambient temperature: 40-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure for ice maker: 20-80 PSI
- Ideal incoming water pressure for condenser: 20-150 PSI
- Average BTU: 4,600
- Peak BTU: 5,450
Dimensions & Utilities
- Overall: 30 in. W x 281/2 in. D x 381/2 in. H
- 5.6 kW, 10 A, 3⁄4 HP

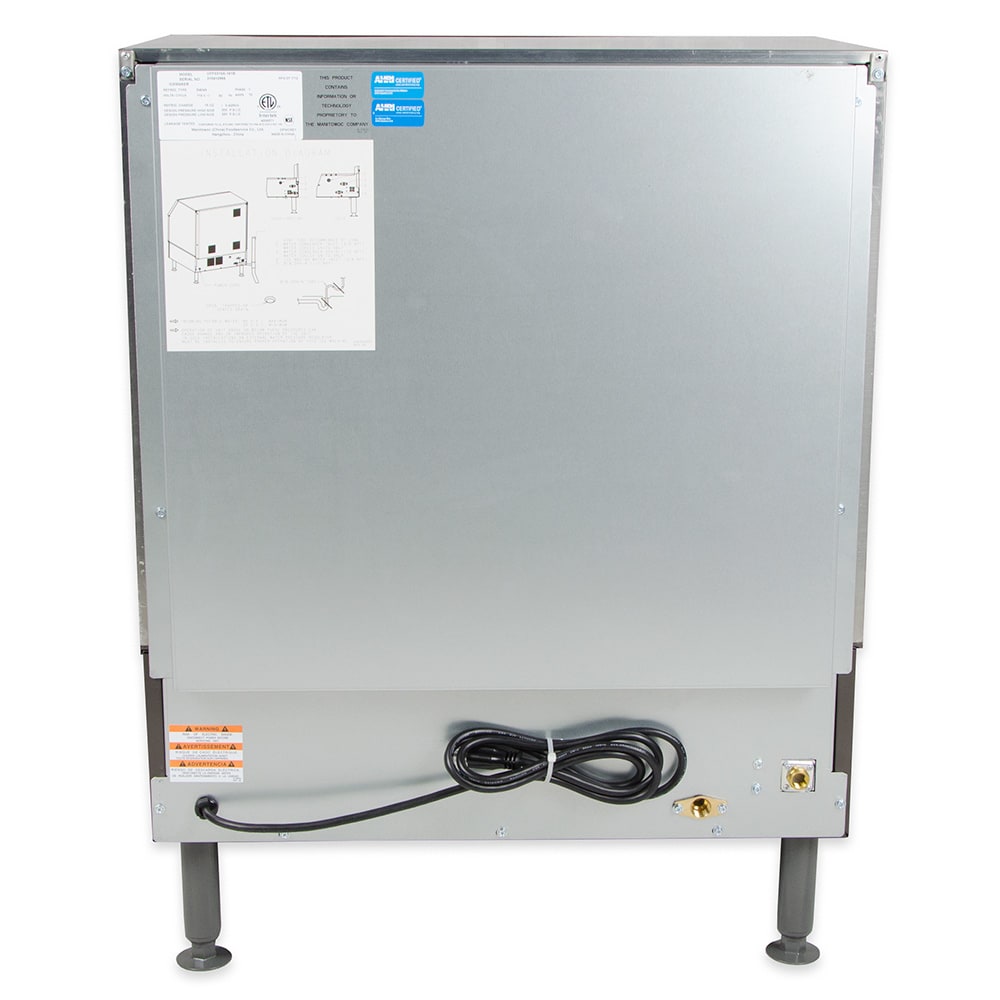

- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
*Free shipping on Manitowoc Ice UDF0310W within the 48 contiguous states.
From The Manufacturer

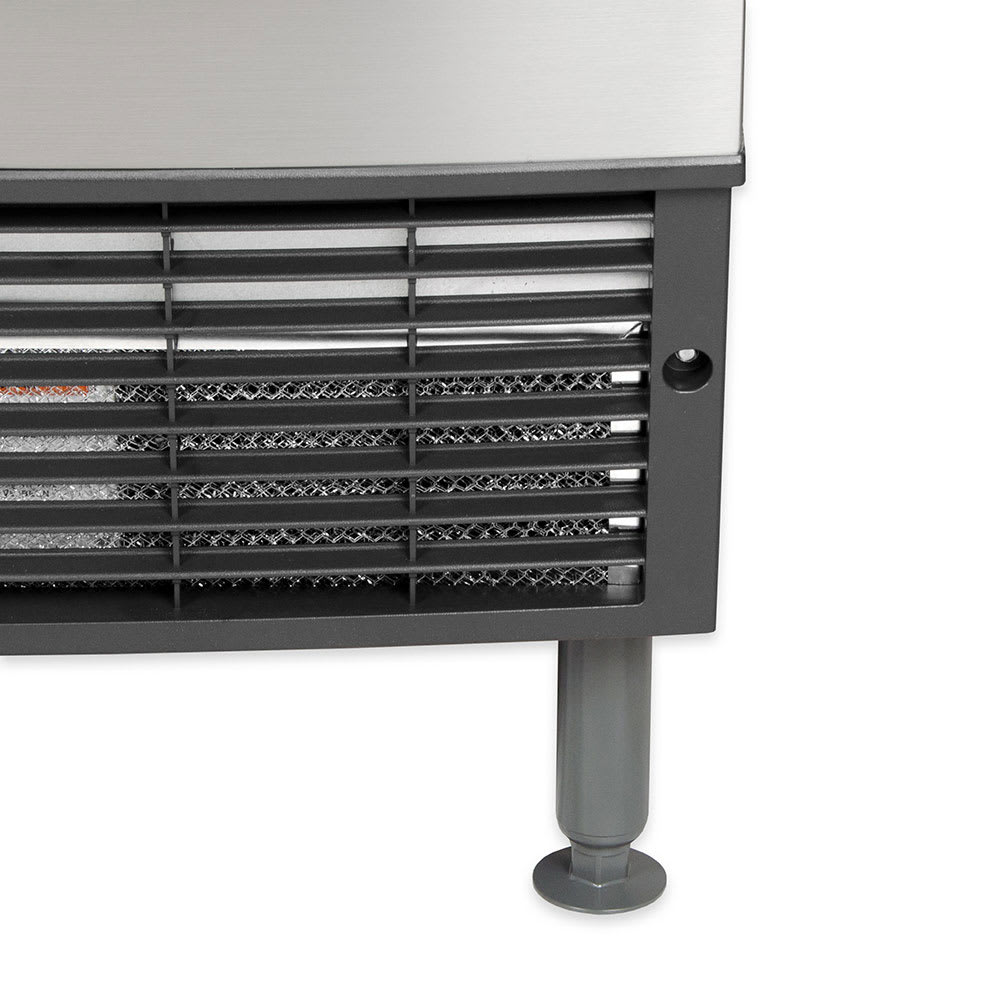

NEO® Undercounter Ice Maker, cube-style, water-cooled, self contained, 30"W x 28"D x 38-1/2"H, production capacity up to 295 lb/24 hours at 70°/50° (252 lb AHRI certified at 90°/70°), 119 lb ice storage capacity, electronic controls, dice size cubes, 6" adjustable legs with flanged feet (painted gray), 3/4 HP, NSF, cULus, CE, 115v/60/1ph
*Image may not depict product color, inclusions or accessories.
3-year; 5-year Compressor Parts
Manitowoc Ice UDF0310W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 295 |
| Also Known As | UD-0310W |
| Bin Capacity (lb) | 119 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Width (in) | 30 |
| Weight | 211.00 |
Documents
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Replacement for the Following Item
- Manitowoc Ice UD0310W
Manitowoc Ice UDF0310W Accessories
Manitowoc Ice AR-10000-P
Arctic Pure® Plus Single Primary Water Filter Assembly - 15,000 gal Capacity
Previous
Next
Other Products From This Line
Previous
Next
Manitowoc Ice UDF0310W Comparable Products
Previous
Next
Related Categories
Previous
Next
Customer Reviews
-
So far so good. First week had no issues.
"So far no problems. Very happy with quality and quantity of ice made. I bought the water cooled because it's in the garage and I am on a well. Its doesn't run water constantly (i was worried it would). It only runs while making ice. Water cooled doesn't create a lot of heat in the garage (like alot of my neighbor's)."
