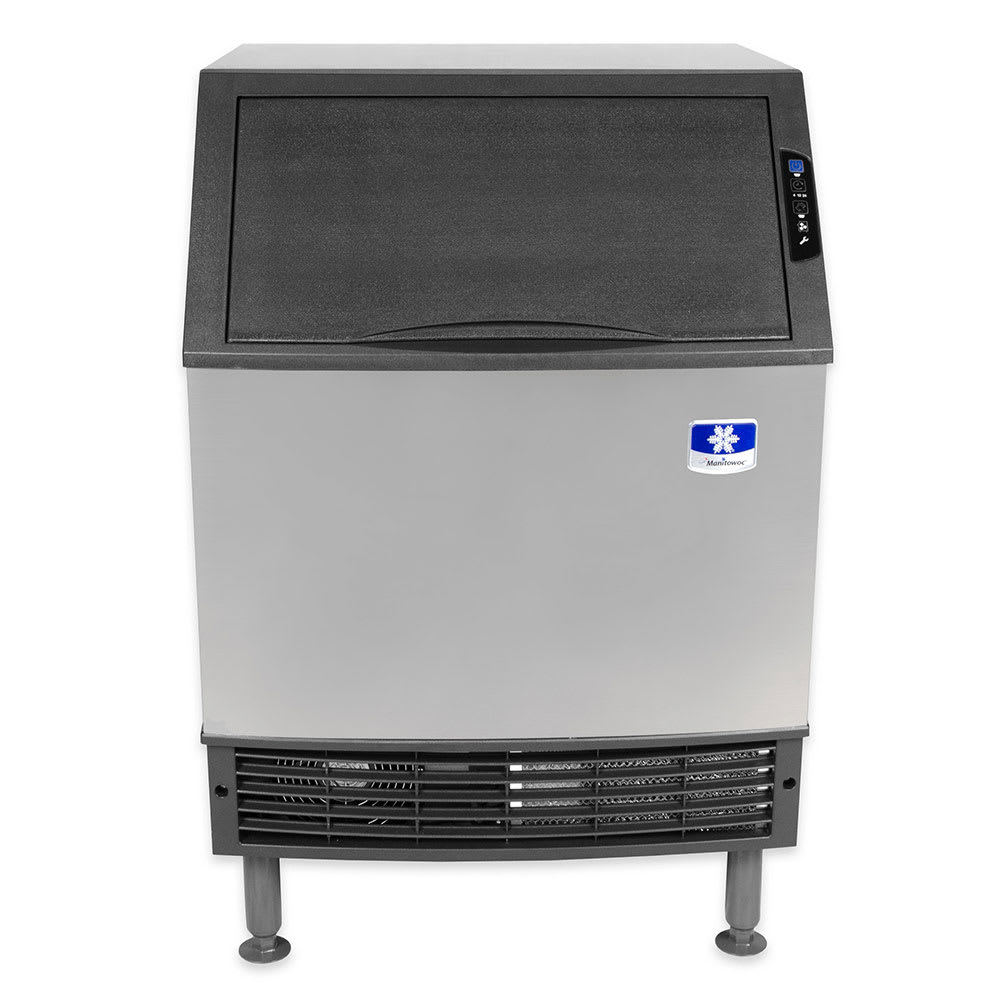

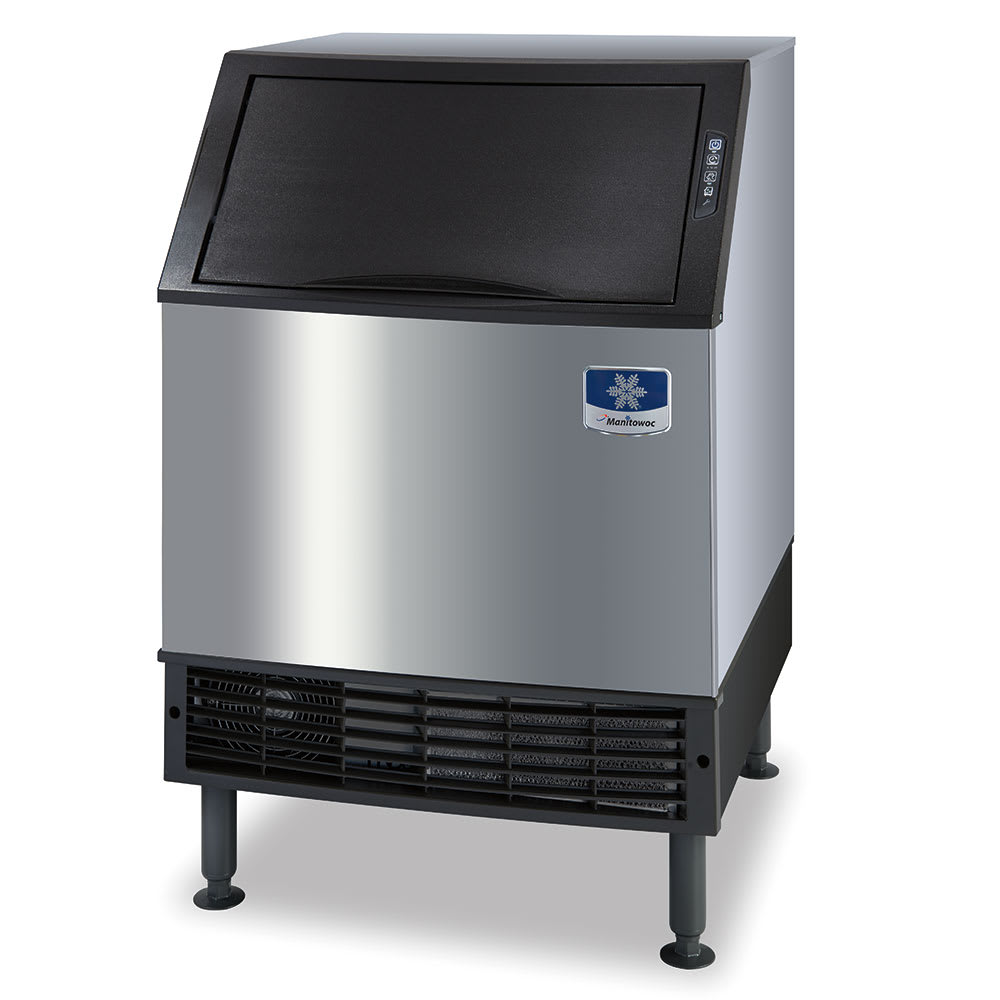

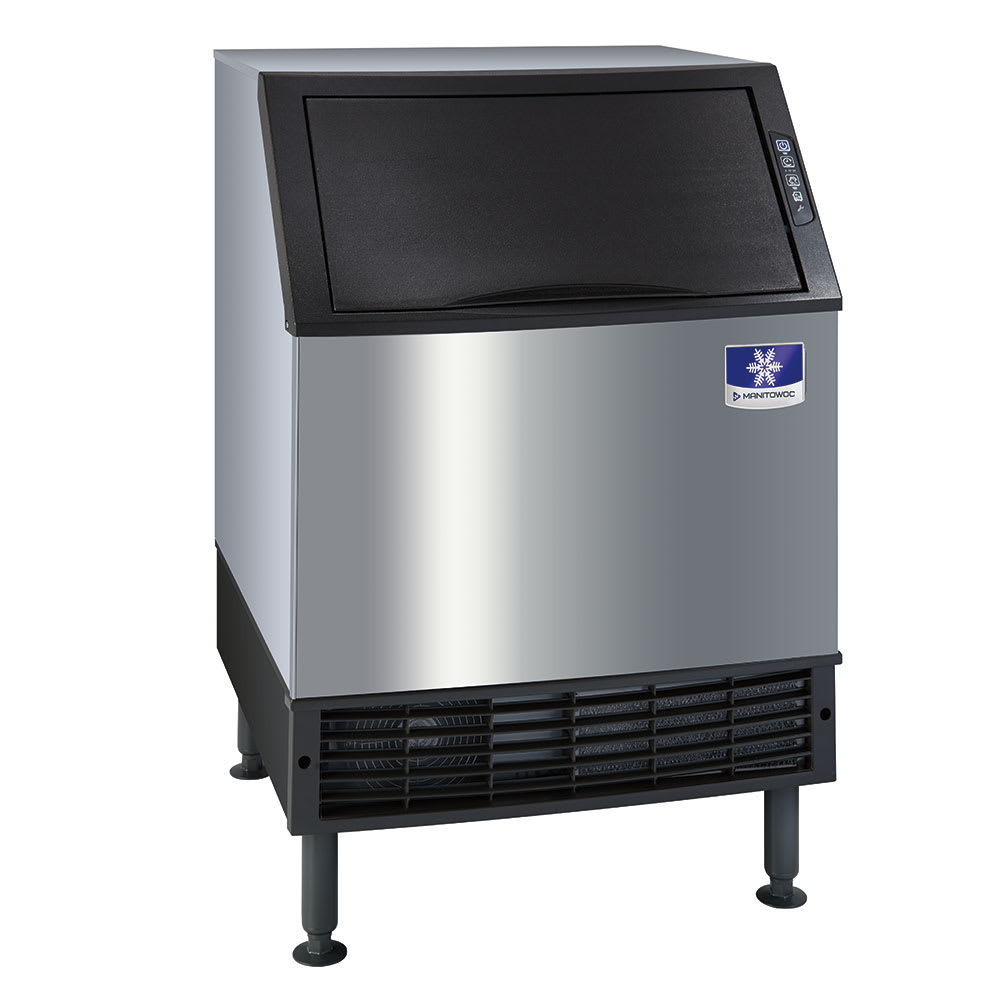

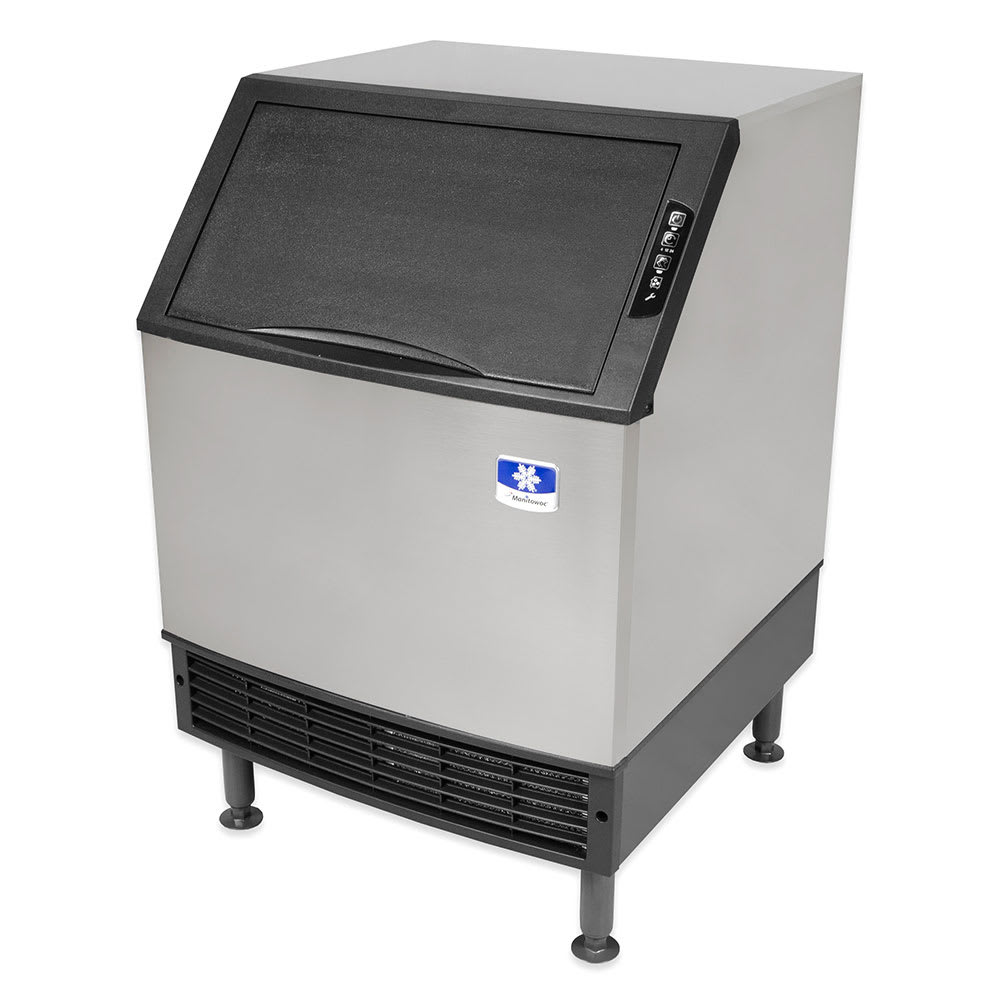

Manitowoc Ice UDF0240W 26"W Full Cube NEO Undercounter Ice Machine - 197 lbs/day, Water Cooled

The Manitowoc Ice UDF0240W NEO™ undercounter ice maker can produce 197 pounds of dice ice in 24 hours when ambient air and water conditions are met. The ice storage bin holds 90 pounds of ice and slides forward to provide access to refrigeration components. Dice ice can be used for beverages, blending, and bagging. Indicator lights on the control panel alert operators when the bin is full and when servicing is required.

The Manitowoc Ice UDF0240W NEO undercounter ice maker's internal components are protected from hard particles in water by the cupronickel condenser. Bacteria growth is slowed on the components that contact water by the built-in AlphaSan® antimicrobial agent. The exterior has a unique finish that provides corrosion resistance, hides fingerprints, and facilitates the cleaning process.

Product Details

• 197-lb. maximum daily ice production
• 174-lb. AHRI-certified daily ice production
• 90-lb. storage capacity
• Makes dice ice

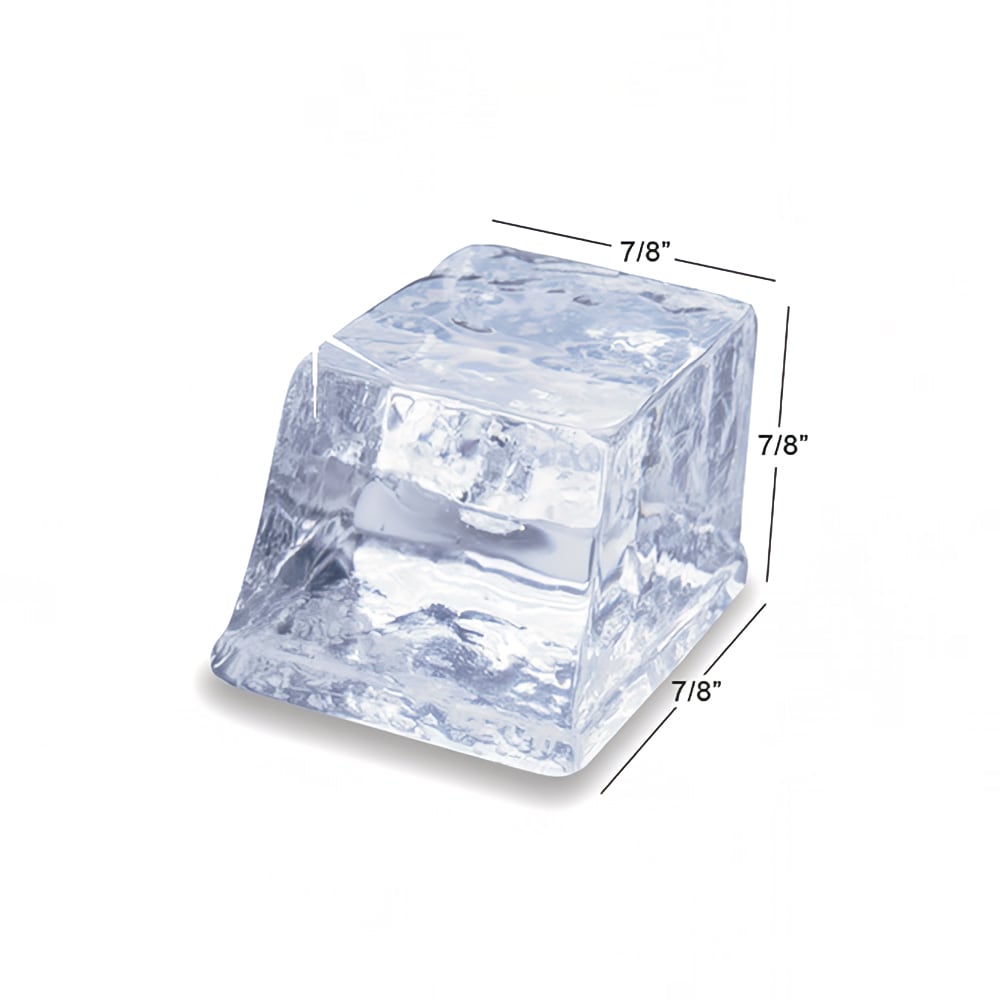

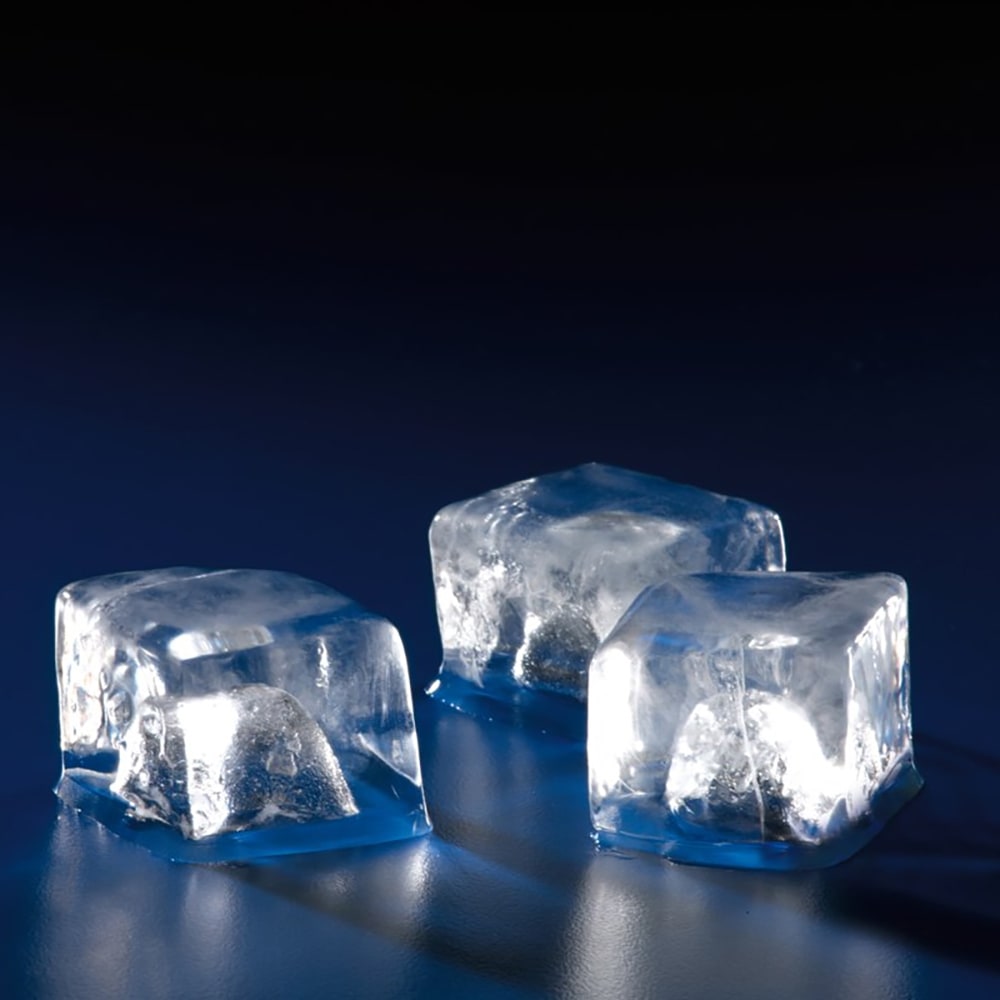

• Dice ice size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Water-cooled condenser
• Cupronickel condenser protects components from minerals in hard water
• Corrosion-resistant DuraTech™ exterior supports cleaning
• AlphaSan antimicrobial slows bacterial growth on internal components
• Food zone has rounded corners to prevent debris from getting stuck

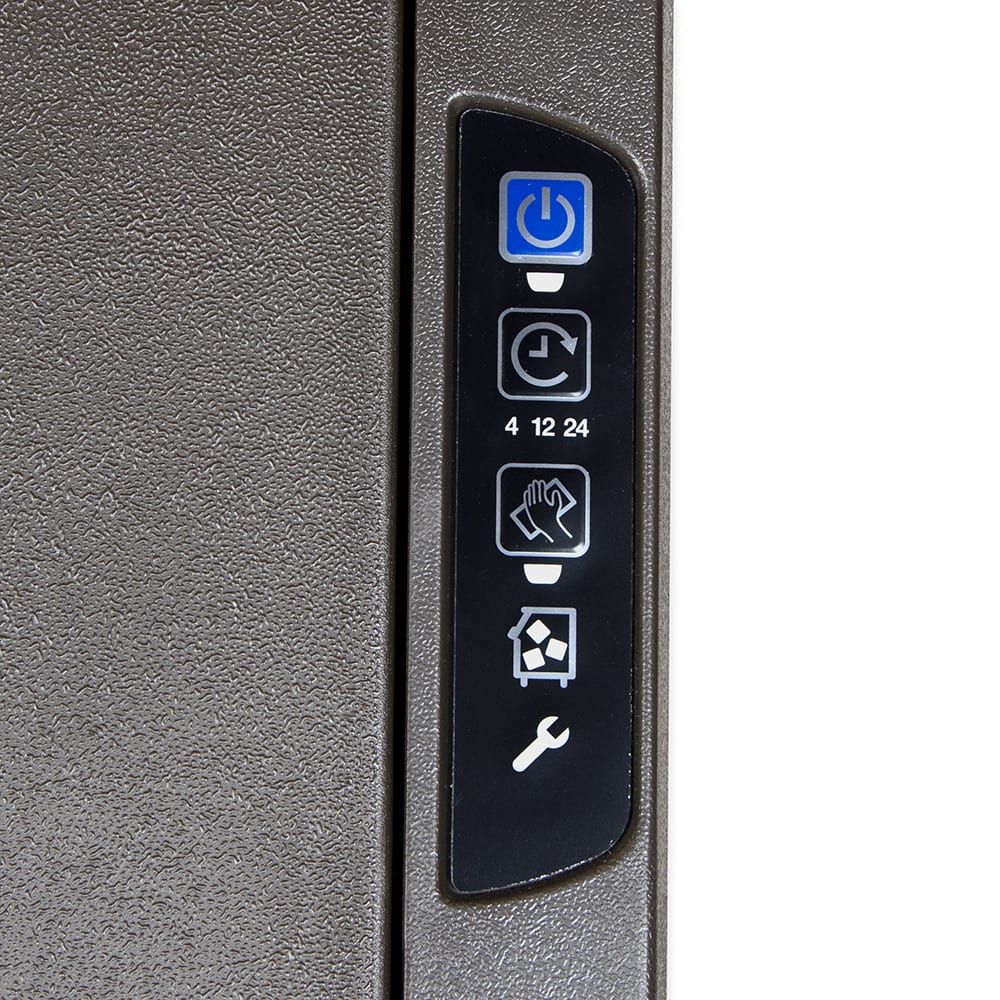

• Control panel indicator lights alert the operator when the bin is full and when service is needed

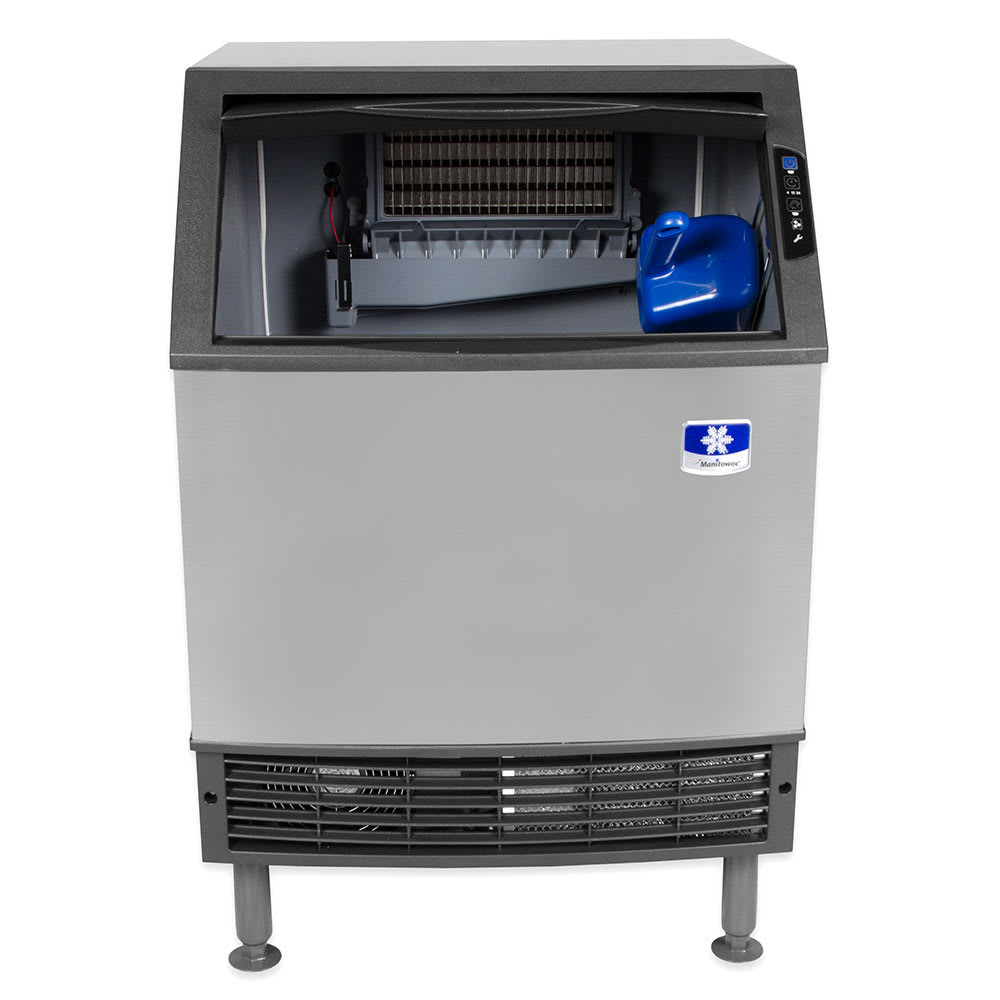

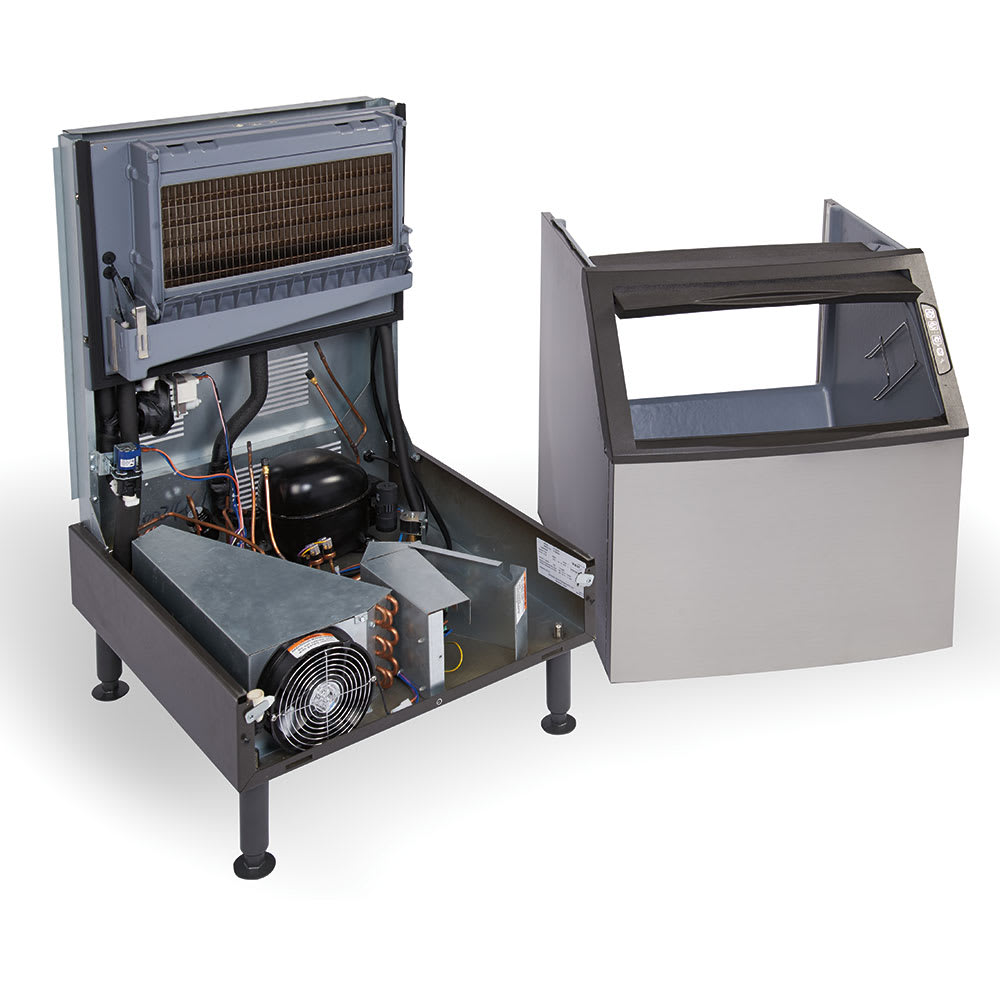

• Removable bin provides access to the refrigeration equipment

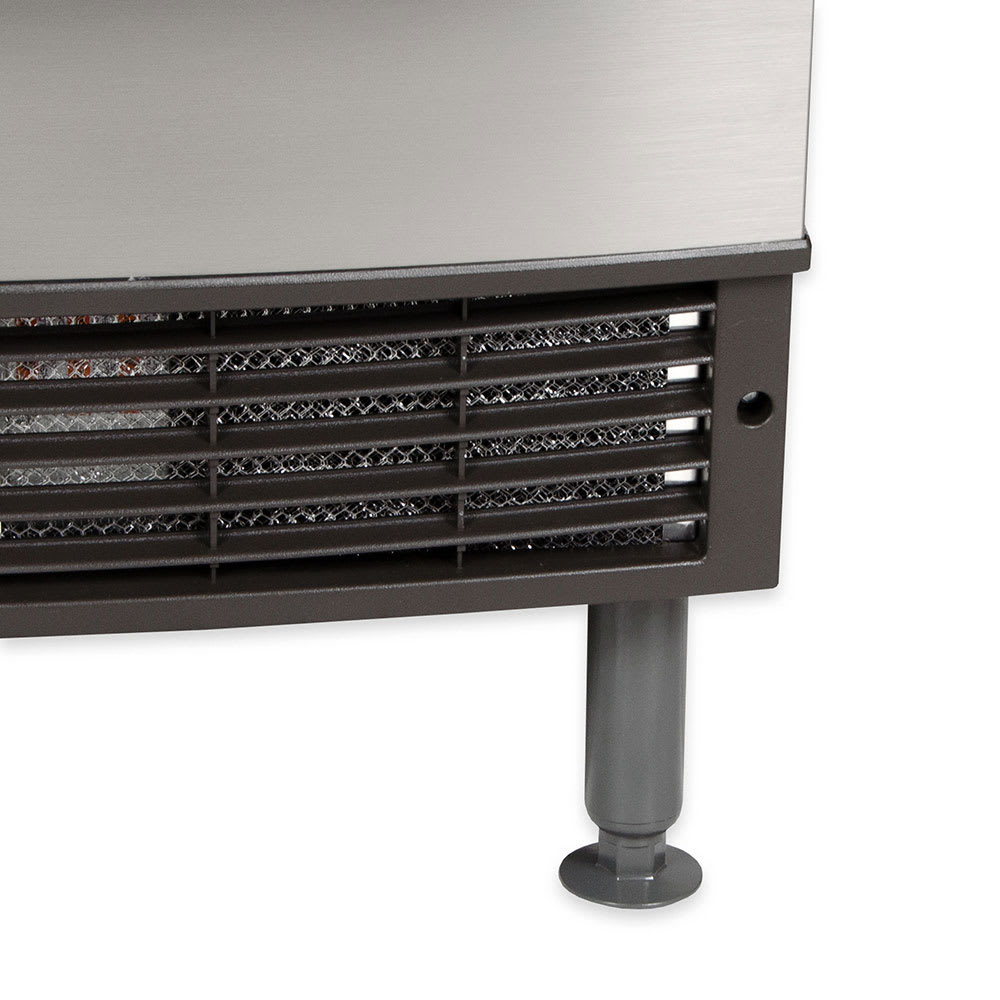

• Dishwasher-safe air filter is accessible from the front and removable without tools
• Adjustable ice scoop holder
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure for ice maker: 20-80 PSI
• Ideal incoming water pressure for condenser: 20-150 PSI

Dimensions & Utilities

• 26 in. W x 28.5 in. D x 38.5 in. H
• 7 A, 5.9 kW, ¹⁄₃ HP

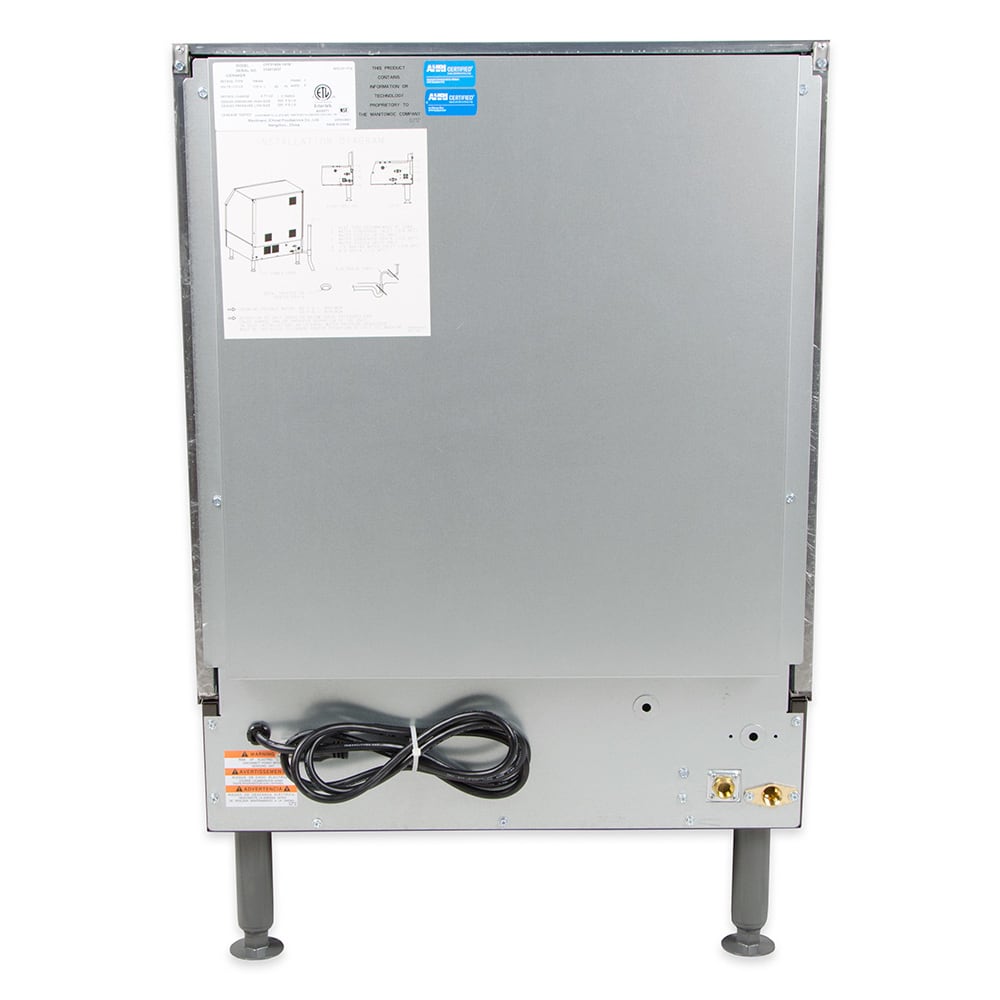

• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice UDF0240W within the 48 contiguous states.

From The Manufacturer

NEO® Undercounter Ice Maker, cube-style, water-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 197 lb/24 hours at 70°/50° (174 lb AHRI certified at 90°/70°), 90 lbs ice storage capacity, electronic controls, dice size cubes, 6" adjustable legs with flanged feet (painted gray), 1/3 HP, NSF, cULus,CE, 115v/60/1ph

*Image may not depict product color, inclusions or accessories.

3-year; 5-year Compressor Parts
