The Manitowoc IY-1804A Indigo Series cube ice machine head runs diagnostics every 24 hours to help with preventive maintenance so you can save money and keep your machine running properly. The EasyRead blue-illuminated display reminds you when to clean the machine and keeps up with the operating status. Interior components are made with AlphaSan® antimicrobial agent that protects these items from bacteria between cleanings. To make accessing the food zone easy for cleaning, the front door is hinged and easily swings out.

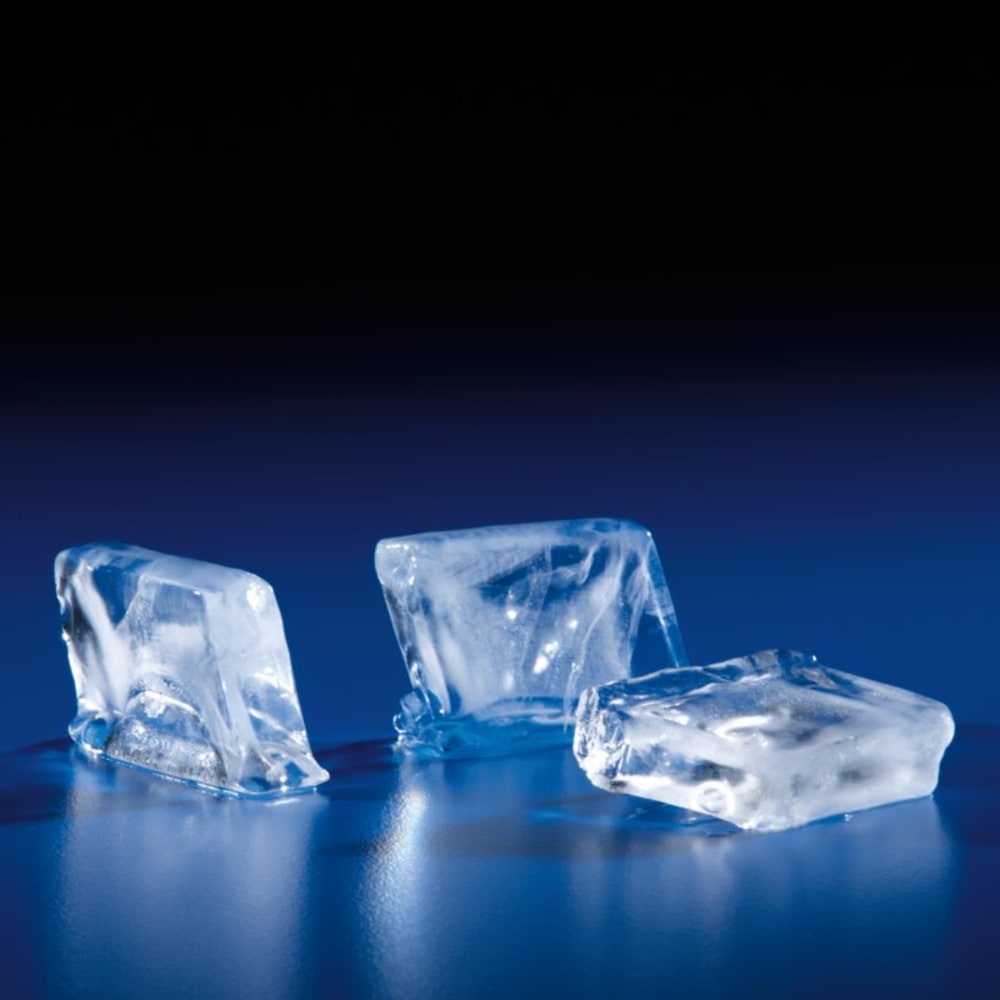

You can decide when and how ice is produced based on the time of the day or volume of ice. Ice will not drop until the acoustical ice sensing probe checks the ice to ensure it is the ideal thickness. The Manitowoc IY-1804A Indigo Series cube ice machine head produces half-cube ice that measures 3⁄8 of an inch by 11⁄8 inches by 7⁄8 of an inch. Up to 1,860 pounds of ice is produced within the 24-hour production period.
- Up to 1,860 lbs. of ice is produced every 24-hour cycle

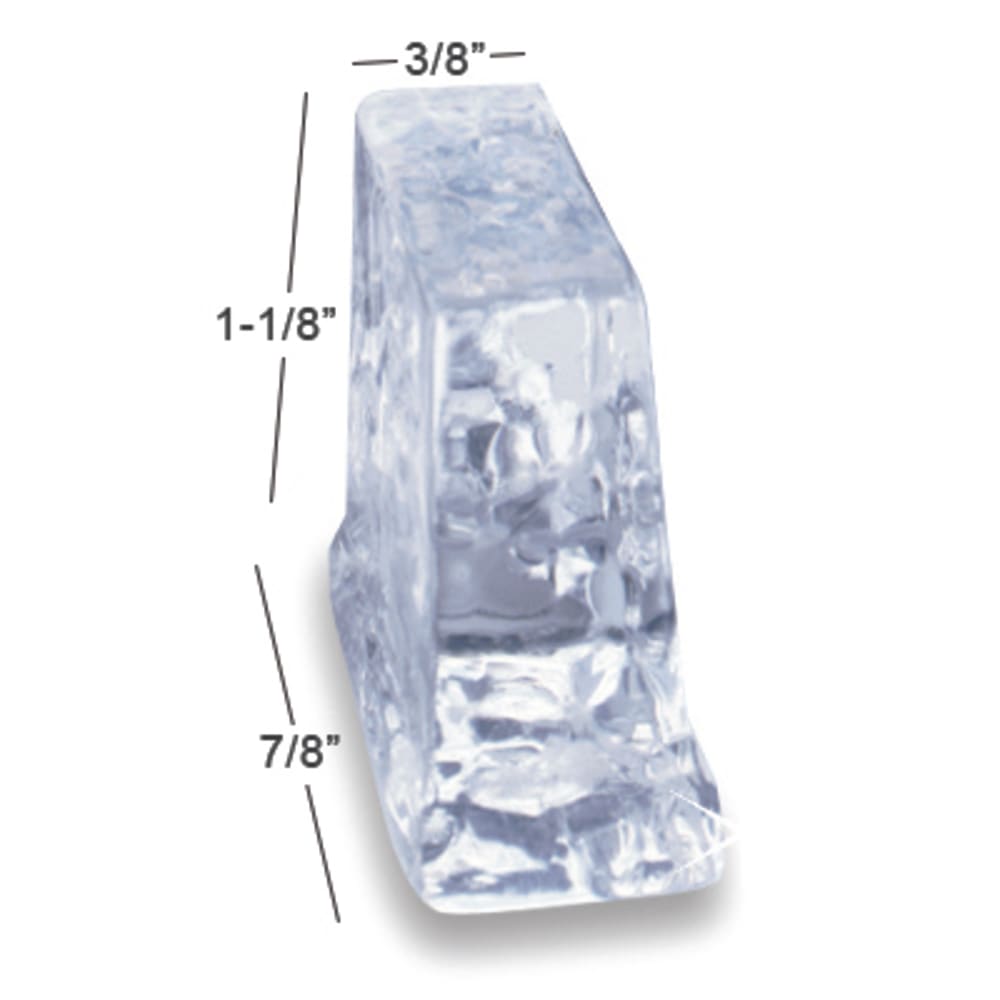

- Half-cube ice measures 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- Operator can choose when ice is produced based on time, ice volume, or the bin level with a separately sold accessory
- Acoustical ice sensing probe checks ice before it is dropped to make sure it is the ideal thickness
- Stainless steel exterior comes with a DuraTech clear coat that helps with corrosion prevention and resists fingerprints and dirt
- Hinged front door easily swings out for access to the food zone for simple cleaning
- Curtain, distribution tube, sensing probes, and water trough are removable for cleaning
- Interior components are made with AlphaSan antimicrobial agent to slow growth of bacteria between cleanings
- Blue-illuminated EasyRead display tells you about the operating status and reminds you when to clean
- Diagnostics are run every 24 hours to help with preventive maintenance on your machine
- Condenser is air cooled and self-contained
- Uses R-404A refrigerant
- 30,000 BTU
- 208-230 V/60 Hz/1 ph, 5.27 kW, 23.8 A
- Overall Dimensions: 48 in. W x 241⁄2 in. D x 191⁄2 in. H
- California Low Lead qualified; UL and CE listed; AHRI and NSF certified
Indigo™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 48"W x 24-1/2"D x 29-1/2"H, production capacity up to 1860 lb/24 hours at 70°/50° (1455 lb AHRI certified at 90°/70°), DuraTech™ exterior, half dice size cubes, NSF, cULus, 208-230v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Manitowoc Ice IY-1804A SpecificationsPDF Spec Sheet
|24 Hr. Production (lbs)||1860 lbs|
|Also Known As||SY1804A, QY1804A, JY1804A, BY1804A, AY2204A|
|Compressor Type||Air Cooled|
|Ice Type||Half Cube|
|Specialty Options||Digital Controls|
|Warranty||3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor|
|Production Range (per day)||1500-2099 lb|
|Product Type||Ice Machines|
|Product||Ice Machine Head|
