Manitowoc Ice IY-0606A Description

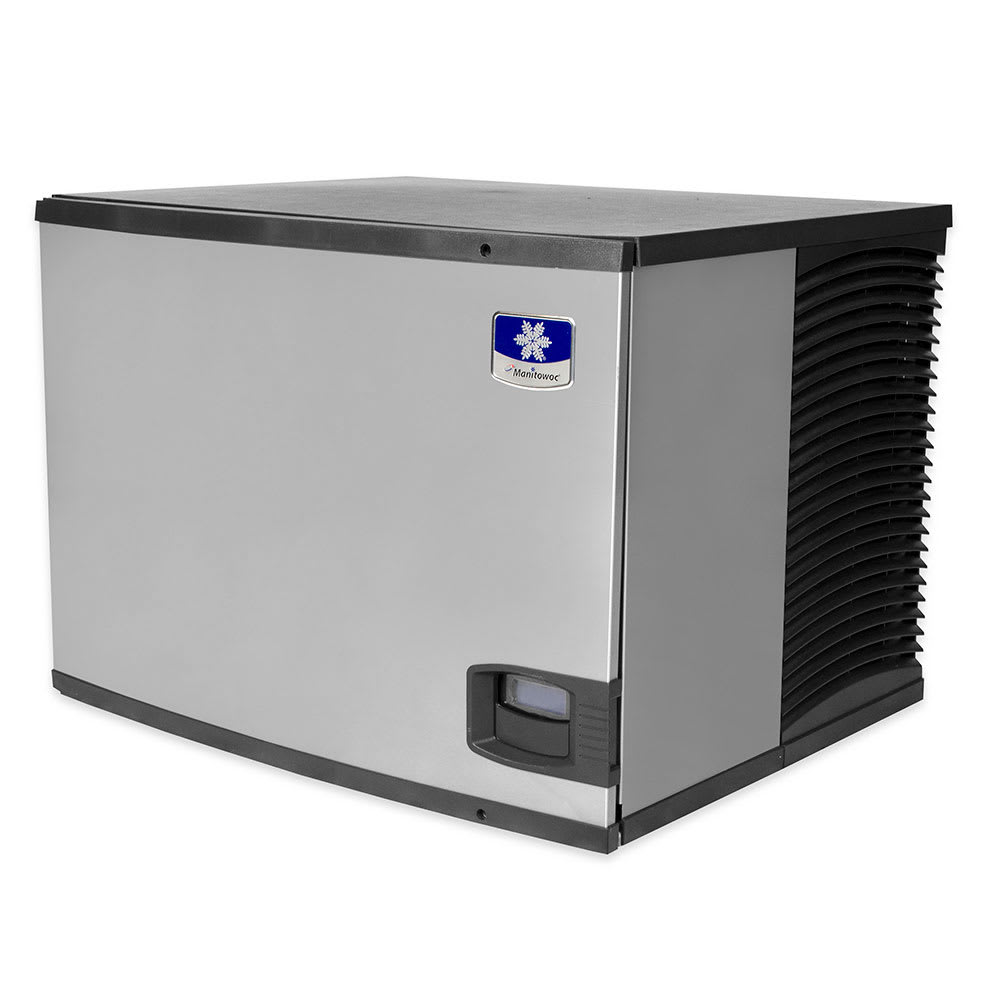

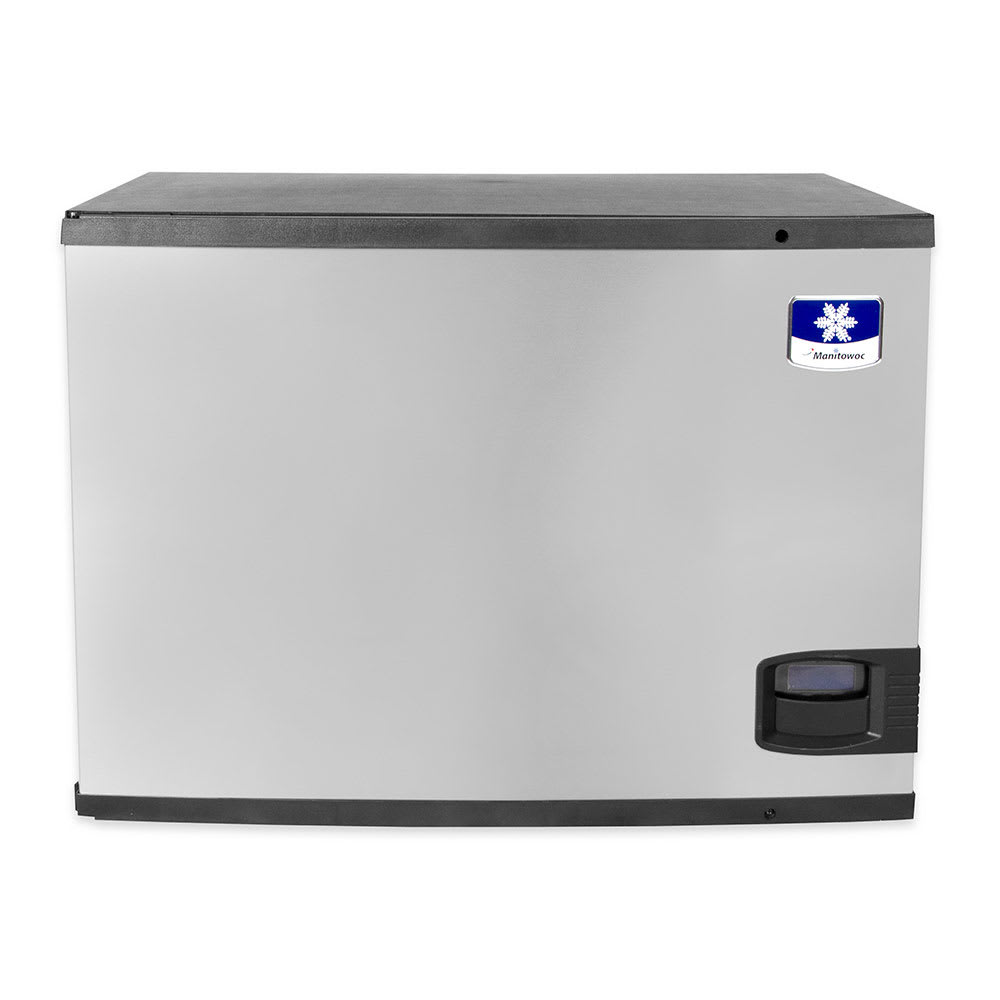

The Manitowoc IY-0606A ice maker provides clear communication with users and makes it possible to control ice production so it's ready when it's needed and the machine doesn't run when it's not. This Indigo™ series ice maker is the replacement to the S Series model SY-0604A. This unit has a production capacity of 635 pounds and uses a small burst of air to push the ice from the evaporator plate for consistent harvest time and production. DuraTech™ stainless steel and clear coat of this ice maker is resistant to corrosion, fingerprints, and damage.
Product Details
- Indigo™ Series
- Replaces SY-0604A
- Air-cooled

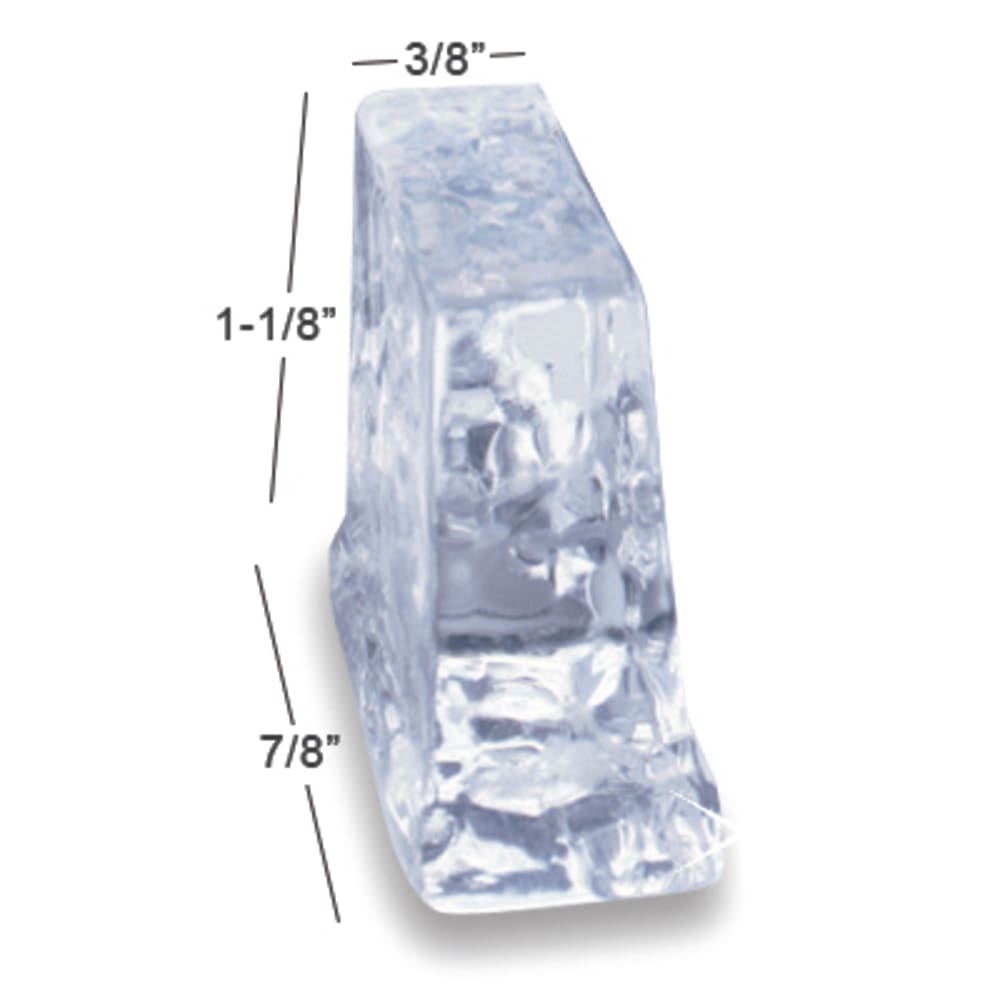

- Half-dice style ice - 3/8 in. W x 1-1/8 in. D x 7/8-in. H
- Production capacity: 635-lbs./24-hr.

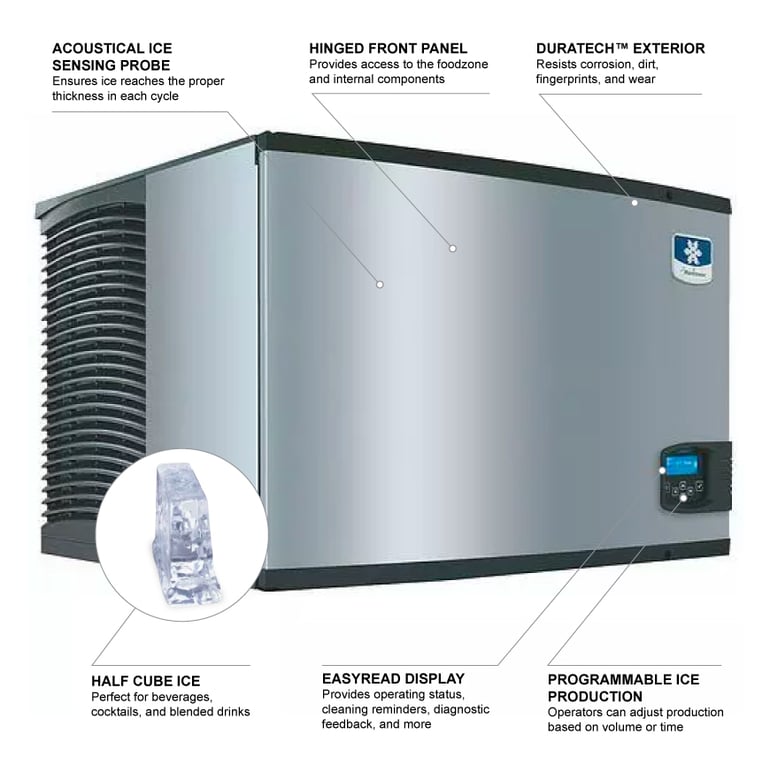

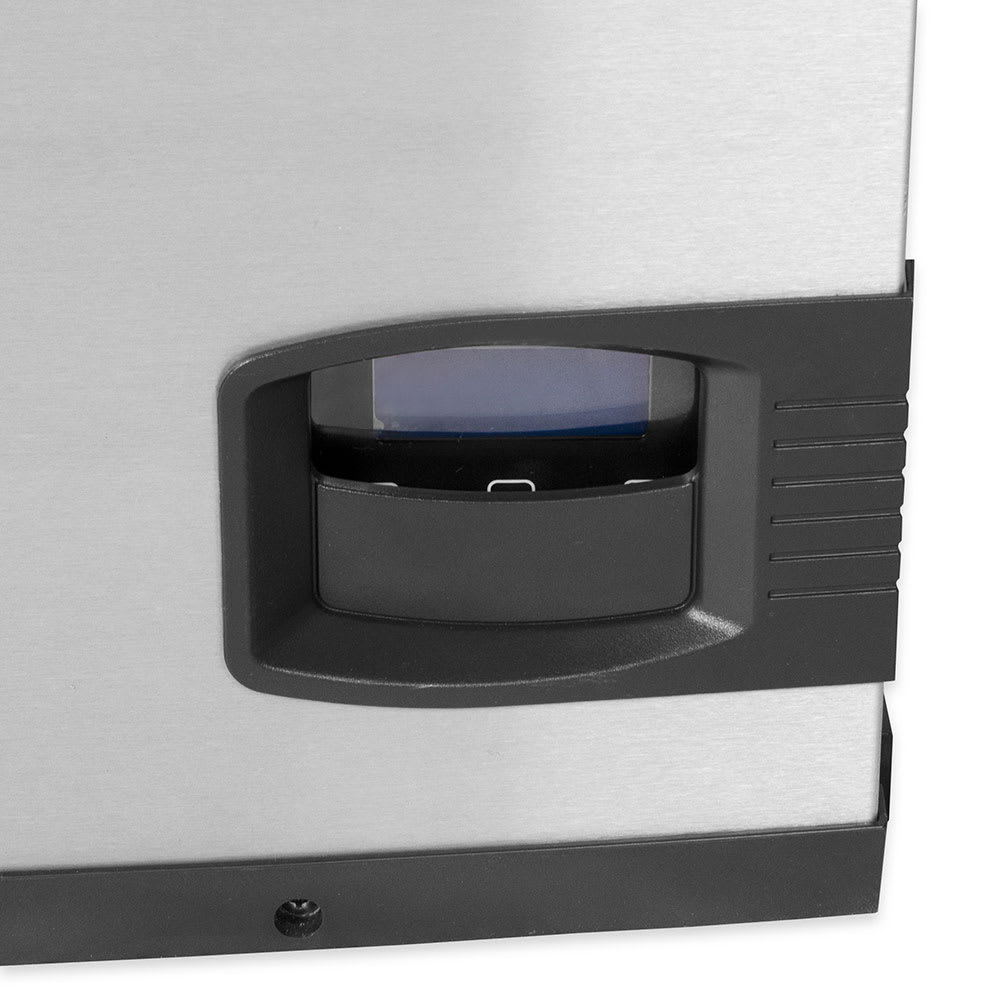

- Illuminated EasyRead display advises the operating status, asset information, and cleaning schedules
- Controllable ice production can be set based on time of day, ice volume, and bin level (with optional accessory)
- USB slot to export production information and diagnostic data
- Preventative maintenance and intelligent diagnostics are also communicated through the display
- Sealed foodzone for more efficient operation and the removable internal components make cleaning easy
- AlphaSan® limits microbial growth on select internal components
- DuraTech™ stainless steel with clear coat for superior durability and corrosion resistance
- 208-230 V/60Hz/1-ph, 11.1 A, plug and cord not included
- Overall Dimensions: 30-in. W x 24-1/2 in. D x 21-1/2 in. H
- CE and cULus Listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR Certified; California Low Lead Qualified
Durable, Easy-to-Clean, and Microbial Resistant
- Distribution tube, evaporator, water tray, sensing probe, and drain tube are built with AlphaSan® antimicrobial. This slows down the development of biofilm slime to extend the time between cleanings
- DuraTech™ stainless steel with clear coat adds a layer of protection to the stainless steel exterior to resist the fingerprints and corrosion
- Removable internal components (water trough, distribution tube, curtain, and sensing probe) make it easy to deep clean the foodzone where dirt and slime is most likely to build up
Indigo™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 21-1/2"H, production capacity up to 635 lb/24 hours at 70°/50° (555 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, ENERGY STAR®, 208-230v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Manitowoc Ice IY-0606A Specifications
PDF Spec Sheet| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lbs) | 635 lbs |
| Also Known As | 399-SY0604A, 399-IY0604A, SY-0604A, IY-0604A, 399-IY0604A261, IY-0606A261, QY0604A, JY0604A, BY0604A, GY0604A, EY0604A, CY0604A, AY0604A |
| Compressor Type | Air Cooled |
| Depth (in) | 25 |
| Height (in) | 22 |
| Ice Type | Half Cube |
| Specialty Options | Antimicrobial System |
| Specialty Options | Digital Controls |
| Width (in) | 30 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Production Range (per day) | 300-899 lb |
| Hertz | 60 |
| Voltage | 208/230 |
| Phase | 1 |
| Product | Ice Maker |
| Weight | 208.00 |
