Manitowoc Ice IY-0594N 30" Indigo™ Half Cube Ice Machine Head - 510-lb/24-hr, Remote Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IY0594N161 • MPN: IY-0594N 161 (115/60/1)

Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,908.00

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IY-0594N Description

Manitowoc Ice

The Manitowoc IY-0594N 161 cube ice machine head has a blue-illuminated EasyRead digital display that lets you know your machine's operational status, cleaning reminders, and more information. Diagnostics are run every 24 hours to help with preventive maintenance so you can save money on expensive service calls. Interior components are built with AlphaSan® antimicrobial agent to help slow the growth of harmful bacteria. The DuraTech™ exterior is made from stainless steel for corrosion resistance and is finished with a clear coat to repel fingerprints and dirt.

The ice storage bin is sold separately from the Manitowoc IY-0594N 161 cube ice machine head. Up to 510 pounds of ice is produced every 24 hour cycle. This machine makes half-dice ice that is ideal for any kind of beverage and mixed drinks. You can schedule ice production around time or ice volume. A sold-separately bin level control lets you program the machine to maintain a specific bin level. An acoustical sensing probe checks ice before it drops to ensure it is the correct thickness.

Product Details

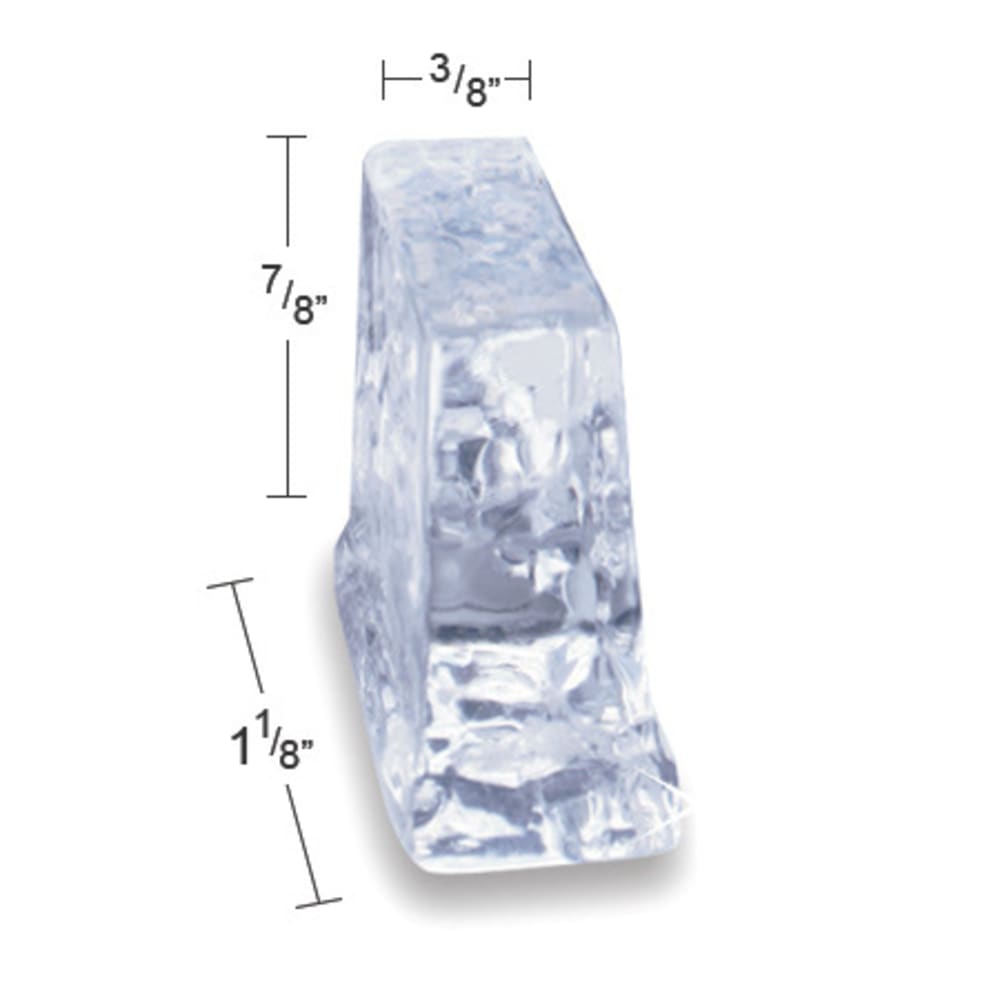

  • Half-dice style ice measures 38 in. W x 118 in. D x 78 in. H
  • 510 lbs. of ice produced every 24 hour cycle
  • Illuminated EasyRead display communicates the machine's operating status, asset information, and cleaning reminders
  • 24-hr. preventive maintenance, diagnostic feedback, and 7 days of product information is given for troubleshooting
  • Ice production can be scheduled based on time of day, ice volume, and bin level (with additional accessory)
  • Acoustical ice sensing probe uses sound to ensure ice is at the proper thickness before dispensing into the bin
  • Ice bin is sold separately
  • Foodzone is sealed for more efficient cooling and is easily cleaned with the front-hinged door
  • Internal components including the water-trough, distribution tube, curtain, and sensing probes are removable for cleaning
  • Distribution tube, evaporator, water tray, sensing probe, and drain tube are built with AlphaSan to slow down microbial growth
  • DuraTech clear coat on stainless steel resists fingerprints and corrosion
  • Remote-cooled
  • R-404A refrigerant is used
  • 6,100 BTU
  • 115 V/60 Hz/1 ph, 20 A, 6.09 kW
  • Overall Dimensions: 30 in. W x 2412 in. D x 2112 in. H
  • California Low Lead qualified; CE and cULus listed; AHRI, NSF, and ENERGYSTAR certified

Indigo™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration, 30"W x 24-1/2"D x 21-1/2"H, production capacity up to 510 lb/24 hours at 70°/50° (432 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice IY-0594N Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 510 lbs
Also Known As SY0594A, QY0494N, JY0494N, BY0494N, GY0494N
Compressor Type Air Cooled
Depth (in) 25
Height (in) 22
Ice Type Half Cube
Specialty Options Remote Compressor
Voltage 115/60/1
Width (in) 30
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Production Range 300-899 lb
Weight 161.00
Manitowoc Ice IY-0594N Certifications
  • UL
  • NSF
