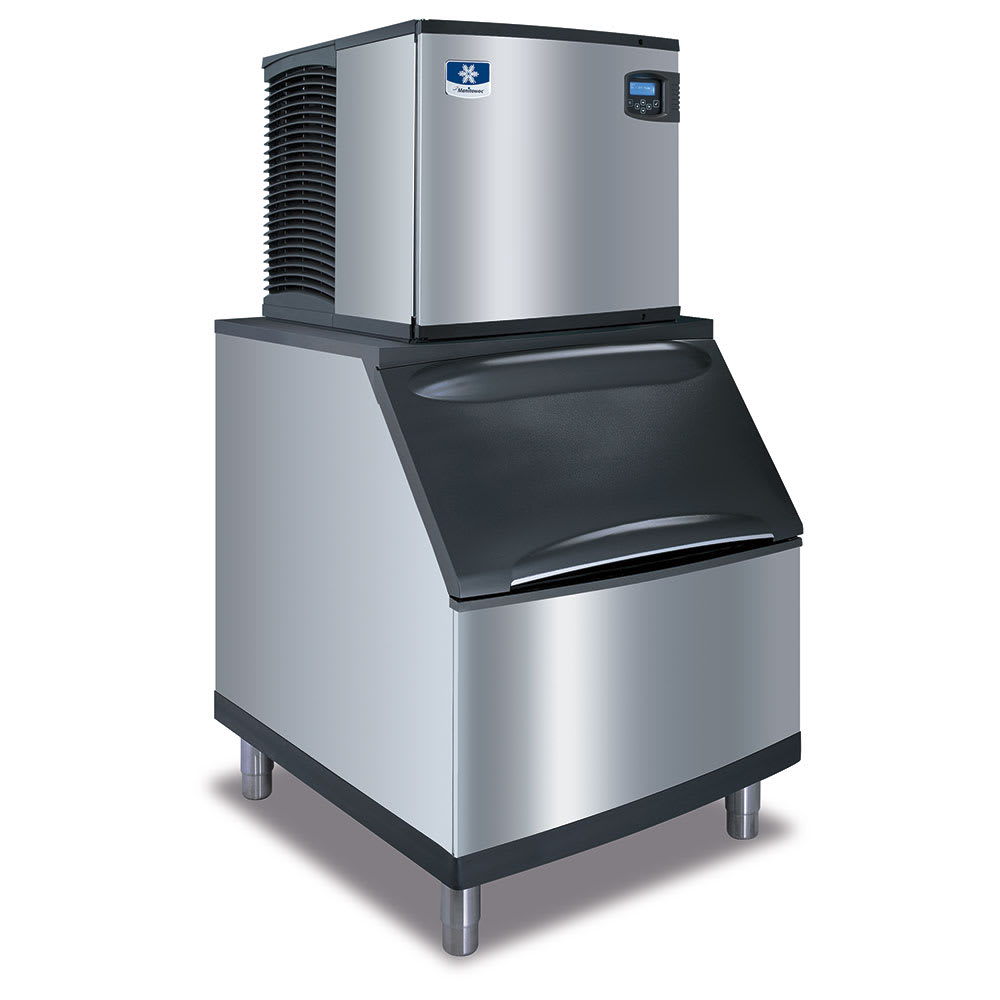

Manitowoc Ice IY0504A161B570 560-lb/Day Half Cube Ice Maker w/ 430-lb Bin, Air Cooled, 115v

KaTom #: 399-IY0504A161B570 • MPN: IY-0504A-161/B-570 (115/60/1)
free-shipping
quick-ship

Typically ships within 1 - 3 business days

(2 reviews)Write a Review
Retail Price: $3,864.00

Manitowoc Ice IY0504A161B570 Description

The IY-0504A-161/B-570 Indigo™ Series from Manitowoc Ice is the upgrade from the S Series with a new ice-sensing probe and a control panel that gives you the ability to control production times, set cleaning schedules, and see diagnostic information on your ice maker in one location. The ice production can be controlled by time, volume, or bin level (only available with optional attachment). The display is simple to read and is lit by a blue backlight.

The Indigo ice maker is made to be easy to clean, with a sealed food zone and removable water trough, distribution tube, curtain, and sensing probe. The acoustical ice sensing probe helps ensure that ice is frozen to the proper thickness and density before it is harvested. The durable DuraTech™ stainless steel exterior has a clear coat to make this ice maker resistant to fingerprints and corrosion.

Product Details

  • Replaces SY0504AB570
  • Air-cooled
  • Dice-style ice: 78 in. W x 78 in. D x 78 in. H
  • 560 lbs. of ice produced daily
  • Bin holds 430 lbs. of ice

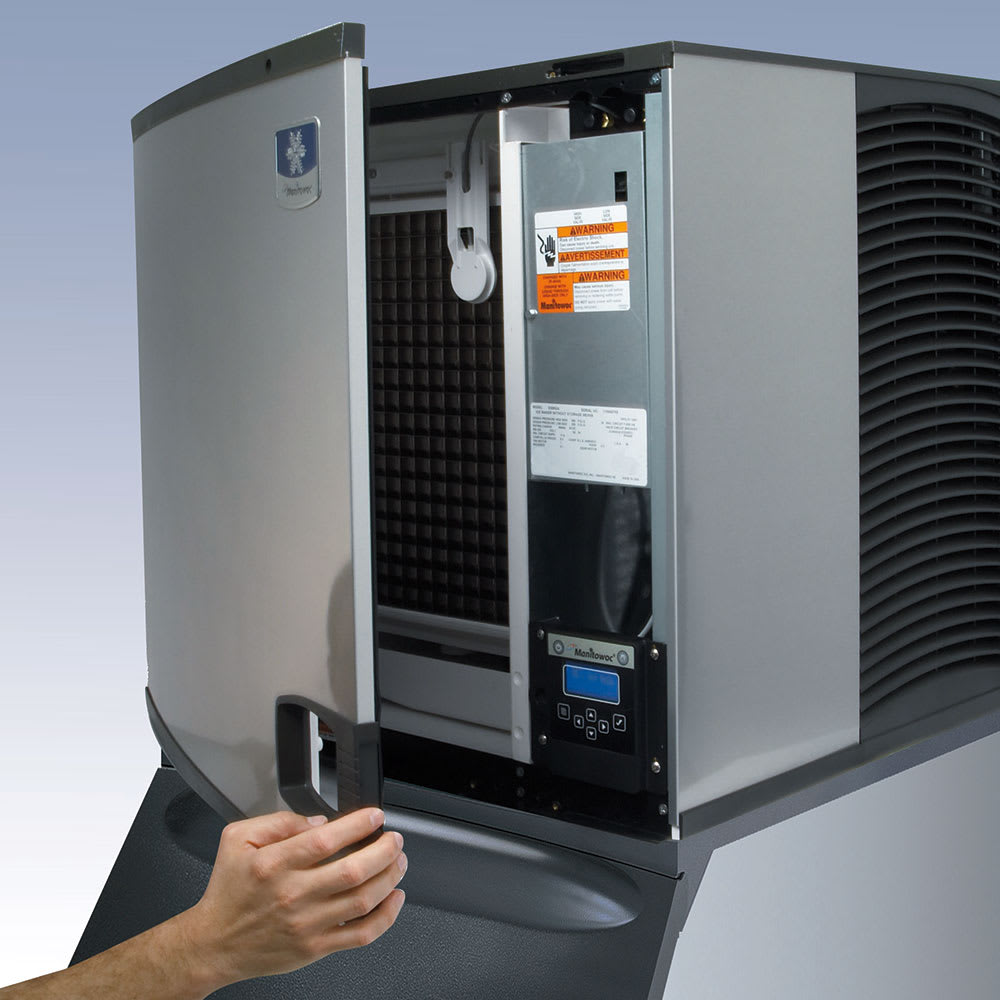

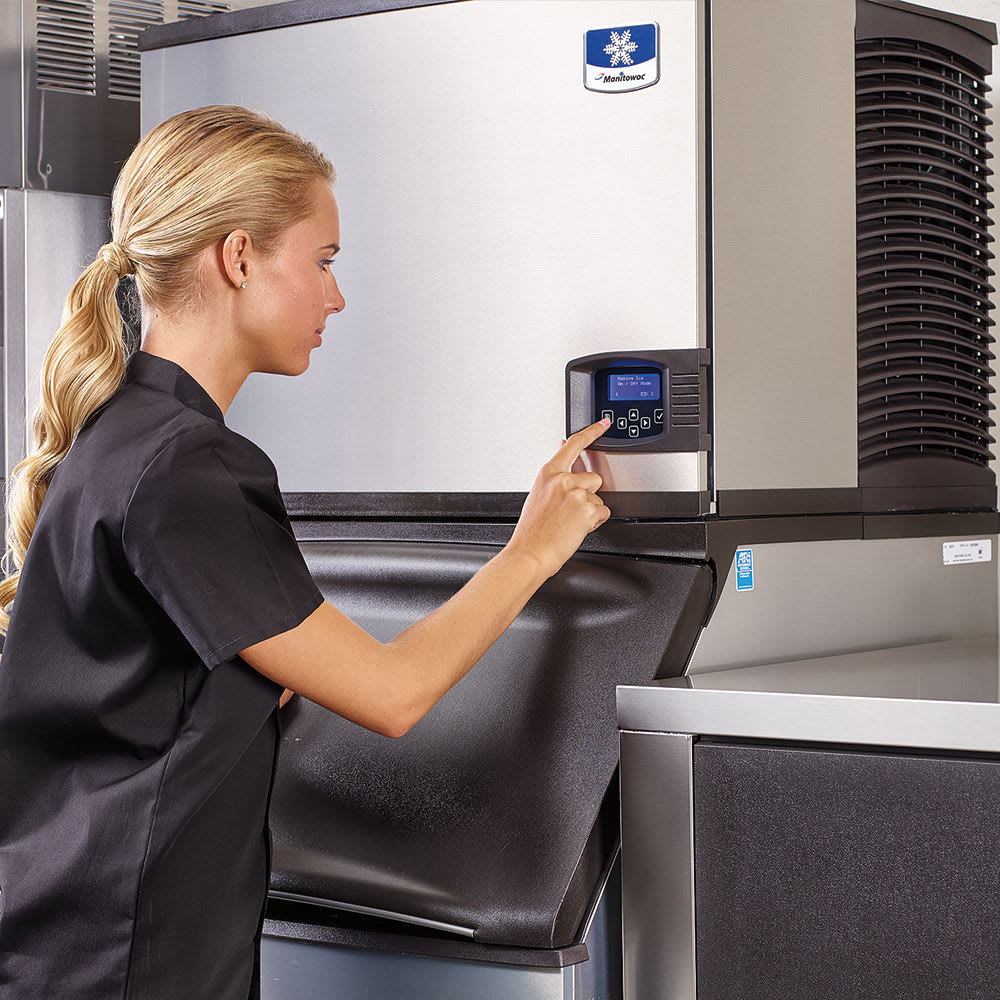

  • EasyRead display is illuminated by a blue backlight and gives information of operation status, cleaning reminders, and asset information
  • Intelligent diagnostic system provides 24-hr. preventative maintenance and troubleshooting information
  • Production is set by on/off time, ice volume, and bin level (with optional attachment)
  • Acoustical ice sensing probe detects the thickness of ice by emitting a sound wave and will only dispense into the bin once the proper thickness has been reached

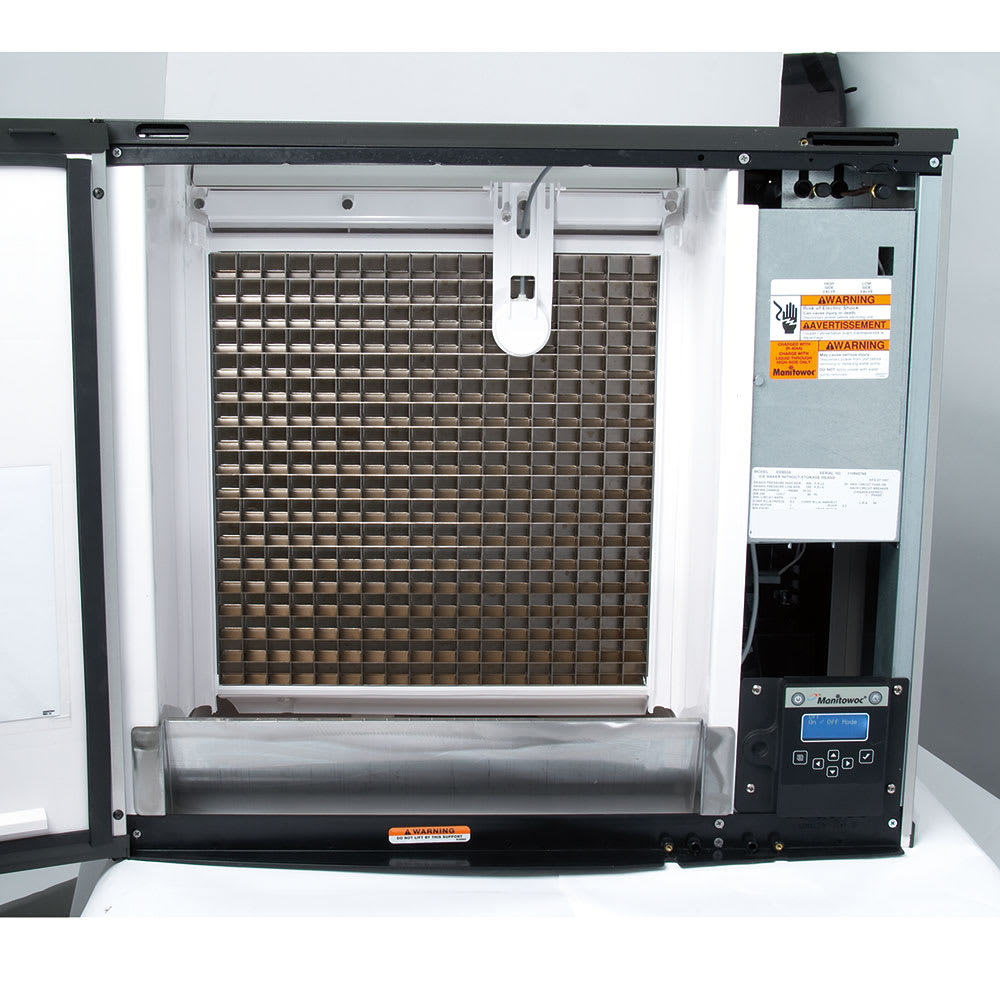

  • Food zone is sealed for more efficient cooling and is easily cleaned with removable internal components (water-trough, distribution tube, curtain, and sensing probes)
  • The distribution tube, evaporator, water tray, sensing probe, and drain tube are built with AlphaSan® to slow microbial growth
  • DuraTech™ clear coat on stainless steel resists fingerprints and corrosion
  • 115 V/60 Hz/1-ph, 14.2 A, plug and cord are not included
  • Overall Dimensions: 30 in. W x 24 12 in. D x 21 12 in. H
  • CE and cULus Listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR Certified; California low lead qualified

Clear Communication, Exportable Data, Ice Assurance

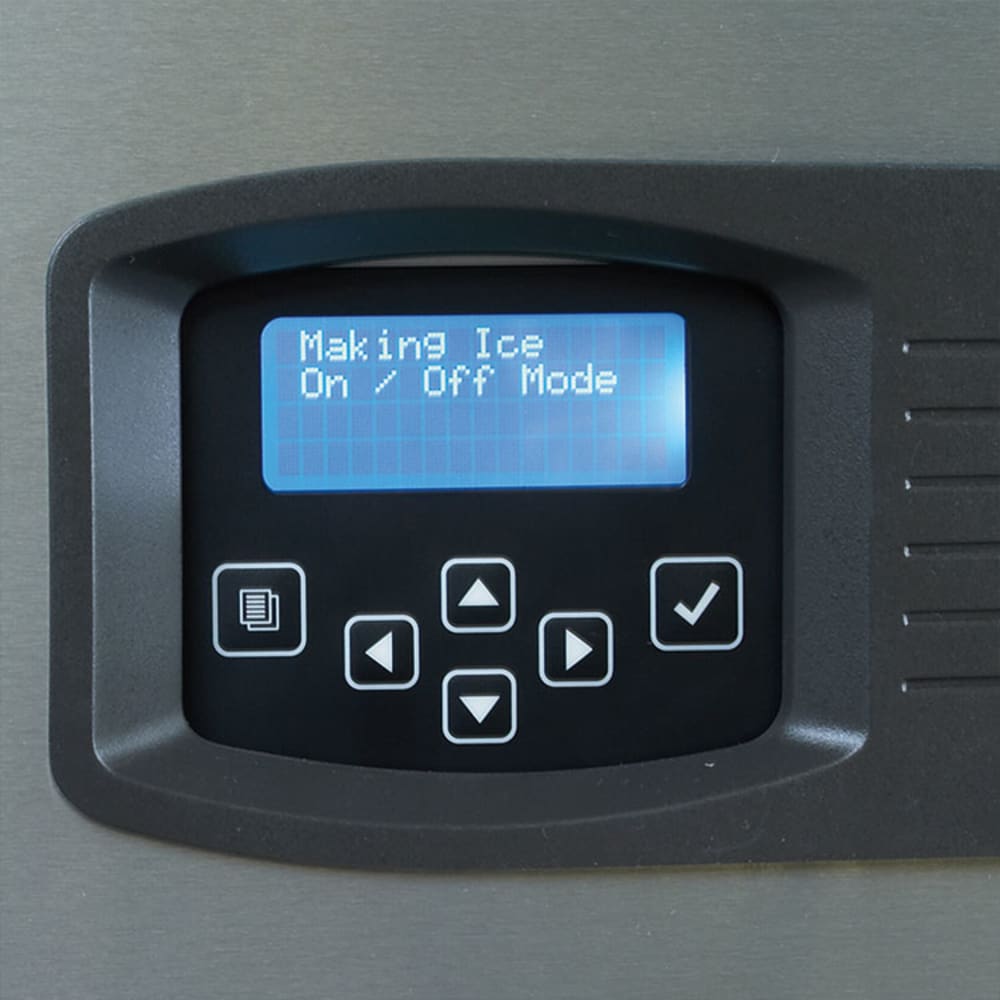

  • The EasyRead Display is designed to communicate clearly what settings you are adjusting and the controls are simple to operate
  • Ice Connect™ - Data can be exported via USB or ethernet connection. This allows for the monitoring of production rates, as well as adjustments to promote more efficient operation
  • Ice Assurance - Uses acoustical ice sensing probe that detects the thickness of ice by using sound to "hear" the resonance before dispensing it into the bin. This ensures that all ice on the sheet is at the proper thickness

Indigo™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 21-1/2"H, up to 560-lb approximately/24 hours, DuraTech™ exterior (stainless finish with innovative clear-coat resists fingerprints & dirt), half-dice size cubes, ENERGY STAR® with ice bin, 30"W x 34"D, 50"H, with top-hinged front-opening door, approximately 430 lb ice storage capacity, stainless steel exterior, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice IY0504A161B570 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
Access Type Lift Up Door
Bin Capacity 430
Compressor Type Air Cooled
Depth (in) 34
Height (in) 71.5
Ice Type Half Cube
Production 560
Specialty Options Antimicrobial System
Voltage 115/60/1
Width (in) 30
Weight 159.00
Manitowoc Ice IY0504A161B570 Certifications
  • UL
  • NSF
  • Energy Star
