Manitowoc Ice IY-0324A 22" Indigo™ Half Cube Ice Machine Head - 350-lb/24-hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IY0324A161 • MPN: IY-0324A 161

Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Price: $2,683.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IY-0324A Description

Manitowoc Ice

Manitowoc began rolling out new ice makers in early 2018 that are more efficient than their predecessors and have easy-to-use, icon-based controls. As part of that transition, this model has been replaced by the IYT-0420A.

The Manitowoc Indigo™ IY-0324A ice maker head is the replacement and upgrade for the SY-0324A. It has an acoustical ice sensing probe, which uses sound waves to detect the thickness of the ice and ensure proper sizing before harvest. This ice maker has an EasyRead Display that gives important information on the essential functions and gives diagnostic feedback for maintenance. The Manitowoc IY0324A ice maker can produce as much as 350 pounds of half-dice ice daily.

Product Details

  • Half-dice style ice measures 38 in. W x 118 in. D x 78 in. H
  • Air cooled
  • Max. 350 lbs. of ice produced daily

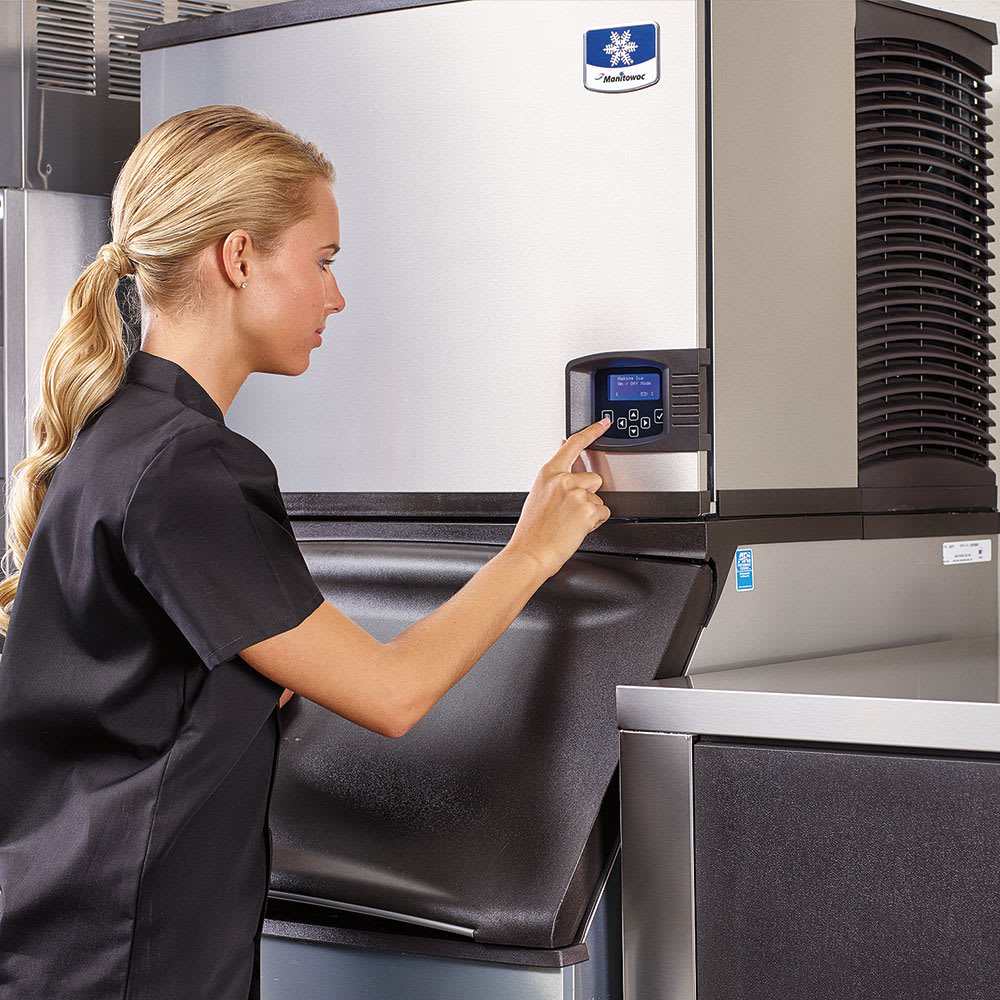

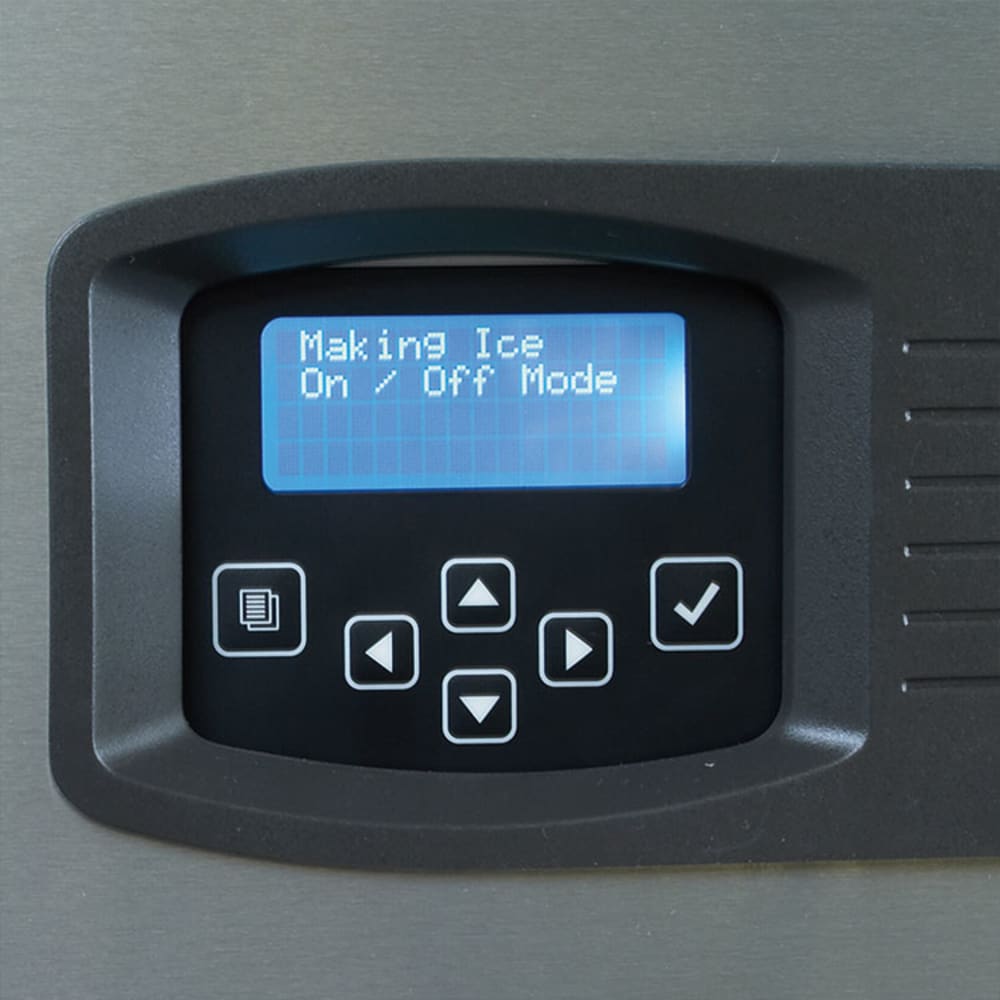

  • Illuminated EasyRead display gives information on operational status, as well as cleaning reminders, filter expiration notices, and asset information
  • Diagnostic feedback collects 7 days' worth of data and offers preventive maintenance guidance
  • Ice production can be controlled by on/off time, ice volume, and bin level (with optional attachment)
  • Acoustical ice sensing probe emits sound waves to detect the thickness of the ice, which is better than water conductivity probes because it won't fail if it gets dirty

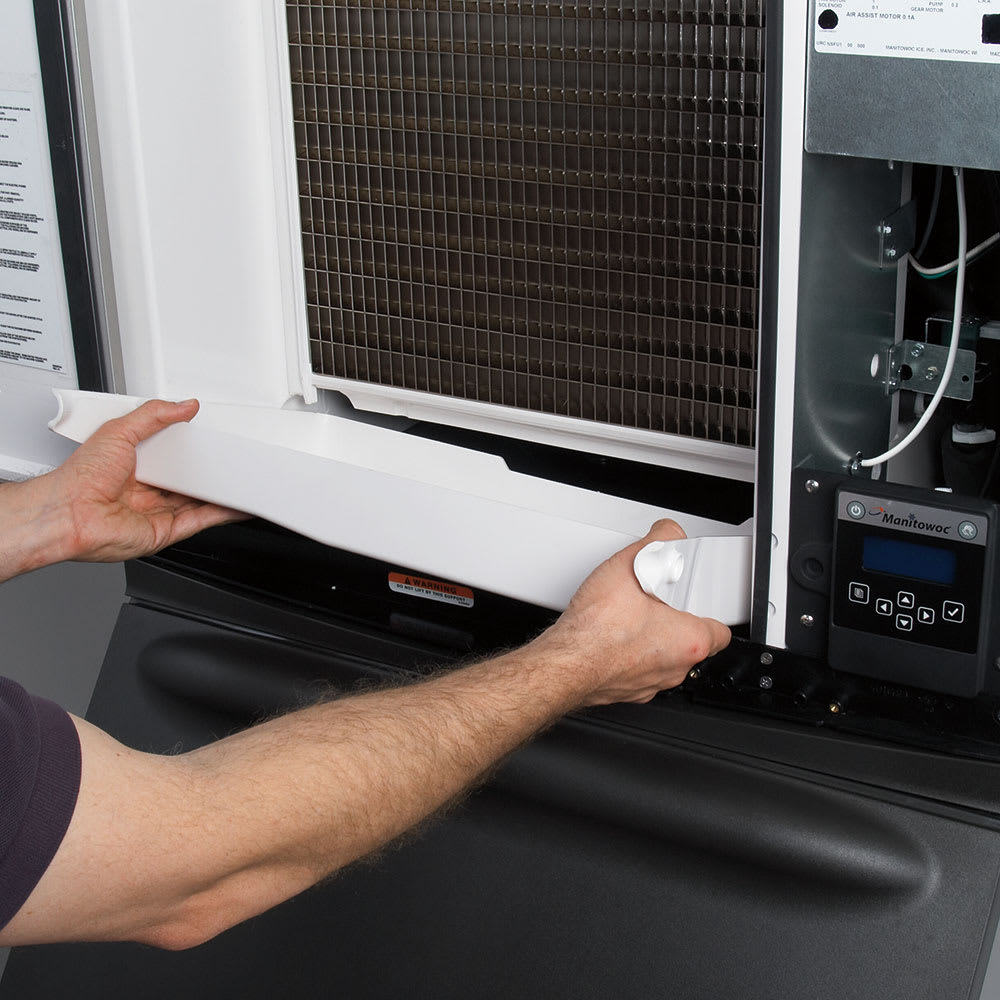

  • Foodzone is sealed for more efficient cooling and is easily cleaned with removable internal components (water-trough, distribution tube, curtain, and sensing probes)
  • The distribution tube, evaporator, water tray, sensing probe, and drain tube are built with AlphaSan® to slow down microbial growth
  • Air Assist Harvest technology helps ensure a quick harvest cycle
  • DuraTech™ clear coat on stainless steel resists fingerprints and corrosion
  • 115 V/60 Hz/1-ph, 11.5 A, plug and cord are not included
  • Overall Dimensions: 22-in. W x 24-1/2 in. D x 21-1/2 in. H
  • CE and cULus Listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR Certified; California low lead qualified
  • Note: a bin is required for operation, and plug and cord are not included

Unique Control, Clear Display, and Easy Cleaning

  • EasyRead Display is illuminated and gives information about the operational status, cleaning reminders, diagnostic feedback, and asset information
  • Ice production can be set based on the time of day or by ice volume, and production can be exported either by USB or internet connection
  • Acoustical ice sensing probe emits a pulse of sound to detect the thickness of the ice before dropping into the bin
  • For cleaning and descaling, just pour a few ounces of cleaner into the system and initiate the cleaning switch that takes only 30-min. to complete (cleaners sold separately)

Indigo™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 350 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice IY-0324A Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 350 lbs
Also Known As 399-SY0324A, SY-0324A
Compressor Type Air Cooled
Depth (in) 25
Height (in) 22
Ice Type Half Cube
Specialty Options Digital Controls
Width (in) 22
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Production Range 300-899 lb
Hertz 60
Voltage 115
Phase 1
Weight 136.00
Manitowoc Ice IY-0324A Certifications
  • UL
  • NSF
