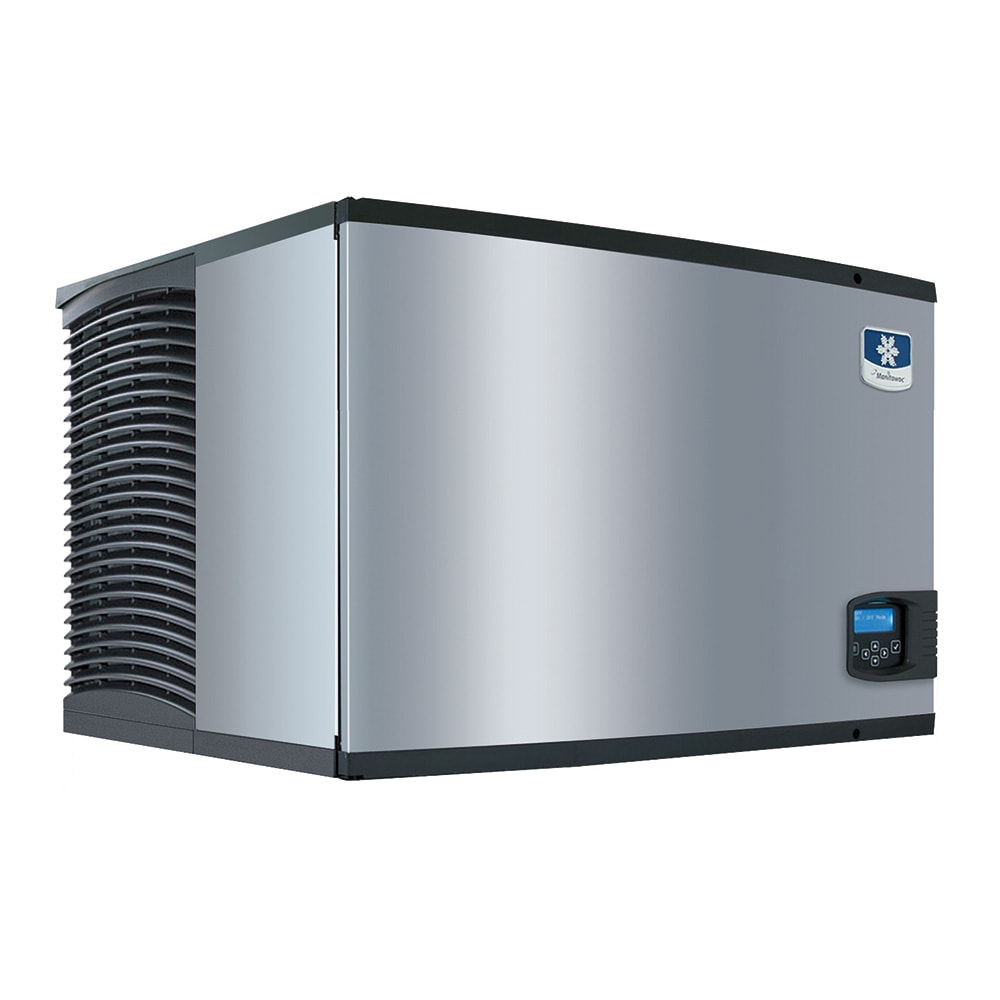

The Manitowoc IR-0501W 161 cube ice machine head produces regular cube ice that measures 11⁄8 inches by 11⁄8 inches by 7⁄8 of an inch. Up to 500 pounds of cube ice is made every 24-hour cycle. Adjustable settings allow you to program the ice machine head to make ice based on the on/off timer, ice volume, or bin level. An acoustical sensor probe checks to make sure the ice is a consistent size before releasing it to the bin.
A blue illuminated EasyRead display shows you the operating status, reminds you to clean the machine, and provides information about asserts. Diagnostics run every 24 hours to help prevent maintenance issues. The front door is hinged and easily opens for access to components. To help prevent the growth of harmful bacteria, AlphaSan® antimicrobial is built into some components in the Manitowoc IR-0501W 161 cube ice machine head. DuraTech™ coating is on the stainless steel exterior for superior corrosion and damage resistance.
- Produces up to 500 lbs. every 24 hours
- Feedback from diagnostics run every 24 hours help prevent maintenance issues
- Difficult water conditions are no longer a worry with the acoustical ice sensing probe
- Operating status, reminders for cleaning, and information about assets are shown on a blue illuminated EasyRead display
- Production of ice can be programmed by on/off timer, ice volume, or the bin level
- Front door is hinged and swings out for easy access to interior components
- Sensing probes, distribution tube, water trough, and curtain are removable for cleaning
- AlphaSan® antimicrobial is built into some components to prevent the growth of bacteria
- DuraTech™ exterior is heavy-duty with superior corrosion and damage resistance
- Uses R-404A refrigerant
- Motor is cooled with water
- Ice bin sold separately. Recommended bin pairings: B-400 and B-430

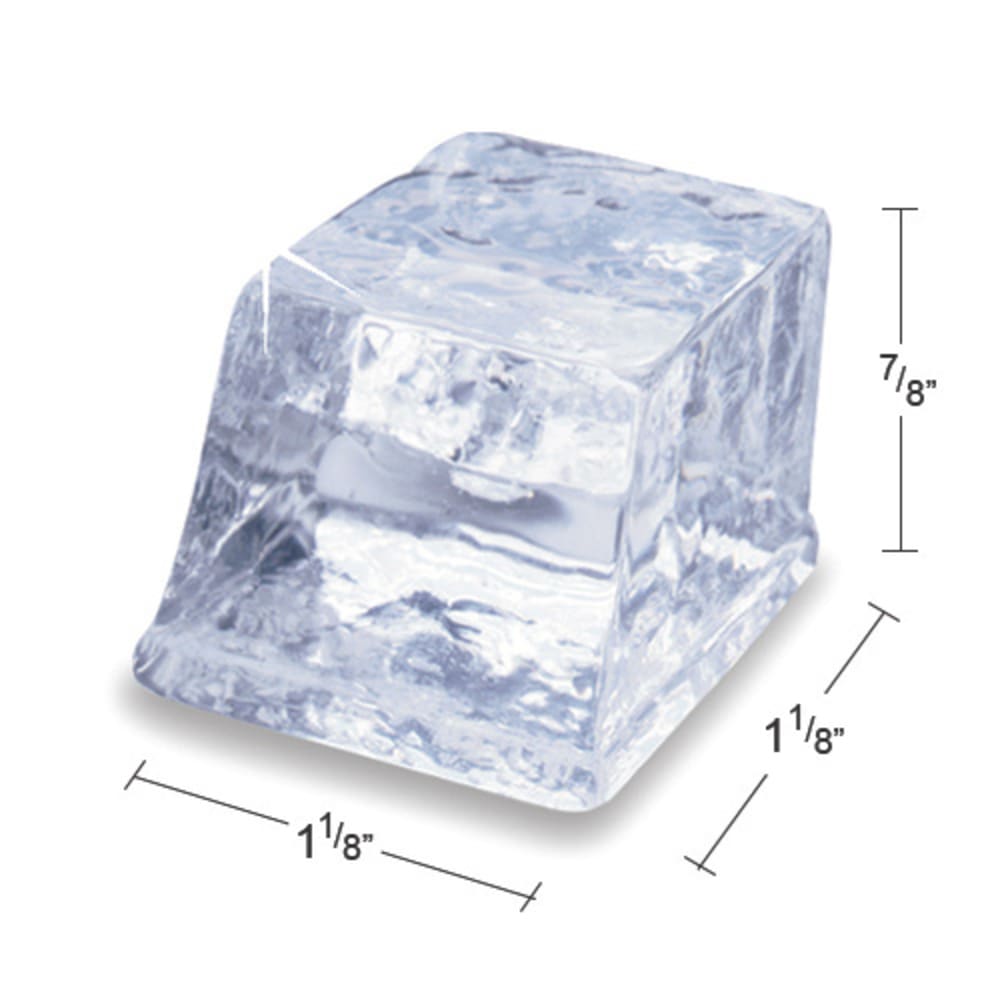

- Ice Dimensions: 11⁄8 in. x 11⁄8 in. x 7⁄8 in.
- 115 V/60 Hz/1 ph, 4.58 kW, 13.5 A
- Overall Dimensions: 30 in. W x 241⁄2 in. D x 211⁄2 in. H
- California Low Lead qualified; cULus and CE listed; AHRI and NSF certified
Indigo™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 21-1/2"H, production capacity up to 500 lb/24 hours at 70°/50° (420 lb AHRI certified at 90°/70°), DuraTech™ exterior, regular size cubes, NSF, cULus, 115v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Manitowoc Ice IR-0501W SpecificationsPDF Spec Sheet
|24 Hr. Production (lbs)||500 lbs|
|Ice Type||Extra-large Cube|
|Compressor Type||Water Cooled|
|Production Range||300-899 lb|
