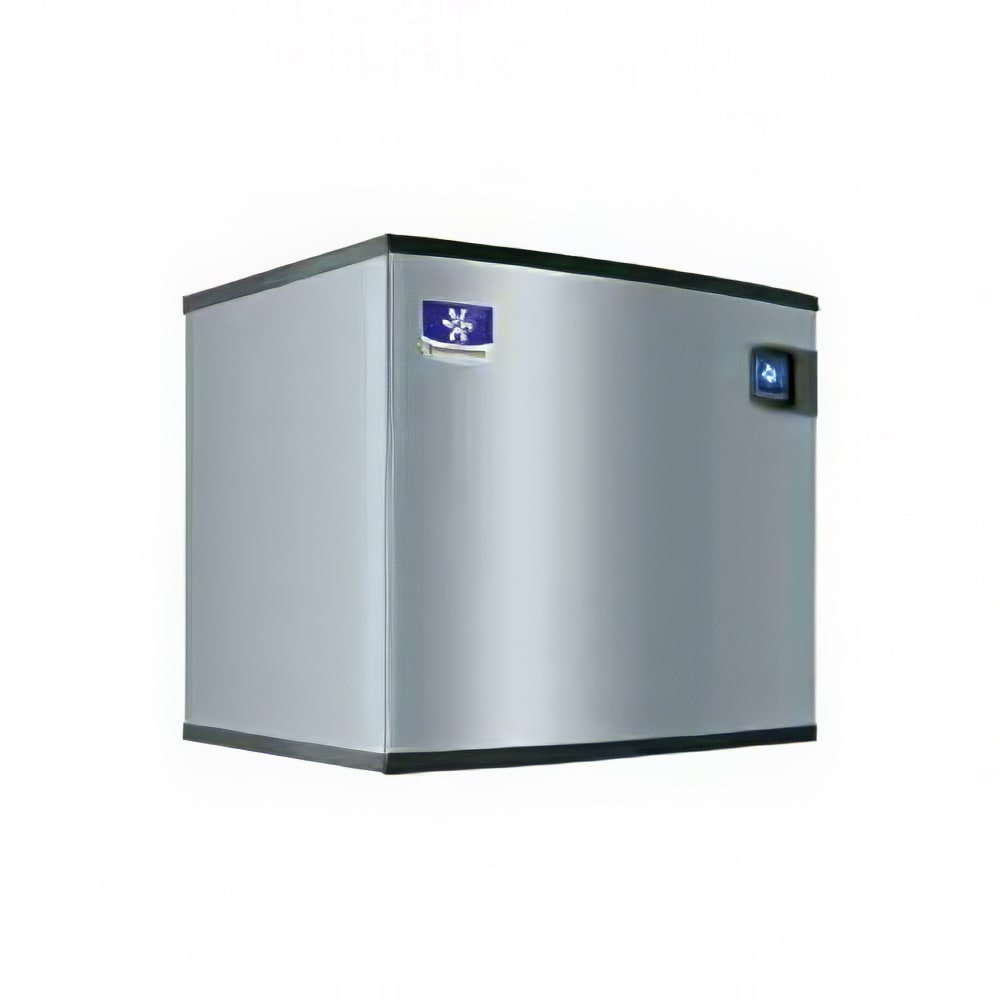

Manitowoc Ice IDF1400C 30" Indigo NXT™ QuietQube Full Cube Ice Machine Head - 1350 lb/24 hr, Remote Cooled, 115v/1ph

The Manitowoc Ice IDF1400C Indigo NXT™ full-cube ice machine head can produce 1,350 pounds of ice each day under ideal conditions, making it a good choice for high-volume locations, such as corner stores, quick-service restaurants, and cafes. Because it's compatible with a remote condensing unit, this ice machine operates quietly, reducing the output of noise and hot air in the dining area. It measures just 30 inches wide, saving valuable space and making it compatible with most floor plans.

The Manitowoc Ice IDF1400C Indigo NXT ice machine head is resistant to smudges, fingerprints, and rust, making it suitable for long-term use and frequent exposure to moisture. Its ice production can be programmed to match fluctuations in daily traffic, and it's built with a touchscreen interface that's icon based for straightforward use. For precise measurement, the ice-sensing probe is acoustical, and an antimicrobial agent coats select components inside the machine.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• Replaces ID-1474C
• Air cooled
• Produces full-cube ice
• 1,350-lb. maximum daily ice production
• 1,120-lb. AHRI-certified daily ice production
• Designed for remote refrigeration
• Space-saving, 30-in.-wide footprint
• DuraTech™ exterior resists grimy buildup
• Clear coat is smudge resistant
• 24-hour intelligent diagnostics for accurate maintenance
• Acoustical ice sensing probe for precise production
• Icon-based easyTouch® interface
• Ice production can be programmed for high-volume periods
• Door lifts off to access foodzone
• Cleaning is streamlined with removable water trough, curtain, distribution tube, and sensing probes
• AlphaSan® antimicrobial protects some components
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Product Features

Dimensions & Utilities

• Ice cube: ⁷⁄₈ in. W x ⁷⁄₈ in. D x ⁷⁄₈ in. H
• Head: 30 in. W x 24¹⁄₂ in. D x 25 in. H
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 1.1 A, 4.79 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDF1400C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 30"W x 24-1/2"D x 25"H, production capacity up to 1350 lb/24 hours at 70°/50° (1120 lb AHRI certified at 90°/70°), DuraTech™ exterior, dice size cubes, CVD Technology, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IDF1400C Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
