This combination head and bin ice maker from Manitowoc Ice is part of the Indigo™ Series, which is the upgrade from the S Series. The new EasyRead Display provides information on the operating status and cleaning schedules, and diagnostic feedback for preventative maintenance and troubleshooting. This ice maker uses an acoustical ice sensing probe to detect the thickness of the ice before dropping it to the bin. The exterior is DuraTech™ stainless steel with a clear coat for resistance to corrosion, fingerprints, and damage.
- Replaces SD0502AB570

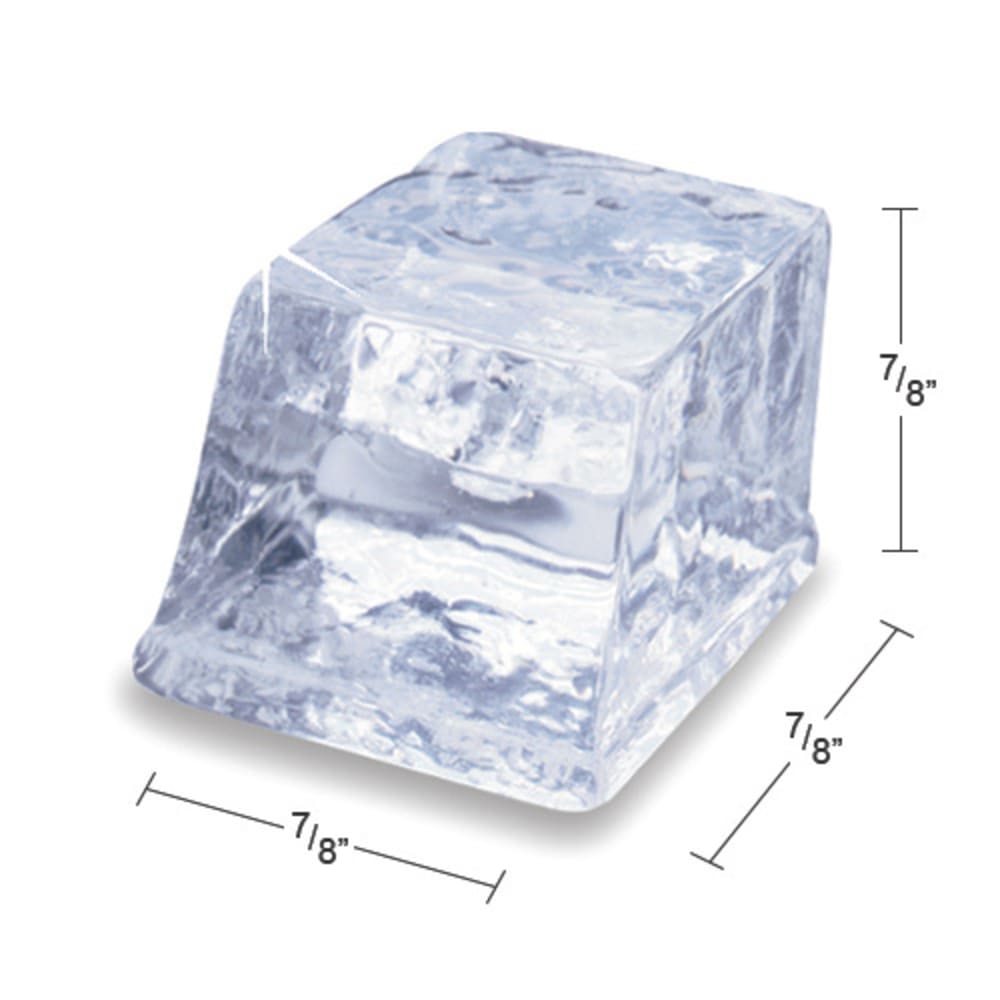

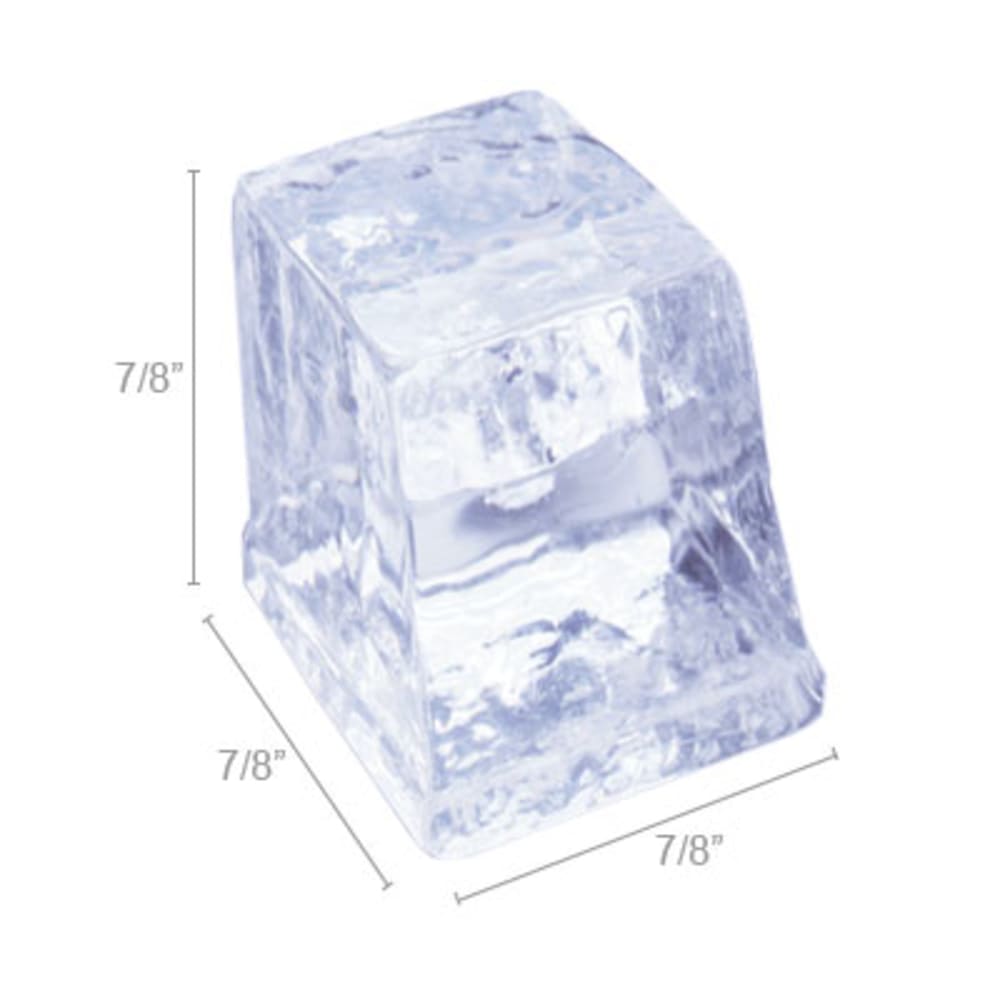

- Dice-style ice - 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- 530-lb. daily ice production capacity
- Bin holds 430 lbs. of ice
- Blue backlit EasyRead display provides information on the operating status, cleaning reminders, and unit data, and is controlled with a simple control panel
- 7 days of data is collected for maintenance
- Production is set by on/off time, ice volume, and bin level (with optional attachment)
- Acoustical ice-sensing probe detects the thickness of ice by emitting a sound wave and will only dispense into the bin once the proper thickness has been reached

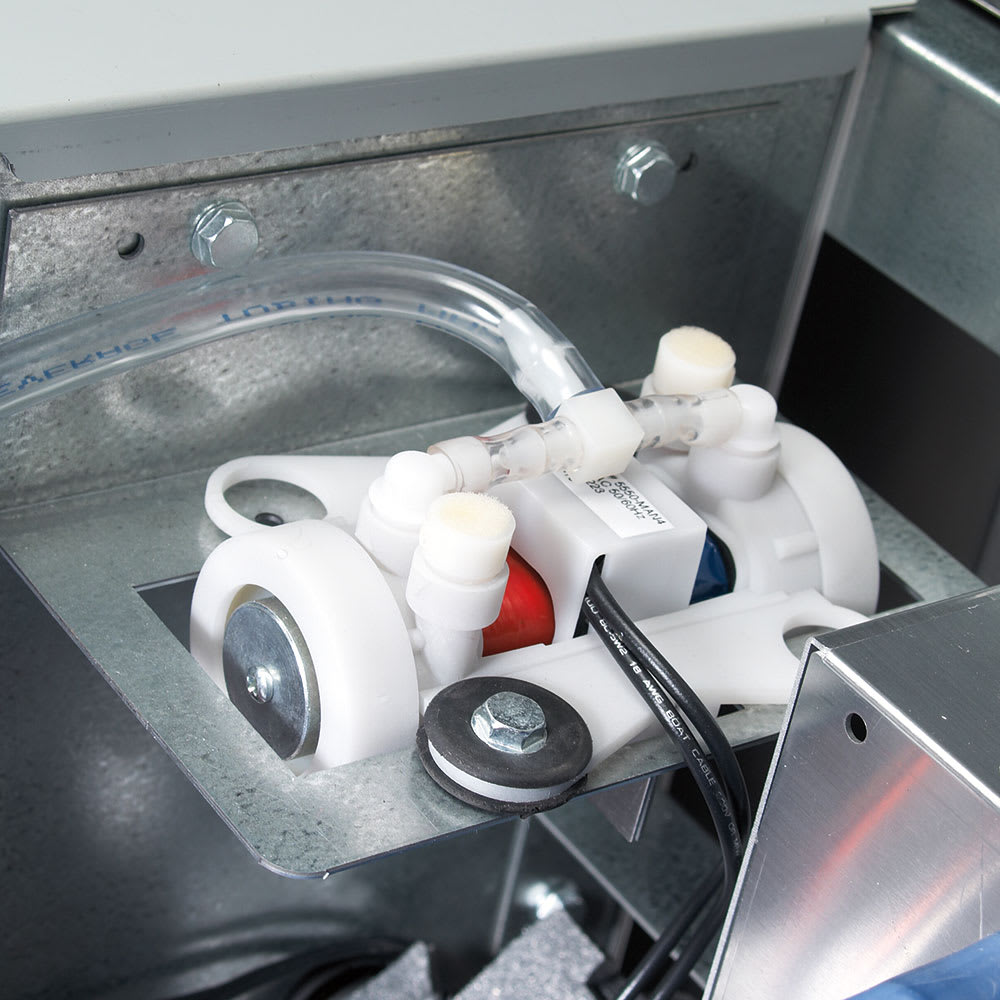

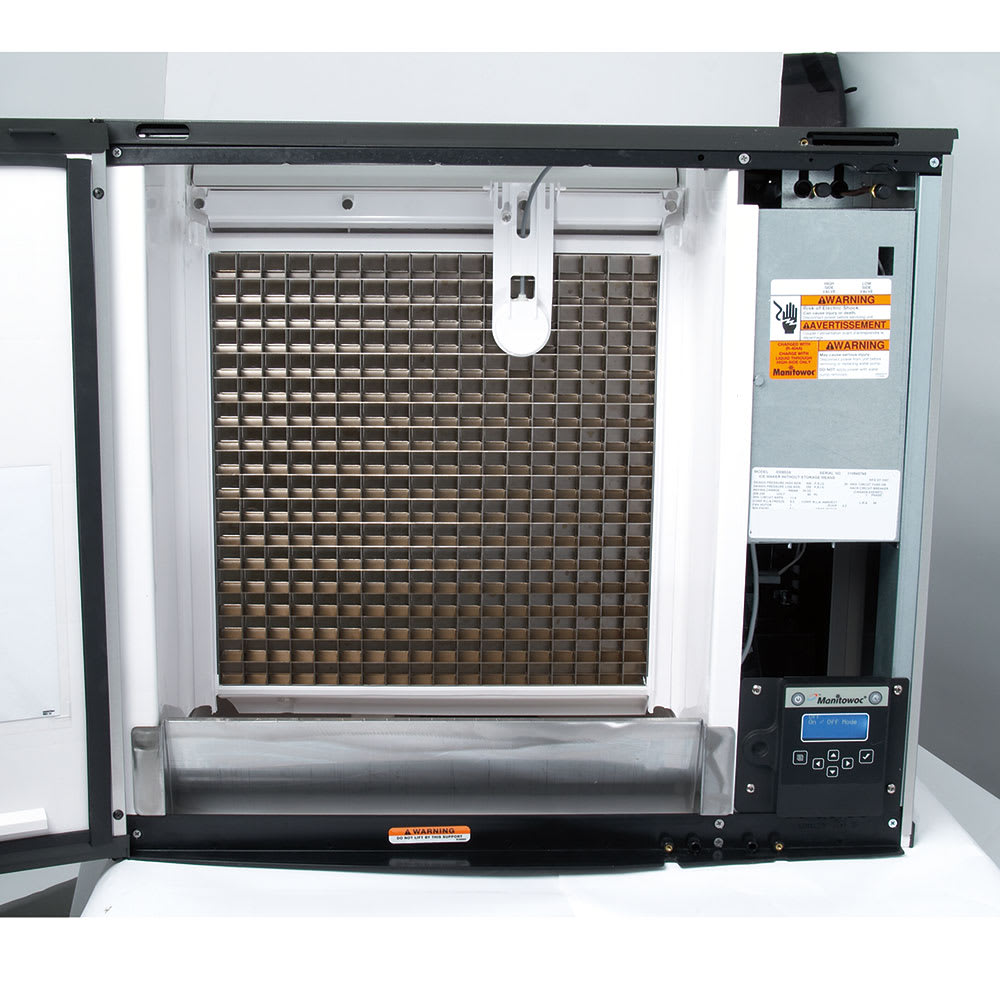

- Food zone is sealed for more efficient cooling and is easily cleaned with removable internal components (water-trough, distribution tube, curtain, and sensing probes)
- The distribution tube, evaporator, water tray, sensing probe, and drain tube are built with AlphaSan® to slow down microbial growth
- DuraTech™ clear coat on stainless steel resists fingerprints and corrosion
- 115 V/60 Hz/1-ph, 14.2 A, plug and cord are not included
- Overall Dimensions: 30 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
- CE and cULus Listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR Certified; California low lead qualified
Improved Ice Sensing and Clear Control
- Acoustical ice-sensing probe uses sound to detect the thickness of the ice by "listening" to the sound it makes, then dropping it into the bin once it reaches the right size
- This improves over the typical water conductivity probe, which has the opportunity for failure or dropping the ice too early if the sensors get dirty

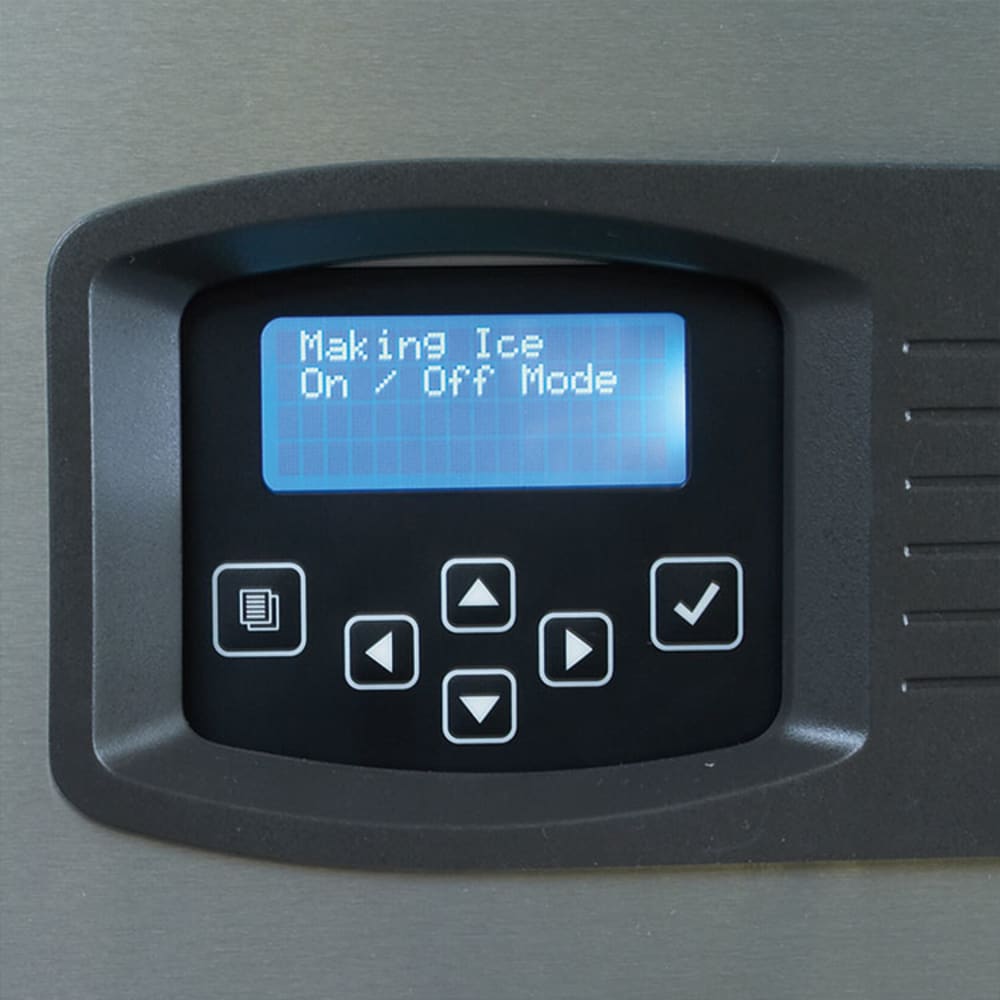

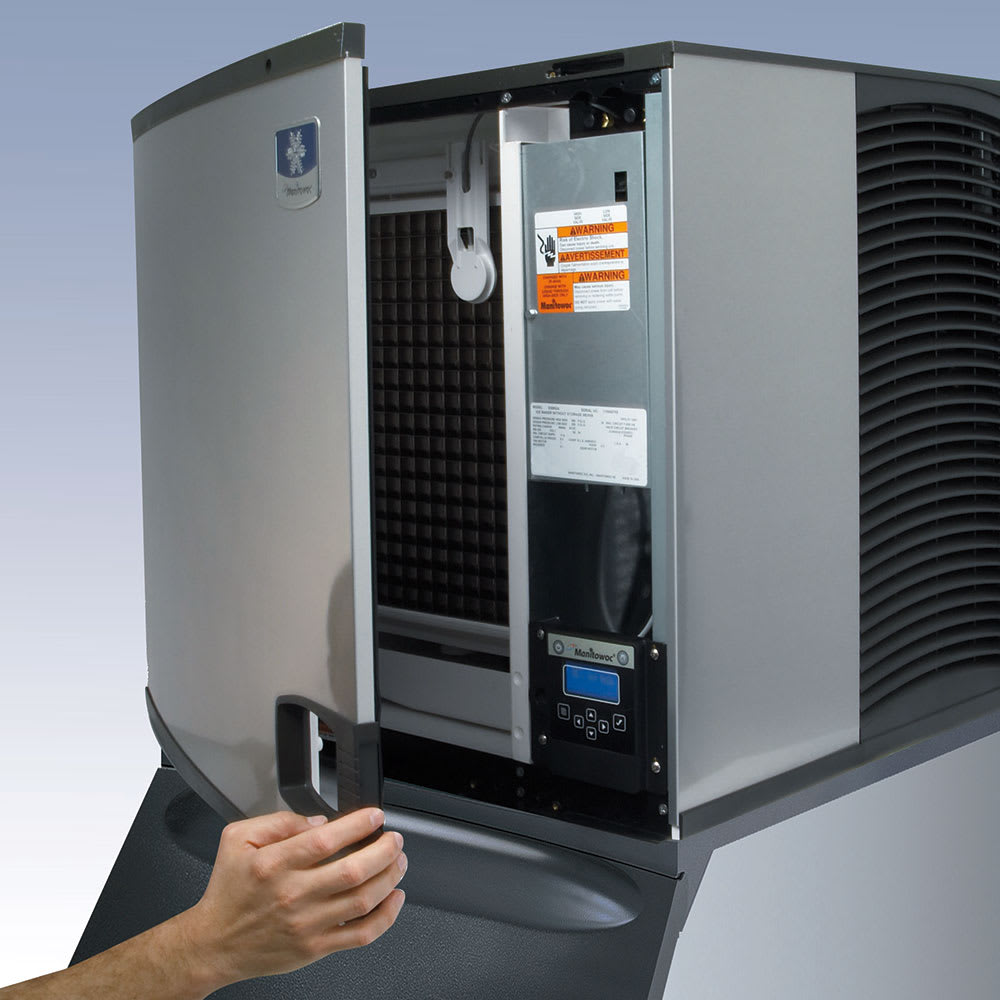

- The EasyRead display communicates information on the operating status, cleaning schedules, and unit information through an illuminated screen
- All menus and settings are navigated through the EasyRead Display with up, down, left, right, confirm, and back controls for simple and clear operation

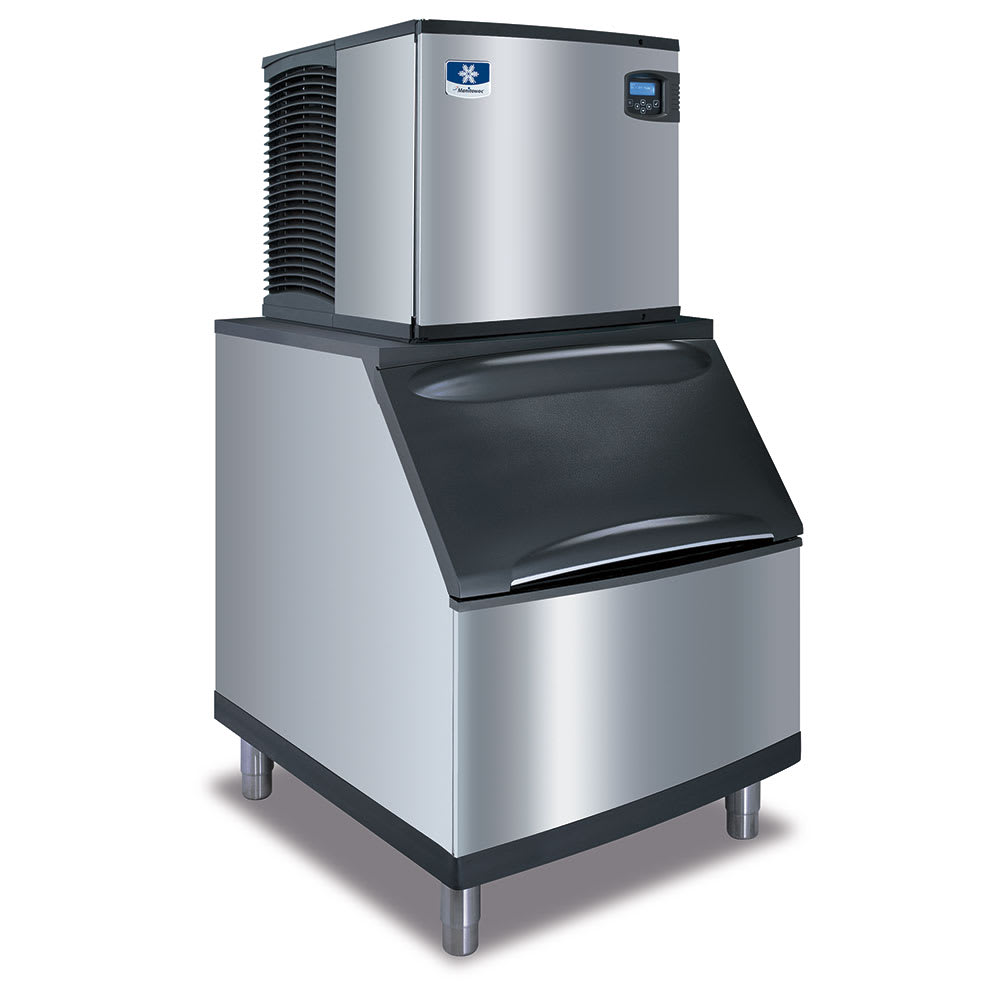

Indigo™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 21-1/2"H, up to 530-lb approximately/24 hours, DuraTech™ exterior (stainless finish with innovative clear-coat resists fingerprints & dirt), dice size cubes, ENERGY STAR® with ice bin, 30"W x 34"D, 50"D with top-hinged front-opening door, approximately 430 lb ice storage capacity, stainless steel exterior, 115v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Manitowoc Ice ID0502A161B570 SpecificationsPDF Spec Sheet
|Access Type||Lift Up Door|
|Also Known As||399-SD0502AB570, SD-0502AB570, B-570, ID-0502A|
|Compressor Type||Air Cooled|
|Ice Type||Full Cube|
|Specialty Options||Antimicrobial System|
|Warranty||3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor|
