Manitowoc Ice ID-0322A 22" Cube Ice Machine Head - 335-lb/24-hr, Air Cooled, 115v

MPN: ID-0322A
Free Shipping

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,492.00

Manitowoc Ice ID-0322A Description

SKU: 399-ID0322A161

This Indigo™ Series ice maker is a replacement to the SD0322A with a production capacity of 335 pounds daily. The new EasyRead display gives information about the operating status and collects data from the ice maker for seven days so you can easily detect if there are any changes in production. Water miser can be engaged to save up to 20 percent in water costs - this will reduce production capacity, but can be disabled at any time.

Product Details

  • Air-cooled
  • Dice-style ice - 7/8-in. W x 7/8-in. D x 7/8-in. H
  • 335-lbs. of ice produced daily

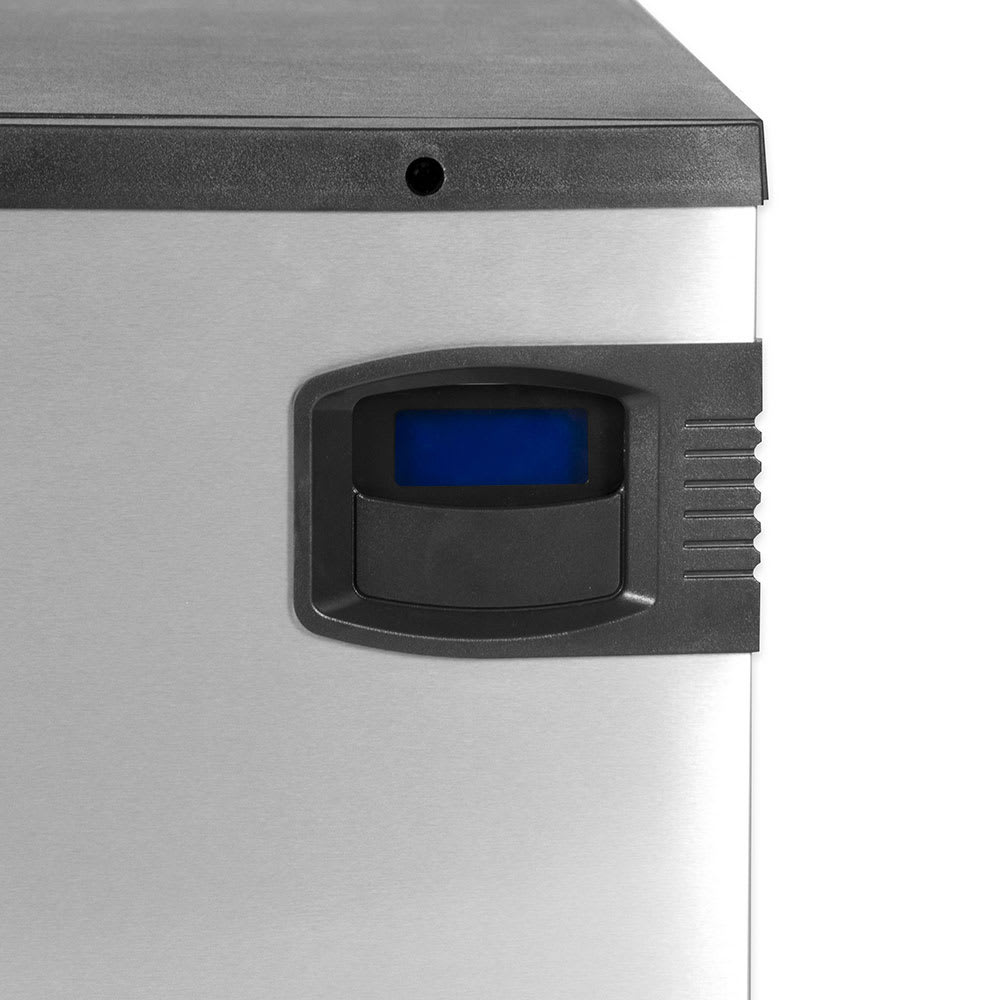

  • The EasyRead display is illuminated with a blue backlight and gives information on operation status, schedules for cleaning and filter changes, and asset information
  • 24-hr. diagnostic feedback collects 7 days of information and gives information for preventative maintenance
  • Production is set by on/off time, ice volume, and bin level (with optional attachment)
  • Acoustical ice sensing probe emits sound waves to detect the thickness of the ice
  • Foodzone is sealed for more efficient cooling and is easily cleaned with removable internal components (water-trough, distribution tube, curtain, and sensing probes)
  • The distribution tube, evaporator, water tray, sensing probe, and drain tube are built with AlphaSan® to slow microbial growth
  • DuraTech™ stainless steel with clear coat resists fingerprints and corrosion
  • 115 V/60 Hz/1-ph, 11.5 A, plug and cord are not included
  • Overall Dimensions: 22-in. W x 24-1/2 in. D x 21-1/2 in. H
  • CE and cULus Listed; AHRI, NSF, ISO 9001:2008, and ENERGY STAR Certified; California Low Lead Qualified
  • Note: a bin is required for operation

Consistent Production and Diagnostic Feedback for Superior Control

  • Ice assurance ensures that ice will always be in the bin using a combination of the acoustical sensor, harvest assist, and ice clarity control
  • Water miser control can be enabled to save up to 20% on energy consumption
  • The diagnostic feedback collects 7 days’ data for technicians to review if there is a problem
  • There are unique icons for alerts for easy identification (air filters, water pressure issues, operation temperatures, electric failures, and cleaning reminders)

Indigo Series Ice Maker, cube-style, air-cooled, self-contained condenser, up to 335-lb approximately/24 hours, DuraTech exterior (stainless finish with innovative clear-coat resists fingerprints & dirt), dice size cubes

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice ID-0322A Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production 335 lbs
Also Known As 399-SD0322A,399-IY0322A161, SD-0322A, IY-0322A, QD0322A, JD0322A, BD0322A
Compressor Type Air Cooled
Depth (in) 25
Height (in) 22
Ice Style Full Cube
Ice Type Cube
Specialty Options Digital Controls
Voltage 115/60/1
Width (in) 22
Weight 137.00
