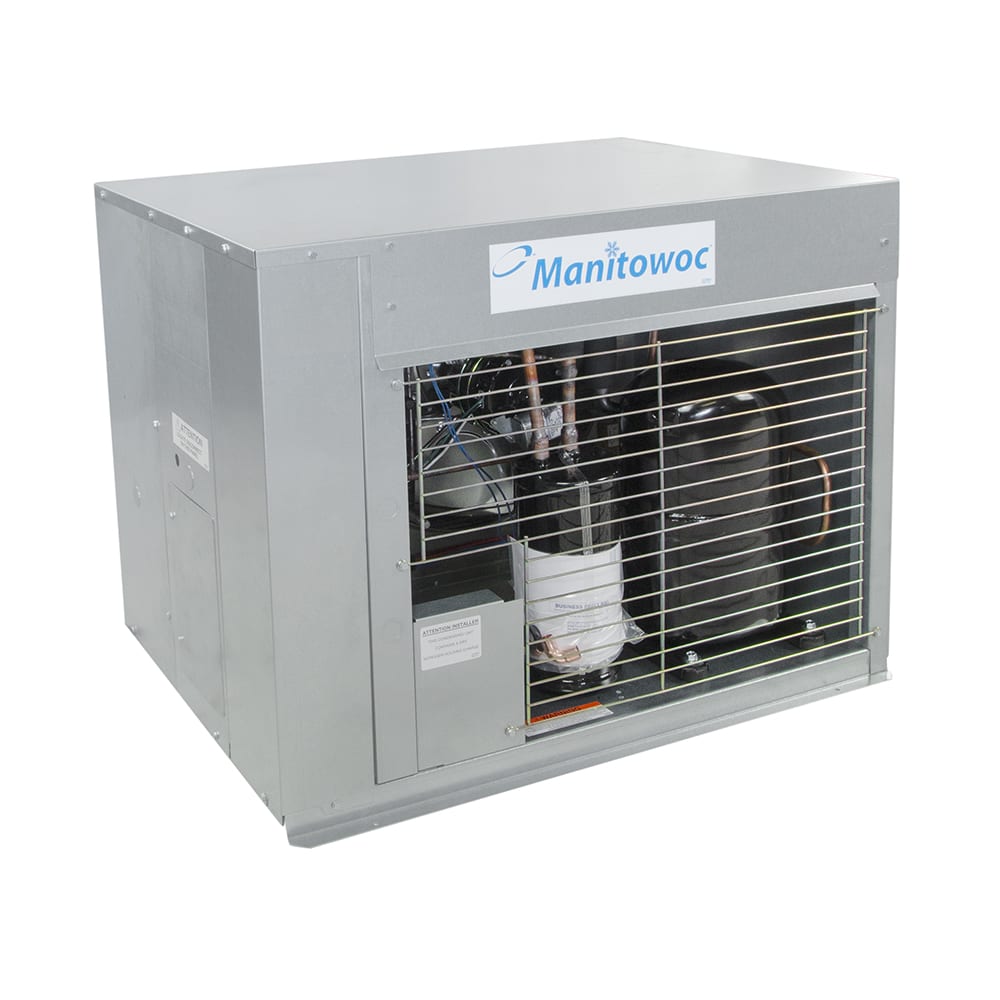

Manitowoc Ice ICVD-2096 Air Cooled Remote Ice Machine Compressor for i-2176C, 208-230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 399-ICVD2096261 • MPN: ICVD-2096 261
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Price: $3,255.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice ICVD-2096 Description

Manitowoc Ice

The Manitowoc Ice ICVD-2096 remote ice machine condenser operates in a separate location from the ice maker, dissipating heat and providing quiet operation. Quieter than most other remote condensing units, it uses cool vapor defrost technology to cool the ice machine’s motor. This Manitowoc Ice ICVD-2096 remote ice machine compressor is compatible with ID-2176C and IY-2176C ice machine heads and operates in environments where ambient air stays between -20 and 130 degrees Fahrenheit.

Product Details

  • Dissipates heat away from the ice machine head for front-of-the-house applications
  • Cool vapor defrost (CVD) technology is quieter than most hot gas evaporators
  • Made for QuietQube® ID-2176C and IY-2176C ice machine heads
  • Ambient air temperature range for operation: -20 to 130 degrees F
  • 31,500 BTU
  • 312 HP
  • 208-230 V/60 Hz/1 ph
  • Overall dimensions: 52.5 in. W x 26 in. D x 26 in. H
  • cULus listed; AHRI and NSF certified

Product Features

Manitowoc icvd2096261 Features

More in-depth information on ice machines and remote compressors is available in the ice machines buyers' guide.

Remote Condensing Unit, air-cooled, i-2176C Series (QuietQube), 3-1/2 HP compressor, AHRI, NSF, cULus, 208-230v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice ICVD-2096 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
Depth (in) 26
Height (in) 26
Width (in) 53
Width (in) Range 50 - 80 in
Hertz 60
Voltage 208/230
Phase 1
For Use With i-2176C
Warranty 5 years parts & 3 year labor
Product Type Ice Machines
Product Parts & Accessories
Part Type Compressor
Weight 266.00
Manitowoc Ice ICVD-2096 Certifications
  • UL
  • NSF
