Thermo-kool TK30BCF-2 62" Floor Model Roll In Blast Chiller/Shock Freezer - (20) Pan Capacity, 208v/1ph

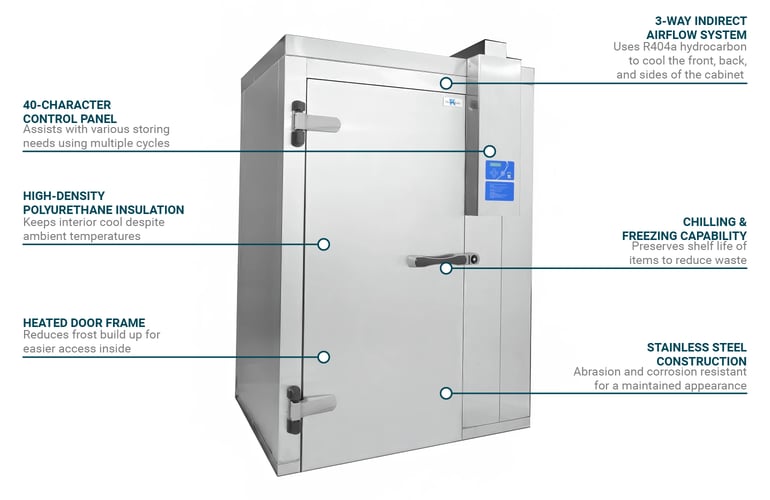

When the Thermo-kool TK30BCF-2 floor model roll-in blast chiller is installed with the Thermo-kool remote condenser (sold separately), this unit can blast chill 300 pounds of product from 165 to 37 degrees Fahrenheit within two hours and shock freeze up to 200 pounds from 165 to 0 degrees Fahrenheit within four hours. A reinforced, three-way airflow system and multipoint evaporator create a consistently cold blanket over products for better preservation. Users can apply the 40-character display with controls to engage the following cycles: soft chill, hard chill, and evaporator defrost. After service, this unit enters a holding mode so products remain at safe serving temperatures unless removed. Users should note this control panel can save 150 recipes, has a real-time clock, and a built-in dry contact for an external alarm or phone dialer connection.

The TK30BCF-2 floor model roll-in blast chiller and shock freezer provides a 62-inch width by 52⁵/₈-inch depth by 86-inch height, which is great for fast food chains, restaurants, and schools. Its high-density CFC-free polyurethane insulation helps the interior stay cool and minimizes the influence of ambient temperatures. When racks, pans, or sheet pans placed inside the unit are filled with various culinary selections, the interior’s 304 stainless steel body and urethane tongue-and-groove hard rail perimeter withstand frequent foot traffic. The door at the front sits on a heavy-duty “U” channel frame that heats to reduce frost for easier access inside.

Product Details

• Roll-in design
• Can hold the following: (1) 75-in. tall rack, (40) 12 in. x 20 in. pans, or (20) sheet pans
• Single door
• Heavy-duty, reinforced “U” channel door frame heats to reduce frost build up
• 304 stainless steel interior and exterior
• 304 stainless steel reinforced floor
• 4-in. panels with urethane tongue and groove hard rail perimeter
• Interior insulated with CFC-free polyurethane insulation

Refrigeration Details

• Remote condensing sold separately
• Electric and refrigeration components placed on 304 stainless steel uniframe modular chiller for simplified setup
• 3-way airflow system passes R404a hydrocarbon refrigerant
• Multipoint evaporator provides gradient temperature over products
• Soft chill, hard chill, and evaporator defrost modes
• Separate holding mode
• Food probe and air probe assists with monitor temperatures

Dimensions & Utilities

• 62 in. W x 52⁵/₈ in. D (89³/₈ in. D with door open) x 86 in. H
• 15 A
• 208 V/60 Hz/1 ph

Product Features

*Free shipping on Thermo-kool TK30BCF-2 within the 48 contiguous states.

From The Manufacturer

Blast Chiller/ Shock Freezer, roll-in, designed for remote refrigeration (compressor sold separately), (1) door, accommodates (1) rack sizes up to 35"W x 38"D x 75"H, (40) 12" x 20" x 2-1/2" pan capacity or (20) sheet pans, chill (300 lb) 165°F to 37°F /2hr & freeze (200 lb) 165°F to 0°F/4hr, manual/fully automatic controls with (1) heated food probe & (1) air probe, 2" 304 stainless steel heavy-duty reinforced floor, 304 stainless steel interior & exterior, includes: uniframe evaporator & condensing unit, R404a, 208v/60/1ph, 15 amps, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Thermo-kool TK30BCF-2 Specifications

Spec Attribute	Spec Value
Manufacturer	Thermo-kool
Additional Info	Refrigeration Sold Separately
Compressor Location	Remote
Depth (in)	47.5
Height (in)	87
Hertz	60
Pan Capacity	20
Phase	1
Product	Blast Chillers
Product Type	Commercial Refrigeration
Refrigerant	R404A
Special Features	Probe
Special Features	Shock Freezer Performance
Type	Floor Model
Type	Remote
Voltage	208
Warranty	1-year Limited Parts and Labor
Width (in)	62
Weight	1000.00
