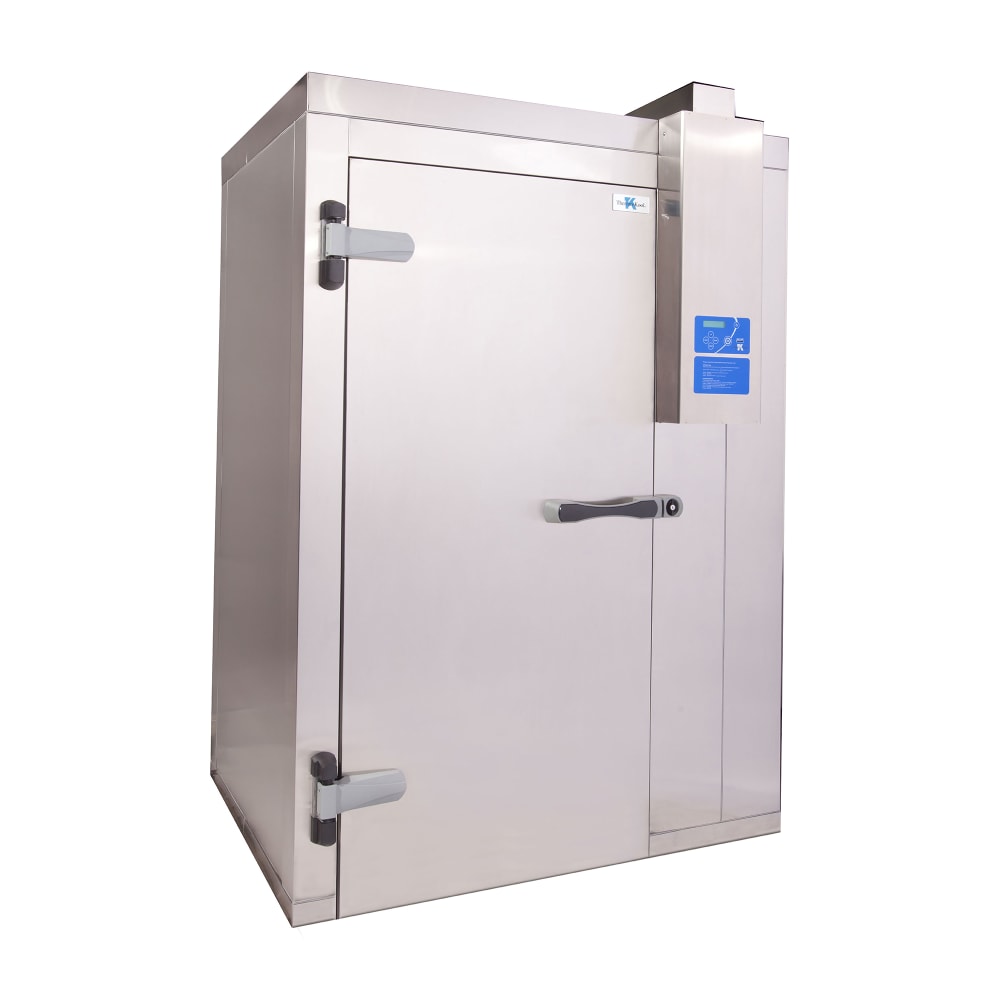

Thermo-kool TK26BCF-1 50" Floor Model Roll In Blast Chiller/Shock Freezer - (13) Pan Capacity, 115v/1ph

The Thermo-kool TK26BCF-1 floor model roll-in blast chiller and shock freezer’s electrical and refrigeration components are set up on a modular uniframe chiller system that eases installation. Once this unit is installed, it benefits from a three-way air-forced system to assist with accelerating R404a refrigerant along the unit’s interior cabinet, allows various chilling and freezing processes to take place. The unit’s 40-character control panel filters between the following cycles: soft chill, hard chill, shock freeze, and evaporator defrost to accomplish many day-to-day tasks. This unit blast chills 220 pounds of product from 165 to 37 degrees Fahrenheit and shock freezes 140 pounds of product within four hours when installed with the remote condensing unit (sold separately).

This Thermo-kool TK26BCF-1 floor model roll-in blast chiller’s 36-inch depth and 86-inch height can accommodate one rack as large as 27 inches wide by 29 inches deep by 74 inches high. Meanwhile, it grants space for other configurations like (26) 12-inch by 20-inch by 2¹/₂-inch pans or 13 sheet pans. The body of this unit supports an all 304 stainless steel construction that offers strength, abrasion resistance, and minimal corrosion. To prolong its lifespan and efficiency, this unit consists of 4-inch panels and a patented urethane tongue-and-groove hard rail perimeter. For consistent temperature keeping so items remain at food-safe temperatures, the interior is insulated with CFC-free polyurethane. This unit’s door sits on a high-strength “U” channel frame, and to prevent frost build up, it heats through electronic control.

Product Details

• Structured as a roll-in unit
• Holds (1) 27 in. W x 29 in. D x 74 in. H rack, 13 sheet pans, or (26) 12 in. x 20 in. x 2¹/₂ in. pans
• 1 solid door fitted to structure
• 304 stainless steel interior and exterior
• 4-in. panels with foamed-in-place urethane
• Tongue-and-groove hard rail perimeter
• 304 stainless steel heavy-duty reinforced floor
• Heated u-channel door frame with fully adjustable hinges
• 33,000 BTU

Refrigeration System

• Remote condensing sold separately
• Air probe and heated food probe monitor temperatures
• R404A hydrocarbon refrigerant
• Electrical and refrigeration components assembled on uniframe modular chiller system
• 3-way unique airflow guidance
• Multipoint high-efficiency evaporator
• 2-line, 40-character display provides the following: soft chill, hard chill, and evaporator defrost

Dimensions & Utilities

• 52 in. W x 46¹/₈ in. D (70¹/₄ in. D with door open) x 86 in. H
• 15 A
• 115 V/60 Hz/1 ph

*Free shipping on Thermo-kool TK26BCF-1 within the 48 contiguous states.

From The Manufacturer

Blast Chiller/ Shock Freezer, roll-in, designed for remote refrigeration (compressor sold separately), (1) door, accommodates racks sizes up to 27"W x 29"D x 74"H, (26) 12" x 20" x 2-1/2" pan capacity or (13) sheet pans, chill (220 lb) 165°F to 37°F /2hr & freeze (140 lb) 165°F to 0°F/4hr, manual/fully automatic controls with (1) heated food probe & (1) air probe, 2" 304 stainless steel heavy-duty reinforced floor, 304 stainless steel interior & exterior, R404a, 115v/60/1ph, 15 amps, ETL, TEL-Sanitation

*Image may not depict product color, inclusions or accessories.

Thermo-kool TK26BCF-1 Specifications

Spec Attribute	Spec Value
Manufacturer	Thermo-kool
Additional Info	Refrigeration Sold Separately
Compressor Location	Remote
Depth (in)	36
Height (in)	86
Hertz	60
Pan Capacity	13
Phase	1
Product	Blast Chillers
Product Type	Commercial Refrigeration
Refrigerant	R404A
Special Features	Probe
Special Features	Shock Freezer Performance
Type	Floor Model
Type	Remote
Voltage	115
Warranty	1-year Limited Parts and Labor
Width (in)	50
Weight	900.00
