Thermo-kool TK20-2 32 3/8" Floor Model Blast Chiller/Shock Freezer - (10) Pan Capacity, 208v/1ph

Compared to other floor models and blast chiller units, the Thermo-kool TK20-2 floor blast chiller and shock freezer reduces bacteria using a reinforced freezing system. This unit is meant to preserve various items when blast chilling as much as 125 pounds of product from 165 to 37 degrees Fahrenheit and shock freezing 80 pounds of product from 165 to 0 degrees Fahrenheit. The control panel—featuring a 40-character range—provides the operator with other cycles, such as soft chill, hard chill, and evaporator defrost. Furthermore, its three-way indirect airflow system moderates R404a hydrocarbon refrigerant from the front, back, and sides of the unit for effective cooling or freezing. Throughout day-to-day tasks, these cabinet temperatures are simple to monitor with the heated food probe and air probe; this also eases this unit’s automatic operation.

This Thermo-kool TK20-2 floor model blast chiller and shock freezer model measures 32²/₅ inches wide by 35¹/₂ inches deep by 66⁷/₈ inches high. It sits on adjustable legs to help level the unit on uneven flooring. The interior of this floor model unit can hold (20) 12-inch by 20-inch by 2¹/₂-inch pans or 10 sheet pans and once stored at capacity, the interior can be accessed via the field-reversible door. This unit does ship with five shelves to ease initial setup processes while optimizing the interior layout. A drain pan removes excessive moisture for sanitary storage; meanwhile, this unit’s stainless steel construction provides a capable structure that reduces rust and corrosion.

Product Details

• Reach-in design
• Interior supplied with 5 shelves
• Supports (20) 12 in. x 20 in. x 2¹/₂ in. pans or (10) sheet pans
• Field-reversible door
• Simple-to-use handle and seamless magnetic gasket are easily removable
• 304 stainless steel interior and exterior
• Interior is foamed in place with high-density CFC-free polyurethane
• Built-in backstep for heightened condensing and ventilation
• Adjustable legs
• Removable drain pan

Refrigeration System

• Self-contained, air-cooled refrigeration system at top
• R404A hydrocarbon refrigerant
• Chills to 37 degrees F and freezes to 0 degrees F
• 3-way indirect airflow system for even temperatures
• Multipoint injection evaporator delivers close gradient temperature over product
• 40-character display formats the following cycles: soft chill, hard chill, shock freeze, and evaporator defrost
• Includes 1 heated food probe and 1 air probe

Dimensions & Utilities

• 32²/₅ in. W x 35¹/₂ in. D x 66⁷/₈ in. H
• 20 A
• 208 V/60 Hz/1 ph, NEMA L6-20P plug

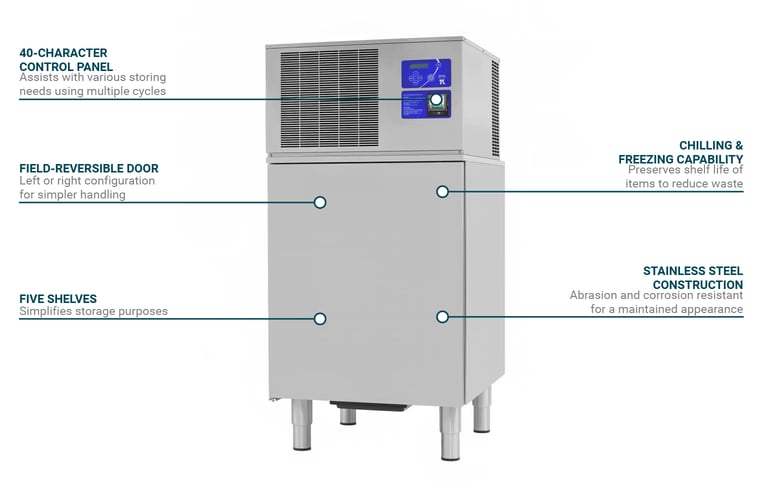

Product Features

From The Manufacturer

Blast Chiller/ Shock Freezer, reach-in, top mounted self contained refrigeration, (20) 12" x 20" x 2-1/2" pan capacity or (10) sheet pans, (1) reversible door, chill (125 lb) 165°F to 37°F /2hr & freeze (80 lb) 165°F to 0°F/4hr, manual/fully automatic controls with (1) heated food probe & (1) air probe, (5) shelves, 304 stainless steel interior & exterior, adjustable legs, R404a, 208v/60/1ph, 20 amps, NEMA L6-20P, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

1-year Limited Parts and Labor
