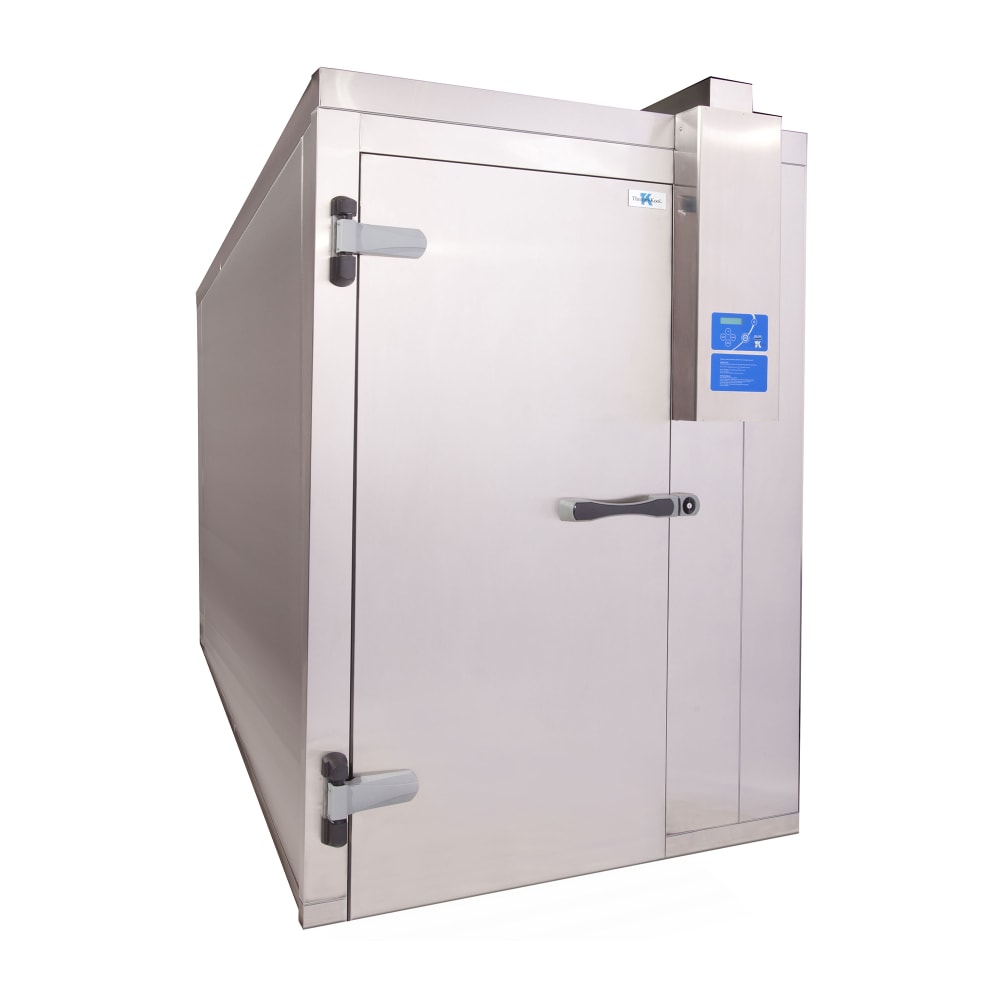

Thermo-kool TK140BCF-2 62" Floor Model Roll In Blast Chiller/Shock Freezer - (60) Pan Capacity, 208v/1ph

The Thermo-kool TK140BCF-2 floor model roll-in blast chiller and shock freezer features an overall size of 62 inches wide by 139⁵/₈ inches deep by 87 inches high, though it has a 176³/₈ inch depth with the door open. Its tall door supports the insertion of three racks with a height that measures 75 inches. To support various capacities while warping, scratching, or corroding minimally, this roll-in blast chiller features a durable 2-inch floor made of reinforced 304 stainless steel. The perimeter of the unit is surrounded by 4-inch panels that are foamed in with CFC-free high-density polyurethane for added insulation. While these temperatures remain consistent, this unit features one temperature probe and one air probe to monitor the cold environment.

A two-line, 40-character control system simplifies the Thermo-kool TK140BCF-2 floor model roll-in blaster’s operation. Users can monitor and input various cycles, such as soft chill, hard chill, and evaporator defrost, though a remote condensing unit is sold separately to provide blast chilling and shock freezing. For even cooling around the front and back of the cabinet’s interior, this unit benefits from a three-way air-forced system and multi-point injection evaporator. To minimize its impact on the ozone layer, this chiller and freezer duo uses R404a hydrocarbon refrigerant. At high freeze temperatures, the door frame has electronically controlled heating to reduce the collection of frost.

Product Details

• Roll-in design
• (120) 12 in. x 20 in. x 2¹/₂ in. pans or 60 sheet pans
• Chills 1,400 pounds of product
• 4-in. panels with patented DURATHANE
• 100-percent urethane tongue and groove hard rail perimeter
• Interior foamed in place with CFC-free polyurethane
• Door mounted on heavy-duty reinforced steel “U” channel frame
• Door frame is heated to reduce frost build up
• 304 stainless steel construction
• Mirror-finished 304 stainless steel interior
• Reinforced floor fabricated of stainless steel

Refrigeration System

• Remote condenser system retailed separately
• 404A hydrocarbon refrigerant
• 3-way airflow system within food compartment
• Soft chill, hard chill, and evaporator defrost cycles available
• Multi-point injection high-efficiency evaporator
• Singular food probe and air probe monitors temperatures

Dimensions & Utilities

• 62 in. W x 139⁵/₈ in. D (176³/₈ in. D with door open) x 87 in. H
• 20 A
• 208 V/60 Hz/1 ph

*Free shipping on Thermo-kool TK140BCF-2 within the 48 contiguous states.

From The Manufacturer

Blast Chiller/ Shock Freezer roll-in, designed for remote refrigeration (compressor sold separately), (1) door, accommodates (3) racks sizes up to 35"W x 38"D x 75"H, (120) 12" x 20" x 2-1/2" pan capacity or (60) sheet pans, chill (1400 lb) 165°F to 37°F /2hr & freeze (930 lb) 165°F to 0°F/4hr, manual/fully automatic controls with (1) heated food probe & (1) air probe, 2" 304 stainless steel heavy-duty reinforced floor, 304 stainless steel interior & exterior, R404a, 208v/60/1ph, 20 amps, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Thermo-kool TK140BCF-2 Specifications

Spec Attribute	Spec Value
Manufacturer	Thermo-kool
Additional Info	Refrigeration Sold Separately
Compressor Location	Remote
Depth (in)	134.5
Height (in)	87
Hertz	60
Pan Capacity	60
Phase	1
Product	Blast Chillers
Product Type	Commercial Refrigeration
Refrigerant	R404A
Special Features	Probe
Special Features	Shock Freezer Performance
Type	Floor Model
Type	Remote
Voltage	208
Warranty	1-year Limited Parts and Labor
Width (in)	62
Weight	2600.00
