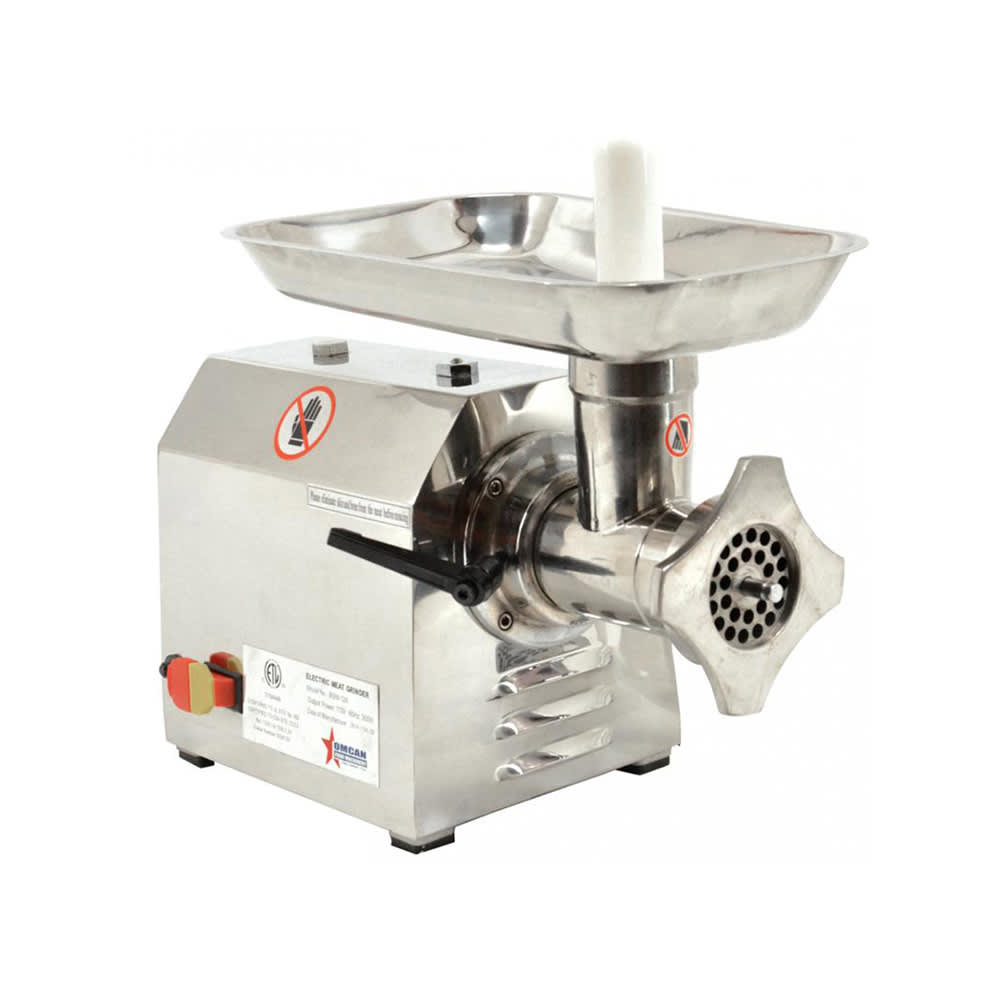

Omcan 23580 Countertop Meat Grinder w/ 260 lb/hr Capacity, 110v

Built with a gear-driven transmission and 0.87-maximum-horsepower motor, the Omcan 23580 (MG-CN-0012-S) meat grinder can mince and grind 260 pounds of meat per hour—an output great for small butcher shops and delis. To produce different consistencies of ground meat, it's equipped with three spouts (⁵⁹⁄₁₀₀ inches, ⁷⁹⁄₁₀₀ inches, and ⁹¹⁄₁₀₀ inches) and two machine plates (⁶⁄₂₅ inches and ³¹⁄₁₀₀ inches). This 7³¹⁄₅₀-inch-wide by 17³¹⁄₅₀-inch-deep by 13³⁷⁄₁₀₀-inch-tall unit's body, housing, and head are made of stainless steel—a durable, rust-, bend-, and scratch-resistant metal.

Product Details

• Countertop unit
• Grinds as much as 260 lbs. of meat per hour
• Stainless steel body, housing, and head
• ⁶⁄₂₅-in. (6-mm.) and ³¹⁄₁₀₀-in. (8-mm.) machine plates
• 3 spout sizes: ⁵⁹⁄₁₀₀ in. (15 mm.), ⁷⁹⁄₁₀₀ in. (20 mm.), and ⁹¹⁄₁₀₀ in. (23 mm.)
• Carbon steel knives
• 2-in. throat opening
• Gear-driven transmission

Dimensions & Utilities

• Pan: 9¹/₄ in. W x 14¹/₂ in. D x 2 in. H
• Grinder body: 7³¹⁄₅₀ in. W x 17³¹⁄₅₀ in. D x 11³⁷⁄₁₀₀ in. H
• 0.65 kW, 0.87 HP
• 110 V/60 Hz/1 ph, includes cord and NEMA 5-15P plug

Product Features

From The Manufacturer

(MG-CN-0012-S) Meat Grinder, electric, #12 head, 260 lb./hour capacity, (3) spouts (15mm, 20mm & 23mm), carbon steel knives & (2) machine plates (6mm & 8mm), stainless steel construction, .87 HP, 110v/60/1-ph, cord, NEMA 5-15P, cETLus, CE (shipped on pallet)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Omcan 23580 Specifications

Documents

Spec Sheet

Warranty

Manual
