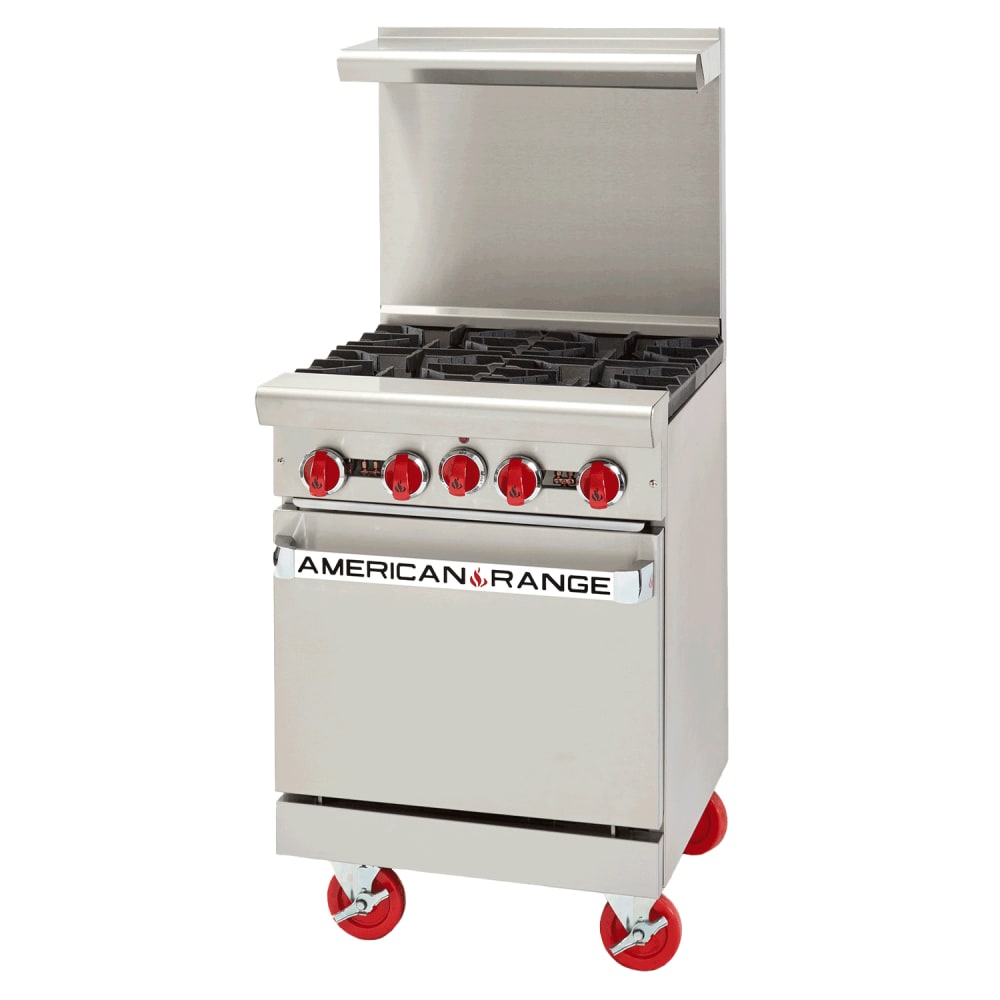

American Range AR-4 24" 4 Burner Gas Range w/ Space Saver Oven, Natural Gas
QUICK SHIP: Typically ships in 1 - 3 Business Days
Selected Gas Type: Natural Gas
Liquid Propane
White Glove Delivery
Contact your sales rep for availability
American Range AR-4 Description
The American Range AR4 gas range is a good choice for locations with limited available space or that produce small to medium volumes of baked and roasted food items. Its four lift-off, open burners are topped with heavy-duty, sectioned, cast iron grates that can reach a high heat and maintain it better than stainless steel alternatives. Although the oven has a compact design that uses minimal space, it can hold a standard full-sized sheet pan for large-batch food preparation.
This American Range AR4 four-burner range is made of heavy-gauge stainless steel and has a heavy-duty, welded front frame that adds support to the unit's structure. This construction resists rust, dents, and warping, even with extended use. Cleaning and sanitizing this item are simple—the stainless steel oven door and split iron grates are removable for unrestricted operator access. The included oven rack is plated with chrome for resistance to stuck-on food and corrosion.
Product Details
- 12-in. x 12-in. sectioned, cast iron top grates
- 4 lift-off, open range burners are removable for cleaning
- 32,000 BTU/hr. per range burner
- 24-in.-wide cook surface
- Thermostatic temperature control for range and oven
- Temperature range: 150-500 degrees F
- Oven bottom, sides, back, and door liner are made of porcelain finish enamel
- 1 matching, chrome-plated oven rack is included
- 100 percent safety oven pilot
- 100 percent safety gas shut-off
- 6-in. heavy-duty, stainless steel landing ledge
- Stainless steel front, sides, high shelf, and riser are suitable for high-volume use
- Matchless, push-button ignition reduces the danger of burns
- 1 standing pilot light for each burner, providing instant ignition
- (4) 6-in. steel legs, chrome plated for corrosion resistance
- 155,000 BTU overall
Dimensions & Utilities
- Oven interior: 20 in. W x 261⁄2 in. D x 131⁄2 in. H
- Overall: 24 in. W x 281⁄2 in. D x 56 in. H
- Heated by natural gas
- Gas inlet: 3⁄4-in. NPT
- 46 kW
*Free shipping on American Range AR-4 within the 48 contiguous states.
From The Manufacturer
Restaurant Range, gas, 24", (4) 32,000 BTU open burners, (1) 20" space saver oven, (2) racks, stainless steel front, sides & high shelf, 6" adjustable chrome plated legs, 46.0kW, 155,000 BTU, ETL-Sanitation, Made in USA
*Image may not depict product color, inclusions or accessories.
American Range AR-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | American Range |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Space Saver Oven |
| BTU / Burner | 32000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 32.25 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 56 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 32000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Space Saver Oven | 5 |
| Racks per Space Saver Oven | 2 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners |
| Rating | Better |
| Space Saver Oven BTU/hr | 27000 |
| Space Saver Oven Dimensions | 20"W x 26-1/2"D x 13-1/2"H |
| Total BTU | 155000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 2-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 315.00 |
